LA7326002BJTD330R datasheet, PDF

Datasheet> All Categories > Passive components> The resistor> LA7326002BJTD330R

LA7326002BJTD330R: DescriptionRESISTOR, TEMPERATURE DEPENDENT, PTC, 330ohm, SURFACE MOUNT, CHIP; CategoryPassive components The resistor; File Size67KB，1 Pages; ManufacturerKOA Speer; Websitehttp://www.koaspeer.com/

Download Datasheet Parametric View All

LA7326002BJTD330R Overview

RESISTOR, TEMPERATURE DEPENDENT, PTC, 330ohm, SURFACE MOUNT, CHIP

LA7326002BJTD330R Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	KOA Speer
package instruction	,
Reach Compliance Code	compliant
ECCN code	EAR99
JESD-609 code	e0
Manufacturer's serial number	LA73
Installation features	SURFACE MOUNT
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
Rated (AC) voltage (URac)	50 V
resistance	330 Ω
Resistor type	PTC THERMISTOR
surface mount	YES
Terminal surface	Tin/Lead (Sn/Pb)
Terminal location	DUAL
Terminal shape	WRAPAROUND
Thermistor Applications	TEMPERATURE SENSING
Tolerance	5%
Base Number Matches	1

Preview

Download Datasheet

View All

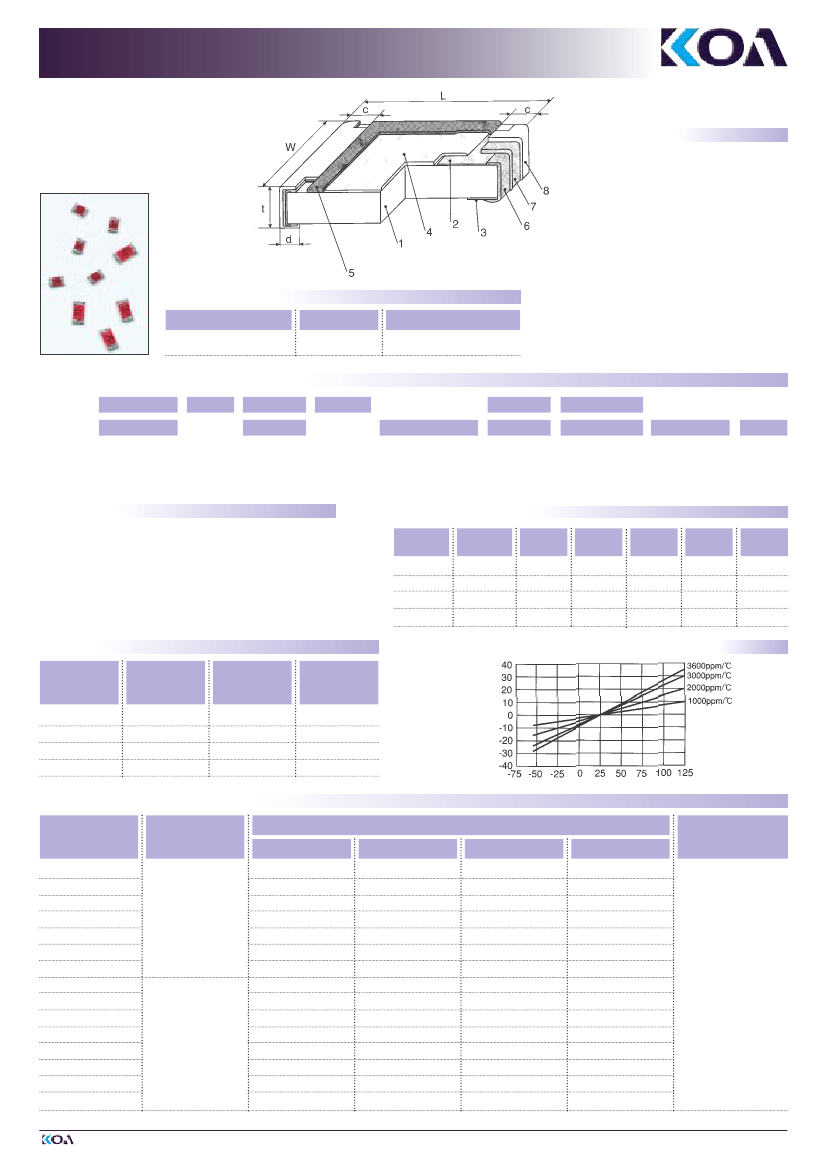

THERMAL SENSORS / CIRCUIT PROTECTORS

TECHNOLOGY OF TOMORROW

THERMAL SENSORS

LINEAR PTC, THICK FILM

LA 73

STRUCTURE

Ceramic substrate

Top termination

Bottom termination

Thick film resistor element

Protective layer

End termination

Diffusion barrier (Ni)

Solder plating (Sn 90% / Pb 10%)

IDENTIFICATION

PRODUCT CODE

LA73

COATING COLOR

Orange

MARKING

Black, 3 digits

TYPE DESIGNATION (HOW TO ORDER)

Old Part No.

New Part No.

LA73

PRODUCT CODE

T.C.R.

(ppm/K)

3300

STYLE

RESISTANCE

TOLERANCE

TERMINATION

SURFACE MATERIAL

T: Sn

L: Sn/Pb

TAPING*

*Please see “PACKAGING”

100R

101

NOMINAL

RESISTANCE

3 digits

RESISTANCE

TOLERANCE

3300

T.C.R.

(pp/m/K)

FEATURES

■

Resistance value changes in linear positive way to temperature

Quick response to the change of temperature

90/10 solder plated terminations

Anti-leaching nickel barrier terminations

15 specific temperature coefficients

Rated ambient temperature: + 70° C

Operating temperature range: - 55° C ... + 125° C

Suitable for reflow and wave soldering

DIMENSIONS (mm)

SIZE

0402

0603

0805

1206

TYPE

LA73 1E

LA73 1J

LA73 2A

LA73 2B

1.0 ± 0.1

1.6 ± 0.2

2.0 ± 0.2

3.2 ± 0.2

0.5 ± 0.1

0.8 ± 0.1

1.25 ± 0.1

1.6 ± 0.2

0.2 ± 0.1

0.3 ± 0.1

0.4 ± 0.2

0.5 ± 0.3

0.25 ± 0.1

0.3 ± 0.1

+0.2

0.3 ±

0.2

–0.1

+0.2

0.4 ±

0.2

–0.1

t ± 0.1

0.35

0.5

0.6

RATING

Specifications given herein may be changed at any time without prior notice. Please confirm technical specifications before you order and/or use.

TEMPERATURE CHARACTERISTICS

TYPE

LA73

Resistance changing rate (%)

SIZE

0402

0603

0805

1206

THERMAL

DISSIPATION

CONSTANT

6.8 mW/K

7.6 mW/K

8.2 mW/K

9 mW/K

MAX.

WORKING

VOLTAGE

10 V

25 V

50 V

Temperature (°C)

TCR AND RESISTANCE RANGE

T.C.R.*

(ppm/K)

600

800

1000

1200

1400

1600

1800

2000

2200

2400

2600

2800

3000

3300

3600

T.C.R.

TOLERANCE

RESISTANCE RANGE • E12

1E (0402)

1.2 kΩ ~ 2.2 kΩ

––

1J (0603)

––

~ 10 kΩ

~ 6.8 kΩ

~ 4.7 kΩ

~ 3.9 kΩ

~ 2.7 kΩ

~ 1.8 kΩ

~ 1.2 kΩ

~ 390

Ω

~ 220

Ω

~ 120

Ω

~ 82

Ω

2A (0805)

––

~ 10 kΩ

~ 6.8 kΩ

~ 4.7 kΩ

~ 3.9 kΩ

~ 2.7 kΩ

~ 1.8 kΩ

~ 1.2 kΩ

~ 390

Ω

~ 220

Ω

~ 120

Ω

~ 82

Ω

2B (1206)

––

1 kΩ ~ 10 kΩ

680

Ω

~ 6.8 kΩ

470

Ω

~ 4.7 kΩ

470

Ω

~ 3.9 kΩ

330

Ω

~ 2.7 kΩ

330

Ω

~ 2.7 kΩ

220

Ω

~ 1.8 kΩ

220

Ω

~ 1.2 kΩ

100

Ω

~ 1.2 kΩ

100

Ω

~ 390

Ω

~ 220

Ω

~ 120

Ω

~ 82

Ω

RESISTANCE

TOLERANCE

± 100 ppm/K

± 5%

1 kΩ

680

Ω

470

Ω

470

Ω

330

Ω

330

Ω

220

Ω

220

Ω

100

Ω

100

Ω

1 kΩ

680

Ω

470

Ω

470

Ω

330

Ω

330

Ω

220

Ω

220

Ω

100

Ω

100

Ω

J (± 5%)

*T.C.R. Measuring Temperature + 25° C/+ 75° C

EUROPE GmbH • Kaddenbusch 6 • D-25578 Dägeling / ITZEHOE • PHONE: +49 (0) 48 21 / 89 89-0 • FAX: +49 (0) 48 21/ 89 89 89 • Internet: www.koaeurope.de
