0.4mm Contact Pitch, 1.5mm above the board, Board-to-Board / Board-to-FPC Connectors
DF18 Series
Low profile – Board-to-board distance of 1.5 mm
FPC
Stiffener
Board
FPC
Stiffener
1.5
+0.2
-0.1
Board
High Contact Reliability --- Effective connection wipe of 0.4 mm
Features
1. Allows higher mounting density of board components
Extremely small board mounting pattern and low above-the-
board profile makes the connector suitable for small device
applications.
Male contact
Plug
1.5mm above the board
2. High Contact Reliability
Electrical connec tion wipe :0.4mm
Despite it’s small size and low profile the contacts have large
deflection distance, guaranteeing reliable electrical
performance.
3. Good Mating Characteristics
Large lead-in distance of 0.33 mm in horizontal directions and
tactile “click” confirms fully mated condition of connectors.
Receptacle
Female contact
4. Optional Additional Board Retention
For applications requiring extra-strong hold of connectors to the
board connectors can be ordered with optional metal hold-
down.
5. Automatic Board Placement
Connectors have large flat width (Plug: 1.4 mm, Receptacle:
1.44mm) to accommodate pick-up with automatic placement
machines.
Self-alignment distance: 0.33 mm
0.33 mm
Applications
Digital video cameras, Digital still cameras, cellular phones,
miniature displays, cameras portable equipment and other
applications requiring small reliable board-to-board and FPC-
to-Board connections.
2004.6
1.5
+0.2
-0.1
1
Product Specifications
Current rating
Rating
Voltage rating 30V AC
Item
1. Insulation resistance
2. Withstanding voltage
3. Contact resistance
4. Vibration
5. Humidity
Operating humidity range
Specification
50 M ohms min.
No flashover or insulation breakdown.
60 m ohms max.
No electrical discontinuity of 1 ms or more.
Contact resistance: 60 m ohms max.
Insulation resistance: 25 M ohms min.
Contact resistance: 60 m ohms max.
Insulation resistance: 50 M ohms min.
Contact resistance: 60 m ohms max.
No deformation of any component.
No affect on contacts.
100 V DC
100 V AC / one minute
1 mA AC, 20mv max., 1KHz
Frequency: 10 to 55 Hz, single amplitude of 0.75 mm, 2 hours / 3 axis.
+
o
96 hours at temperature of 40 - 2 C and humidity of 90 to 95%
Temperature: -55 C--> +15 C to +35 C--> +85 C--> +15 C to +35 C
Duration: 30 --> 2 to 3 --> 30 --> 2 to 3 (Minutes)
5 cycles
50 cycles
Reflow: At the recommended temperature profile
Manual soldering: 300 C for 3 seconds
o
o
o
o
o
o
o
0.3A
Operating temperature range
-35 C to +85 C (Note 1) Storage temperature range
40 C to 80 C (Note 2)
o
o
o
o
-10 C to +60 C (Note 2)
40 C to 70 C (Note 2)
o
o
o
o
Storage humidity range
Conditions
6. Temperature cycle
7. Durability (insertion/ withdrawal)
8. Resistance to soldering heat
Note 1: Includes temperature rise caused by current flow.
Note 2: The term "storage" refers to products stored for long period of time prior to mounting and use. Operating Temperature Range
and Humidity range covers non-conducting condition of installed connectors in storage, shipment or during transportation.
Materials
Product
Part
Insulator
Receptacles
Plugs
Contacts
Metal fittings
Copper alloy
Brass
Gold plated
Tin plated
Material
LCP
Finish
Color: Black
Remarks
UL94V-0
---
---
Ordering Information
Receptacles / Plugs
1
1
2
Series name: DF18
2
3
4
3
4
5
6
6
7
7
Terminal type
V: SMT vertical mounting type
Packaging type
(51): Plug,embossed tape packaging
(2,000 pieces per reel)
(81): Receptacle,embossed tape packaging
(2,000 pieces per reel)
Number of Contacts: 20, 30, 40,
50, 60, 70, 80, 100, 120
Connector type
DS: Double-row receptacle
DP: Double-row plug
Contact pitch 0.4 mm
Hold-down bracket type
B: With metal hold-down, (receptacles only)
C: With added hold-down contacts
D: With added hold-down contacts,increased
Removal Force Type(receptacle only)
E: With added hold-down contacts,increased
Removal Force Type(receptacle only)
5
2

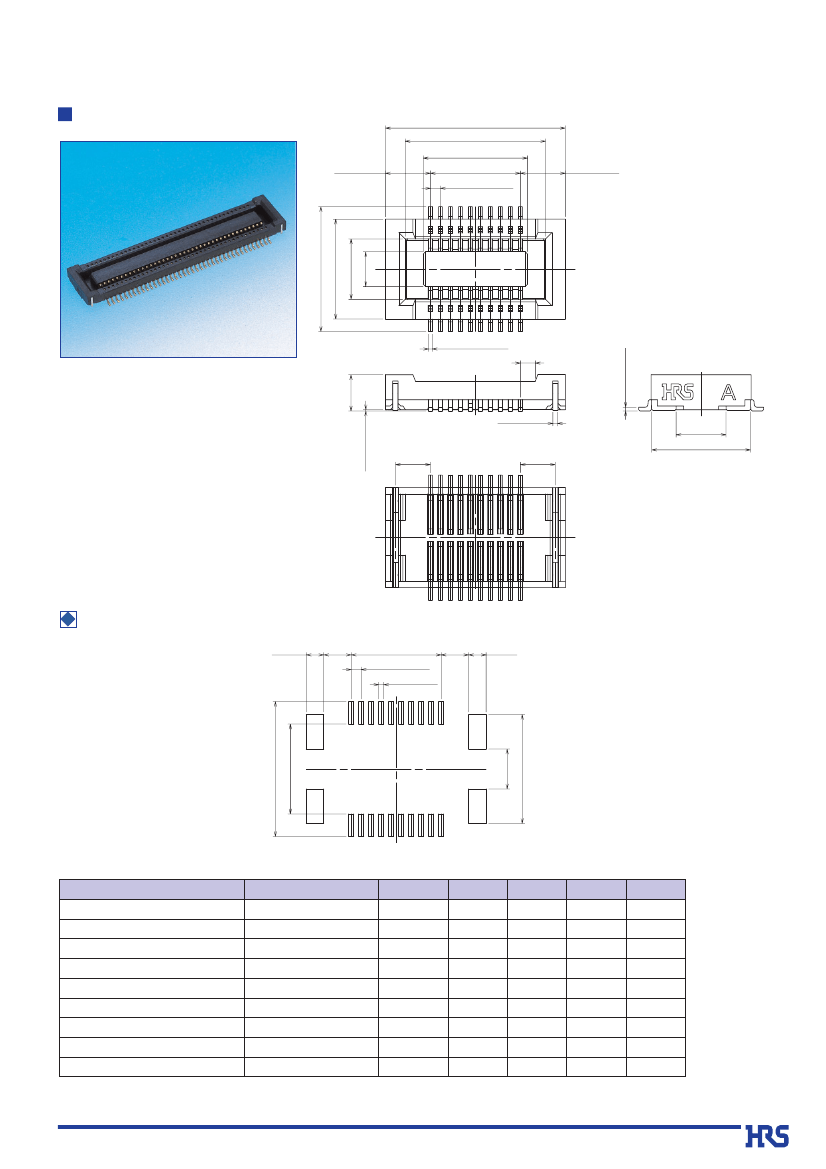

Receptacles (with metal hold-down)
1.8±0.15
A±0.2
B
+0.05
-0.03
+0.03
C
-0.05
D±0.04
P=0.4±0.04
1.8 ±0.15
5±0.2
4±0.2
2.42
+0.1
-0.03
+0.01
1.4
-0.12
1.45
+0.05
-0.15
0.05±0.05
0.2±0.03
1.4±0.1
1.4±0.1
0.15±0.03
t=0.15 ±0.02
0.6±0.06
2±0.06
3.96
+0.04
-0.08
PCB mounting pattern
±0.02 D±0.02 1.1
±0.02
0.7
+0.05
1.1
0
P=0.4±0.02
0.2±0.02
0.7
+0.05
0
5.4
+0.05
0
0
3.6
-0.05
1.6±0.02
4.36
+0.05
0
Unit: mm
Part Number
DF18B - 20DS-0.4V (81)
DF18B - 30DS-0.4V (81)
DF18B - 40DS-0.4V (81)
DF18B - 50DS-0.4V (81)
DF18B - 60DS-0.4V (81)
DF18B - 70DS-0.4V (81)
DF18B - 80DS-0.4V (81)
DF18B-100DS-0.4V (81)
DF18B-120DS-0.4V (81)
CL No.
684-0021-3-81
684-0022-6-81
684-0023-9-81
684-0005-7-81
684-0006-0-81
684-0024-1-81
Reserved for product expansion
684-0008-5-81
Reserved for product expansion
Number of Contacts
20
30
40
50
60
70
80
100
120
A
7.20
9.20
11.20
13.20
15.20
17.20
19.20
23.20
27.20
B
5.62
7.62
9.62
11.62
13.62
15.62
17.62
21.62
25.62
C
4.18
6.18
8.18
10.18
12.18
14.18
16.18
20.18
24.18
D
3.60
5.60
7.60
9.60
11.60
13.60
15.60
19.60
23.60
Note: Embossed tape reel packaging(2,000 pieces/reel)
Order by the number of reels.
3

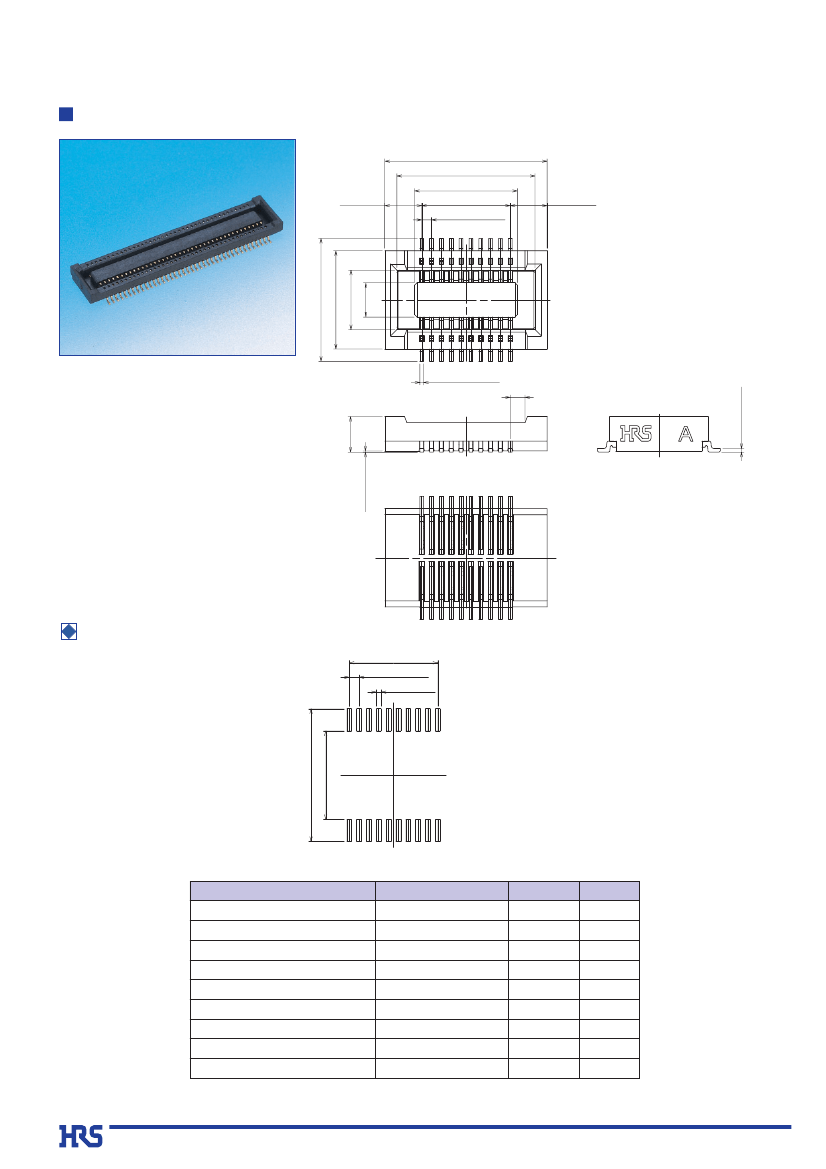

Receptacles (without metal hold-down)
A±0.2
B
+0.05
-0.03
+0.03
C
-0.05
D±0.04
P=0.4±0.04
1.5±0.1
1.5±0.1
5±0.2
4±0.2
2.42
+0.1
-0.03
1.4
+0.01
-0.12
PCB mounting pattern
A±0.02
P=0.4±0.02
0.2±0.02
5.4
+0.05
0
0
3.6
-0.05
1.45
+0.05
-0.15
0.05±0.05
Unit: mm
Part Number
DF18C - 20DS-0.4V (81)
DF18C - 30DS-0.4V (81)
DF18C - 40DS-0.4V (81)
DF18C - 50DS-0.4V (81)
DF18C - 60DS-0.4V (81)
DF18C - 70DS-0.4V (81)
DF18C - 80DS-0.4V (81)
DF18C-100DS-0.4V (81)
DF18C-120DS-0.4V (81)
CL No.
684-0017-6-81
684-0018-9-81
684-0019-1-81
684-0001-6-81
684-0002-9-81
684-0020-0-81
684-0003-1-81
684-0004-4-81
684-0013-5-81
Number of Contacts
20
30
40
50
60
70
80
100
120
A
3.60
5.60
7.60
9.60
11.60
13.60
15.60
19.60
23.60
Note: Embossed tape reel packaging (2,000 pieces/reel)
Order by the number of reels.
4
0.15±0.03
Note: Please specify metal fittings when
connecting rigid PCB’s.
t=0.15 ±0.02
0.6±0.06
Plugs (with metal hold-down terminals)
A
--0.05
0.58
0.15
+0.03
C 0.04
P=0.4 0.04
0.58
0.15
0.2
2.36
-- 0.1
+0.03
1.44
--0.03
+0.1
B
--0.03
+0.05
3.98
0.15
0.1
0.03
1.16
A
0.05 0.05
Note 1
Note 1
PCB mounting pattern
0.6
0.6
0.02
0.02
(C-1.6) 0.02
P=0.4 0.02
0.2 0.02
0.6 0.02
0.6 0.02
Note 1
Note 1
Added hold-down contacts
Note 1: The terminals located at each of the 4 corners provide additional
hold to the board’s mounting surface and are not part of electrical
connection.
When counting the terminal leads the number of actual electrical circuits is
lower by 4. Example: Connector with 24 terminal leads will have 20 actual
electrical connections when mated with corresponding part.
Note 2: Please note that mounting of parts within the area of the broken
lines will prevent the connector from mating.
D: When the corresponding connector is DF18B- DS-0.4V (
)
E: When the corresponding connector is DF18C- DS-0.4V (
)
4.38
+0.05
0
0
2.72
-0.05
6
D,E

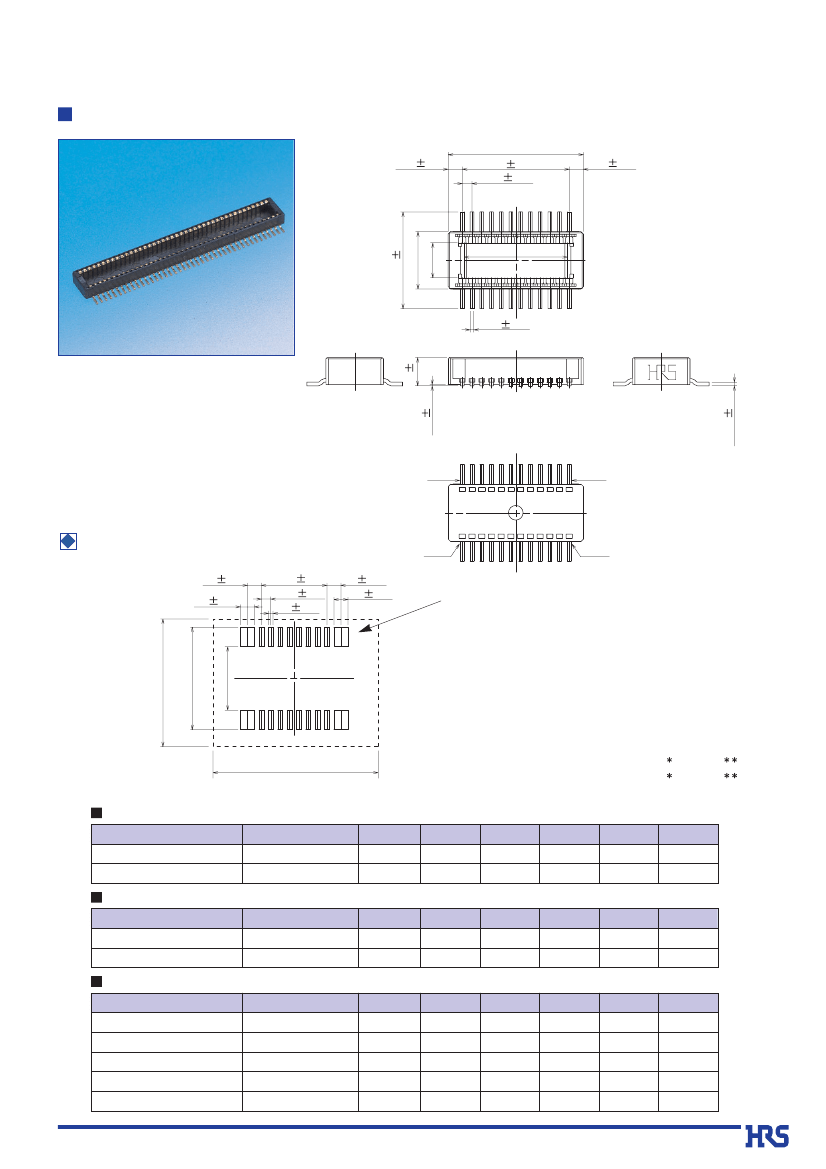

Plugs (with metal hold-down terminals, increased Removal Force)
Part Number
DF18D-20DP-0.4V (51)
DF18D-30DP-0.4V (51)
CL No.
684-0029-5-51
684-0030-4-51
Number of Contacts
20
30
A
5.56
7.56
B
4.24
6.24
C
4.40
6.40
D
7.20
9.20
E
6.60
8.60
Plugs (with metal hold-down terminals, increased Removal Force)
Part Number
DF18E-40DP-0.4V (51)
DF18E-50DP-0.4V (51)
CL No.
684-0031-7-51
684-0032-0-51
Number of Contacts
40
50
A
9.56
11.56
B
8.24
10.24
C
8.40
10.40
D
11.20
13.20
E
10.60
12.60
Plugs (with metal hold-down terminals)
Part Number
DF18C - 60DP-0.4V (51)
DF18C - 70DP-0.4V (51)
DF18C - 80DP-0.4V (51)
DF18C-100DP-0.4V (51)
DF18C-120DP-0.4V (51)
CL No.
684-0010-7-51
684-0028-2-51
684-0011-0-51
684-0012-2-51
684-0014-8-51
Number of Contacts
60
70
80
100
120
A
13.56
15.56
17.56
21.56
25.56
B
12.24
14.24
16.24
20.24
24.24
C
12.40
14.40
16.40
20.40
24.40
D
15.20
17.20
19.20
23.20
27.20
E
14.60
16.60
18.60
22.60
26.60
t=0.15 0.02
5
