Rotary Switches
SR2511F-0205-19R0B-E9-N-W, SR2511F-0206-19R0B-E9-N-W,
SR2511F-0304-19R0B-E9-N-W, SR2511F-0403-19R0B-E9-N-W,
SR2511F-0602-19R0B-E9-N-W, SR2511F-0112-19R0B-E9-N-W

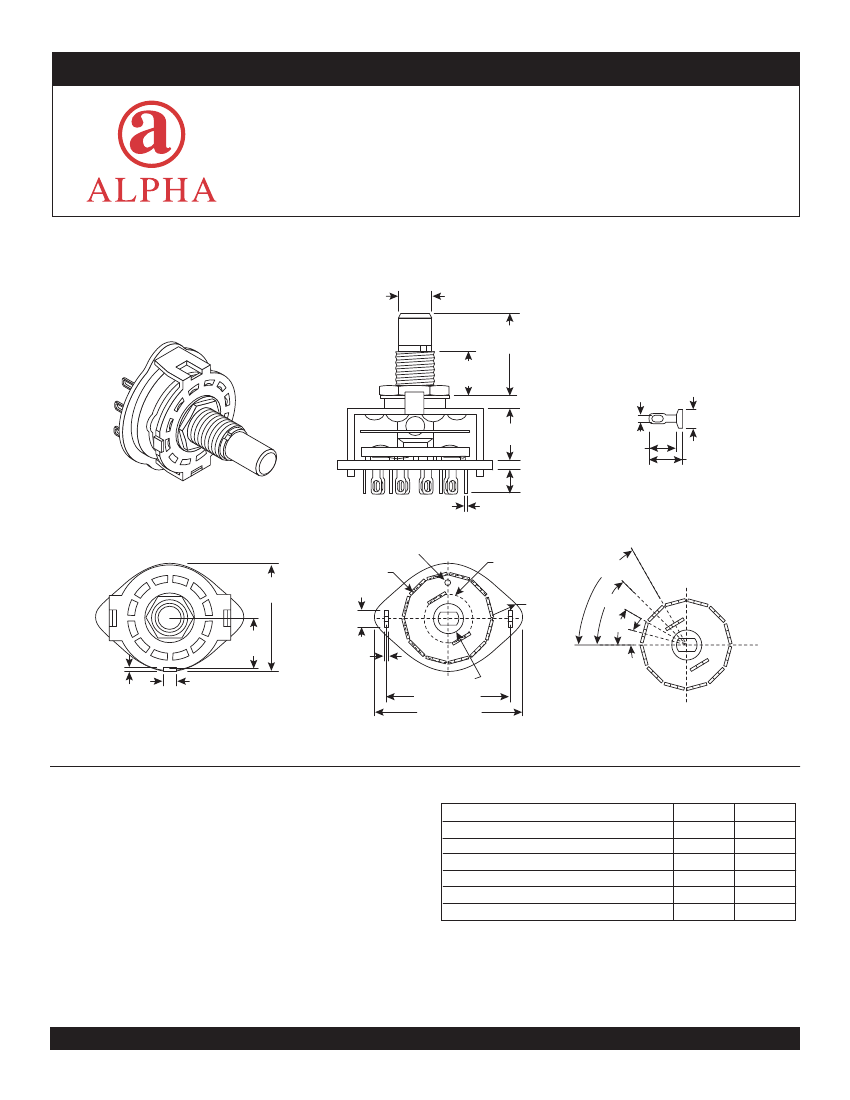

Dimensions: mm (In)
6.35
(.25)
18.92
(.745)
9.39
(.37)
1.01 (.04)
9.91
(.39)
1.52 (.06)
4.57 (.18)
.55 (.022)
Registration
Mark
ø19.98
(ø.787)
ø24.99
(ø.984)
3.09
(.122)
11.93
(.47)
.99 (.039)
11
9
10
8
7
6
5
1
2
3
4
1.01
(.04)
3.09
(.122)
5.84 (.23)
6.35 (.25)
ø10.99
(ø.433)
R6
60°
45°
30°
15°
12
.76
(.03)
3.04
(.12)
ø6.04 (ø.238)
27.17 (1.07)
30.98 (1.22)
Electrical Specifications:
•
Rating: 0.3A/125VAC
•
Contact resistance: 30mΩ max. 1A
•
Insulation resistance: 10MΩ @ 500VDC min.
•
Dielectric strength: 500VAC for 1 minute
Mechanical Specifications:
•
Type: non-shorting contact (break before make)
•
Rotation torque: 1~3KG/cm
Materials:
•
Hardware included: 1 hexagon nut & 2 washers
•
Shaft: 1/4"
Alpha Part No.
SR2511F-0205-19R0B-E9-N-W
SR2511F-0206-19R0B-E9-N-W
SR2511F-0304-19R0B-E9-N-W
SR2511F-0403-19R0B-E9-N-W
SR2511F-0602-19R0B-E9-N-W
SR2511F-0112-19R0B-E9-N-W
Poles
2
2
3
4
6
1
Position
5
6
4
3
2
12
Note:
•
RoHS Compliant
Available from Mouser Electronics
www.mouser.com
(800) 346-6873
