REVISION Z
HLE-1XX-02-XX-DV-XE-XX
No OF POSITIONS
-02 THRU -50
(PER ROW)
LEAD STYLE
-02
PLATING SPECIFICATION
-G: GOLD (SEE TABLE 1)
-L: 10µ" LIGHT SELECTIVE GOLD IN CONTACT
AREA MATTE TIN ON TAIL
-S: 30µ" SELECTIVE GOLD IN CONTACT
AREA MATTE TIN ON TAIL
-F: 3µ" FLASH SELECTIVE GOLD IN CONTACT
AREA MATTE TIN ON TAIL
-LM: 10µ"LIGHT SELECTIVE GOLD IN CONTACT
AREA MATTE TIN ON TAIL
-SM: 30µ" SELECTIVE GOLD IN CONTACT
AREA MATTE TIN ON TAIL
.200
REF
01
OPTION
-BE: BOTTOM ENTRY
(USE RHLE-50-DBE)
(SEE FIG 3)
(AVAILABLE ON -PE
STYLE ONLY)
-LC: LOCKING CLIP (SEE NOTE 10)
(USE LC-08-TM-01)
(AVAILABLE ON -PE
STYLE ONLY)
-TR: TAPE & REEL
(2 - 29 POSITIONS ONLY)
(-TE & -PE OPTIONS ONLY)
-P: METAL PAD
(USE LMP-02)
(SEE FIG 2)
ENTRY STYLE
-PE: PASS THROUGH ENTRY
(SEE FIG 1)
-TE: TOP ENTRY
(SEE FIG 2)
ROW SPECIFICATION
-DV: DOUBLE VERTICAL
(USE RHLE-50-DXX)
DO NOT
SCALE FROM
THIS PRINT
C
No OF POS. x .100
- .005
(No OF POS. -1) x .100
02
+.008
.100 REF
"A"
.138
REF
.050 (TYP)
.010 REF
"A"
2° MAX SWAY
(TYP)
.020 REF
Z
2° MAX SWAY
(TYP)
(SEE SECTION "A"-"A", SHT 2 FOR DIMENSIONS)
({(No. OF POS - 2) x .100} .005
Z
FIG 1
(-PE: PASS THROUGH ENTRY)
NOTES:
(SHOWN WITH -LC OPTION)
1.
C
REPRESENTS A CRITICAL DIMENSION.
2. CUT ASSEMBLIES AFTER FILL. CUT FLASH TO BE .010 MAX WITH NO FLASH
ALLOWED IN HOLES OR EXTENDING BELOW LEADS. WILL LOSE A POSITION
FOR EVERY CUT.
3. TUBE POSITIONS 03 THRU 50. LAYER PACKAGE POSITION 02.
4. ENDWALL THICKNESS: .030 .003.
5. MINIMUM CONTACT RETENTION IN PLASTIC: 12 OUNCES
6. AFTER PLATING, PIN IS NAMED SUB-C-132-10-X. AFTER FORMING, PIN IS C-132-10-X
7. MAX VARIATION OF 3 DEGREES WITHIN 16 PINS.
8. MEASURE FROM BEND TO TIP OF PIN.
9. MEASURE FROM CONTACT BARB AREA TO TIP OF PIN
10. DUE TO THE HIGH AMOUNT OF INSERTION FORCE NEEDED, THE
-LC OPTION IS NOT COMPATIBLE WITH AUTO PLACEMENT, SAMTEC
RECOMMENDS MANUAL PLACEMENT FOR ALL ASSEMBLIES WITH
THE -LC OPTION.
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN INCHES.
TOLERANCES ARE:
DECIMALS
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
.XX: .01
.XXX: .005
.XXXX: .0020
ANGLES
2
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DESCRIPTION:
DWG. NO.
MATERIAL:
DO NOT SCALE DRAWING
SHEET SCALE: 2:1
BODY: VECTRA E130i
COLOR: BLACK
CONTACT: BeCu
F:\DWG\MISC\MKTG\HLE-1XX-02-XX-DV-XE-XX-MKT.SLDDRW

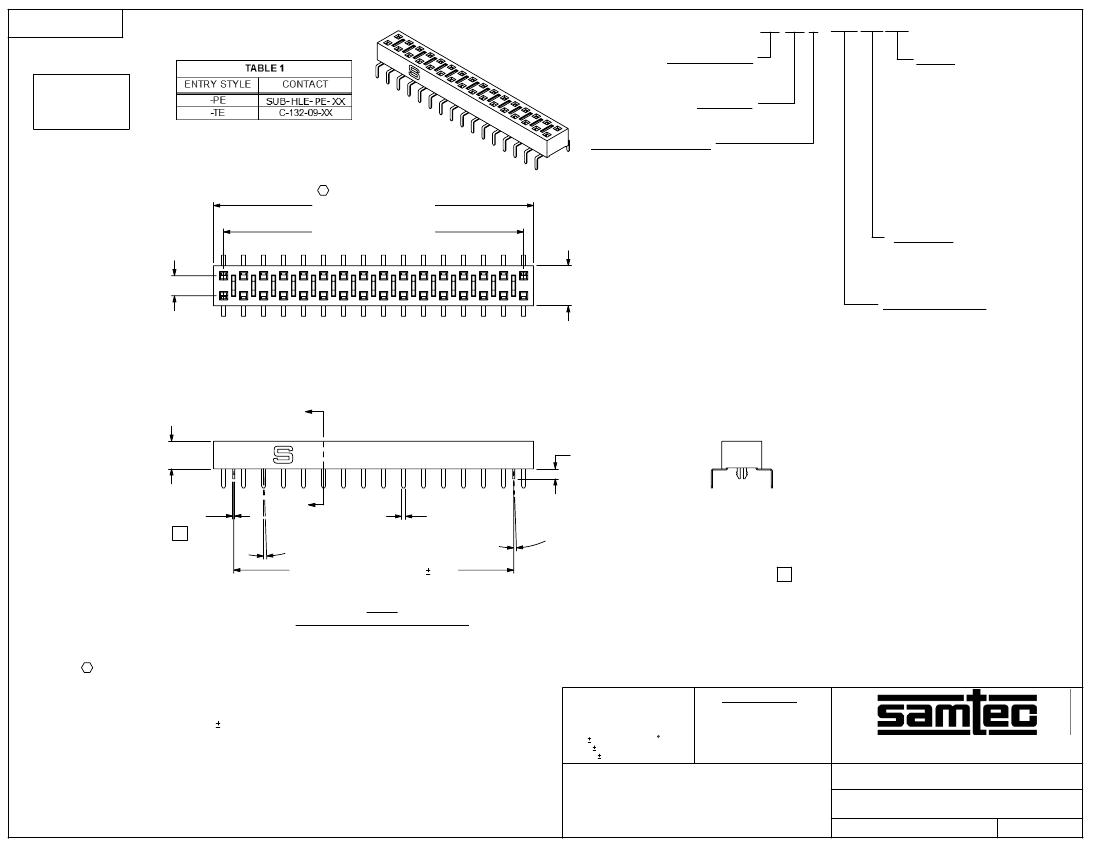

.100 C.L. SINGLE BEAM SOCKET STRIP
HLE-1XX-02-XX-DV-XE-XX
10/27/99
SHEET
1
OF
2
BY:
KEVIN B
REVISION Z
"P"/2 -.1125±.010
.280
REF
.225
REF
"P"
.146
.120
C
FIG 3
(BOTTOM ENTRY OPTION)
SEE TABLE 1
FIG 2
(-TE WITH -P OPTION)
Z
C
90°
- 2°
+4°
.100
C
SEE TABLE 1
C
C
90°±3°
+.010
.144
- .000
(TYP.) MEASURE OVER BEND
CLOSEST TO THE BODY
.090
.056 REF
(TYP)
.300
- .010
C
+.015
.006
REF

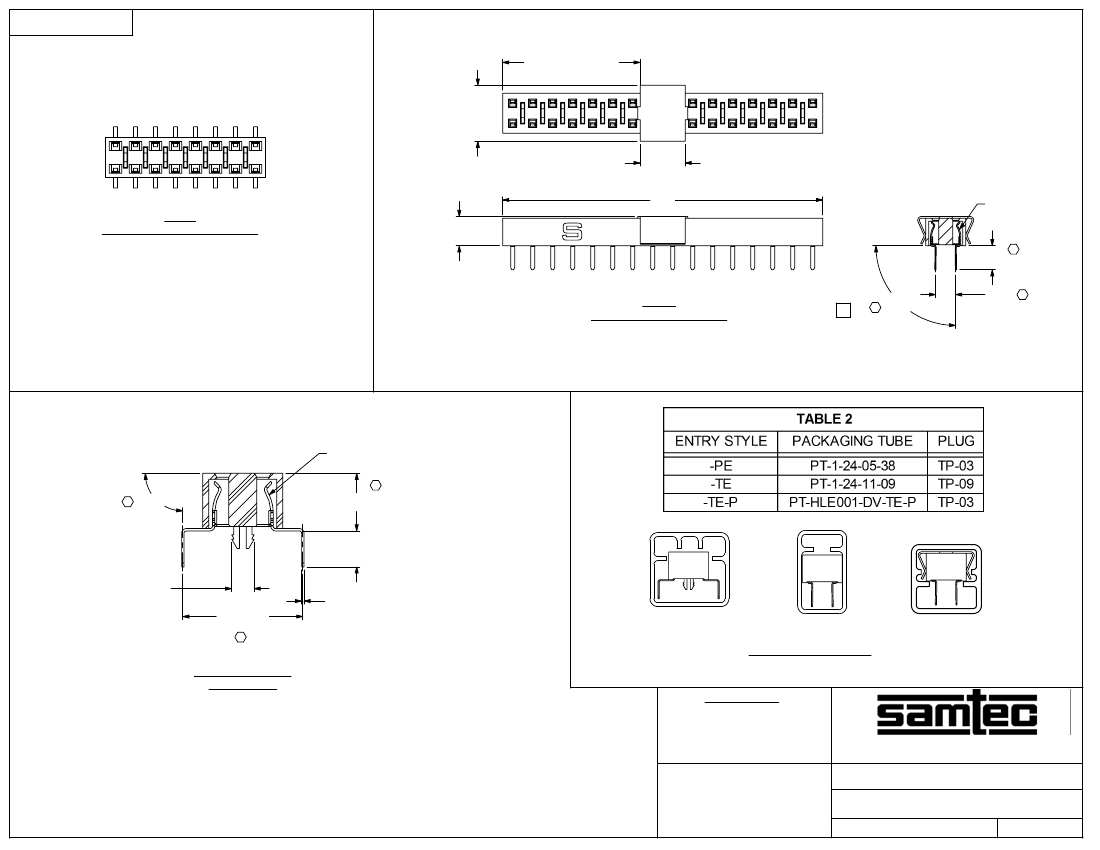

PACKAGING VIEWS
F:\DWG\MISC\MKTG\HLE-1XX-02-XX-DV-XE-XX-MKT.SLDDRW
SECTION "A"-"A"
SCALE 4 : 1
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DESCRIPTION:
DWG. NO.
SHEET SCALE: 2:1
.100 C.L. SINGLE BEAM SOCKET STRIP
HLE-1XX-02-XX-DV-XE-XX
10/27/99
SHEET
2
OF
2
BY:
KEVIN B
