3GF8F-80N-50.01 datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> 3GF8F-80N-50.01

3GF8F-80N-50.01: DescriptionLVCMOS Output Clock Oscillator, 50.01MHz Nom, ROHS COMPLIANT PACKAGE-8/4; CategoryPassive components oscillator; File Size123KB，1 Pages; ManufacturerEuroquartz; Websitehttp://www.euroquartz.co.uk/; Environmental Compliance

Download Datasheet Parametric View All

3GF8F-80N-50.01 Overview

LVCMOS Output Clock Oscillator, 50.01MHz Nom, ROHS COMPLIANT PACKAGE-8/4

3GF8F-80N-50.01 Parametric

Parameter Name	Attribute value
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
physical size	12.8mm x 12.8mm x 5.08mm
Is it Rohs certified?	Yes
Is it lead-free?	Yes
Objectid	1078111581
package instruction	ROHS COMPLIANT PACKAGE-8/4
Reach Compliance Code	compliant
Is Samacsys	N
YTEOL	2
Frequency Adjustment - Mechanical	NO
Frequency offset/pull rate	80 ppm
linearity	10%
Maximum supply voltage	3.465 V
Minimum supply voltage	3.135 V
maximum symmetry	55/45 %
Maximum control voltage	2.31 V
Minimum control voltage	0.99 V
Nominal supply voltage	3.3 V
frequency stability	100%
Nominal operating frequency	50.01 MHz
Oscillator type	LVCMOS
Output load	15 pF
Number of terminals	8
surface mount	NO
Installation features	THROUGH HOLE MOUNT

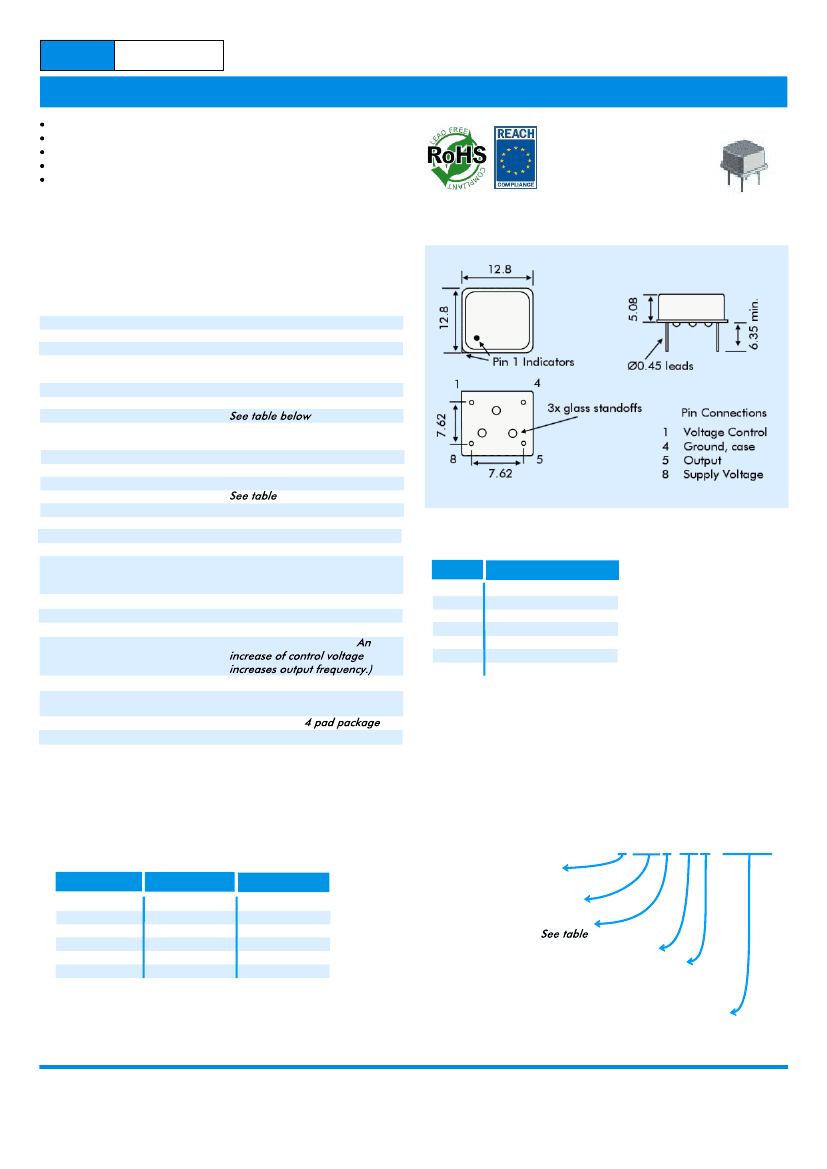

3GF8F-80N-50.01 Preview

EURO

QUARTZ

8 pin Dual-in-Line VCXO

Frequency range 50.01MHz to 640MHz

LVCMOS Output

Supply Voltage 3.3 VDC

High Q fundamental crystal

Ultra low jitter less than 1ps

GF8 VCXO

50.01MHz ~ 640.0MHz

DESCRIPTION

GF8 VCXOs, are packaged in an industry-standard, 8 pin Dual in Line

package. GF8 VCXOs provide excellent phase jitter performance, less

than 1ps.

SPECIFICATION

Frequency Range

Supply Voltage:

Output Logic:

Integrated Phase Jitter:

Period Jitter RMS:

Period Jitter Peak to peak:

Phase Noise:

Initial Frequency Accuracy:

Output Voltage HIGH (1):

Output Voltage LOW (0):

Frequency Deviation Range:

Temperature Stability:

Output Load:

Start-up Time:

Duty Cycle:

Rise/Fall Times:

Current Consumption

<100MHz:

>100MHz:

Linearity:

Modulation Bandwidth:

Input Impedance:

Slope Polarity:

(Transfer function)

Storage Temperature:

Ageing:

Enable/Disable (Tristate):

RoHS Status:

50.01MHz to 640.0MHz

3.3 VDC ±5%

LVCMOS

0.4ps typical, 0.5ps maximum

(for 156.250MHz)

3.0ps typical (for 156.250MHz)

20ps typical (for 156.250MHz)

Tune to the nominal frequency

with Vc= 1.65 ±0.2VDC

90% Vdd minimum

10% Vdd maximum

±80ppm minimum

15pF

10ms maximum, 5ms typical

50% ±5% measured at 50% Vdd

0.7ns typical (15pF load)

30mA maximum (15pF load)

40mA maximum (15pF load)

10% maximum, 6% typical

25kHz minimum

60kW minimum

Monotonic and Positive. (

PHASE NOISE

Offset

10Hz

100Hz

1kHz

10kHz

100kHz

1MHz

10MHz

Frequency 155.25MHz

-62dBc/Hz

-92dBc/Hz

-120dBc/Hz

-132dBc/Hz

-128dBc/Hz

-140dBc/Hz

-150dBc/Hz

-50° to +100°C

±3ppm per year first year

±2ppm per year thereafter

Not available (

Fully compliant

)

PART NUMBER SCHEDULE

Example:

FREQUENCY STABILITY

Stability Code Stability ±ppm Temp. Range

0°~+70°C

100

0°~+70°C

-40°~+85°C

100

-40°~+85°C

If non-standard frequency stability is required

Use ‘I’ followed by stability, i.e. I20 for ±20ppm

3GF8B-80N-156.25

Supply Voltage

3 = +3.3V

Series Designator

GF8

Stability over Temperature range

(

)

Pullability in ±ppm

Pullability determinator

N = minimum

M = maximum

T = Typical

Frequency in MHz

EUROQUARTZ LIMITED Blacknell Lane CREWKERNE Somerset UK TA18 7HE

Tel: +44 (0)1460 230000 Fax: +44 (0)1460 230001 info@euroquartz.co.uk www.euroquartz.co.uk

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >
