ISM95-2853CH-60.000 datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> ISM95-2853CH-60.000

ISM95-2853CH-60.000: DescriptionOscillator; CategoryPassive components oscillator; File Size117KB，1 Pages; ManufacturerILSI; Websitehttp://www.ilsiamerica.com; Environmental Compliance

Download Datasheet Parametric View All

ISM95-2853CH-60.000 Overview

Oscillator

ISM95-2853CH-60.000 Parametric

Parameter Name	Attribute value
Installation features	SURFACE MOUNT
Number of terminals	4
Package body material	CERAMIC
surface mount	YES
Minimum operating temperature	-10 °C
Maximum operating temperature	60 °C
physical size	2.5mm x 2.0mm x 0.8mm
Is it Rohs certified?	Yes
Is Samacsys	N
YTEOL	0
Objectid	7355493435
Reach Compliance Code	compliant
Other features	TRI-STATE; ENABLE/DISABLE FUNCTION; TR
maximum descent time	5 ns
Frequency Adjustment - Mechanical	NO
longest rise time	5 ns
Maximum supply voltage	2.835 V
Minimum supply voltage	2.565 V
maximum symmetry	45/55 %
frequency stability	100%
Nominal operating frequency	60 MHz
Oscillator type	HCMOS
Output load	15 pF
Nominal supply voltage	2.7 V

Preview

Download Datasheet

View All

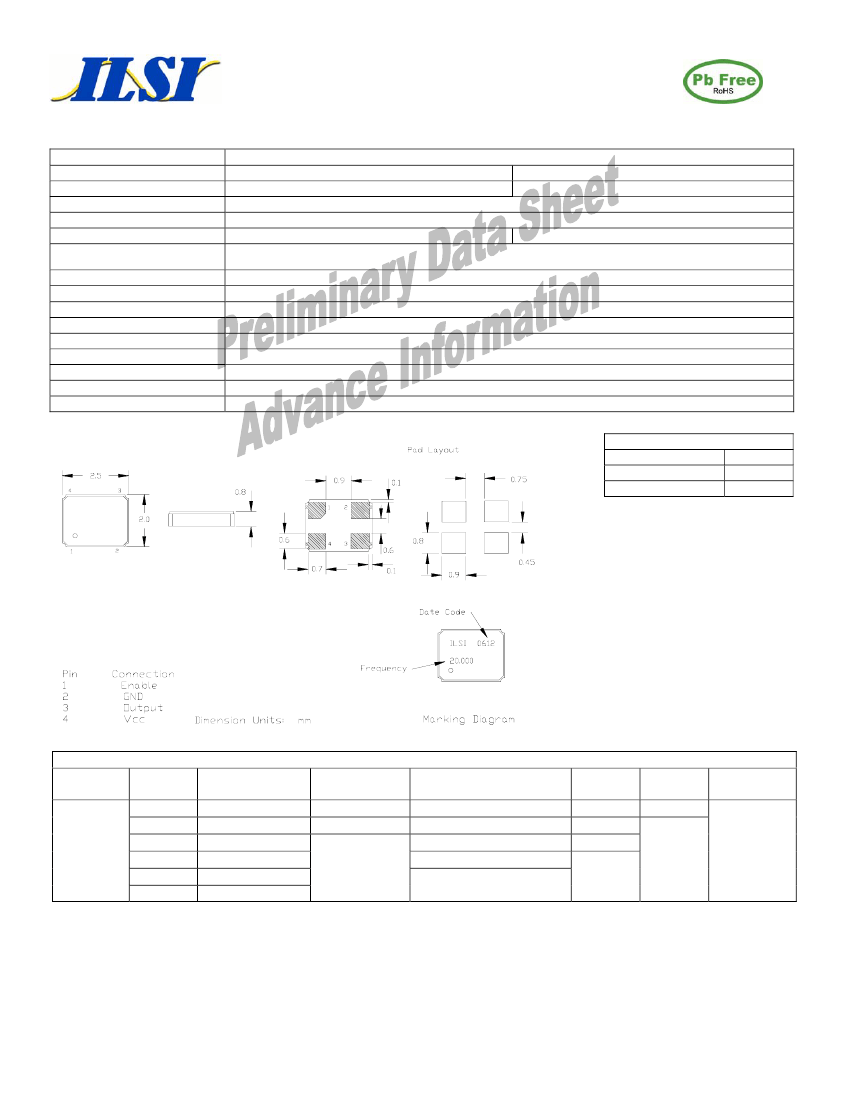

SMD Oscillator, TTL / HC-MOS

Ceramic Package, 2.0 mm x 2.5 mm

Frequency

Output Level

Level

Duty Cycle

Rise / Fall Time

Output Load

Frequency Stability

Start-up Time

Enable / Disable Time

Supply Voltage

Current

Temperature

Operating

Storage

Environmental / Tape and Reel

Package Information

1.000 MHz to 60.000 MHz

ISM95 Series

TTL

HC-MOS

‘0’= 0.4 VDC Max., ‘1’ = 2.4 VDC Min.

‘0’ = 0.1 Vcc Max., ‘1’= 0.9 Vcc Min.

Specify 50%

10% or

5%, See Table

5 nS Max. **

3 TTL

15 pF

See Frequency Stability Table

(Includes room temperature tolerance and stability over operating temperature)

10 mS Max.

250 nS Max.

See Input Voltage Table, tolerance

±5

25 mA Max. **

See Operating Temperature Table

-40° C to +85° C

See Appendix B for Environmental information, Appendix C for Tape and Reel information

MSL = N.A., Termination = e4

Tri-State Function

Pin 1 Open

Enable

Pin 1

≥

70% Vdd

Enable

Pin 1

≤

30% Vdd

Disable

Part Number Guide

Package

Input

Voltage

5 = 5.0 V

3 = 3.3 V

ISM95 -

7 = 3.0 V

2 = 2.7 V

6 = 2.5 V

1 = 1.8 V*

Sample Part Number:

Operating

Temperature

1 = 0° C to +70° C

8 = -10° C to +60° C

3 = -20° C to +70° C

4 = -30° C to +75° C

2 = -40° C to +85° C

Symmetry

(Duty Cycle)

5 = 45 / 55 Max.

6 = 40 / 60 Max.

ISM95 - 3251BH - 20.000

Output

1 = 3 TTL / 15 pF HC-MOS

2 = 3 TTL

3 = 15 pF

4 = AC-MOS

Stability

(in ppm)

A =

±25*

B =

±50

C =

±100

- 20.000 MHz

Enable /

Disable

H = Enable

Frequency

NOTE: A 0.01 µF bypass capacitor is recommended between Vcc (pin 4) and Gnd (pin 2) to minimize power supply noise.

* Not available for all temperature ranges. ** Frequency, supply, and load related parameters.

12/06

ILSI America

Phone: 775-851-8880 • Fax: 775-851-8882• e-mail: e-mail@ilsiamerica.com • www.ilsiamerica.com

Specifications subject to change without notice
