ZZY-R-1022-32P07D: DescriptionMIL Series Connector,; CategoryThe connector The connector; File Size144KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

ZZY-R-1022-32P07D Overview

MIL Series Connector,

ZZY-R-1022-32P07D Parametric

Parameter Name	Attribute value
Filter function	NO
polarization	07
Maximum operating temperature	200 °C
Minimum operating temperature	-55 °C
Objectid	8299470423
Reach Compliance Code	Unknown
ECCN code	EAR99
Is Samacsys	N
Housing size	22
Total number of contacts	32
Other features	STANDARD: MIL-DTL-26500
Body/casing type	PLUG
Connector type	MIL SERIES CONNECTOR
Contact point gender	MALE
Installation type	CABLE
Shell material	STAINLESS STEEL
Options	GENERAL PURPOSE
Termination type	CRIMP
Number of contacts	26,6
Coupling type	THREADED
rotation	92
Mixed contacts	NO
Unique insertion number	22-32
Back shell type	SOLID
Contact size	20,12
empty shell	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Environmental characteristics	CORROSION/FLUID/MOISTURE RESISTANT

Preview

Download Datasheet

View All

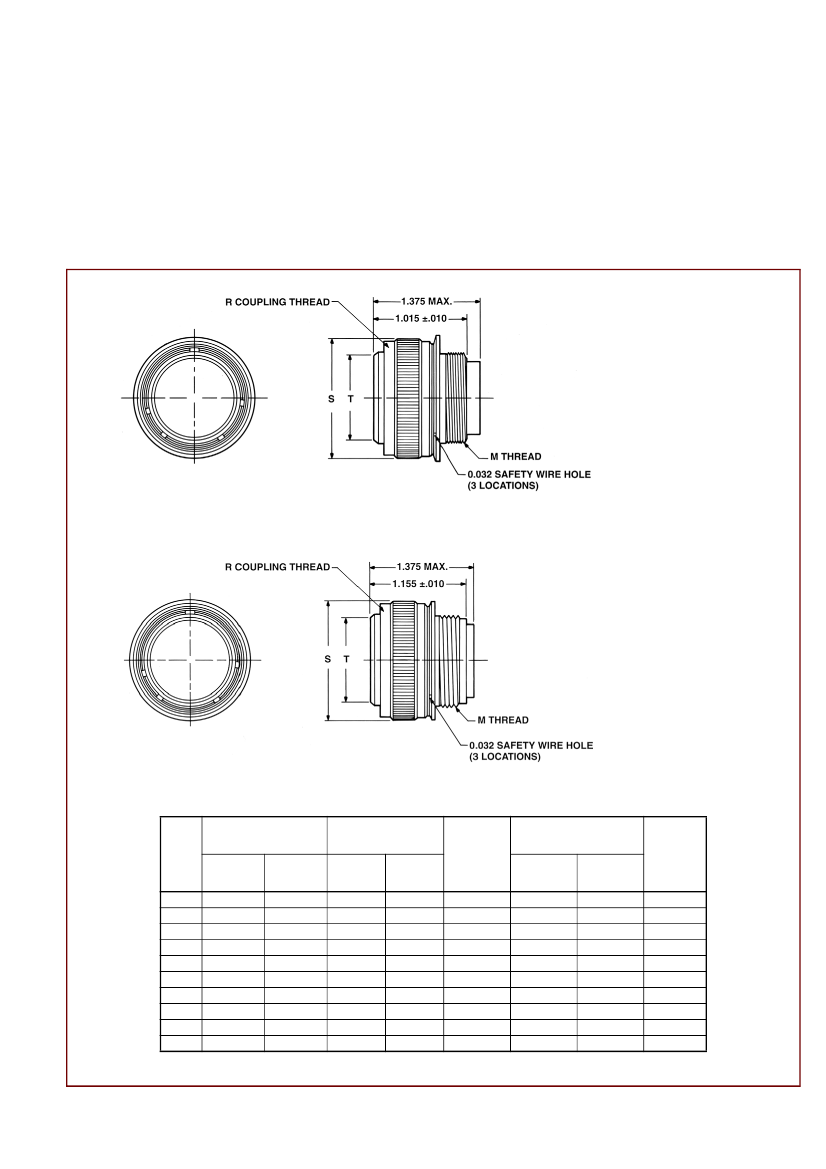

Straight Plug

aluminum/stainless steel

threaded coupling

STAINLESS STEEL

Pyle ZZY-RC-10XX* Series

MS24266EXXTXX*

Military Class E

ALUMINUM

Pyle ZZY-AC-10XX* Series

MS24266RXXTXX*

Military Class R

* To complete order number,

see how to order, page 7.

Cable Support

Thread M

Shell

Size

Steel

NS-2A

Alum.

UNEF-2A

Modified

Aluminum Connector

Weight (lbs.) max

including Contacts

Insert

Socket

Insert

Coupling

Thread

R

Coupling Nut

Dia

S Max.

Steel

Alum.

Shell Dia.

T

+.000

–.005

08**

10

12

14

16

18

20

22

24

28†

NA

.563-36

.733-36

.803-36

.930-36

1.036-36

1.161-36

1.286-36

1.411-36

1.661-36

.437-28

.562-24

.750-20

.812-20

.937-20

1.062-18

1.187-18

1.286-18

1.437-18

NA

.030

.044

.063

.074

.091

.110

.133

.154

.184

NA

.031

.045

.064

.076

.094

.112

.136

.160

.188

NA

.562-24

.687-24

.875-20

.937-20

1.062-18

1.187-18

1.312-18

1.437-18

1.562-18

1.812-16

NA

.826

.996

1.066

1.193

1.299

1.424

1.549

1.674

1.912

.776

.906

1.078

1.141

1.266

1.375

1.510

1.625

1.670

NA

.424

.526

.696

.765

.892

.998

1.123

1.248

1.373

1.623

NA designates not available. ** Not available in Stainless Steel.

All dimensions for reference only.

† Not available in Aluminum.
