1/4
STRUCTURE
Silicon Monolithic Integrated Circuit
PRODUCTS
3ch 75Ωdriver
TYPE
PACKAGE
BA7660FS
Figure -１
ＳＳＯＰ－ Ａ１６ＰＩＮ
（Plastic
Mold）
BLOCK DIAGRAM
Figure -２
Features
1) A low consumption electric power movement
2) Output Mute circuit built-in
3) The power save circuit built-in
4) Output protection circuit built-in
5) Output coupling capacitor is the small capacity by sag compensation circuit built-in
6) The driver can have two load (each channel)
7) Input is directly connected with D/A converter output
Absolute Maximum Ratings（Ta=25℃）
Item
Power supply Voltage
Power Dissipation
Operating Temperature
Range
Storage Temperature Range
Symbol
Vcc
Pd
Topr
Tstg
Rating
８
５００
－２５½＋７５
－５５½＋１２５
Unit
Ｖ
½W
℃
℃
※1
When absolute temperature exceeds Ta=25℃, the rated value is reduced by 5.0mW/℃.
Application example
The application circuit is recommended for use. Make sure to confirm the adequacy of the characteristics.
When using the circuit with changes to the external circuit constants, make sure to leave an adequate margin for external
components including static and transitional characteristics as well as dispersion of the IC.
Note that ROHM cannot provide adequate confirmation of patents.
The product described in this specification is designed to be used with ordinary electronic equipment or devices (such as
audio-visual equipment, office-automation equipment, communications devices, electrical appliances, and electronic toys).
Should you intend to use this product with equipment or devices which require an extremely high level of reliability and the
malfunction of which would directly endanger human life (such as medical instruments, transportation equipment ,
aerospace machinery, nuclear-reactor controllers, fuel controllers and other safety devices), please be sure to consult with
our sales representative in advance.
ROHM assumes no responsibility for use of any circuits described herein, conveys no license under any patent or other
right, and makes no representations that the circuits are free from patent infringement.
REV. D
2/4
■
Electrical characteristics
【Unless
otherwise specified, Ta=25℃, VCC=5V】
Item
Circuit current
Maximum output level
Voltage gain
Frequency characteristics
Mute attenuation
Mute change level
“H”
Mute change level
“L”
Symbol
ICC
Vom
GV
Gf
MT
VTHH
VTHL
Min.
11.4
2.6
5.5
-1.0
－
3.5
0
Limit
Typ.
22.8
3.0
6.0
0.0
-60
－
－
Max.
34.2
－
6.5
1.0
－
VCC
1.0
Unit
mA
Vp-p
dB
dB
dB
V
V
Condition
No signal
f=1kHz,THD=1%
f=4.43MHz, 1Vp-p
f=7MHz/1MHz,1Vp-p
f=4.43MHz, 1Vp-p
■

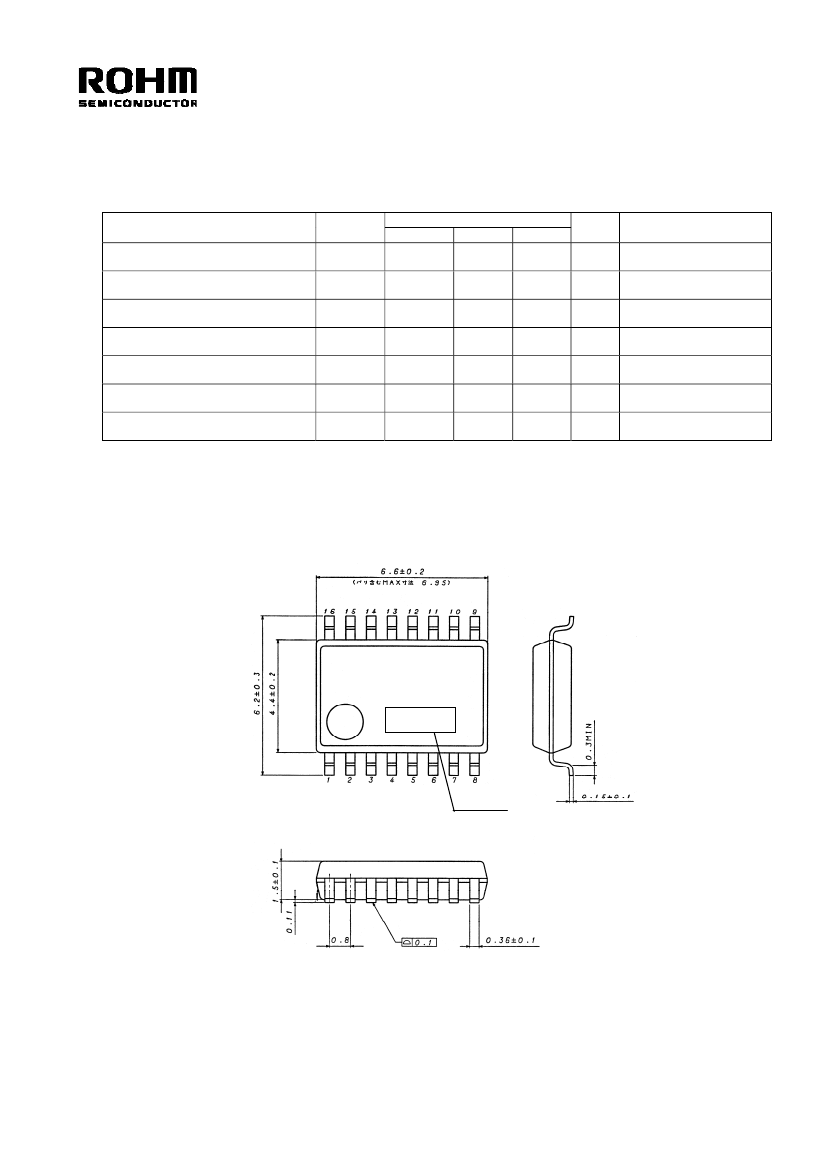

PACKAGE
A7660FS
LOT NO.
Figure１
SOP16PIN（Plastic Mold）
REV. D
3/4
■BLOCK
DIAGRAM
MU TE
IN A
GN D
IN B
GN D
N. C.
IN C
GN D
１
１６
VCC
OUTA 1
OUTA 2
OUTB 1
OUTB 2
N.C.
OUTC 1
OUTC 2
２
6d B
75 Ω
１５
３
１４
４
6d B
75 Ω
１３
５
１２
６
１１
７
6d B
75 Ω
１０
８
９
Figure２
■PIN
Assignment
PIN No.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
PIN NAME
MUTE
INA
GND
INB
GND
N.C.
INC
GND
OUTC2
OUTC1
N.C.
OUTB2
OUTB1
OUTA2
OUTA1
VCC
REV. D
4/4
■
Cautions on use
(1) Numbers and data in entries are representative design values and are not guaranteed values of the items.
(2) Although we are confident in recommending the sample application circuits, carefully check their characteristics
further when using them. When modifying externally attached component constants before use, determine them so
that they have sufficient margins by taking into account variations in externally attached components and the Rohm
LSI, not only for static characteristics but also including transient characteristics.
(3) Absolute maximum ratings
If applied voltage, operating temperature range, or other absolute maximum ratings are exceeded, the LSI may be
damaged. Do not apply voltages or temperatures that exceeded the absolute maximum ratings. If you think of a
case in which absolute maximum ratings are exceeded, enforce fuses or other physical safety measures and
investigate how not to apply the conditions under which absolute maximum ratings are exceeded to the LSI.
(4) GND potential
Make the GND pin voltage such that it is the lowest voltage even when operating below it. Actually confirm that the
voltage of each pin does not become a lower voltage than the GND pin, including transient phenomena.
(5) Thermal design
Perform thermal design in which there are adequate margins by taking into account the allowable power dissipation
in actual states of use.
(6) Shorts between pins and misinstallation
When mounting the LSI on a board, pay adequate attention to orientation and placement discrepancies of the LSI. If
it is misinstalled and the power is turned on, the LSI may be damaged. It also may be damaged if it is shorted by a
foreign substance coming between pins of the LSI or between a pin and a power supply or a pin and a GND.
(7) Operation in strong magnetic fields
Adequately evaluate use in a strong magnetic, since there is a possibility of malfunction.
REV. D
Notice
Notes
No copying or reproduction of this document, in part or in whole, is permitted without the
consent of ROHM Co.,Ltd.
The content specified herein is subject to change for improvement without notice.
The content specified herein is for the purpose of introducing ROHM's products (hereinafter
"Products"). If you wish to use any such Product, please be sure to refer to the specifications,
which can be obtained from ROHM upon request.
Examples of application circuits, circuit constants and any other information contained herein
illustrate the standard usage and operations of the Products. The peripheral conditions must
be taken into account when designing circuits for mass production.
Great care was taken in ensuring the accuracy of the information specified in this document.
However, should you incur any damage arising from any inaccuracy or misprint of such
information, ROHM shall bear no responsibility for such damage.
The technical information specified herein is intended only to show the typical functions of and
examples of application circuits for the Products. ROHM does not grant you, explicitly or
implicitly, any license to use or exercise intellectual property or other rights held by ROHM and
other parties. ROHM shall bear no responsibility whatsoever for any dispute arising from the
use of such technical information.
The Products specified in this document are intended to be used with general-use electronic
equipment or devices (such as audio visual equipment, office-automation equipment, commu-
nication devices, electronic appliances and amusement devices).
The Products specified in this document are not designed to be radiation tolerant.
While ROHM always makes efforts to enhance the quality and reliability of its Products, a
Product may fail or malfunction for a variety of reasons.
Please be sure to implement in your equipment using the Products safety measures to guard
against the possibility of physical injury, fire or any other damage caused in the event of the
failure of any Product, such as derating, redundancy, fire control and fail-safe designs. ROHM
shall bear no responsibility whatsoever for your use of any Product outside of the prescribed
scope or not in accordance with the instruction manual.
The Products are not designed or manufactured to be used with any equipment, device or
system which requires an extremely high level of reliability the failure or malfunction of which
may result in a direct threat to human life or create a risk of human injury (such as a medical
instrument, transportation equipment, aerospace machinery, nuclear-reactor controller,
fuel-controller or other safety device). ROHM shall bear no responsibility in any way for use of
any of the Products for the above special purposes. If a Product is intended to be used for any
such special purpose, please contact a ROHM sales representative before purchasing.
If you intend to export or ship overseas any Product or technology specified herein that may
be controlled under the Foreign Exchange and the Foreign Trade Law, you will be required to
obtain a license or permit under the Law.
Thank you for your accessing to ROHM product informations.
More detail product informations and catalogs are available, please contact us.
ROHM Customer Support System
http://www.rohm.com/contact/
www.rohm.com
© 2009 ROHM Co., Ltd. All rights reserved.
R0039A
