5962-0824203KTA datasheet, PDF

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> 5962-0824203KTA

5962-0824203KTA: Descriptionhigh speed optocouplers 10mbd 2ch 1500vdc hermetically sealed; CategoryLED optoelectronic/LED photoelectric; File Size149KB，11 Pages; ManufacturerAVAGO; Websitehttp://www.avagotech.com/

Download Datasheet Parametric View All

5962-0824203KTA Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	5962-0824203KTA	-	-	View	Buy Now

5962-0824203KTA Overview

high speed optocouplers 10mbd 2ch 1500vdc hermetically sealed

5962-0824203KTA Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	AVAGO
package instruction	HERMETIC SEALED, SMD, DIP-16
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	25 weeks 5 days
Other features	TTL COMPATIBLE
Configuration	SEPARATE, 2 CHANNELS
Nominal data rate	10 MBps
Maximum forward current	0.02 A
Maximum insulation voltage	1500 V
JESD-609 code	e0
Installation features	SURFACE MOUNT
Number of components	2
Maximum on-state current	0.025 A
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Optoelectronic device types	LOGIC IC OUTPUT OPTOCOUPLER
Maximum power dissipation	0.2 W
Nominal response time	1.4e-7 ns
Minimum supply voltage	3 V
Nominal supply voltage	3.6 V
surface mount	YES
Terminal surface	Tin/Lead (Sn/Pb)
Base Number Matches	1

Preview

Download Datasheet

View All

ACPL-267XL, ACPL-268KL, ACPL-560XL,

ACPL-563XL, 5962-08242*

Hermetically Sealed, 3.3V High Speed, High CMR,

Logic Gate Optocouplers

Data Sheet

*See Selection Guide for full matrix of part numbers.

Description

These units are single and dual channel, hermetically

sealed optocouplers. The products are capable of opera-

tion and storage over the full military temperature range

and can be purchased as either standard commercial

product or with full MIL-PRF-38534 Class Level H or K

testing or from DLA Drawing 5962-08242. All devices are

manufactured and tested on a MIL-PRF-38534 certified

line and are included in the DLA Qualified Manufacturers

List QML-38534 for Hybrid Microcircuits.

Features



Low power consumption



3.3V supply voltages



Dual marked with device part number and DLA draw-

ing number



Manufactured and tested on a MIL-PRF-38534

Certified Line



QML-38534, Class H and K



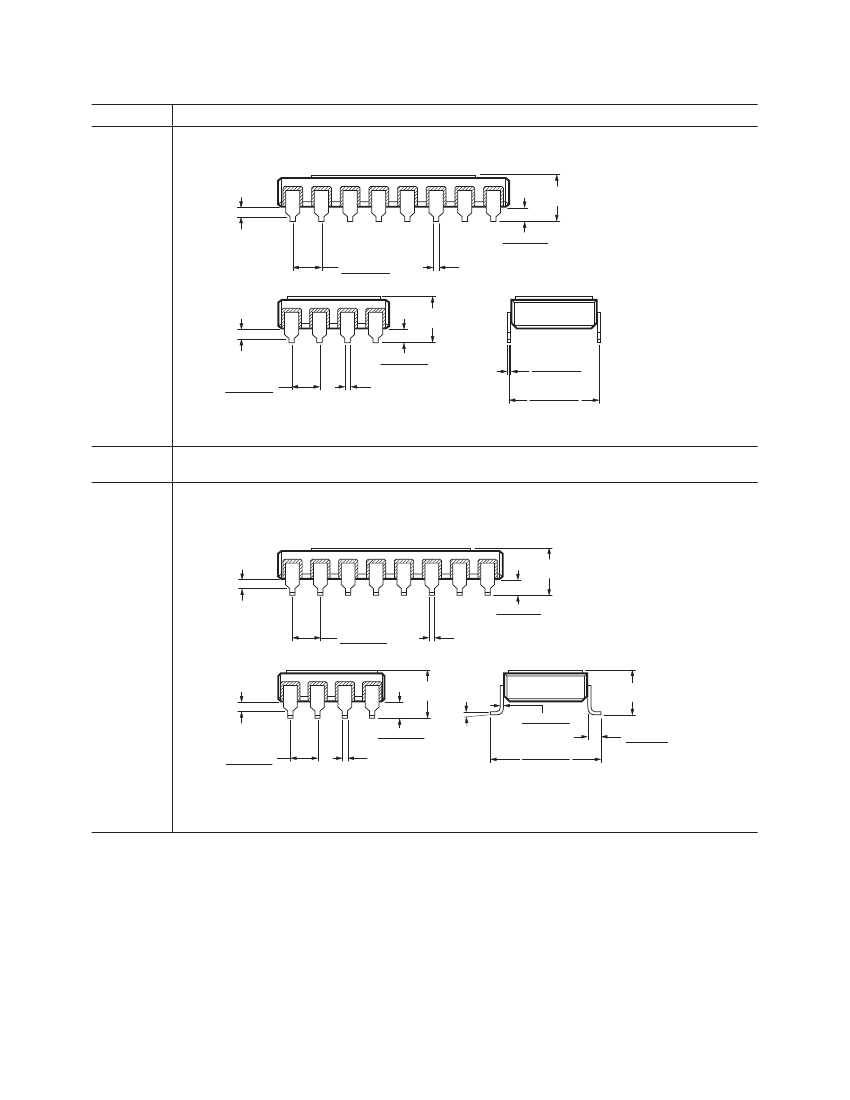

Three hermetically sealed package configurations



Performance guaranteed over full military

temperature range: -55°C to +125°C



High speed: 10 Mbd typical



CMR: > 10,000 V/μs typical



1500 Vdc withstand test voltage



TTL circuit compatibility

Enable

Truth Table

(Positive Logic)

Multichannel Devices

Input

On (H)

Off (L)

Output

Single Channel DIP

Input

On (H)

Off (L)

On (H)

Off (L)

Output



HCPL-260L/060L/263L/063L function compatibility

Applications



Military and aerospace



High reliability systems



Transportation, medical, and life critical systems



Line receiver



Voltage level shifting



Isolated input line receiver



Isolated output line driver



Logic ground isolation



Harsh industrial environments



Isolation for computer, communication, and test

equipment systems

Functional Diagram

Multiple channel devices available

OUT

GND

The connection of a 0.1 μF bypass capacitor between V

and GND is recommended.

CAUTION: It is advised that normal static precautions be taken in handling and assembly

of this component to prevent damage and/or degradation which may be induced by ESD.
