5300-319-041-11

Description
USB Connector, 19 Contact(s), Male, Right Angle, Surface Mount Terminal, Locking, Receptacle
CategoryThe connector    The connector
File Size127KB,1 Pages
ManufacturerTekcon Electronics Corp
Download Datasheet Parametric View All

5300-319-041-11 Overview

USB Connector, 19 Contact(s), Male, Right Angle, Surface Mount Terminal, Locking, Receptacle

5300-319-041-11 Parametric

Parameter NameAttribute value
Minimum operating temperature-20 °C
Maximum operating temperature85 °C
GuidelineUL
Reach Compliance CodeUnknown
ECCN codeEAR99
Is SamacsysN
Objectid305399993
Termination typeSURFACE MOUNT
Board mount optionsPEG
Contact materialCOPPER ALLOY
Installation option 1LOCKING
Number of connectorsONE
PCB contact patternRECTANGULAR
Plating thickness30u inch
Shell surfaceNICKEL
body length0.591 inch
body width0.243 inch
subject depth0.479 inch
Connector typeUSB CONNECTOR
Contact to complete cooperationAU
Contact resistance30 mΩ
Body/casing typeRECEPTACLE
Rated current (signal)0.5 A
Total number of contacts19
Contact point genderMALE
Installation methodRIGHT ANGLE
PCB row number1
Shell materialCOPPER ALLOY
Terminal pitch0.508 mm
Durability10000 Cycles
insulator materialPOLYETHYLENE
Installation typeBOARD
Dielectric withstand voltage500VAC V
Insulation resistance10000000 Ω
Number of ports1
polarization keyPOLARIZED HOUSING
TEKCON
®
5300 Series

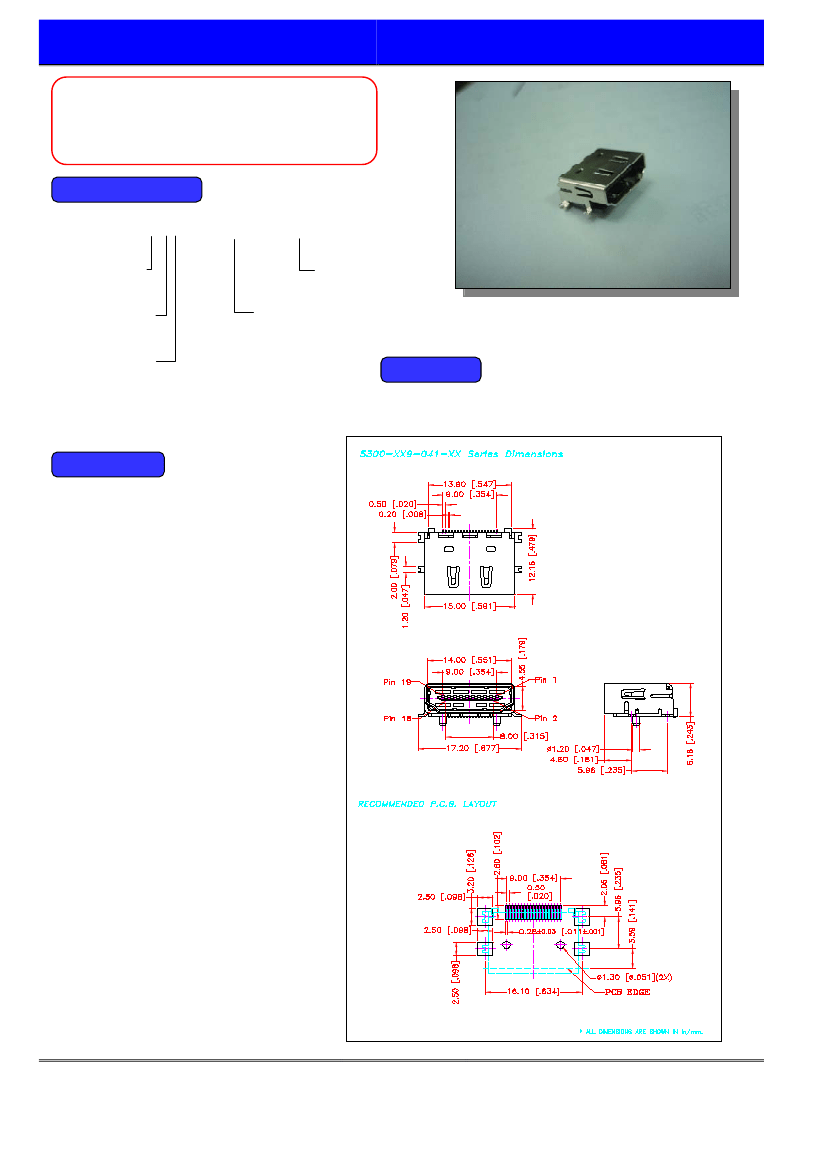

HDMI RIGHT ANGLE HEADER 19PIN TAIL
& SHELL SMT TYPE
Ordering Information
http://www.tekcon.com.tw
5300 – XX9 – 041 – XX
Contact Area Plating:
0:Gold/Flash/Tin
5:15u”Gold/Tin
3:30u”Gold/Tin
Shell Plating :
1: 50u” Ni
2: 100u” Tin over 50u” Ni
No of Contact:19Pin
11: Standard
61: Lead-Free
TAIL: SMT Type
SHELL: SMT Type Without Flange
Dimensions
Specification
Material:
Insulator:
Thermoplastic UL 94V-0
Color:Black
Contact:
Copper Alloy
Shell:Copper
Alloy
Electrical:
Contact Current Rating: 0.5
A.
Rated voltage:40V AC.
Dielectric Withstanding Voltage:
500V AC
Contact Resistance:
Contact (30 Milliohms Max.)
Shell (50 Milliohms Max.)
Insulation Resistance:
100 Megaohms Min.(Unmated)
10 Megaohms Min.(Mated)
Mechanical:
Insertion Force:4.5Kg
f
(MAX)
Withdrawal Fore: 0.5 Kg
f
~ 4.0 Kg
f
Durability:10,000 Cycles.
Enviromental:
Temperature range:
-20℃ to + 85℃
All Dimensions are shown in in/mm.
The above ordering data is for our standard products.
For Non-Standard products, please contact
TEKCON Electronics Corporation.
TEKCON Electronics Corporation.
