PHE450KA4120FR17T1 datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> PHE450KA4120FR17T1

PHE450KA4120FR17T1: DescriptionFilm Capacitor, Polypropylene, 400V, 0.0012uF, 5116; CategoryPassive components capacitor; File Size2MB，26 Pages; ManufacturerKEMET; Websitehttp://www.kemet.com; Environmental Compliance

Download Datasheet Parametric View All

PHE450KA4120FR17T1 Overview

Film Capacitor, Polypropylene, 400V, 0.0012uF, 5116

PHE450KA4120FR17T1 Parametric

Parameter Name	Attribute value
Number of terminals	2
Package form	Radial
method of packing	TR
Terminal pitch	10 mm
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Rated (AC) voltage (URac)	250 V
Is it Rohs certified?	Yes
Is Samacsys	N
YTEOL	6.8
Objectid	1840230689
package instruction	, 5116
Reach Compliance Code	Compliant
ECCN code	EAR99
positive tolerance	1%
Rated (DC) voltage (URdc)	400 V
size code	5116
capacitance	0.0012 µF
Capacitor type	FILM CAPACITOR
dielectric materials	POLYPROPYLENE
negative tolerance	1%
high	9 mm
length	13 mm
width	4 mm

Preview

Download Datasheet

View All

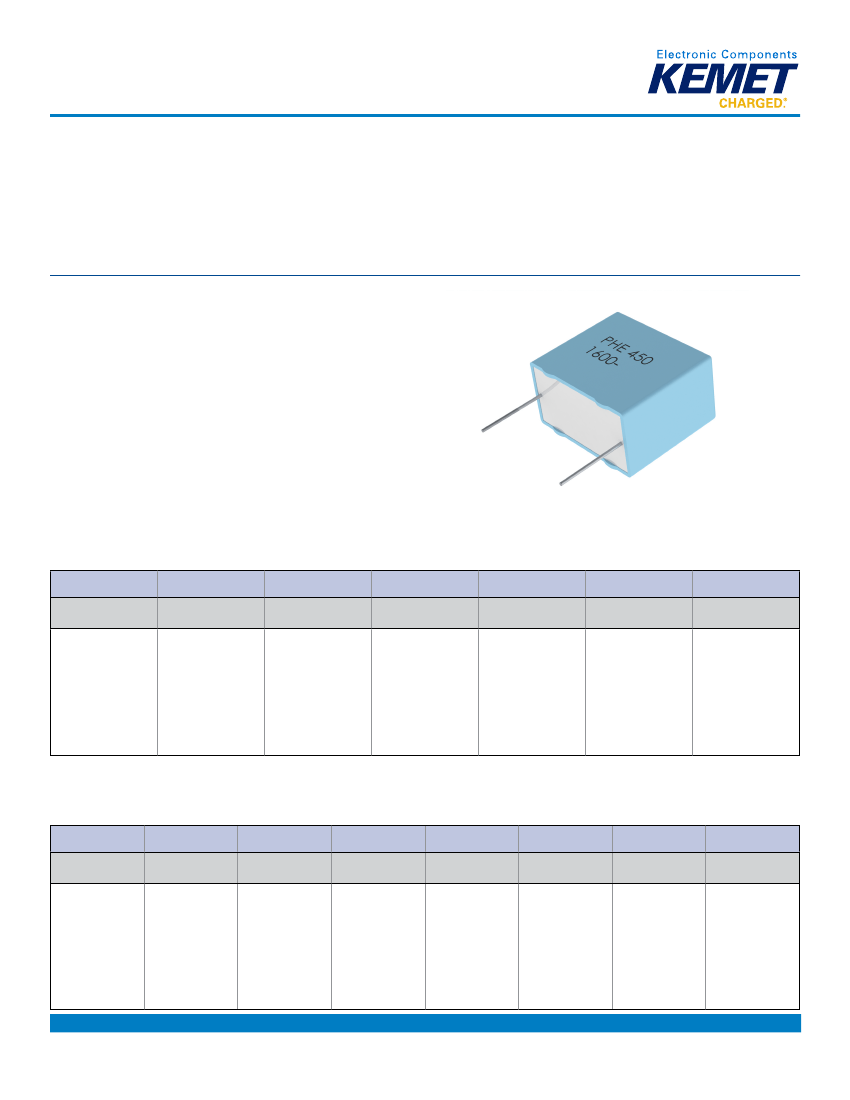

General Purpose, Pulse and DC Transient Suppression

PHE450 Series Double Metallized Polypropylene Film

Overview

The PHE450 Series is a polypropylene dielectric with double

metallized polyester film as electrodes. The capacitor is

encapsulated in self-extinguishing resin in a box of material

meeting the requirements of UL 94 V–0.

Applications

Typical applications include high frequency applications with

high current stress such as deflection circuits in televisions and

protection circuits in switched mode power supply (SMPS) and

electronic ballasts.

Benefits

•

Rated voltage: 250 – 3,000 VDC

Rated voltage: 180 – 1,000 VAC

Capacitance range: 0.00033 – 10 µF

Lead spacing: 7.5 – 37.5 mm

Capacitance tolerance: ±5%, other tolerances on request

Climatic category: 55/105/56, IEC 60068–1

Tape and reel packaging in accordance with IEC 60286–2

RoHS Compliant and lead-free terminations

Category temperature range of -55˚C to +105˚C

Click image above for interactive 3D content

Open PDF in Adobe Reader for full functionality

Legacy Part Number System

PHE450

Series

Metallized

Polypropylene

Rated Voltage (VDC)

H = 250

K = 400

M = 630

P = 1000

R = 1600

S = 2000

T = 2500

X = 3000

K = 7.5

A = 10.0

B = 15.0

D = 22.5

F = 27.5

R = 37.5

Lead Spacing (mm)

Capacitance Code

(pF)

The last three digits

represent significant

figures. First digit

specifies the number

of zeros to be added.

5180

Capacitance

Tolerance

J = ±5%

On request:

F = ±1%

G = ±2%

H = ±2.5%

K = ±10%

M = ±20%

B04

Optional Box Code

See Dimension Table

R06

Packaging

See Ordering

Options Table

New KEMET Part Number System

Capacitor Class

F = Film

450

Series

Metallized

Polypropylene

Lead Spacing (mm)

K = 7.5

A = 10.0

B = 15.0

D = 22.5

F = 27.5

R = 37.5

Size Code

See Dimension

Table

Capacitance Code

(pF)

First two digits

represent

significant

figures. Third

digit specifies

number of zeros.

183

Capacitance

Tolerance

J = ±5%

On request:

F = ±1%

G = ±2%

H = ±2.5%

K = ±10%

M = ±20%

Rated Voltage

(VDC)

250 = 250

400 = 400

630 = 630

1K0 = 1000

1K6 = 1600

2K0 = 2000

2K5 = 2500

3K0 = 3000

1K0

Packaging

See Ordering

Options Table

One world. One KEMET

F3033_PHE450 • 7/8/2016
