MAX172ACWG+T: Descriptionanalog to digital converters - adc 12-bit 100ksps 5.25v- precision adc; CategoryAnalog mixed-signal IC converter; File Size1MB，4 Pages; ManufacturerMaxim; Websitehttps://www.maximintegrated.com/en.html; Environmental Compliance

Download Datasheet Parametric Compare View All

MAX172ACWG+T Overview

analog to digital converters - adc 12-bit 100ksps 5.25v- precision adc

MAX172ACWG+T Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Maxim
Parts packaging code	SOIC
package instruction	SO-24
Contacts	24
Reach Compliance Code	compliant
ECCN code	EAR99
Maximum analog input voltage	5 V
Minimum analog input voltage
Maximum conversion time	10.4 µs
Converter type	ADC, SUCCESSIVE APPROXIMATION
JESD-30 code	R-PDSO-G24
JESD-609 code	e3
length	15.4 mm
Maximum linear error (EL)	0.012%
Humidity sensitivity level	1
Number of analog input channels	1
Number of digits	12
Number of functions	1
Number of terminals	24
Maximum operating temperature	70 °C
Minimum operating temperature
Output bit code	BINARY
Output format	PARALLEL, WORD
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP24,.4
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260
power supply	5,-12/-15 V
Certification status	Not Qualified
Maximum seat height	2.65 mm
Maximum slew rate	12 mA
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Matte Tin (Sn)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	7.5 mm

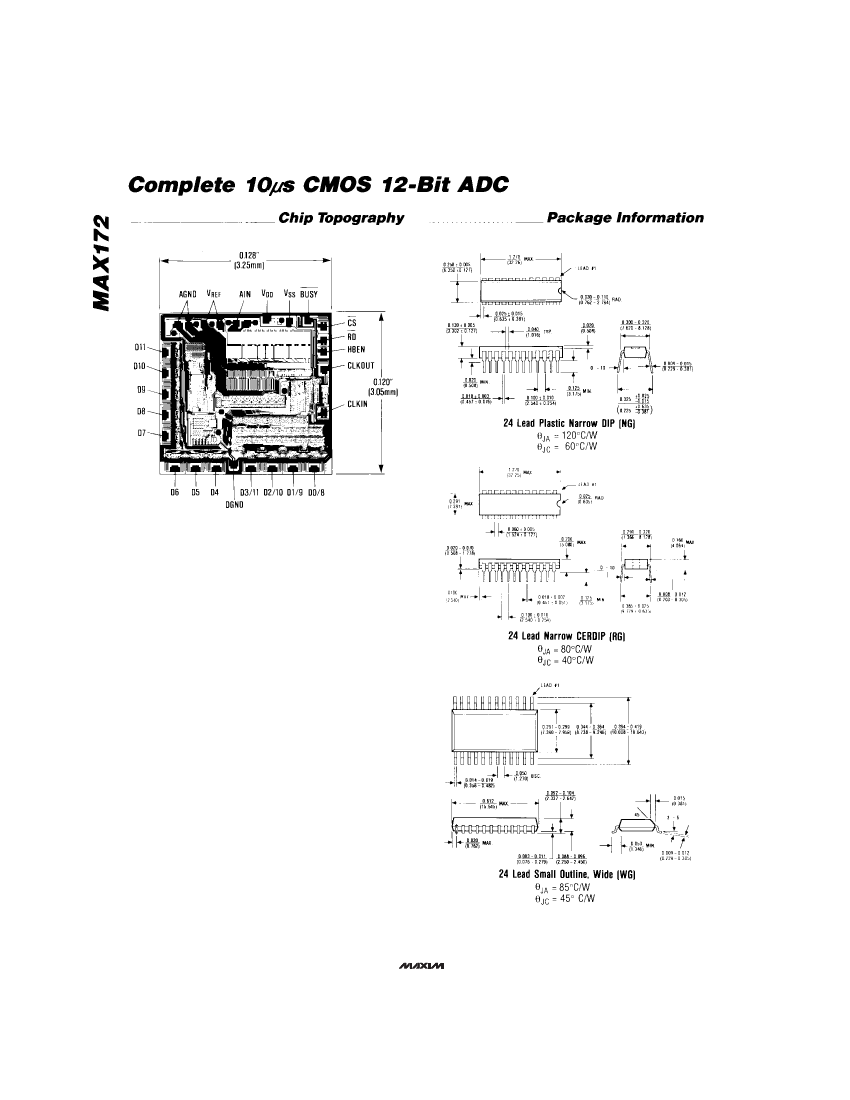

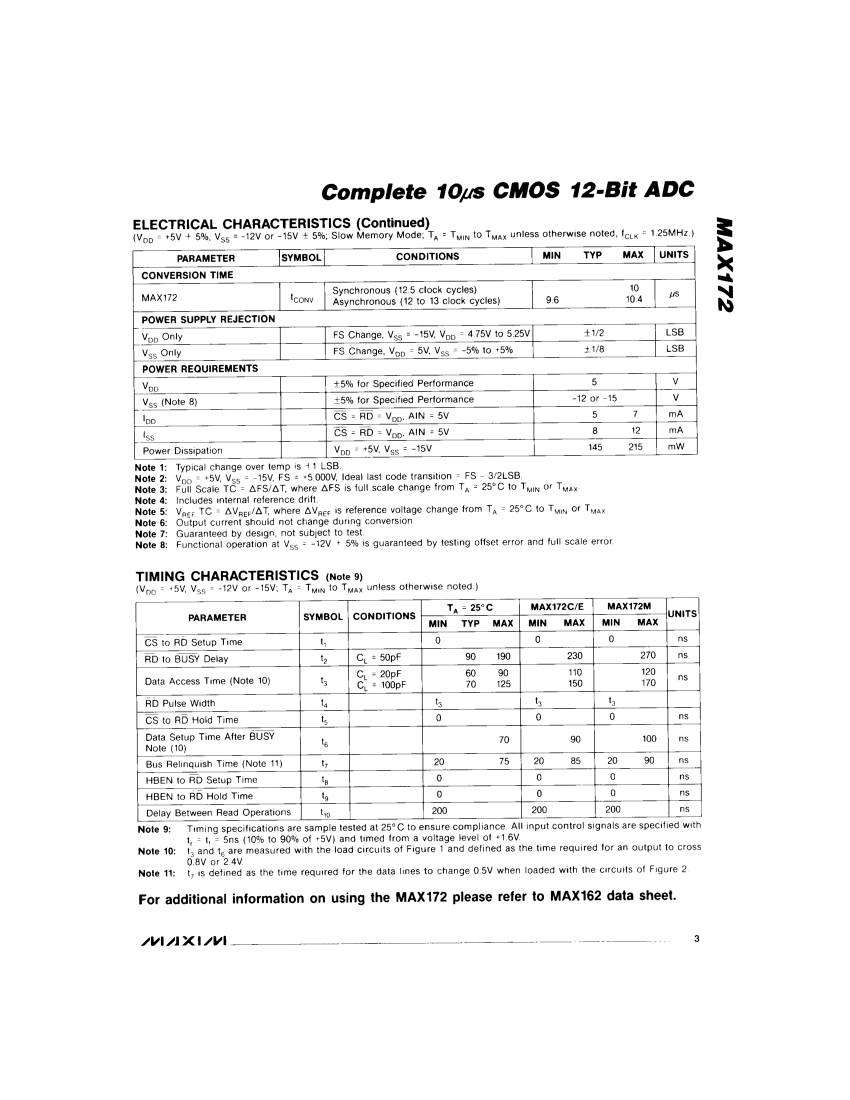

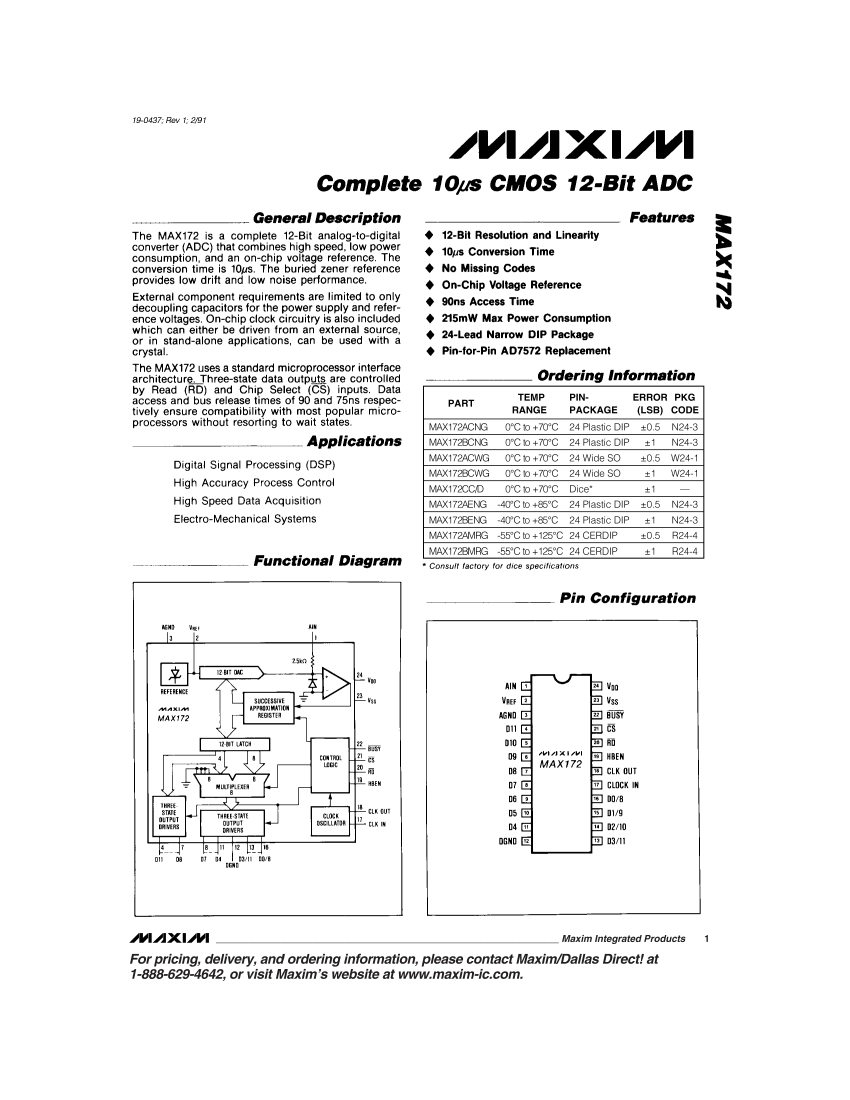

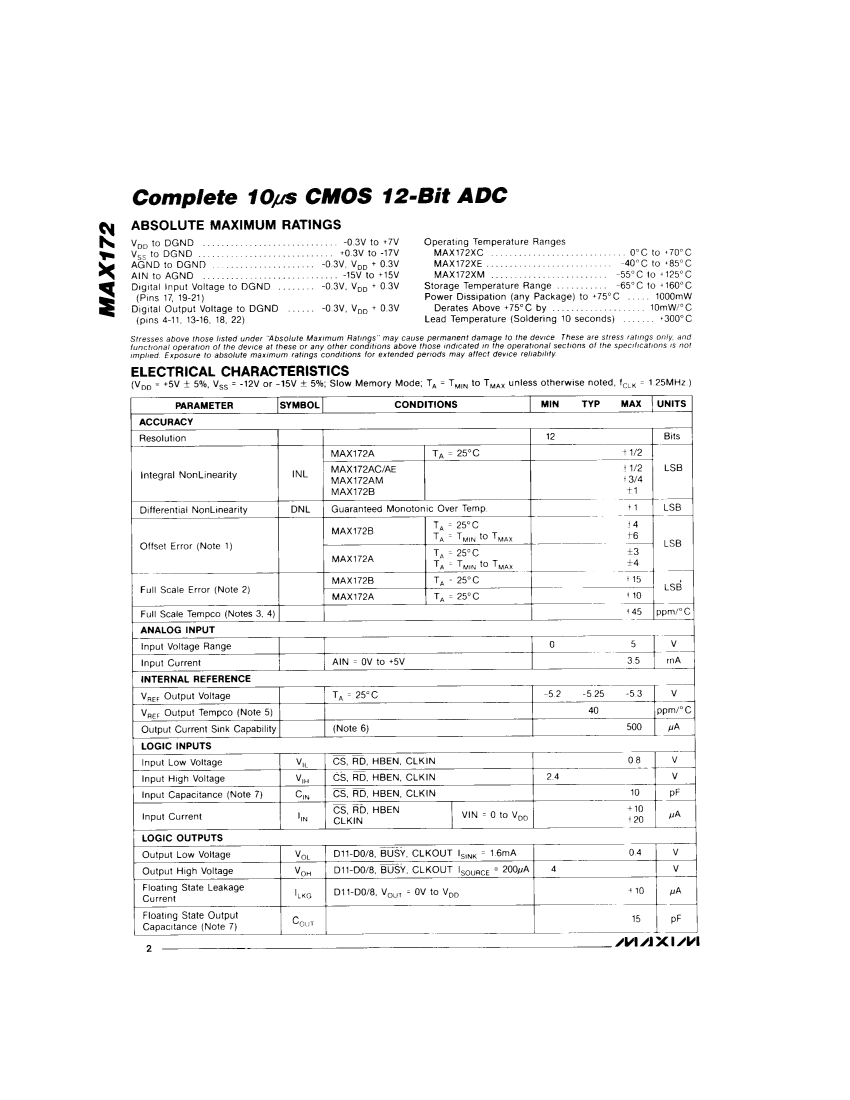

Preview

Download Datasheet

View All

MAX172ACWG+T Related Products

	MAX172ACWG+T	MAX172AMRG/883B	MAX172AENG+	MAX172AEWG+T	MAX172BEWG+	MAX172ACWG+	MAX172BCWG+	MAX172BCWG+T
Description	analog to digital converters - adc 12-bit 100ksps 5.25v- precision adc	analog to digital converters - adc 12-bit 100ksps 5.25v- precision adc	analog to digital converters - adc 12-bit 100ksps 5.25v- precision adc	analog to digital converters - adc 12-bit 100ksps 5.25v- precision adc	analog to digital converters - adc 12-bit 100ksps 5.25v- precision adc	analog to digital converters - adc 12-bit 100ksps 5.25v- precision adc	analog to digital converters - adc 12-bit 100ksps 5.25v- precision adc	analog to digital converters - adc 12-bit 100ksps 5.25v- precision adc
Is it lead-free?	Lead free	Contains lead	Lead free	-	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	incompatible	conform to	-	conform to	conform to	conform to	conform to
Maker	Maxim	Maxim	Maxim	-	Maxim	Maxim	-	Maxim
Parts packaging code	SOIC	DIP	DIP	-	SOIC	SOIC	SOIC	SOIC
package instruction	SO-24	CERDIP-24	ROHS COMPLIANT, PLASTIC, DIP-24	-	ROHS COMPLIANT, SOIC-24	SOP, SOP24,.4	SOP, SOP24,.4	SOP, SOP24,.4
Contacts	24	24	24	-	24	24	24	24
Reach Compliance Code	compliant	_compli	compli	-	compli	compli	compli	compli
ECCN code	EAR99	3A001.A.2.C	EAR99	-	EAR99	EAR99	EAR99	EAR99
Maximum analog input voltage	5 V	5 V	5 V	-	5 V	5 V	5 V	5 V
Maximum conversion time	10.4 µs	10.4 µs	10.4 µs	-	10.4 µs	10.4 µs	10.4 µs	10.4 µs
Converter type	ADC, SUCCESSIVE APPROXIMATION	ADC, SUCCESSIVE APPROXIMATION	ADC, SUCCESSIVE APPROXIMATION	-	ADC, SUCCESSIVE APPROXIMATION	ADC, SUCCESSIVE APPROXIMATION	ADC, SUCCESSIVE APPROXIMATION	ADC, SUCCESSIVE APPROXIMATION
JESD-30 code	R-PDSO-G24	R-GDIP-T24	R-PDIP-T24	-	R-PDSO-G24	R-PDSO-G24	R-PDSO-G24	R-PDSO-G24
JESD-609 code	e3	e0	e3	-	e3	e3	e3	e3
length	15.4 mm	-	30.545 mm	-	15.4 mm	15.4 mm	15.4 mm	15.4 mm
Maximum linear error (EL)	0.012%	0.018%	0.0122%	-	0.024%	0.012%	0.024%	0.024%
Humidity sensitivity level	1	1	1	-	1	1	1	1
Number of analog input channels	1	1	1	-	1	1	1	1
Number of digits	12	12	12	-	12	12	12	12
Number of functions	1	1	1	-	1	1	1	1
Number of terminals	24	24	24	-	24	24	24	24
Maximum operating temperature	70 °C	125 °C	85 °C	-	85 °C	70 °C	70 °C	70 °C
Output bit code	BINARY	BINARY	BINARY	-	BINARY	BINARY	BINARY	BINARY
Output format	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD	-	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD
Package body material	PLASTIC/EPOXY	CERAMIC, GLASS-SEALED	PLASTIC/EPOXY	-	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	DIP	DIP	-	SOP	SOP	SOP	SOP
Encapsulate equivalent code	SOP24,.4	-	DIP24,.3	-	SOP24,.4	SOP24,.4	SOP24,.4	SOP24,.4
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	-	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	IN-LINE	IN-LINE	-	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260	240	260	-	260	260	260	260
power supply	5,-12/-15 V	-	5,-12/-15 V	-	5,-12/-15 V	5,-12/-15 V	5,-12/-15 V	5,-12/-15 V
Certification status	Not Qualified	Not Qualified	Not Qualified	-	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	2.65 mm	5.08 mm	4.572 mm	-	2.65 mm	2.65 mm	2.65 mm	2.65 mm
Nominal supply voltage	5 V	5 V	5 V	-	5 V	5 V	5 V	5 V
surface mount	YES	NO	NO	-	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	-	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	MILITARY	INDUSTRIAL	-	INDUSTRIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Matte Tin (Sn)	TIN LEAD	Matte Tin (Sn)	-	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)
Terminal form	GULL WING	THROUGH-HOLE	THROUGH-HOLE	-	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	1.27 mm	2.54 mm	2.54 mm	-	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	-	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	20	30	-	30	30	30	30
width	7.5 mm	7.62 mm	7.62 mm	-	7.5 mm	7.5 mm	7.5 mm	7.5 mm
