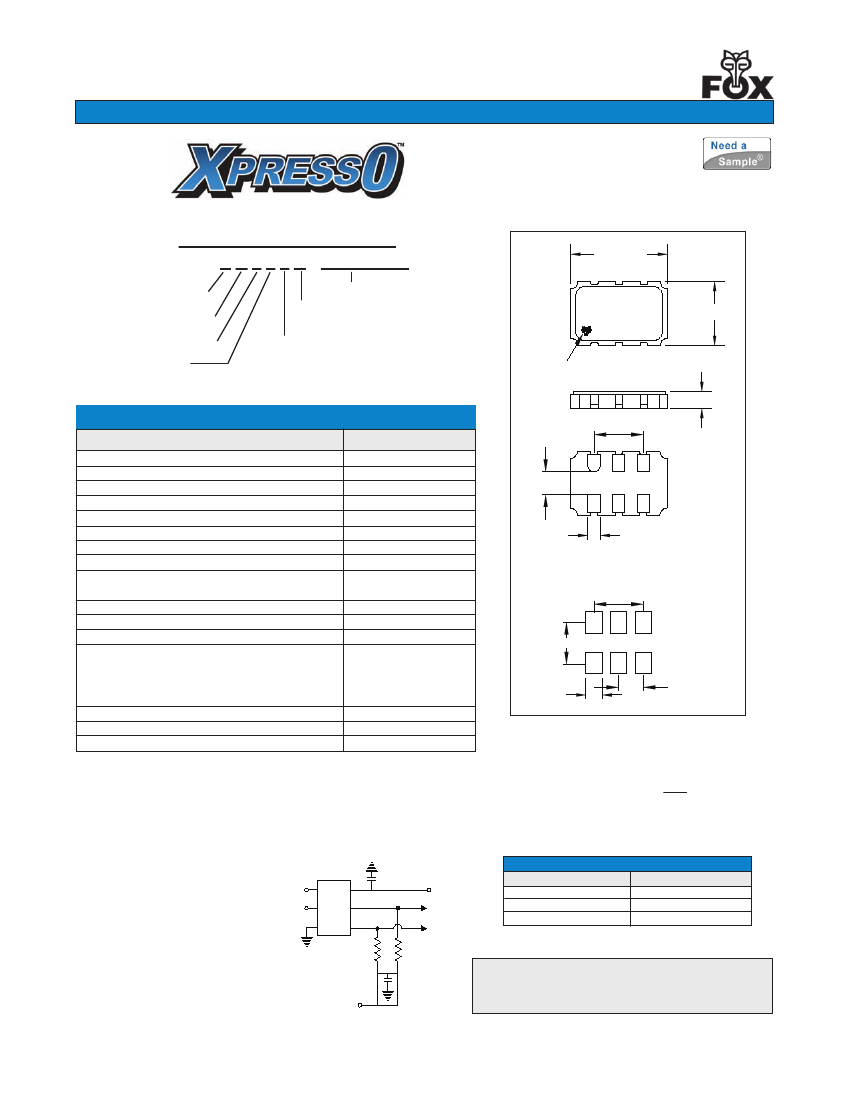

lVPECl 5x3.2mm 3.3V Oscillator
Model: FXO-PC53 SERIES
Page 1 of 2
RoHS Compliant / Pb Free
Rev. 8/1/2006 Preliminary
http://www.foxonline.com/need_a_sample.htm
Low Cost, Low Jitter, Fast Delivery
Actual Marking Depicted
MODEl SElECtION GuIDE
F X O - P C 5 3 0 R - 212.500000
P = LVPECL
C = Ceramic
5 = 5x3.2mm
3 = 3.3V
Frequency
Blank = -20~+70ºC
R = -40~+85ºC
0 = ±100PPM
5 = ±50PPM
6 = ±25PPM
8 = ±20PPM
5.15 Max
#6
#5
#4
X
PRESS
O
3.35 Max
Pin 1 Designator
(FOX Head or Dot)
#1
#2
#3
1.4 Max
• ElECtRICAl CHARACtERIStICS
2.54
PARAMEtERS
Frequency Range (F
o
)
Frequency Stability
1
Storage Temperature Range (T
stg
)
Supply Voltage (V
dd
)
Input Current
(I
dd
)
Output Symmetry (50% Vp-p Level)
Rise Time
(T
r
) (20% ~ 80% Vp-p)
Fall Time
(T
f
) (80% ~ 20% Vp-p)
Output Voltage (V
ol
)
(V
oh
)
Output Load
Start-up Time
(T
s
)
Output Enable / Disable Time
2
Jitter
12kHz ~ 20MHz
RMS Period
Cycle-to-Cycle
Maximum Soldering Temp / Time
Moisture Sensitivity Level (MSL)
Termination Finish
1
MAX
(unless otherwise noted)
1.000
MHz
~ 1.100
GHz
See above table
-55ºC ~ +125ºC
3.3V ± 5%
120mA
45% ~ 55%
400pS
400pS
1.305V ~ 1.65V
2.055V ~ 2.405V
50 Ohms
into V
dd
-2V
dc
10mS
100nS
2pS Typ.
5pS Typ.
30pS Typ.
260ºC / 10 Seconds
1
Au
1.2
0.64 typ.
Recommended
Solder Pad Layout
2.54
2.1
1.27
0.8
All dimensions are in millimeters.
Inclusive of 25ºC tolerance, operating temperature range, input voltage change, load
change, aging, shock, and vibration.
2
An internal pullup resistor from pin 1 to pin 6 allows active output if pin 1 is left open.
Note: A 0.01µF capacitor should be placed between
V
dd
(Pin 6) and GND (Pin 3) to
minimize power supply line noise.
All specifications subject to change without notice.
Pin Connections
#1) E/D
#2) NC
#3) GND
#4) Out 1
#5) Out 2
#6) V
dd
Recommended Circuit:
.01uF
E/D
#1
#6
V
DD
NC
#2
#5
#3
#4
• ENAblE / DISAblE FuNCtION
2
OUTPUT (Pin 4, Pin 5)
(Pin 1)
ACTIVE
OPEN
'1' Level V
ih
≥
70%
V
dd
ACTIVE
'0' Level V
il
≤
30%
V
dd
V
ol
level
50 Ohms
50 Ohms
.01uF
Patent Numbers:
US 6,664,860, US 5,960,403, US 5,952,890; US 5,960,405; US 6,188,290;
Foreign Patents: R.S.A. 98/0866, R.O.C. 120851; Singapore 67081, 67082; EP 0958652
China ZL 98802217.6, Malaysia MY-118540-A, Philippines 1-1998-000245
US and Foreign Patents Pending
X
PRESS
O® Fox Electronics
V
DD
- 2V
FOXElectronics
5570 Enterprise Parkway Fort Myers, Florida 33905 USA +1(239) 693.0099 FAX +1 (239) 693.1554
http://www.foxonline.com
EMEA
United Kingdom Tel/Fax: +44 .1767.312632 |
Asia
Hong Kong Tel: +852.2854.4285 FAX +852.2854.4282
© 2006 FOX ELECTRONICS | ISO9001:2000 Certified
21
lVPECl 5x3.2mm 3.3V Oscillator
Model: FXO-PC53 SERIES
Page 2 of 2
Page 2 of 2
RoHS Compliant / Pb Free
Rev. 8/1/2006 Preliminary
http://www.foxonline.com/need_a_sample.htm
Low Cost, Low Jitter, Fast Delivery

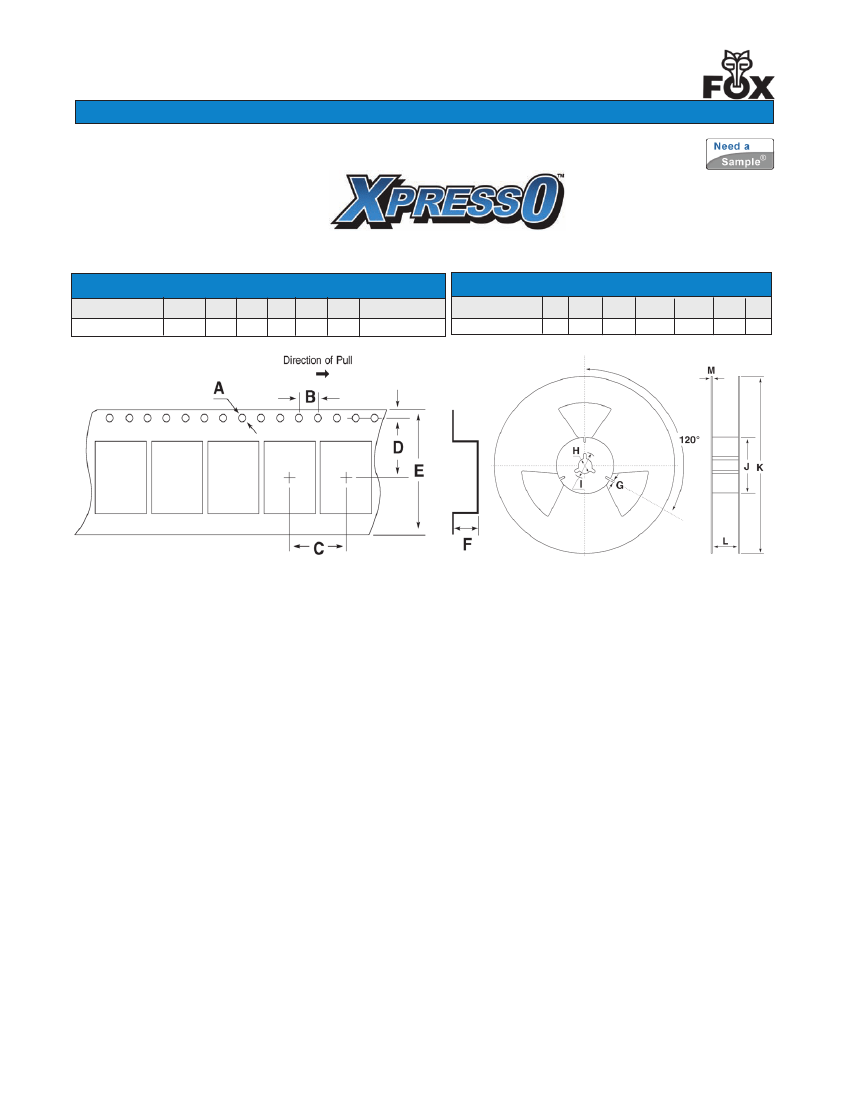

• tAPE SPECIFICAtIONS
(millimeters)
MODEl
FXO-PC53
• REEl SPECIFICAtIONS
(millimeters)
G H
I
J
K
l M
2.0
∅13 ∅21 ∅80 ∅255
17.5 2.0
b C D E
F
STD Reel QTY
MODEl
A
FXO-PC53
2,000
∅1.5
4.0 8.0 7.5 16.0 2.5
FOXElectronics
5570 Enterprise Parkway Fort Myers, Florida 33905 USA +1(239) 693.0099 FAX +1 (239) 693.1554
http://www.foxonline.com
EMEA
United Kingdom Tel/Fax: +44 .1767.312632 |
Asia
Hong Kong Tel: +852.2854.4285 FAX +852.2854.4282
© 2006 FOX ELECTRONICS | ISO9001:2000 Certified
