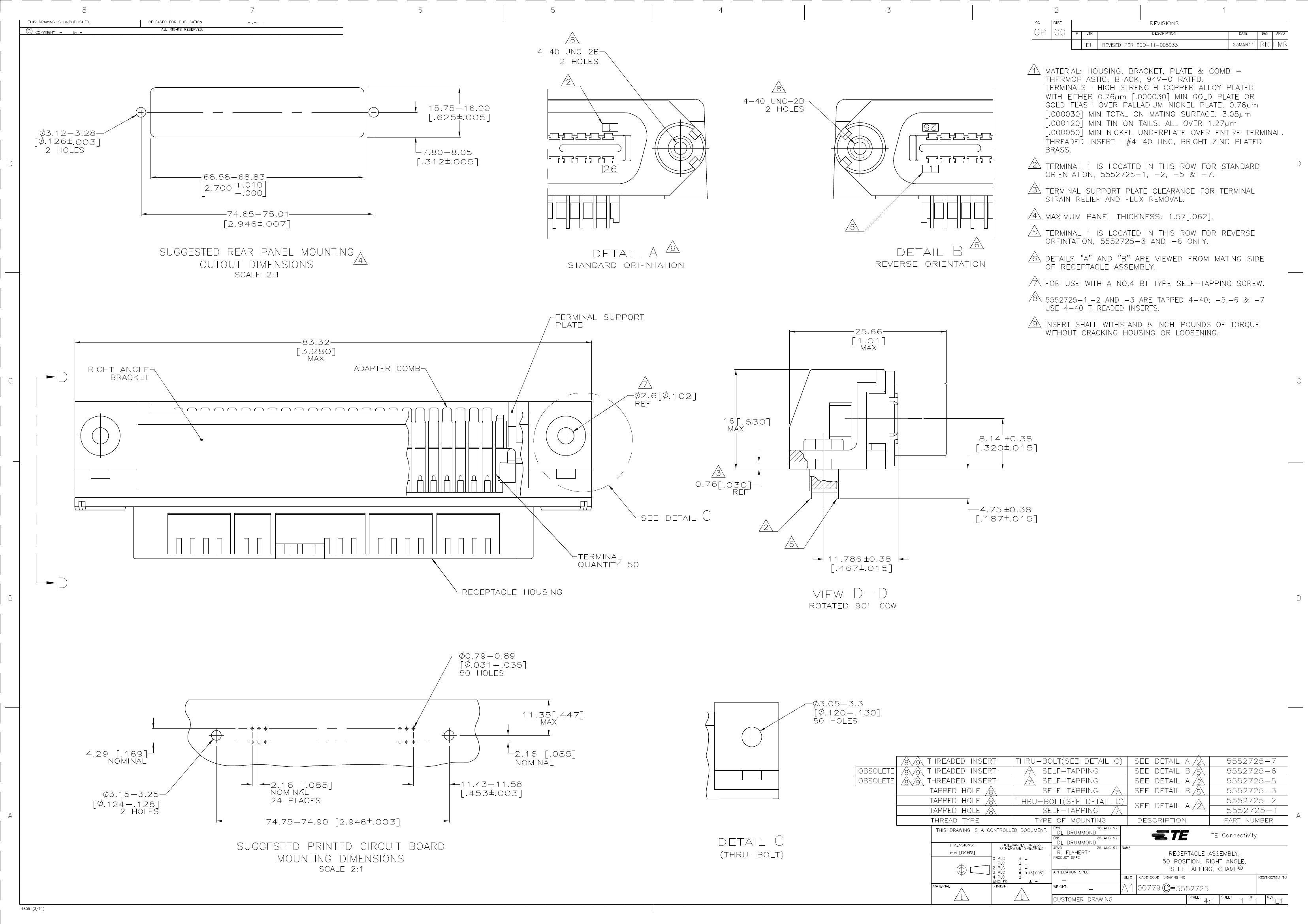

Preview

5552725-3: DescriptionASSY,RCPT,50 POSN, RTANG, PCB; CategoryThe connector The connector; File Size145KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

5552725-3 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	5552725-3	-	-	View	Buy Now

5552725-3 Overview

ASSY,RCPT,50 POSN, RTANG, PCB

5552725-3 Parametric

Parameter Name	Attribute value
Brand Name	AMP
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1424911857
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	25 weeks
Samacsys Description	TE Connectivity 5552725 Series 2.16mm 50 Way Right Angle PCB Socket PCB Mount Connector
Samacsys Manufacturer	TE Connectivity
Samacsys Modified On	2020-10-11 10:54:44
YTEOL	7.5
body width	0.63 inch
body length	3.28 inch
Body/casing type	RECEPTACLE
Connector type	TELECOM AND DATACOM CONNECTOR
Contactor design	PREASSEM CONN
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact style	CENTRONIC
DIN compliance	NO
Electromagnetic interference shielding	NO
empty shell	YES
Filter function	NO
IEC compliance	NO
Insulator color	BLACK
insulator material	POLYETHYLENE
MIL compliance	NO
Power Connector Ratings	115/230VAC
Plug contact pitch	0.085 inch
Match contact row spacing	0.169 inch
Mixed contacts	NO
Installation option 1	#4-40
Installation option 2	THREADED INSERT
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	2
Number of ports	1
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	4.2926 mm
Panel mounting	NO
Plating thickness	30u inch
Guideline	UL
reliability	COMMERCIAL
Shell surface	ZINC
Shell material	BRASS
Terminal pitch	2.16 mm
Termination type	SOLDER
Total number of contacts	50
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

5552725-3 Related Products

	5552725-3	5552725-7	5552725-1
Description	ASSY,RCPT,50 POSN, RTANG, PCB	ASSY, RCPT, 50 POSN, RTANG, PCB	ASSY,RCPT,50 POSN, RTANG, PCB
Connector type	TELECOM AND DATACOM CONNECTOR	female end	TELECOM AND DATACOM CONNECTOR
Shell material	BRASS	thermoplastic	BRASS
Brand Name	AMP	-	AMP
Is it lead-free?	Lead free	-	Lead free
Is it Rohs certified?	conform to	-	conform to
Objectid	1424911857	-	1614082698
Reach Compliance Code	compliant	-	compliant
ECCN code	EAR99	-	EAR99
Factory Lead Time	25 weeks	-	2 weeks 6 days
Samacsys Description	TE Connectivity 5552725 Series 2.16mm 50 Way Right Angle PCB Socket PCB Mount Connector	-	TE Connectivity 5552725 Series 2.16mm 50 Way 1 Row Right Angle PCB Socket PCB Mount Champ Connector
Samacsys Manufacturer	TE Connectivity	-	TE Connectivity
Samacsys Modified On	2020-10-11 10:54:44	-	2023-03-07 16:10:32
YTEOL	7.5	-	7.5
body width	0.63 inch	-	0.63 inch
body length	3.28 inch	-	3.28 inch
Body/casing type	RECEPTACLE	-	RECEPTACLE
Contactor design	PREASSEM CONN	-	PREASSEM CONN
Contact to complete cooperation	NOT SPECIFIED	-	NOT SPECIFIED
Contact point gender	FEMALE	-	FEMALE
Contact material	NOT SPECIFIED	-	NOT SPECIFIED
contact mode	RECTANGULAR	-	RECTANGULAR
Contact style	CENTRONIC	-	CENTRONIC
DIN compliance	NO	-	NO
Electromagnetic interference shielding	NO	-	NO
empty shell	YES	-	YES
Filter function	NO	-	NO
IEC compliance	NO	-	NO
Insulator color	BLACK	-	BLACK
insulator material	POLYETHYLENE	-	POLYETHYLENE
MIL compliance	NO	-	NO
Power Connector Ratings	115/230VAC	-	115/230VAC
Plug contact pitch	0.085 inch	-	0.085 inch
Match contact row spacing	0.169 inch	-	0.169 inch
Mixed contacts	NO	-	NO
Installation option 1	#4-40	-	#4-40
Installation option 2	THREADED INSERT	-	THREADED INSERT
Installation method	RIGHT ANGLE	-	RIGHT ANGLE
Installation type	BOARD	-	BOARD
PCB row number	2	-	2
Number of ports	1	-	1
Number of rows loaded	2	-	2
Maximum operating temperature	105 °C	-	105 °C
Minimum operating temperature	-40 °C	-	-40 °C
Options	GENERAL PURPOSE	-	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR	-	RECTANGULAR
PCB contact row spacing	4.2926 mm	-	4.2926 mm
Panel mounting	NO	-	NO
Plating thickness	30u inch	-	30u inch
Guideline	UL	-	UL
reliability	COMMERCIAL	-	COMMERCIAL
Shell surface	ZINC	-	ZINC
Terminal pitch	2.16 mm	-	2.16 mm
Termination type	SOLDER	-	SOLDER
Total number of contacts	50	-	50
UL Flammability Code	94V-0	-	94V-0
