Connector Series uses rugged and environmentally sealed (IP68) shells to protect industry leading APP
®
Powerpole
®
contacts and housing. Customer configured Solar SPEC Pak
®
is designed specifically to meet the requirements of the photovoltaic industry
conforming to NEC 2008 requirements for first make/last break ground and a locking feature that require a tool to unlock. It’s also the first multipole
connector to conform to UL 6703A. The adaptive design lends itself towards use in other markets including wind power, fuel cells, mass transporta-
tion, off-road vehicles, agricultural equipment, oil and petro chemical exploration and many more.
The core APP
®
Powerpole
®
technology within the SPEC Pak
®
is proven reliable and cost effective. The broad selection of touch safe, color-coded
Powerpole
®
housings with power, signal and ground contacts accept a broad range of wire gauges, #24 to #10 AWG (0.25 to 4.0 mm²), giving users
thousands of flexible design solutions in a single interconnect.
1
2
3
4
5
6
9
7
8
Configurable to 1000 Volts

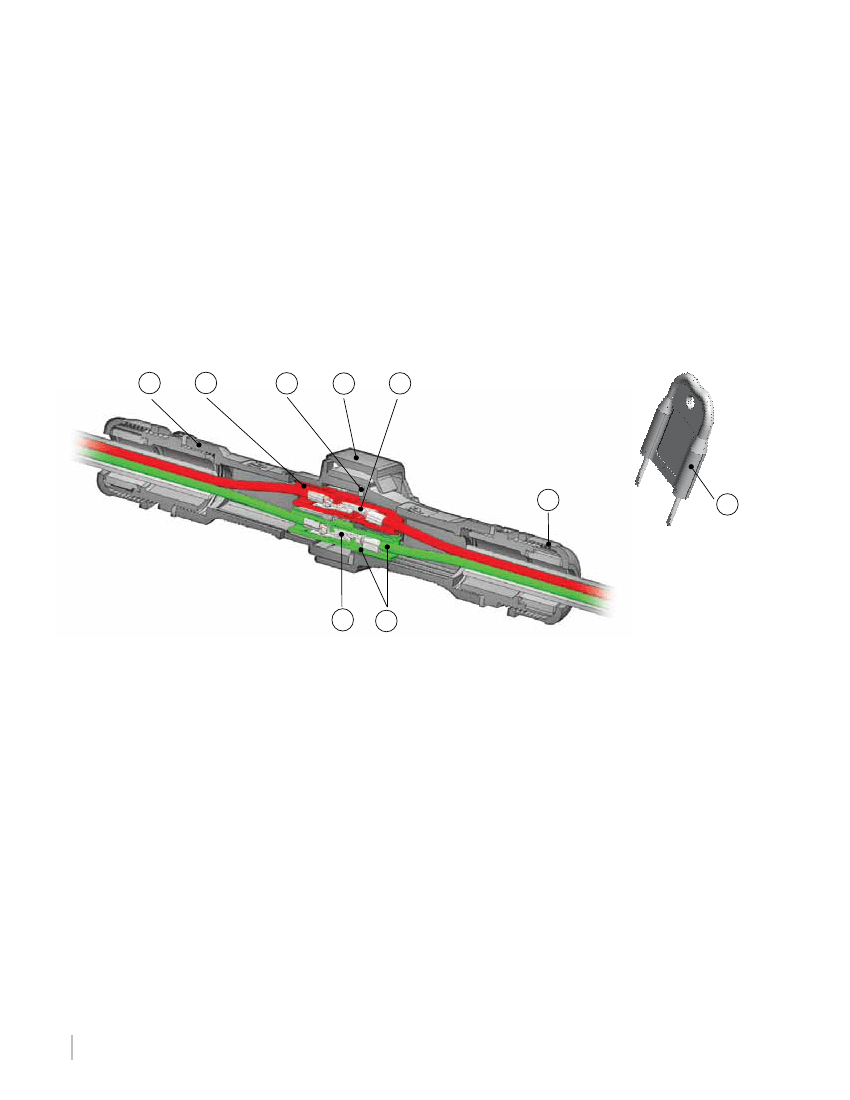

1 - Chemical & UV Resistant Ruggedized Shells
• Wire to wire configurations
• Panel mount configurations
5 - Power Contacts
(up to 4) and / or
Signal Contacts
(up to 16)
6 - Uses Industry Standard Sealing Components
(PG gland compatible - size 16)
2 - Touch Safe Housings
(UL1977, Section 10.2)
3 - IP68 Interfacial Sealing Gasket
4 - Locking Latch
(NEC 2008, Section 690.33C)
7 - First Mate / Last Break Ground Contacts
(NEC 2008, Section 690.33D)
8 - Housing Colors to Match Wire Colors for ease of Assembly
9 - Unlocking Tool
-2-
www.andersonpower.com
Specifications
............................. SPEC Pak
®
Shells Used With ..........................
SPEC Pak
®
Shell
Electrical
Current Rating (Amprese)
UL 1977
UL 6703A
CSA (30C Rise)
Voltage Rating
UL 1977 (AC/DC)
UL 6703A (AC)
IEC 60664 (AC/DC)
Dielectric Withstanding (AC/DC)
Contact Resistance Ω (average)
Hot Plug (UL 1977)
250 Cycles at 120V
2
Powerpole
®
Power
Contacts & Housings
(1327FP Series)
15 to 40
20
10 to 26
600
600
1,000
2,200
525
30
-
-
20 to 10 AWG
0.5 to 4.0 mm²
-20° to 105°C
-4° to 221°F
-
-
1,500
10,000
-
-
-
25.0
111.0
-
-
Pass
Pass
Pass
Powerpole
®
Ground
Contacts & Housings
(1827 Series)
40
-
35
600
600
-
2,200
525
30
-
-
14 to 10 AWG
1.5 to 4.0 mm²
-20° to 105°C
-4° to 221°F
-
-
1,500
-
-
-
-
25.0
111.0
3.0
13.3
-
-
-
PC
-
-
V0
-
-
-
-
Copper Alloy
Tin or Silver
PPMX
1
Signal
Contacts & Housings
(4800 Series)
7
-
5
300
-
-
1,600
-
-
-
-
24 to 20 AWG
0.25 to 0.5 mm²
-20° to 105°C
-4° to 221°F
-
-
-
-
5,000
-
-
12.0
53.0
4.5 max
20.0 max
-
-
-
PBT / PC
-
-
V0
-
-
-
-
Copper Alloy
Gold, 50µ
-
-
-
-
-
-
-
-
-
IP68
Pass
-
-
-40° to 105°C
-40° to 221°F
-35° to 65°C
-31° to 149°F
-
-
-
200
Pass
-
-
-
-
-
Mechanical
Environmental Seal
IP rating
UL 50 Sec 36
Wire Size
Operating Temperature
UL 1977
UL 6703A
Mating Cycles (no load)
Tin
Silver
Gold
Latch
Mating Cycles
Lock (NEC 2008 Sec 690.33C)
Contact Retention Force (lbf)
(N)
Insertion Force (lbf)
(N)
Touch Safe (UL 1977 Sec 10.2)
Vibration (10g) Mil Standard 202 204 Cond A
Materials
Shell / Housing
Powerpole
®
Holder
Latch
Flammability (UL 94)
Weatherability (UL 764C)
-35°C Impact Test (UL 6703A Sec 30)
Thermal Cycle Test (UL 6703A Sec 35)
Humidity Cycle Test (UL6703A Sec 36)
Contacts
Base
Plating
Mechanical Shock (50g) Mil Standard 202 213 Cond A
PBT / PC
PC
PPE
V0
F1
Pass
Pass
Pass
-
-
PC
-
-
V0
-
-
-
-
Copper Alloy
Tin or Silver
Notes:
1. PPMX housing holds up to 2 pin and 2 sockets.
2. Hot Plug testing completed using individual Powerpole
®
housings and contacts,
not installed in SPEC Pak
®
shells.
For other industry test and/or agency approvals, contact customer service.
www.andersonpower.com
-3-

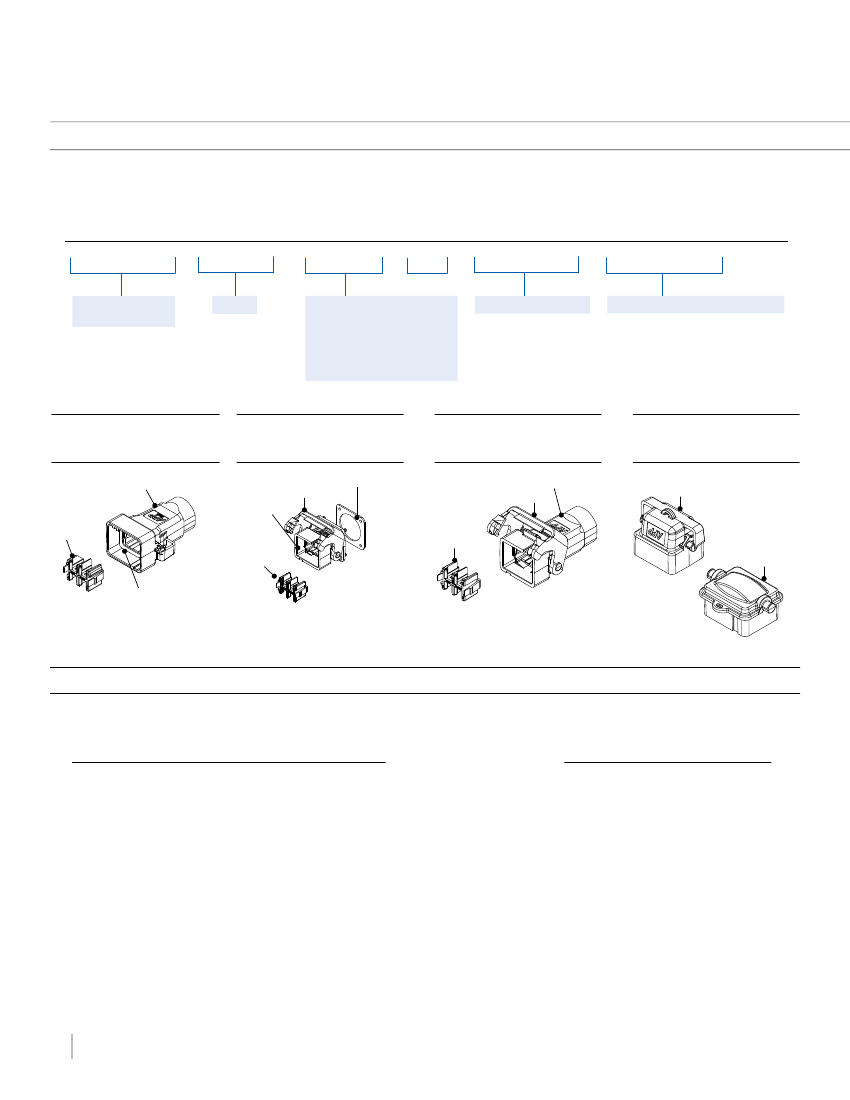

Part Number Configurator
PART NUMBER PLAN
SPEC Pak
®
Series
(1 Fixed Character)
Shell Color
(1 Character)
Shell Style
(1 Character)
Dash
Shell Size
(mm) (3 Characters)
Insert Arrangement
(3 Characters)
P
P = Solar
SPEC Pak
®
K
K = Black
2
-
050
050 = 50 mm - 4 Pole Shell
B04
B04 = PP15/45 Housing (any type), 4 Pole
1 = Inline Receptacle
2 = Panel Mount Receptacle
6 = Straight Plug
9 = Panel Mount Receptacle Cover
9R = Inline Receptacle Cover
9P = Plug Cover
PLUG
KIT
Plug Shell
Plug
Powerpole
®
Holder
PANEL MOUNT
RECEPTACLE KIT
Panel Mount Gasket
Panel Mount Latch
Receptacle
Shell
Receptacle
Powerpole
®
Holder
INLINE
RECEPTACLE KIT
Inline Receptacle Shell
Latch
Receptacle
Powerpole
®
Holder
IP68 SEALING
COVER KIT
Receptacle
Cover
Plug
Cover
Interfacial Sealing Gasket
NOTE:
- Mounting hardware (4 each - M3 or #4 screws) not included
- Recommended torque for mounting hardware is 2½ to 4 in-lbf (0.28 to 0.45 N)
