PB120SB3215PC datasheet, PDF - EEWORLD Datasheet

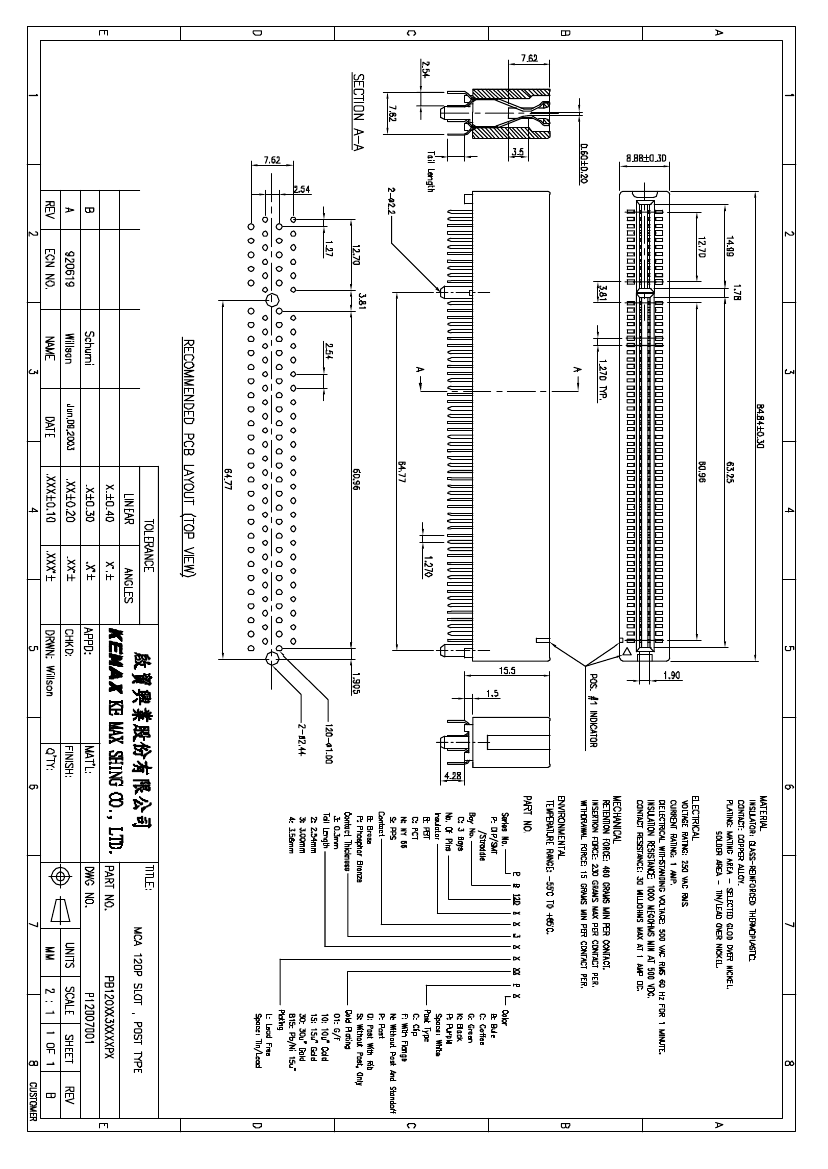

PB120SB3215PC: DescriptionCard Edge Connector, 120 Contact(s), 2 Row(s), Straight, 0.05 inch Pitch, Solder Terminal, Receptacle; CategoryThe connector The connector; File Size54KB，1 Pages; ManufacturerKemax Shing Co., Ltd.

Download Datasheet Parametric View All

PB120SB3215PC Overview

Card Edge Connector, 120 Contact(s), 2 Row(s), Straight, 0.05 inch Pitch, Solder Terminal, Receptacle

Parameter Name	Attribute value
Contact material	BRASS
contact mode	RECTANGULAR
Contact style	BELLOWED TYPE
Plug contact pitch	0.05 inch
PCB contact pattern	STAGGERED
Plating thickness	15u inch
Termination type	SOLDER
Board mount options	PEG
Mixed contacts	NO
Number of connectors	ONE
PCB contact row spacing	2.54 mm
body width	0.35 inch
subject depth	0.61 inch
body length	3.34 inch
Terminal length	0.1 inch
maximum insertion force	1.112 N
Insulation resistance	1000000000 Ω
Evacuation force-minimum value	.0556 N
Dielectric withstand voltage	500VAC V
Filter function	NO
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
Guideline	UL
Is Samacsys	N
Objectid	1166255580
Reach Compliance Code	Unknown
ECCN code	EAR99
Terminal pitch	2.54 mm
Total number of contacts	120
Other features	POST
Body/casing type	RECEPTACLE
PCB row number	4
Number of rows loaded	2
Installation method	STRAIGHT
Installation type	BOARD
Rated current (signal)	1 A
Connector type	CARD EDGE CONNECTOR
Contact to complete cooperation	AU ON NI
Contact resistance	30 mΩ
insulator material	POLYPHENYLENE SULFIDE
