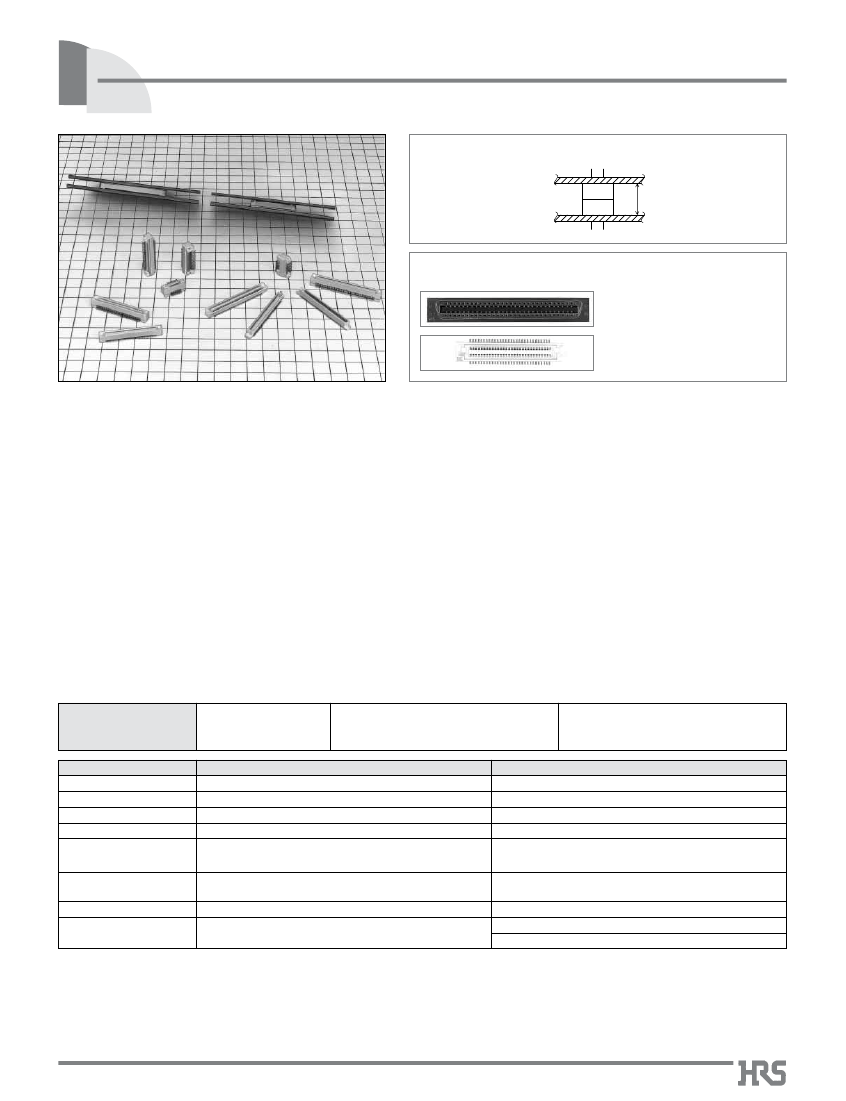

0.8mm Pitch Stacking Height 5 to 9mm Connector
FX6 Series
Stacking Height: 5 to 9mm
5~9mm
Mounting area 50% OFF, compared with the half pitch connector
Half pitch connector
(FX2 series)
FX6 series
(If compared with 60 contacts)
■Features
1. Stacking Height 5 to 9mm
The board to board stacking height can be set at every
millimeter between 5 and 9mm.
4. Automatic Mounting
The standard packaging specification specifies the stick
package, considering the automatic mount, while the emboss
package can also correspond to the connector with less than
80 contacts. (However, the product is limited to 80 contacts.)
2. Effective Contact Length 1.7mm
3. Mating Guide
Despite the low profile type connector, the connector has the
1.7mm long effective contact length and provides a margin
5. SMT Coplanarity
sufficient to contact.
The lead coplanarity on the SMT soldered area is maintained
with the high accuracy of less than 0.1mm.
The self-alignment for mating action exhibits a high guide
level at
±
1mm, and makes the mating process easier by
providing the guide rib.
■Applications
Note PC, business equipments such as handy terminals, and other equipment which require miniaturization or light-weight.
No deformation of components affecting performance.
heat
Item
1. Insulation Resistance
2. Withstanding voltage
3. Contact Resistance
4. Vibration
5.
Humidity (Steady state)
Specification
100M
ohms
min
No flashover or insulation breakdown.
40m
ohms
max.
No electrical discontinuity of 1μs or more
Frequency: 10 to 55 Hz, single amplitude of 0.75 mm, 2 hours in each of the 3 directions.
96 hours at temperature of 40ç and humidity of 90% to 95%
(-55ç: 30 minutes 15 to 35ç: 2 to 3 minutes
(-85ç:
30 minutes 15 to 35ç: 2 to 3minutes)5 cycles
100 cycles
Reflow: At the recommended temperature profile
Manual soldering: 360ç for 5 seconds
Note 1: Includes temperature rise caused by current flow.
Note 2: The term "storage" refers to products stored for long period of time prior to mounting and use. Operating Temperature Range and
Humidity range covers non conducting condition of installed connectors in storage, shipment or during transportation.
Note 3. Information contained in this catalog represents general requirements for this Series. Contact us for the drawings and specifications for
a specific part number shown.
A143
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon.
to 9mm Connector
status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.
FX6 Series●0.8mm Pitch Stacking Height 5
Please check the products
■Material
Part
Insulation
Header Contact
Receptacle Contact
Note 1 : The black dots on the insulater will not affect performance.
Note 2 :
FX6(A)-*P-0.8SV(*) is gold plated.
PPS
Phosphor bronze
Material
Light brown
Contact area
Lead area
Gold plated
Tin plated
Finish
Remarks
UL94V-0
————
————
■Ordering
Information
FX6
1
q
Series Name: FX6
w
Blank: With boss
A
: Without boss
(A) -
*
P - 0.8 SV 1 (91)
2
3
4
5
y
Contact type
6
7
8
SV: Board vertical type
2 : +2mm
u
Product Height Variable Blank : Standard, 1: +1mm
i
Packaging Style
(71) : Stick packaging (No pick & place tape)
P: Header
S: Receptacle
(91) : Stick packaging (Pick & place tape)
(92) : Embossed tape packaging (No pick & place tape)
(93) : Embossed tape packaging (Pick & place Stick tape)
e
Number of Contacts : 20,40,50,60,80,100
r
Connector Type
t
Contact Pitch: 0.8mm
■Stacking
Height Variation
Unit: mm
FX6(A)-*S-0.8SV
FX6(A)-*P-0.8SV
FX6(A)-*P-0.8SV1
FX6(A)-*P-0.8SV2
5
6
7
FX6(A)-*S-0.8SV2
8
9
5 to 9
7
(
*
indicates 20, 40, 50, 60, 80, and 100 contacts.)
■Packaging
Type
Packaging Type
Stick Packaging
Number of Contacts
Packaged Product Pieces
Sales Unit
Tape Width
Product Pitch
Embossed Tape Packaging
Emboss Reel Diameter
Packaged Product Pieces
Sales Unit
20 contacts 40 contacts 50 contacts
33 pieces
24mm
22 pieces
44mm
19 pieces
44mm
12mm
FX6(A)_*S-0.8SV
……………………………………………Ø330mm
FX6(A)_*P_0.8SV.FX6(A)_*S-0.8SV2
…………………Ø360mm
FX6(A)_*P_0.8SV1.FX6(A)_*P-0.8SV2
………………Ø380mm
1000 pieces packaged per reel
Per reel
60contacts
16 pieces
44mm
80 contacts 100 contacts
13 pieces
56mm
11 pieces
Order by doubling the number of pieces contained in the product. (Example) In case of 20 contacts,33 pieces, 66 pieces,...
A144
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose
FX6 Series●0.8mm Pitch Stacking Height 5
your
9mm Connector
website RoHS search at www.hirose-connectors.com, or contact
to
Hirose sales representative.

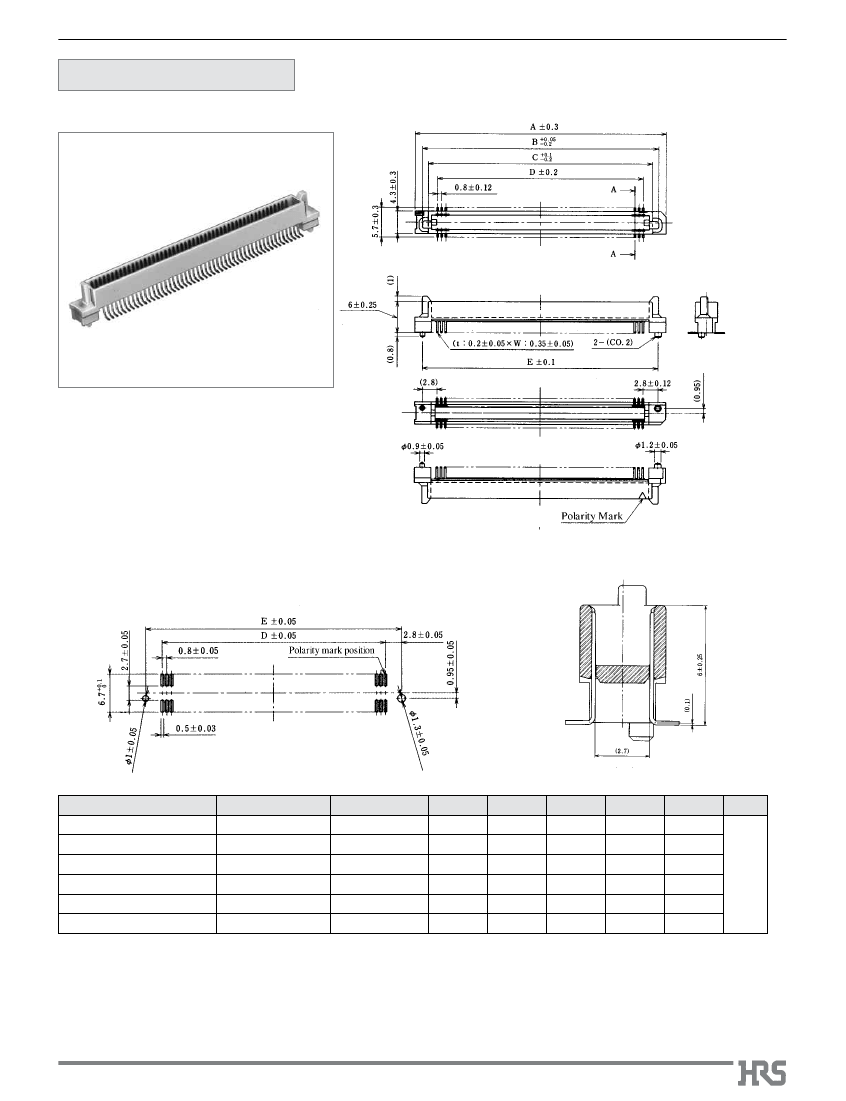

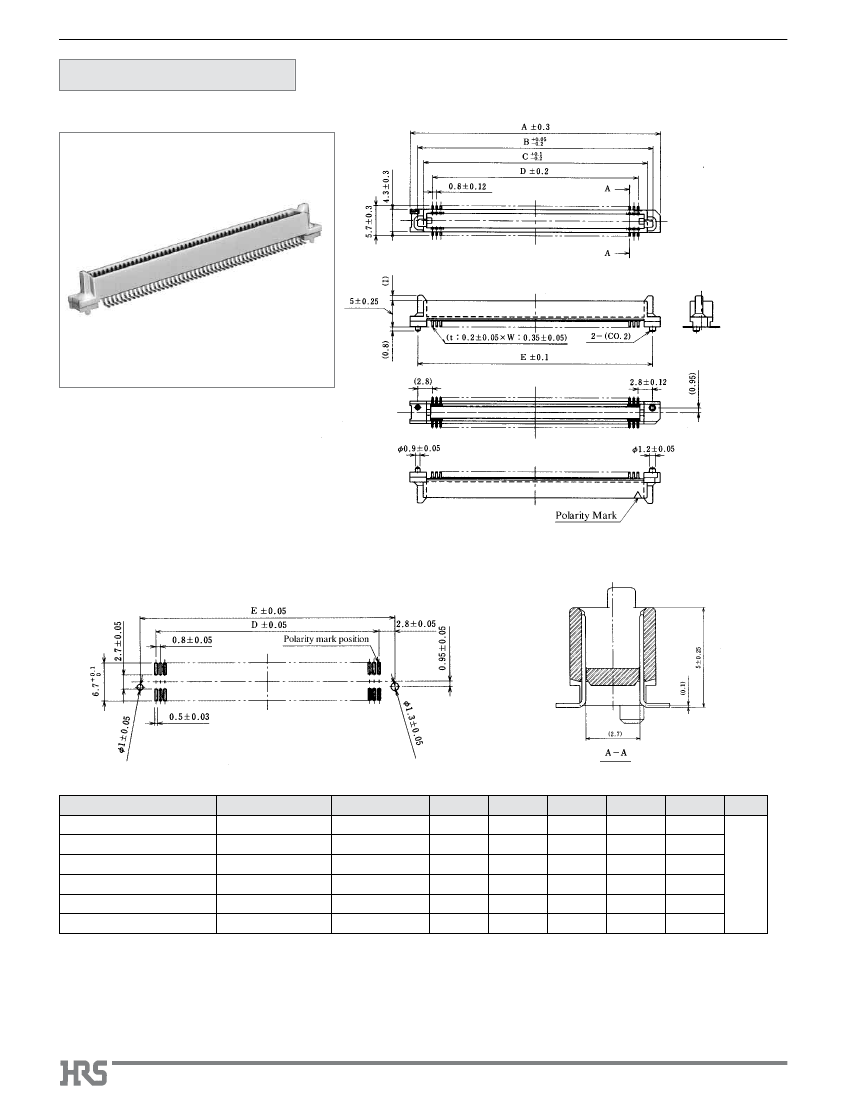

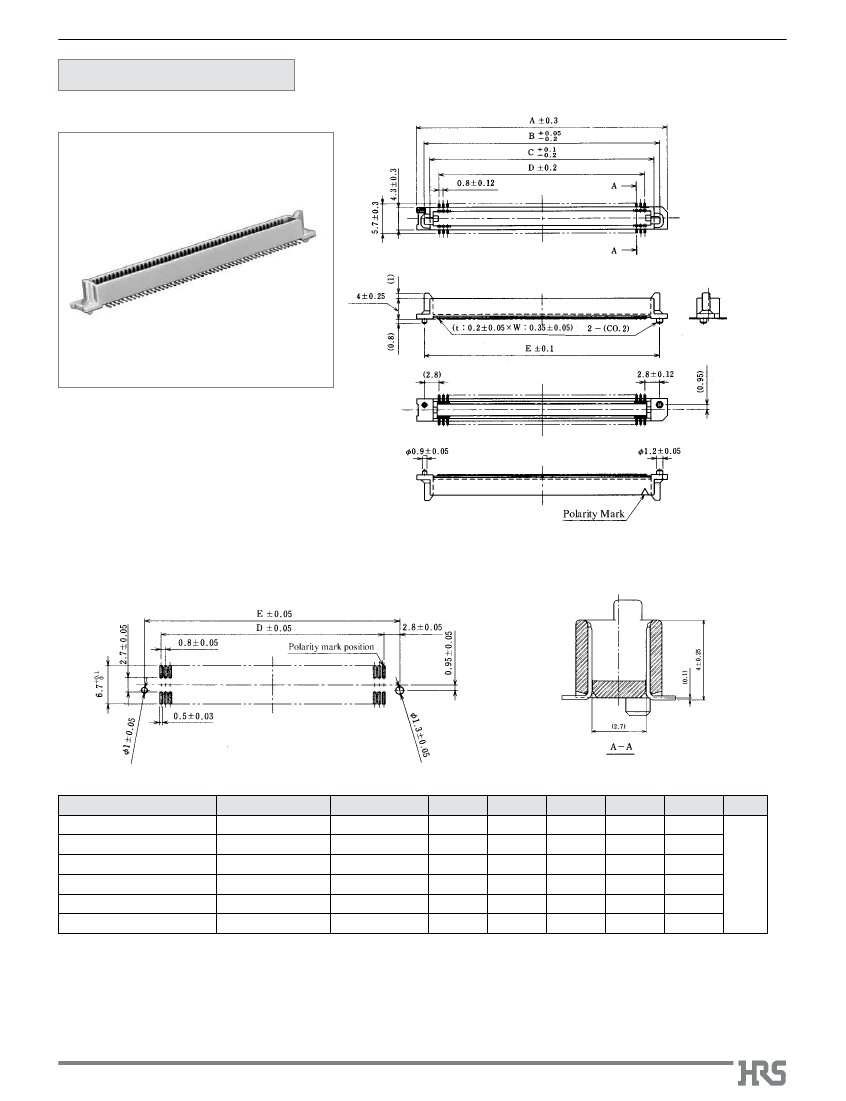

With Boss Type
■Header-Stacking
Height: Standard type
BPCB
mounting pattern
Unit: mm
Part Number
FX6-020P-0.8SV(71)
FX6-040P-0.8SV(71)
FX6-050P-0.8SV(71)
FX6-060P-0.8SV(71)
FX6-080P-0.8SV(71)
FX6-100P-0.8SV(71)
CL No.
576-0001-3-71
576-0003-9-71
576-0004-1-71
576-0005-4-71
576-0007-0-71
576-0008-2-71
Number of Contacts
20
40
50
60
80
100
A
15.8
23.8
27.8
31.8
39.8
47.8
B
12.9
20.9
24.9
28.9
36.9
44.9
C
10.7
18.7
22.7
26.7
34.7
42.7
D
07.2
15.2
19.2
23.2
31.2
39.2
E
12.8
20.8
24.8
28.8
36.8
44.8
YES
RoHS
Note:Determine a quantity of the stick package product for delivery, multiplying the insertion pieces per contact number by an integer.
Please make sure that a quantity of the stick package product for delivery is determined per reel (1000 pieces).
(Refer to the delivery form item on page A144 for details.)
A145
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon.
to 9mm Connector
status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.
FX6 Series●0.8mm Pitch Stacking Height 5
Please check the products
With Boss Type
■Header-Stacking
Height: Standard type
BPCB
mounting pattern
Unit: mm
Part Number
FX6-020P-0.8SV1(71)
FX6-040P-0.8SV1(71)
FX6-050P-0.8SV1(71)
FX6-060P-0.8SV1(71)
FX6-080P-0.8SV1(71)
FX6-100P-0.8SV1(71)
CL No.
576-0021-0-71
576-0023-6-71
576-0024-9-71
576-0025-1-71
576-0027-7-71
576-0028-0-71
Number of Contacts
20
40
50
60
80
100
A
15.8
23.8
27.8
31.8
39.8
47.8
B
12.9
20.9
24.9
28.9
36.9
44.9
C
10.7
18.7
22.7
26.7
34.7
42.7
D
07.2
15.2
19.2
23.2
31.2
39.2
E
12.8
20.8
24.8
28.8
36.8
44.8
YES
RoHS
Note:Determine a quantity of the stick package product for delivery, multiplying the insertion pieces per contact number by an integer.
Make sure that a quantity of the stick package product for delivery is determined per reel (1000 pieces).
(Refer to the delivery form item on page A144 for details.)
A146
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose
FX6 Series●0.8mm Pitch Stacking Height 5
your
9mm Connector
website RoHS search at www.hirose-connectors.com, or contact
to
Hirose sales representative.
With Boss Type
■Header-Stacking
Height: Standard+2mm type
BPCB
mounting pattern
Unit: mm
Part Number
CL No.
Number of Contacts
A
15.8
23.8
27.8
31.8
39.8
47.8
B
12.9
20.9
24.9
28.9
36.9
44.9
C
10.7
18.7
22.7
26.7
34.7
42.7
D
07.2
15.2
19.2
23.2
31.2
39.2
E
12.8
20.8
24.8
28.8
36.8
44.8
RoHS
FX6-020P-0.8SV2(71)
FX6-040P-0.8SV2(71)
FX6-050P-0.8SV2(71)
FX6-060P-0.8SV2(71)
FX6-080P-0.8SV2(71)
FX6-100P-0.8SV2(71)
576-0041-8-71
576-0043-3-71
576-0044-6-71
576-0045-9-71
576-0047-4-71
576-0048-7-71
20
40
50
60
80
100
YES
Note:Determine a quantity of the stick package product for delivery, multiplying the insertion pieces per contact number by an integer.
Make sure that a quantity of the stick package product for delivery is determined per reel (1000 pieces).
(Refer to the delivery form item on page A144 for details.)
