5962-9306901HZC datasheet, PDF

Datasheet> All Categories > Analog mixed-signal IC> The signal circuit> 5962-9306901HZC

5962-9306901HZC: DescriptionAnalog Circuit, Hybrid, MDIP10,; CategoryAnalog mixed-signal IC The signal circuit; File Size281KB，16 Pages; ManufacturerInterpoint （ Crane Aerospace & Electronics ）; Websitehttp://www.interpoint.com

Download Datasheet Parametric View All

5962-9306901HZC Overview

Analog Circuit, Hybrid, MDIP10,

5962-9306901HZC Parametric

Parameter Name	Attribute value
Maker	Interpoint （ Crane Aerospace & Electronics ）
Parts packaging code	MODULE
Contacts	10
Reach Compliance Code	unknown
Maximum input voltage	40 V
Minimum input voltage	16 V
JESD-30 code	R-MDIP-T10
Number of terminals	10
Maximum output current	2.5 A
Nominal output voltage	12 V
Package body material	METAL
encapsulated code	DIP
Encapsulate equivalent code	DIP10,.8,400TB
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
Filter level	38535Q/M;38534H;883B
surface mount	NO
technology	HYBRID
Terminal form	THROUGH-HOLE
Terminal pitch	10.16 mm
Terminal location	DUAL
Base Number Matches	1

Preview

Download Datasheet

View All

EATURES

•

–55° to +125°C operation

16 to 40 VDC input

Fully isolated

Magnetic feedback

Fixed frequency 600 kHz typical

Topology – Single Ended Forward

50 V for up to 50 ms transient protection

Inhibit and synchronization functions

Indefinite short circuit protection

Up to 30 watts output power

Trim and remote sense on single

output models

• Up to 84% efficiency

DC/DC C

ONVERTERS

28 V

OLT

NPUT

MTR SERIES

30 WATT

MODELS

VDC O

UTPUT

SINGLE

DUAL

TRIPLE

3.3

±5

+5 &

±12

±15

+5 &

±15

Size (max): Non-flanged: Single and dual output models, case H2 (H4 for MTR Dual with standard or ES screening, ht 0.417", 10.59 mm)

2.125 x 1.125 x 0.400 inches (53.98 x 28.58 x 10.16 mm)

Triple output models, case F1, 1.950 x 1.350 x 0.405 inches (49.53 x 34.29 x 10.29 mm)

Flanged:

Single and dual output models, case K3 (or K5 for MTR Dual with standard or ES screening, ht. 0.417", 10.59 mm)

2.910 x 1.125 x 0.400 inches (73.91 x 28.58 x 10.16 mm)

Triple output models, case J1, 2.720 x 1.350 x 0.405 inches (69.09 x 34.29 x 10.29 mm)

Single and dual non-flanged 50 grams max., flanged 52 grams max.

Triple non-flanged 58 grams max., flanged 62 grams max.

Screening: Standard, ES, or 883 (Class H).

Weight:

DESCRIPTION

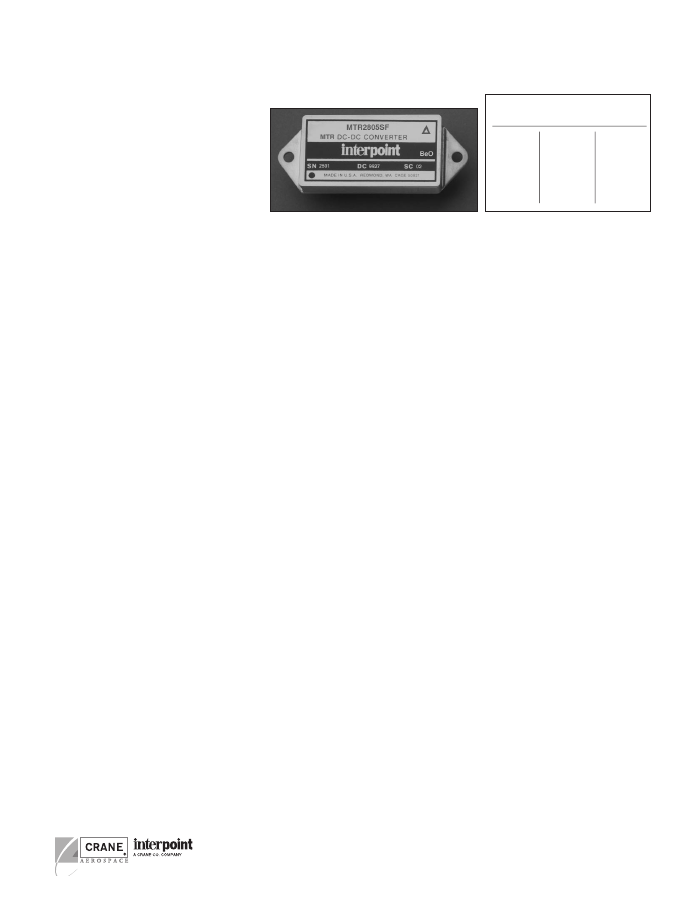

The MTR Series™ of DC/DC converters offers up to 30 watts of

output power from single, dual, or triple output configurations. They

operate over the full military temperature range with up to 84% effi-

ciency. MTR converters are packaged in hermetically sealed metal

cases, making them ideal for use in military, aerospace and other

high reliability applications.

YNCHRONIZATION

Synchronizing the converter with the system clock allows the

designer to confine switching noise to clock transitions, minimizing

interference and reducing the need for filtering. In sync mode, the

converter will run at any frequency between 500 kHz and 675 kHz.

The sync control operates with a quasi-TTL signal at any duty cycle

between 40% and 60%. The sync pin must be connected to input

common pin when not in use.

ONVERTER

ESIGN

The MTR converters are constant frequency, pulse-width modulated

switching regulators which use a quasi-square wave, single ended,

forward converter design. Tight load regulation is maintained via

wide bandwidth magnetic feedback and, on single output models,

through use of remote sense. On dual output models, the positive

output is independently regulated and the negative output is cross

regulated through the use of tightly coupled magnetics and shunt

regulators. The MTR Series triple output DC/DC converter’s design

includes individual regulators on the auxiliary outputs which provide

for no cross regulation error when a minimum 500 mA load is main-

tained on the main (+5) output.

Indefinite short circuit protection and overload protection are

provided by a constant current-limit feature. This protective system

senses current in the converter’s secondary stage and limits it to

approximately 115% of the maximum rated output current.

MTR converters are provided with internal filtering capacitors that

help reduce the need for external components in normal operation.

For systems that require compliance with MIL-STD-461C’s CE03

standard, Interpoint offers filter/transient suppression modules

(including the FMC-461, FMD-461 and FM-704A series filters) which

will result in compliance. Contact your Interpoint representative for

further details.

IDE

OLTAGE

ANGE

MTR converters are designed to provide full power operation over a

full 16 to 40 VDC voltage range. Operation below 16 volts, including

MIL-STD-704E emergency power conditions is possible with

derated power. Refer to the low line dropout graph (Figure 22) for

details.

MPROVED

YNAMIC

ESPONSE

The MTR Series feed-forward compensation system provides excel-

lent dynamic response and noise rejection. Audio rejection is typi-

cally 50 dB. The minimum to maximum step line transient response

is typically less than 4%.

NHIBIT

UNCTION

MTR converters provide an inhibit terminal that can be used to

disable internal switching, resulting in no output and very low

quiescent input current. The converter is inhibited when a TTL

compatible low (≤0.8 V) is applied to the inhibit pin. The unit is

enabled when the pin, which is internally connected to a pull-up

resistor, is left unconnected or is connected to an open-collector

gate. The open circuit output voltage associated with the inhibit pin

is 9 to 11 V. In the inhibit mode, a maximum of 8 mA must be sunk

from the inhibit pin.
