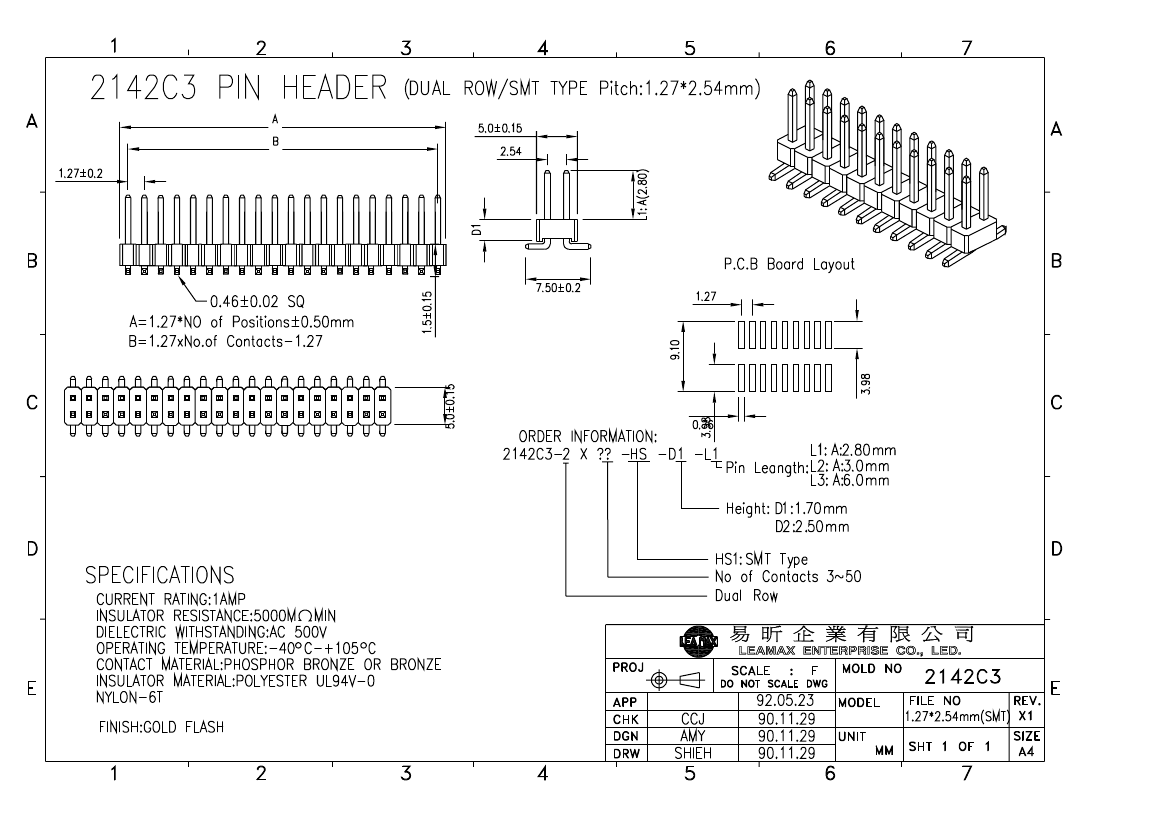

2142C3-2X29-HS-D1-L1 datasheet, PDF

2142C3-2X29-HS-D1-L1: DescriptionBoard Connector, 58 Contact(s), 2 Row(s), Male, Straight, 0.05 inch Pitch, Surface Mount Terminal, Receptacle; CategoryThe connector The connector; File Size66KB，1 Pages; ManufacturerLeamax Enterprise Co., Ltd.

Download Datasheet Parametric View All

2142C3-2X29-HS-D1-L1 Overview

Board Connector, 58 Contact(s), 2 Row(s), Male, Straight, 0.05 inch Pitch, Surface Mount Terminal, Receptacle

Parameter Name	Attribute value
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Guideline	UL
Objectid	1166275844
Reach Compliance Code	Unknown
ECCN code	EAR99
Is Samacsys	N
Installation type	BOARD
Rated current (signal)	1 A
Total number of contacts	58
Number of rows loaded	2
Other features	PIN LENGTH=2.8MM
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact point gender	MALE
Installation method	STRAIGHT
PCB row number	2
Terminal pitch	1.27 mm
body width	0.197 inch
subject depth	0.067 inch
body length	1.45 inch
Mixed contacts	NO
Number of connectors	ONE
Plating thickness	FLASH inch
Match contact row spacing	0.1 inch
Contact style	SQ PIN-SKT
Plug contact pitch	0.05 inch
PCB contact pattern	RECTANGULAR
PCB contact row spacing	5.1054 mm
Termination type	SURFACE MOUNT
contact mode	RECTANGULAR
Dielectric withstand voltage	500VAC V
Filter function	NO
Insulation resistance	5000000000 Ω
