DI100/150 THRU DI1010/1510
DUAL-IN-LINE GLASS PASSIVATED SINGLE-PHASE BRIDGE RECTIFIER
VOLTAGE - 50 to 1000 Volts CURRENT - 1.0~1.5 Amperes
FEATURES
l
l
l
l
l
Plastic material used carries Underwriters
DIP
Laboratory recognition 94V-O
Low leakage
Surge overload rating— 30~50 amperes peak
Ideal for printed circuit board
Exceeds environmental standards of
MIL-S-19500/228
MECHANICAL DATA
Case: Reliable low cost construction utilizing molded
plastic technique results in inexpensive product
Terminals: Lead solderable per MIL-STD-202,
Method 208
Polarity: Polarity symbols molded or marking on body
Mounting Position: Any
Weight: 0.02 ounce, 0.4 gram
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Ratings at 25 ambient temperature unless otherwise specified.
Single phase, half wave, 60Hz, Resistive or inductive load.
For capacitive load, derate current by 20%.
DI100 DI101
DI150 DI151
50
100
35
70
50
100
DI102 DI104
DI152 DI154
200
400
140
280
200
400
1.0
1.5
30.0
50.0
10.0
1.1
DI106
DI156
600
420
600
DI108 DI1010
UNITS
DI158 DI1510
V
800
1000
V
560
700
V
800
1000
A
A
Maximum Recurrent Peak Reverse Voltage
Maximum RMS Bridge input Voltage
Maximum DC Blocking Voltage
Maximum Average Forward Current
DI100
T
A
=40
DI150
Peak Forward Surge Current, 8.3ms single
DI100
half sine-wave superimposed on rated load
DI150
2
I t Rating for fusing ( t < 8.35 ms)
Maximum Forward Voltage Drop per Bridge
Element at 1.0A
Maximum Reverse Current at Rated T
J
= 25
DC Blocking Voltage per element T
J
=125
Typical Junction capacitance per leg (Note 1) CJ
Typical Thermal resistance per leg (Note 2) R JA
Typical Thermal resistance per leg (Note 2) R JL
Operating Temperature Range T
J
Storage Temperature Range T
A
A
2
t
V
A
mA
P
F
5.0
0.5
25.0
40.0
15.0
-55 to +125
-55 to +150
/W
NOTES:
1. Measured at 1.0 MHz and applied reverse voltage of 4.0 Volts
2. Thermal resistance from junction to ambient and from junction to lead mounted on P.C.B. with
0.5
×
0.5”(13
×
13mm) copper pads
RATING AND CHARACTERISTIC CURVES
DI100/150 THRU DI1010/1510

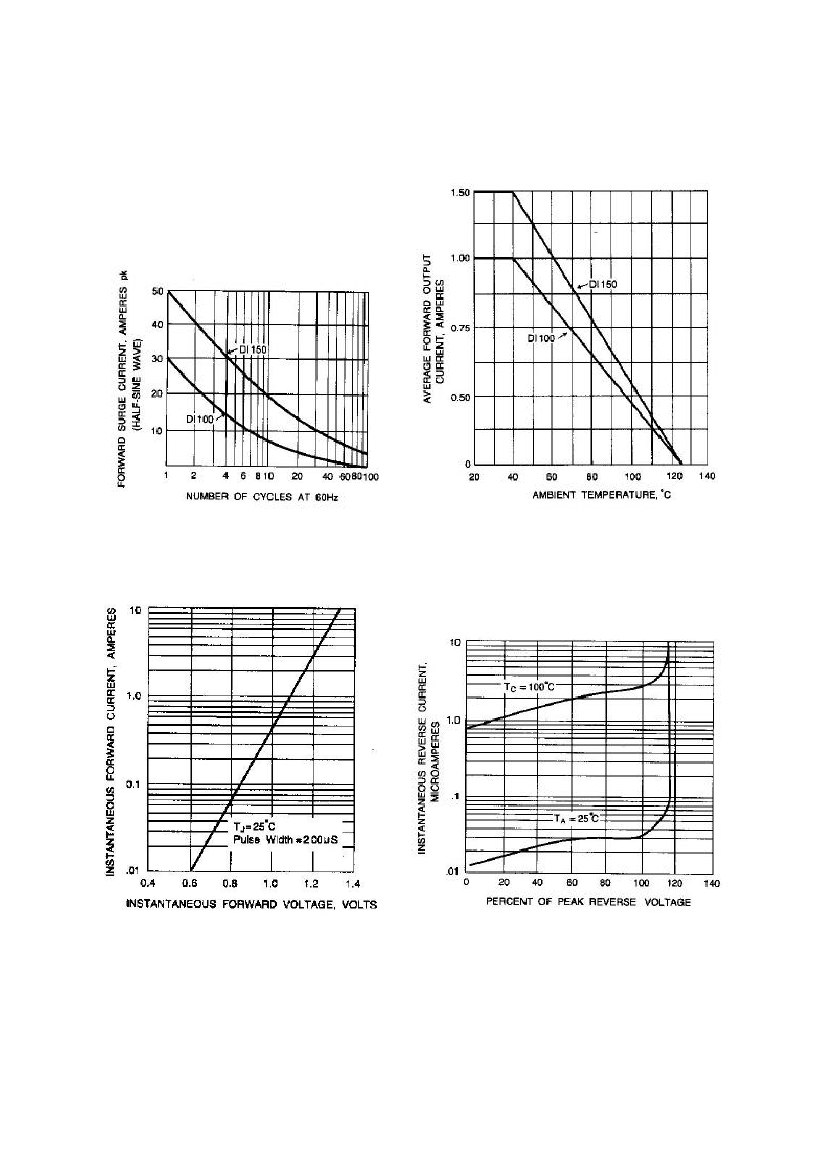

Fig. 1-MAXIMUM NON-REPETITIVE SURGE CURRENT Fig. 2-DERATING CURVE FOR OUTPUT RECTIFIED
CURRENT
Fig. 3-TYPICAL FORWARD CHARACTERISTICS
Fig. 4-TYPICAL REVERSE CHARACTERISTICS
