117-RRA-15S datasheet, PDF - EEWORLD Datasheet

117-RRA-15S: DescriptionD Type Connector, 15 Contact(s), Female, 0.109 inch Pitch, #4-40, Plug,; CategoryThe connector The connector; File Size289KB，3 Pages; ManufacturerEaton

Download Datasheet Parametric View All

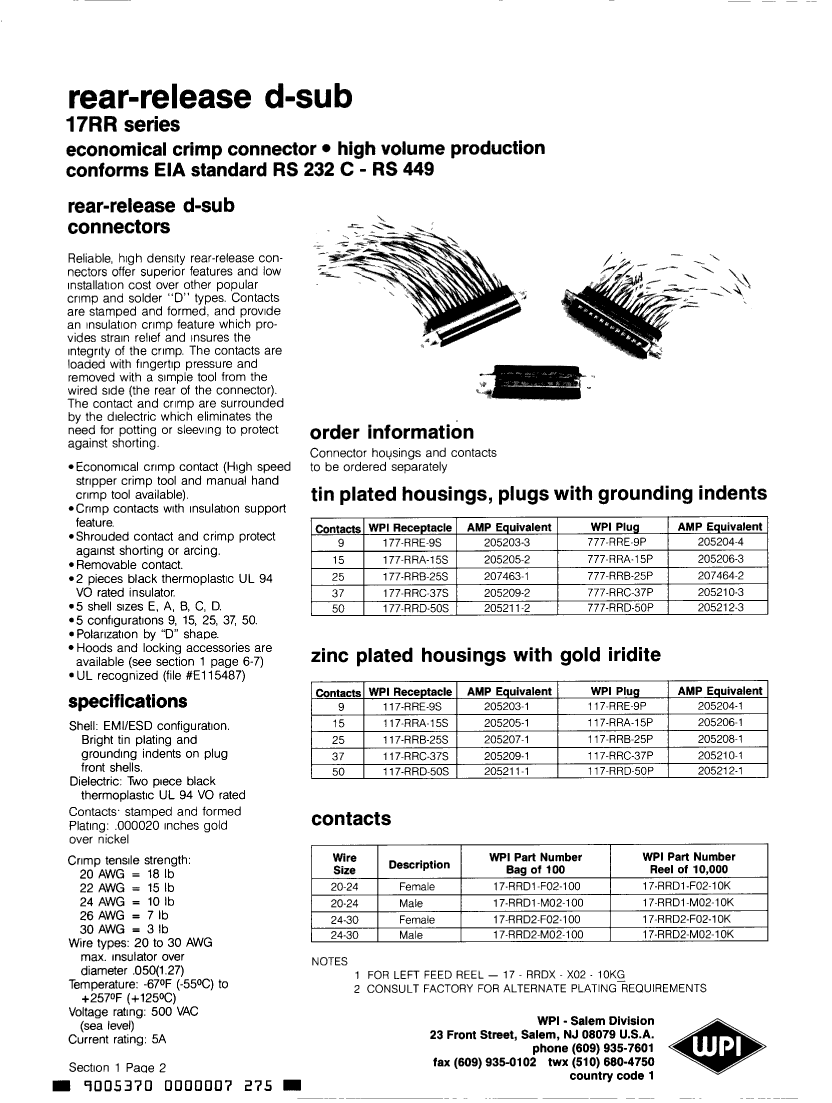

117-RRA-15S Overview

D Type Connector, 15 Contact(s), Female, 0.109 inch Pitch, #4-40, Plug,

Parameter Name	Attribute value
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Guideline	UL
YTEOL	0
Objectid	314499718
Reach Compliance Code	Compliant
ECCN code	EAR99
Is Samacsys	N

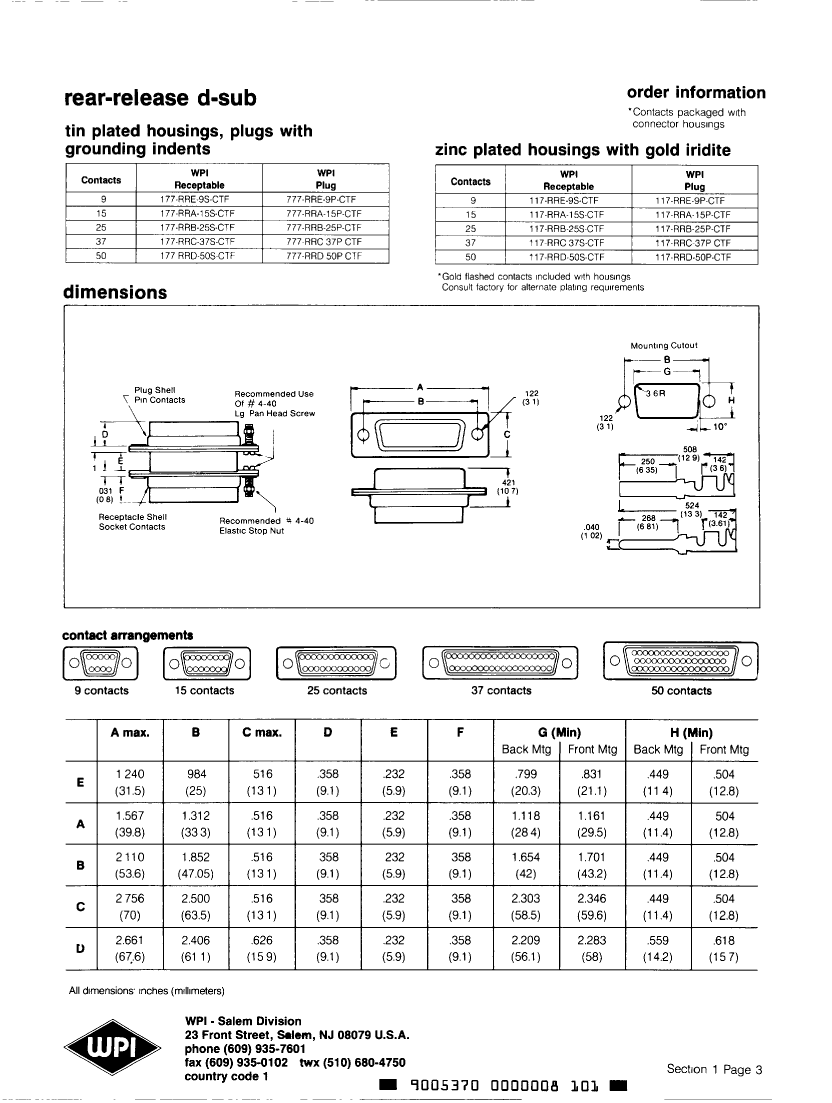

body width	0.516 inch
subject depth	0.358 inch
body length	1.567 inch
Connector type	D SUBMINIATURE CONNECTOR
Contact point gender	FEMALE
insulator material	POLYETHYLENE
Number of rows loaded	2
Rated current (signal)	5 A
Total number of contacts	15
Body/casing type	PLUG
Installation option 2	SCREW
Options	GENERAL PURPOSE
Shell surface	ZINC
contact mode	STAGGERED
Insulator color	BLACK

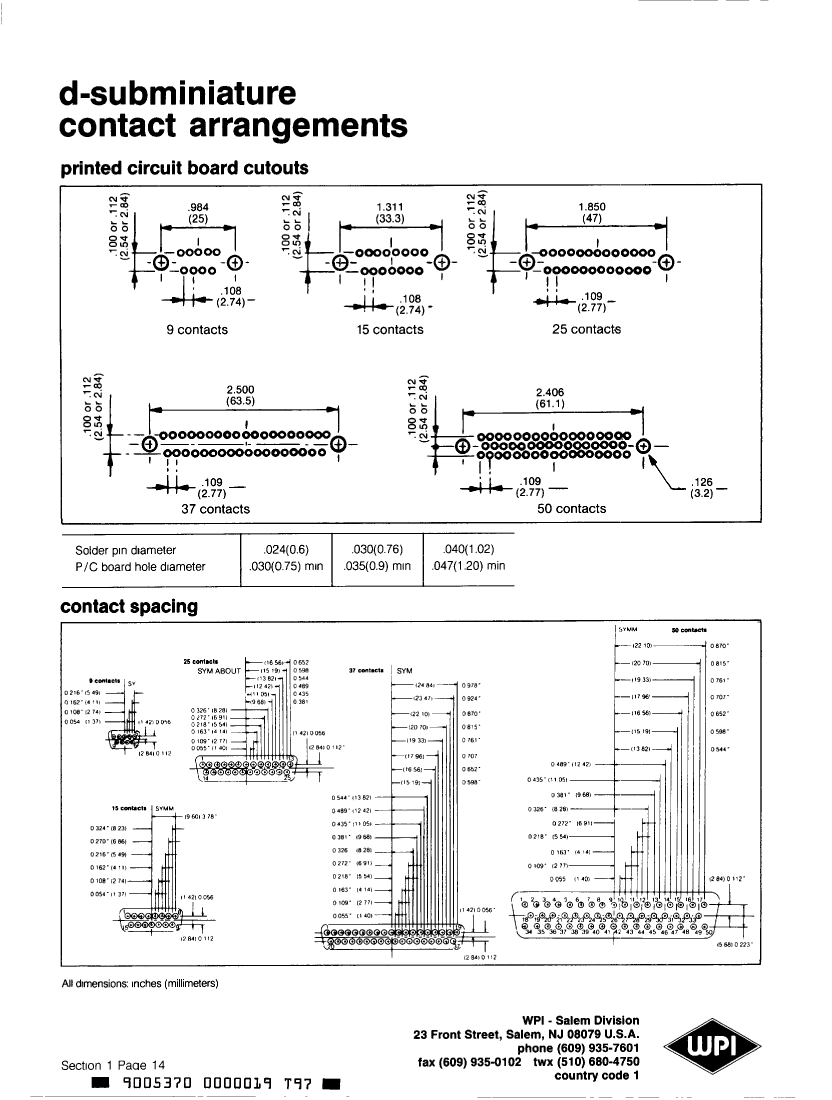

Plug contact pitch	0.109 inch
Match contact row spacing	0.112 inch
Installation option 1	#4-40
Dielectric withstand voltage	500VAC V
