5962-01-219-0989 datasheet, PDF

5962-01-219-0989: DescriptionAND Gate, TTL, CDFP14,; Categorylogic logic; File Size225KB，6 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

Download Datasheet Parametric View All

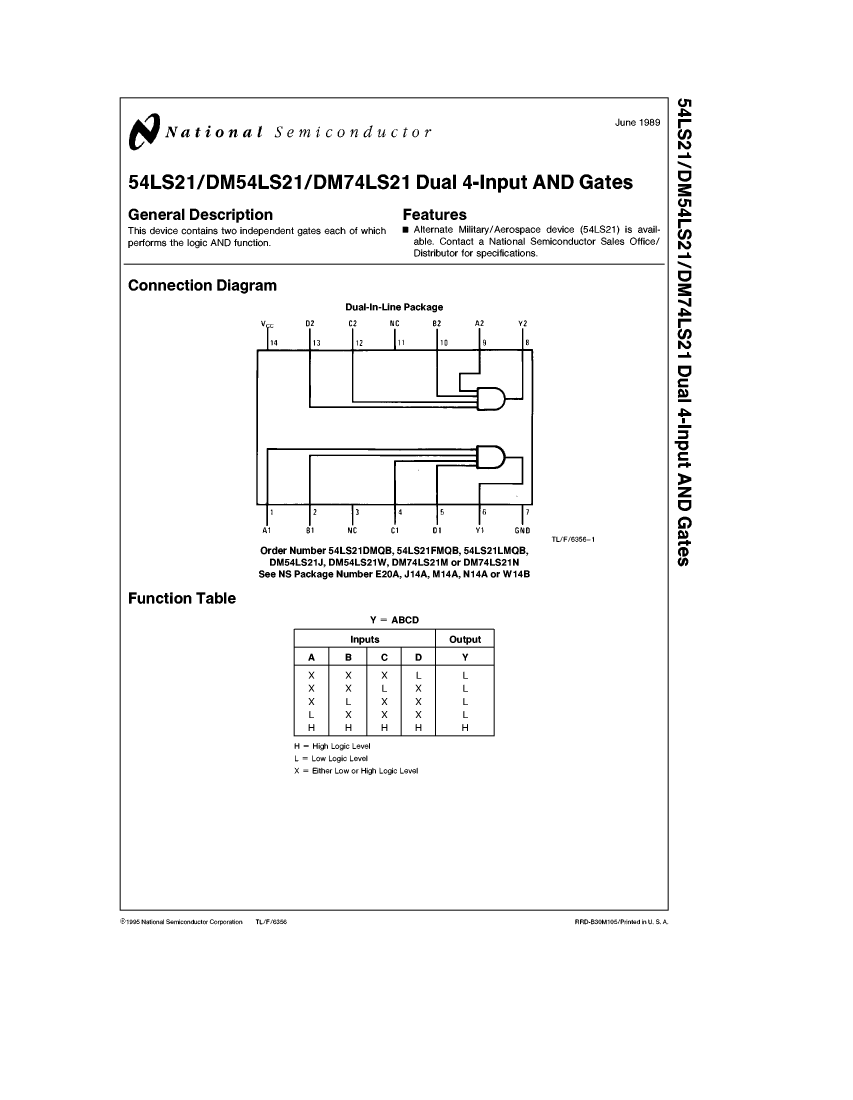

5962-01-219-0989 Overview

AND Gate, TTL, CDFP14,

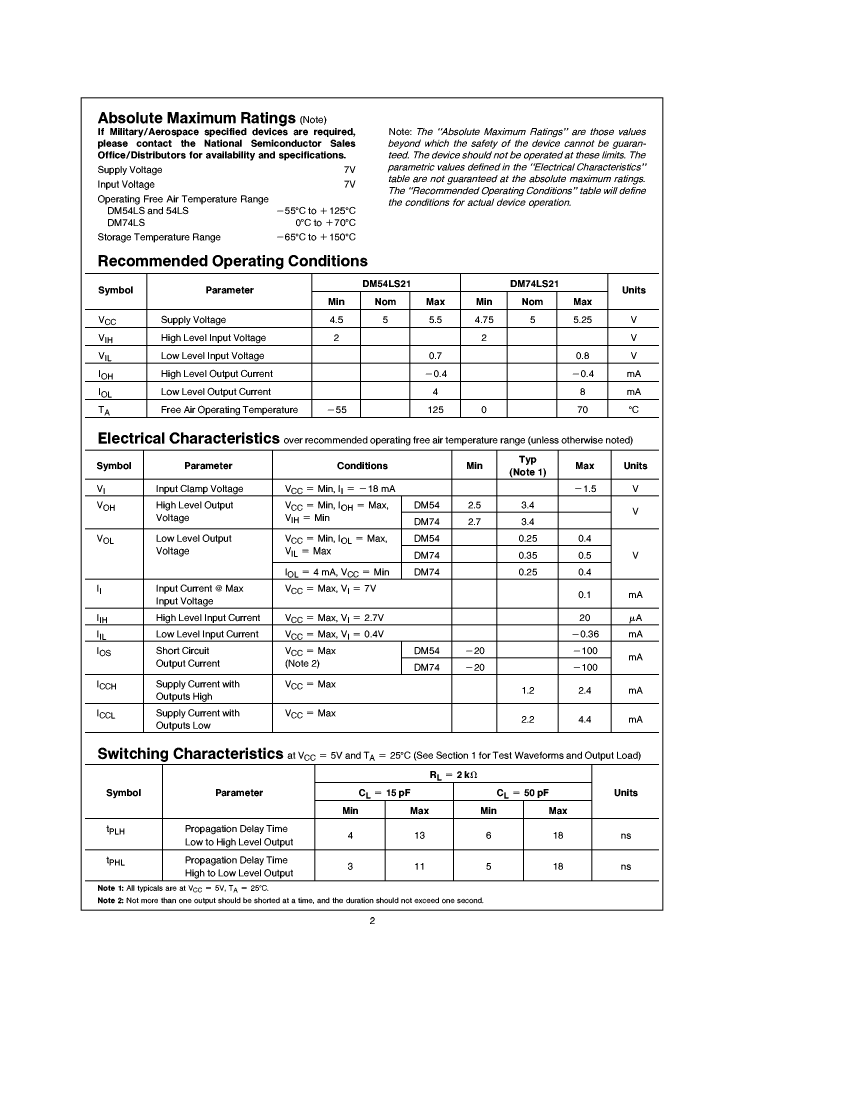

Parameter Name	Attribute value
Is Samacsys	N
YTEOL	0
Objectid	1155487224
package instruction	DFP, FL14,.3
Reach Compliance Code	Compliant
Is it lead-free?	No
Is it Rohs certified?	No
JESD-30 code	R-XDFP-F14
Certification status	Not Qualified
MaximumI(ol)	0.004 A
Maximum supply current (ICC)	4.4 mA
technology	TTL
Temperature level	MILITARY
Logic integrated circuit type	AND GATE
Minimum operating temperature	-55 °C
Filter level	38535Q/M;38534H;883B
Humidity sensitivity level	2A
Maximum operating temperature	125 °C

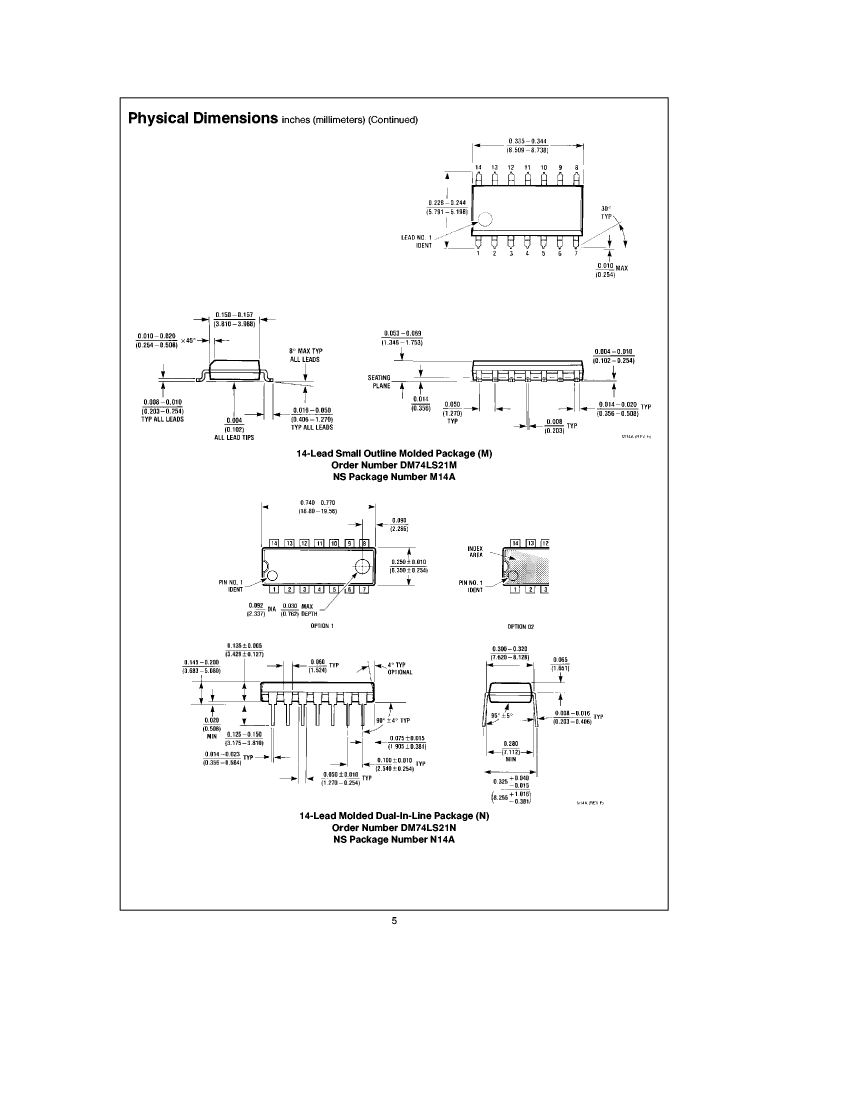

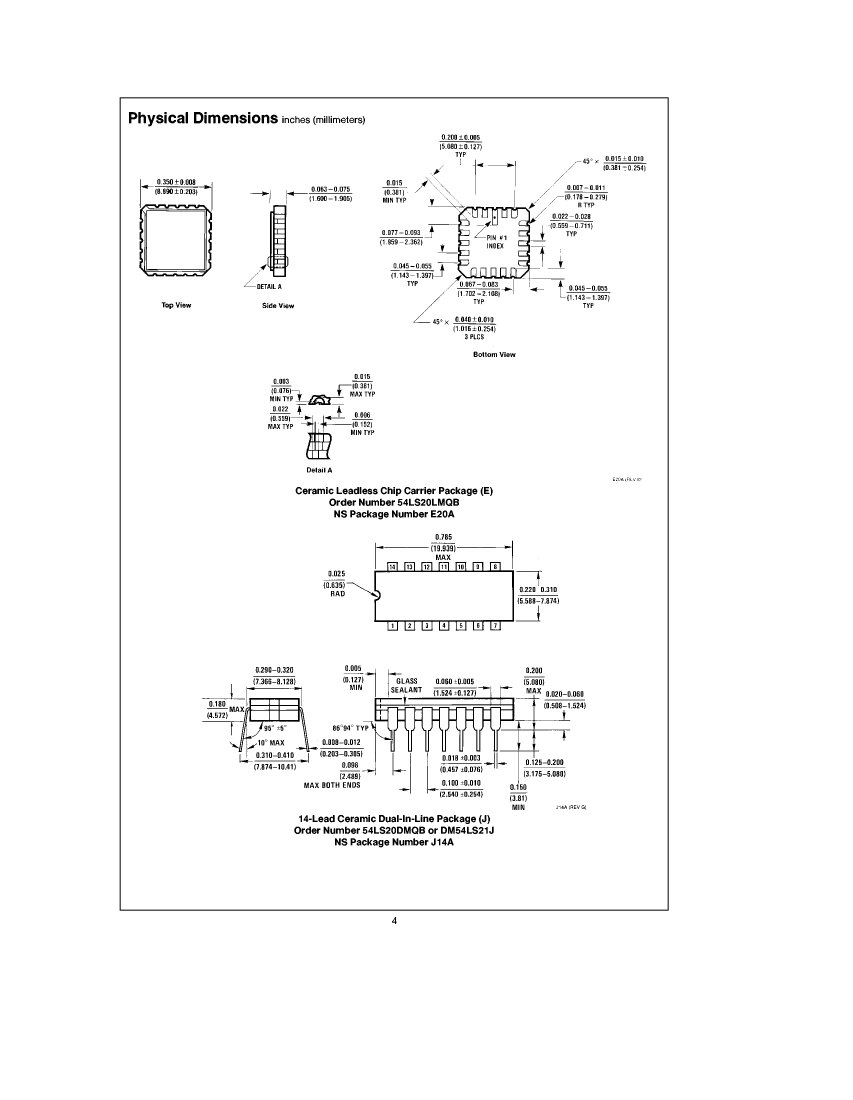

Terminal form	FLAT
Terminal pitch	1.27 mm
Terminal location	DUAL
Number of terminals	14
Package body material	CERAMIC
Encapsulate equivalent code	FL14,.3
Package shape	RECTANGULAR
Package form	FLATPACK
Schmitt trigger	NO
Nominal supply voltage (Vsup)	5 V
surface mount	YES
encapsulated code	DFP
Prop。Delay @ Nom-Sup	18 ns
