42R01-3222-250

Description
Mains Power Connector, 15A, 250VAC, Male, Screw Terminal
CategoryThe connector    The connector
File Size56KB,1 Pages
ManufacturerPower Dynamics, Inc.
Websitehttp://www.powerdynamics.com/
Environmental Compliance
Download Datasheet Parametric View All

42R01-3222-250 Overview

Mains Power Connector, 15A, 250VAC, Male, Screw Terminal

42R01-3222-250 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerPower Dynamics, Inc.
Reach Compliance Codecompliant
Other featuresUL: CSA: VDE,UL94V-0
Connector typeMAINS POWER CONNECTOR
Contact to complete cooperationNICKEL
Contact completed and terminatedNickel (Ni)
Contact point genderMALE
Contact materialBRASS
Coupling typeSNAP
DIN complianceNO
IEC complianceYES
MIL complianceNO
Power Connector Ratings15A, 250VAC
Installation typePANEL
OptionsGENERAL PURPOSE
Shell materialPOLYCARBONATE
Termination typeSCREW
Total number of contacts3
Base Number Matches1
6
5
4
3
2
1
MATERIAL AND FINISH:
Insulator: Polycarbonate, UL-94V-0 rated
Contacts: Brass, Nickel plated
D
46.0+0.5
36.0±0.2
27.0
N
L
27.5+0.2
2X Ø3.6
20.0+0.2
R4.0 TYP.
19.5
22.5+0.3
36.0±0.1
RECOMMENDED
PANEL CUTOUT
D
ORDERING CODE:
42R01-1 __ 2 __
1
3
C
1 = COLOR
1 = BLACK
2 = GRAY
2 = M3x6.0mm
SCREW TERMINALS
3 = ELECTRICAL CIRCUIT
CONFIGURATION
1 = 15A 250V 120°C
2+GROUND
10.0±0.5
C
19
2X Ø6.0±0.1
B
2 = 15A 250V 70°C
2+GROUND
4 = 15A 250V 70°C
2 POLE
4.0±0.1
CHNG CHCK APPR
14.0±0.2
24.0+0.5
30.5+0.3
TOLERANCE
UNLESS OTHERWISE SPECIFIED
X ± 1
X.X ± 0.4
X.XX ± 0.20
REVISIONS
CHANGE
A
DATE
REV
6
5
4
E
2X Ø3.3
42R01
ELECTRICAL SPECIFICATIONS:
Current rating: 10 A
V
D E
Voltage rating: 250 VAC
Current rating: 15 A
Voltage rating: 250 VAC
3.00
2.00
2.00±0.05
B
4.00
16.0+0.5
Phone: 973 560-0019
Whippany, New Jersey
Fax: 973 560-0076

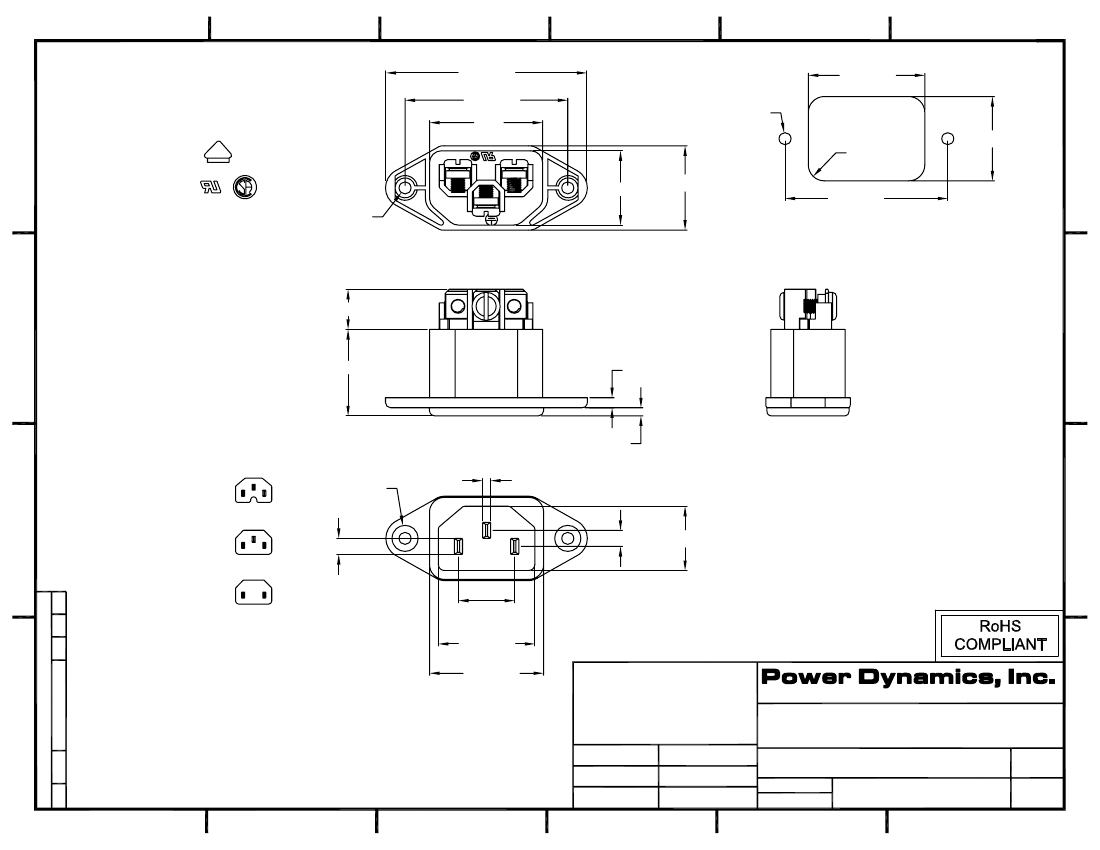

PART: IEC 60320 C14 APPL. INLET; SCREW
TERMINALS; SIDE FLANGE, PANEL MOUNT
PART #:
A
DRAWN
BY
CHECK
BY
APPR
BY
GQ
TD
PB
DATE:
DATE:
DATE:
8/7/01
08/14/01
08/14/01
SIZE:
SCALE:
42R01-1X2X
A
NTS
ALL DIMENSIONS FOR REFERENCE ONLY
DIMENSIONS ARE IN MILLIMETERS
SHEET
1 of 1
REV:
3
2
1
