LY62L12816GL-70LE

Description
SRAM,
Categorystorage    storage
File Size191KB，13 Pages
ManufacturerLyontek
Websitehttp://www.lyontek.com.tw/index.html
Download Datasheet Parametric View All

LY62L12816GL-70LE Overview

SRAM,

LY62L12816GL-70LE Parametric

Parameter NameAttribute value
Is SamacsysN
YTEOL0
Objectid107244349
package instruction,
Reach Compliance CodeCompliant
ECCN codeEAR99

LY62L12816GL-70LE Preview

®
LY62L12816
Rev. 1.1
128K X 16 BIT LOW POWER CMOS SRAM
REVISION HISTORY
Revision
Rev. 1.0
Rev. 1.1
Description
Initial Issue
Revised Package Outline Dimension(TSOP-II)
Issue Date
Jul.25.2004
Apr.12.2007
Lyontek Inc.
reserves the rights to change the specifications and products without notice.
40 Hsuch-Fu Rd., Hsinchu, Taiwan.
TEL: 886-3-5165511
FAX: 886-3-5165522
0
®
LY62L12816
Rev. 1.1
128K X 16 BIT LOW POWER CMOS SRAM
GENERAL DESCRIPTION
The LY62L12816 is a 2,097,152-bit low power
CMOS static random access memory organized
as 131,072 words by 16 bits. It is fabricated
using very high performance, high reliability
CMOS technology. Its standby current is stable
within the range of operating temperature.
The LY62L12816 is well designed for low power
application, and particularly well suited for
battery back-up nonvolatile memory application.
The LY62L12816 operates from a single
power supply of 2.7V ~ 3.6V and all inputs and
outputs are fully TTL compatible
FEATURES
Fast access time : 45/55/70ns
Low power consumption:
Operating current : 23/20/18mA (TYP.)
Standby current : 20μA (TYP.) L-version
1μA (TYP.) LL-version
Single 2.7V ~ 3.6V power supply
All inputs and outputs TTL compatible
Fully static operation
Tri-state output
Data byte control : LB# (DQ0 ~ DQ7)
UB# (DQ8 ~ DQ15)
Data retention voltage : 1.5V (MIN.)
Lead free and green package available
Package : 44-pin 400 mil TSOP-II
48-ball 6mm x 8mm TFBGA
PRODUCT FAMILY
Product
Family
LY62L12816
LY62L12816(E)
LY62L12816(I)
Operating
Temperature
0 ~ 70℃
-20 ~ 80℃
-40 ~ 85℃
Vcc Range
2.7 ~ 3.6V
2.7 ~ 3.6V
2.7 ~ 3.6V
Speed
45/55/70ns
45/55/70ns
45/55/70ns
Power Dissipation
Standby(I
SB1,
TYP.) Operating(Icc,TYP.)
10µA(L)/1µA(LL)
23/20/18mA
20µA(L)/1µA(LL)
23/20/18mA
20µA(L)/1µA(LL)
23/20/18mA
FUNCTIONAL BLOCK DIAGRAM
Vcc
Vss
PIN DESCRIPTION
SYMBOL
A0 - A16
DESCRIPTION
Address Inputs
Chip Enable Input
Write Enable Input
Output Enable Input
Lower Byte Control
Upper Byte Control
Power Supply
Ground
DQ0 – DQ15 Data Inputs/Outputs
A0-A16
DECODER
128Kx16
MEMORY ARRAY
CE#
WE#
OE#
LB#
UB#
V
CC
DQ0-DQ7
Lower Byte
DQ8-DQ15
Upper Byte
I/O DATA
CIRCUIT
COLUMN I/O
V
SS
CE#
WE#
OE#
LB#
UB#
CONTROL
CIRCUIT
Lyontek Inc.
reserves the rights to change the specifications and products without notice.
40 Hsuch-Fu Rd., Hsinchu, Taiwan.
TEL: 886-3-5165511
FAX: 886-3-5165522
1
®
LY62L12816
Rev. 1.1
128K X 16 BIT LOW POWER CMOS SRAM

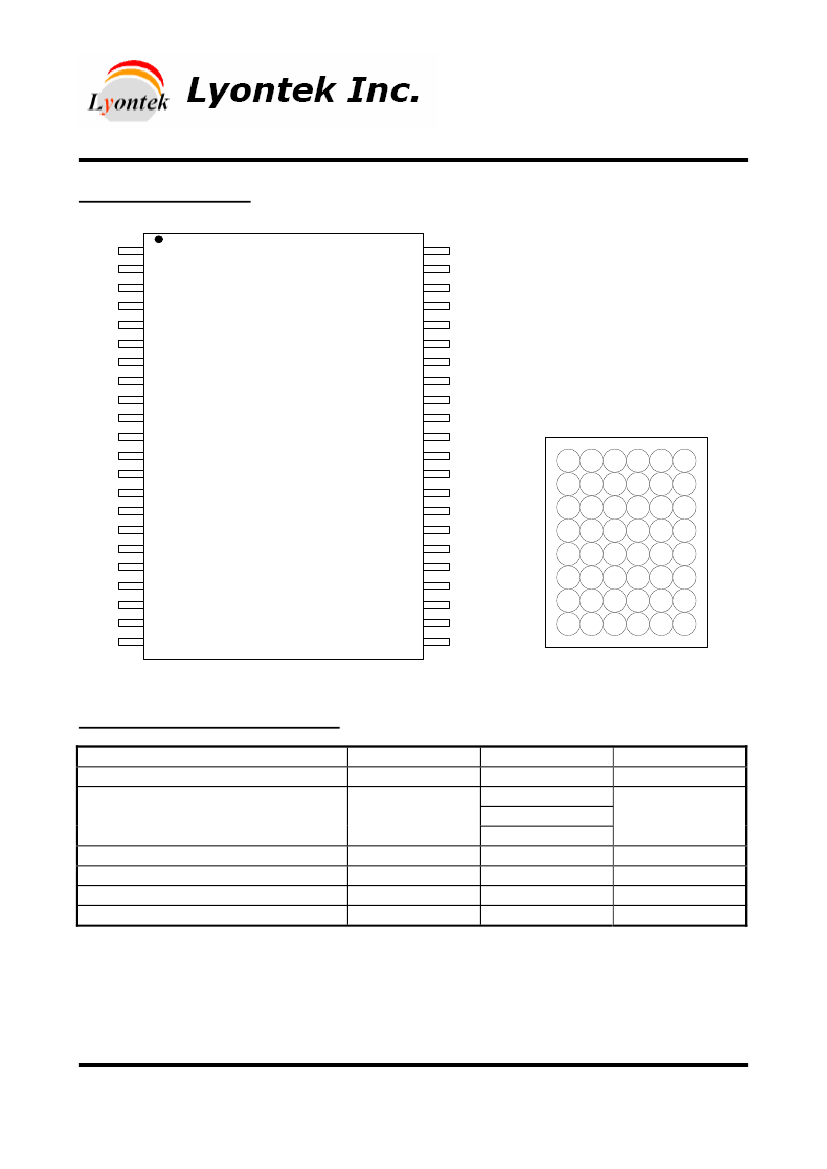

PIN CONFIGURATION
A4
A3
A2
A1
A0
CE#
DQ0
DQ1
DQ2
DQ3
Vcc
Vss
DQ4
DQ5
DQ6
DQ7
WE#
A16
A15
A14
A13
A12
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
TSOP II
44
43
42
41
40
39
38
37
36
35
34
33
32
31
30
29
28
27
26
25
24
23
A5
A6
A7
OE#
UB#
LB#
DQ15
DQ14
DQ13
DQ12
Vss
Vcc
DQ11
DQ10
DQ9
DQ8
NC
A8
A9
A10
A11
NC
ABSOLUTE MAXIMUN RATINGS*
PARAMETER
Terminal Voltage with Respect to V
SS
Operating Temperature
Storage Temperature
Power Dissipation
DC Output Current
Soldering Temperature (under 10 sec)
SYMBOL
V
TERM
T
A
T
STG
P
D
I
OUT
T
SOLDER
RATING
-0.5 to 4.6
0 to 70(C grade)
-20 to 80(E grade)
-40 to 85(I grade)
-65 to 150
1
50
260
UNIT
V
℃
℃
W
mA
℃
*Stresses greater than those listed under “Absolute Maximum Ratings” may cause permanent damage to the device. This is a stress
rating only and functional operation of the device or any other conditions above those indicated in the operational sections of this
specification is not implied. Exposure to the absolute maximum rating conditions for extended period may affect device reliability.
Lyontek Inc.
reserves the rights to change the specifications and products without notice.
40 Hsuch-Fu Rd., Hsinchu, Taiwan.
TEL: 886-3-5165511
FAX: 886-3-5165522
LY62L12816
A
B
C
D
E
F
G
H
LB# OE#
DQ8 UB#
A0
A3
A1
A4
A6
A7
A2
NC
CE# DQ0
DQ1 DQ2
DQ3 Vcc
DQ9 DQ10 A5
Vss DQ11 NC
Vcc DQ12 NC
DQ14 DQ13 A14
DQ15 NC
NC
A8
A12
A9
A16 DQ4 Vss
A15 DQ5 DQ6
A13 WE# DQ7
A10
A11
NC
1
2
3
4
TFBGA
5
6
2
®
LY62L12816
Rev. 1.1
128K X 16 BIT LOW POWER CMOS SRAM
TRUTH TABLE
MODE
Standby
Output Disable
Read
CE#
H
X
L
L
L
L
L
L
L
L
OE#
X
X
H
H
L
L
L
X
X
X
WE# LB#
X
X
H
H
H
H
H
L
L
L
X
H
L
X
L
H
L
L
H
L
UB#
X
H
X
L
H
L
L
H
L
L
I/O OPERATION
DQ0-DQ7
DQ8-DQ15
High – Z
High – Z
High – Z
High – Z
High – Z
High – Z
High – Z
High – Z
D
OUT
High – Z
High – Z
D
OUT
D
OUT
D
OUT
D
IN
High – Z
High – Z
D
IN
D
IN
D
IN
SUPPLY CURRENT
I
SB
,I
SB1
I
CC
,I
CC1
I
CC
,I
CC1
Write
Note:
I
CC
,I
CC1
H = V
IH
, L = V
IL
, X = Don't care.
DC ELECTRICAL CHARACTERISTICS
SYMBOL
TEST CONDITION
PARAMETER
Supply Voltage
V
CC
*1
Input High Voltage
V
IH
*2
Input Low Voltage
V
IL
Input Leakage Current
I
LI
V
CC
≧
V
IN
≧
V
SS
Output Leakage
V
CC
≧
V
OUT
≧
V
SS
,
I
LO
Current
Output Disabled
Output High Voltage
V
OH
I
OH
= -1mA
Output Low Voltage
V
OL
I
OL
= 2mA
I
CC
Average Operating
Power supply Current
I
CC1
I
SB
Standby Power
Supply Current
I
SB1
Cycle time = Min.
CE# = V
IL
, I
I/O
= 0mA
- 45
- 55
- 70
MIN.
2.7
2.2
- 0.2
-1
-1
2.2
-
-
-
-
-
-
-
-
-
TYP.
3.0
-
-
-
-
2.7
-
23
20
18
4
0.3
20
1
1
*4
MAX.
3.6
V
CC
+0.3
0.6
1
1
-
0.4
40
35
30
5
0.5
80
10
*5
20
UNIT
V
V
V
µA
µA
V
V
mA
mA
mA
mA
mA
µA
µA
µA
Cycle time = 1µs
CE# = 0.2V , I
I/O
= 0mA
other pins at 0.2V or V
CC
- 0.2V
CE# = V
IH
-L
CE#
≧
V
CC
- 0.2V -LL
-LLE/-LLI
Notes:
1. V
IH
(max) = V
CC
+ 3.0V for pulse width less than 10ns.
2. V
IL
(min) = V
SS
- 3.0V for pulse width less than 10ns.
3. Over/Undershoot specifications are characterized, not 100% tested.
4. Typical values are included for reference only and are not guaranteed or tested.
Typical valued are measured at V
CC
= V
CC
(TYP.) and T
A
= 25℃
5. 10µA for special request
CAPACITANCE
(T
A
= 25
℃
, f = 1.0MHz)
PARAMETER
Input Capacitance
Input/Output Capacitance
SYMBOL
C
IN
C
I/O
MIN.
-
-
MAX
6
8
UNIT
pF
pF
Note : These parameters are guaranteed by device characterization, but not production tested.
Lyontek Inc.
reserves the rights to change the specifications and products without notice.
40 Hsuch-Fu Rd., Hsinchu, Taiwan.
TEL: 886-3-5165511
FAX: 886-3-5165522
3
®
LY62L12816
Rev. 1.1
128K X 16 BIT LOW POWER CMOS SRAM
AC TEST CONDITIONS
Input Pulse Levels
Input Rise and Fall Times
Input and Output Timing Reference Levels
Output Load
0.2V to V
CC
- 0.2V
3ns
1.5V
C
L
= 30pF + 1TTL, I
OH
/I
OL
= -1mA/2mA
AC ELECTRICAL CHARACTERISTICS
(1) READ CYCLE
PARAMETER
Read Cycle Time
Address Access Time
Chip Enable Access Time
Output Enable Access Time
Chip Enable to Output in Low-Z
Output Enable to Output in Low-Z
Chip Disable to Output in High-Z
Output Disable to Output in High-Z
Output Hold from Address Change
LB#, UB# Access Time
LB#, UB# to High-Z Output
LB#, UB# to Low-Z Output
(2) WRITE CYCLE
PARAMETER
Write Cycle Time
Address Valid to End of Write
Chip Enable to End of Write
Address Set-up Time
Write Pulse Width
Write Recovery Time
Data to Write Time Overlap
Data Hold from End of Write Time
Output Active from End of Write
Write to Output in High-Z
LB#, UB# Valid to End of Write
SYM. LY62L12816-45 LY62L12816-55 LY62L12816-70 UNIT
MIN.
MAX.
MIN.
MAX.
MIN.
MAX.
t
RC
45
-
55
-
70
-
ns
t
AA
-
45
-
55
-
70
ns
t
ACE
-
45
-
55
-
70
ns
t
OE
-
25
-
30
-
35
ns
t
CLZ
*
10
-
10
-
10
-
ns
t
OLZ
*
5
-
5
-
5
-
ns
t
CHZ
*
-
15
-
20
-
25
ns
t
OHZ
*
-
15
-
20
-
25
ns
t
OH
10
-
10
-
10
-
ns
t
BA
-
45
-
55
-
70
ns
t
BHZ
*
-
20
-
25
-
30
ns
t
BLZ
*
10
-
10
-
10
-
ns
SYM.
t
WC
t
AW
t
CW
t
AS
t
WP
t
WR
t
DW
t
DH
t
OW
*
t
WHZ
*
t
BW
LY62L12816-45 LY62L12816-55 LY62L12816-70
MIN.
MAX.
MIN.
MAX.
MIN.
MAX.
45
-
55
-
70
-
40
-
50
-
60
-
40
-
50
-
60
-
0
-
0
-
0
-
35
-
45
-
55
-
0
-
0
-
0
-
20
-
25
-
30
-
0
-
0
-
0
-
5
-
5
-
5
-
-
15
-
20
-
25
35
-
45
-
60
-
UNIT
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
*These parameters are guaranteed by device characterization, but not production tested.
Lyontek Inc.
reserves the rights to change the specifications and products without notice.
40 Hsuch-Fu Rd., Hsinchu, Taiwan.
TEL: 886-3-5165511
FAX: 886-3-5165522
4
More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

Recommended Resources

RTS0072 circuit

AH800 control application circuit diagram b

Measurement amplifier circuit with high common-mode range

ZC-2-10A automatic charger circuit

555 broadband ultrasonic insect repeller circuit

614BCII (3kVA) AC voltage regulator

WinCE6.0 sqlCE problem
Recently, I want to develop sqlCE under CE6.0. According to the online steps, I first install sqlCE3.5 on the PC, and then find the following three files in the path C:\Program Files\Microsoft SQL Ser...
jx3305 Embedded System
It’s finally Monday, looking forward to the group purchase content.
:titter: Group buying is about to start again, so nervous~~...
lcofjp TI Technology Forum
Allwinner heterogeneous multi-core AI intelligent vision V853 development board evaluation - separate compilation and testing of V853 SDK LVGL routines
# Separately compile and test the LVGL routines of V853 SDK. Recently, when I was studying the routines in the SDK, I accidentally discovered that the routines in the SDK can also be compiled separate...
IC爬虫 Domestic Chip Exchange
The evolution history of the world's famous car brand logo - Peugeot
Peugeot was founded in 1812 in Montbeliard, France, and was named after the family ancestor Jean-Jaques Peugeot (1699-1741). The brothers Jean-Pierre and Jean-Frederic converted their windmill into a ...
1ying Automotive Electronics
A question encountered during the written test, experts help to answer
Vcc=5V, VoH(min)=3.4V, VoL(max)=0.2V, ViH(min)=2.0V, ViL(max)=0.8V, IiH=0.04ma. What is the maximum value of R for the following NOT gate to correctly identify the signal sent by the previous stage?...
pxy94 MCU
#Micropython大战# Part 2: Publish an original mciropython tutorial to win gifts!
[size=5][color=#ff0000]#Micropython Battle#Activity initiation and purpose:[/color][/size] [size=4]Call on everyone to play Micropython, gather everyone's strength to explore the gameplay of Micropyth...
okhxyyo MicroPython Open Source section
Shortcut:   E0 E1 E2 E3 E4 E5 E6 E7 E8 E9 EA EB EC ED EE EF EG EH EI EJ EK EL EM EN EO EP EQ ER ES ET EU EV EW EX EY EZ F0 F1 F2 F3 F4 F5 F6 F7 F8 F9 FA FB FC FD FE FF FG FH FI FJ FK FL FM FN FO FP FQ FR FS FT FU FV FW FX FY FZ G0 G1 G2 G3 G4 G5 G6 G7 G8 G9 GA GB GC GD GE GF GG GH GI GJ GK GL GM GN GO GP GQ GR GS GT GU GV GW GX GZ H0 H1 H2 H3 H4 H5 H6 H7 H8 HA HB HC HD HE HF HG HH HI HJ HK HL HM HN HO HP HQ HR HS HT HU HV HW HX HY HZ I1 I2 I3 I4 I5 I6 I7 IA IB IC ID IE IF IG IH II IK IL IM IN IO IP IQ IR IS IT IU IV IW IX J0 J1 J2 J6 J7 JA JB JC JD JE JF JG JH JJ JK JL JM JN JP JQ JR JS JT JV JW JX JZ K0 K1 K2 K3 K4 K5 K6 K7 K8 K9 KA KB KC KD KE KF KG KH KI KJ KK KL KM KN KO KP KQ KR KS KT KU KV KW KX KY KZ

Popular Components

  1. VI-B0K-MX-F3
  2. 331271T250GT8
  3. M29W640FB70ZA6E
  4. 68775-807
  5. M80-4T11201F1-02-302-07-302
  6. 92629-203H
  7. SLRC2193001DFBBS
  8. FP-8989-11-3882-DF
  9. MMBT3904-AU_AY_00001
  10. 1F6_B0_10001
  11. A2010HC-14P-BL
  12. TC211A105K035Y

Popular Articles

  1. Isolation of SAR ADCs
  2. GaN is entering the automotive field
  3. ATmega168 crystal oscillator
  4. VIAVI Provides XL Axiata with Remote Fiber Testing and Monitoring Solutions for 5G
  5. Tiny4412MMU memory management
  6. Analysis of power supply applications in the automotive electronics industry
  7. Why is it difficult for domestic flagship phones to enter the high-end market? Qualcomm continues to keep a low profile
  8. Mouser tools make it easy to find and select the right electronic components
  9. Design of power cable trench monitoring system based on LPC2292 controller and CAN field bus
  10. MCS-51 microcontroller storage address space division

Technical ResourceMore

  1. Classification and development overview of high-frequency switching power supply integrated circuits
  2. Design and optimization of DC-DC converter in single-phase photovoltaic grid-connected power generation system
  3. FPGA-DDS PCB Diagram
  4. Timing Constraints User Guide (Chinese)
  5. MATLAB Case 19 Classification Prediction of Probabilistic Neural Network - Transformer Fault Diagnosis Based on PNN.rar
  6. High-speed dual MOSFET driver and its application in switching power supplies.
  7. High-precision 50/60 Hz pulse signal source for digital electronic clock
  8. Altium Designer schematic library IC.SCHLIB
  9. Visual Assist X v10.0.1233.0 Cracked
  10. Altium Designer schematic library photounit.SCHLIB

EEWorld
subscription
account

EEWorld
service
account

Automotive
development
circle

Robot
development
community

About Us Customer Service Contact Information Datasheet Sitemap LatestNews
Index Files: 1932  571  2738  1278  2746  39  12  56  26  41
Datasheet   0 1 2 3 4 5 6 7 8 9 A B C D E F G H I J K L M N O P Q R S T U V W X Y Z
Room 1530, 15th Floor, Building B, No. 18 Zhongguancun Street, Haidian District, Beijing Telephone: (010) 82350740 Postal Code: 100190
Copyright © 2005-2026 EEWORLD.com.cn, Inc. All rights reserved 京ICP证060456号 京ICP备10001474号-1 电信业务审批[2006]字第258号函 京公网安备 11010802033920号
