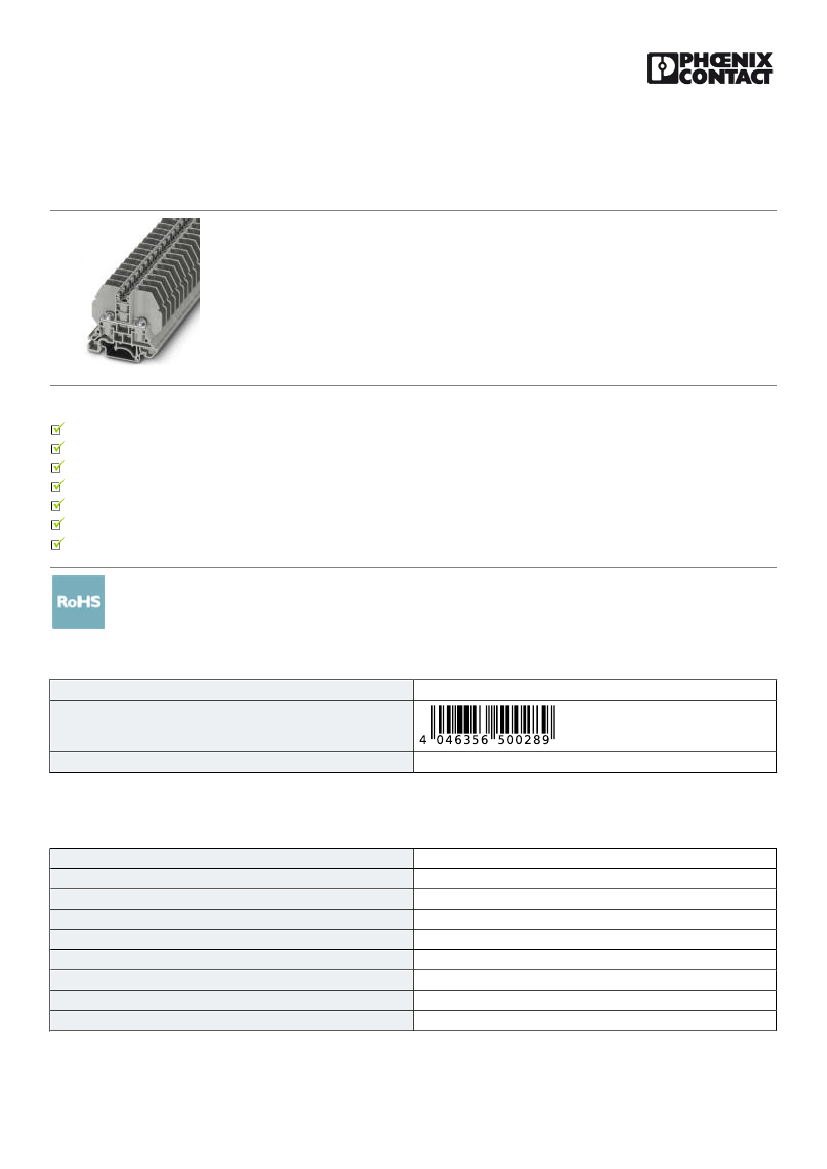

Bolt connection terminal block - RSC 4 - 3058127
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Feed-through terminal block with bolt connection method, cross section: 0.1 - 6 mm², AWG: 26 - 10, width 9
mm, color: gray
Your advantages
Large-surface, consistent external and center labeling
Mounting on standard DIN rails or directly in control boxes
Compact screw connection of ring and fork-type cable lugs
Screw nuts and current bars are latched in the insulating housing and cannot be removed
Cover profile that can be snapped directly onto the terminal blocks provides touch-proof protection
The isolator bridge bar supports switchable cross connections; the bridge screw therefore has the function of a live contact
Bridge shaft for potential distribution using standard screw bridges
Key Commercial Data
Packing unit
GTIN
GTIN
4046356500289
50 pc
Technical data
General
Number of levels
Number of connections
Potentials
Nominal cross section
Color
Insulating material
Flammability rating according to UL 94
Rated surge voltage
Degree of pollution
1
2
1
4 mm²
gray
PA
V0
8 kV
3
11/11/2018 Page 1 / 6
https://www.phoenixcontact.com/pi/products/3058127
Bolt connection terminal block - RSC 4 - 3058127
Technical data
General
Overvoltage category
Insulating material group
Maximum power dissipation for nominal condition
Maximum load current
Nominal current I
N
Nominal voltage U
N
Open side panel
Result of surge voltage test
Surge voltage test setpoint
Result of power-frequency withstand voltage test
Power frequency withstand voltage setpoint
Result of the test for mechanical stability of terminal points (5 x
conductor connection)
Result of tight fit on support
Tight fit on carrier
Setpoint
Result of voltage-drop test
Requirements, voltage drop
Result of temperature-rise test
Short circuit stability result
Conductor cross section short circuit testing
Short-time current
Result of thermal test
Proof of thermal characteristics (needle flame) effective duration
Oscillation, broadband noise test result
Test specification, oscillation, broadband noise
Test spectrum
Test frequency
ASD level
Acceleration
Test duration per axis
Test directions
Shock test result
Test specification, shock test
Shock form
Acceleration
Shock duration
Number of shocks per direction
Test directions
Relative insulation material temperature index (Elec., UL 746 B)
III
I
1.02 W
32 A
32 A
800 V
Yes
Test passed
9.8 kV
Test passed
2 kV
Test passed
Test passed
NS 35/NS 32
1N
Test passed
≤ 3.2 mV
Test passed
Test passed
4 mm²
0.48 kA
Test passed
30 s
Test passed
DIN EN 50155 (VDE 0115-200):2008-03
Service life test category 1, class B, body mounted
f
1
= 5 Hz to f
2
= 150 Hz
1.857 (m/s ) /Hz
0,8 g
5h
X-, Y- and Z-axis
Test passed
DIN EN 50155 (VDE 0115-200):2008-03
Half-sine
5g
30 ms
3
X-, Y- and Z-axis (pos. and neg.)
130 °C
11/11/2018 Page 2 / 6
2 2
https://www.phoenixcontact.com/pi/products/3058127
Bolt connection terminal block - RSC 4 - 3058127
Technical data
General
Temperature index of insulation material (DIN EN 60216-1 (VDE
0304-21))
Static insulating material application in cold
Behavior in fire for rail vehicles (DIN 5510-2)
Flame test method (DIN EN 60695-11-10)
Oxygen index (DIN EN ISO 4589-2)
NF F16-101, NF F10-102 Class I
NF F16-101, NF F10-102 Class F
Surface flammability NFPA 130 (ASTM E 162)
Specific optical density of smoke NFPA 130 (ASTM E 662)
Smoke gas toxicity NFPA 130 (SMP 800C)
Calorimetric heat release NFPA 130 (ASTM E 1354)
Fire protection for rail vehicles (DIN EN 45545-2) R22
Fire protection for rail vehicles (DIN EN 45545-2) R23
Fire protection for rail vehicles (DIN EN 45545-2) R24
Fire protection for rail vehicles (DIN EN 45545-2) R26
130 °C
-60 °C
Test passed
V0
>32 %
2
2
passed
passed
passed
28 MJ/kg
HL 1 - HL 3
HL 1 - HL 3
HL 1 - HL 3
HL 1 - HL 3
Dimensions
Width
End cover width
Length
Height NS 35/7,5
Height NS 35/15
Height NS 32
Pitch
9 mm
2.2 mm
53.3 mm
47.1 mm
54.6 mm
52.1 mm
9 mm
Connection data
Note
Connection method
Connection in acc. with standard
Conductor cross section flexible min.
Conductor cross section flexible max.
Min. AWG conductor cross section, flexible
Max. AWG conductor cross section, flexible
Cable lug connection according to standard
Min. cross section for cable lug connection
Max. cross section for cable lug connection
Hole diameter, min.
Cable lug width, max.
Bolt diameter
Cable lug connection according to standard
Min. cross section for cable lug connection
Connection bolts
Bolt connection
IEC 60947-7-1
0.1 mm²
6 mm²
26
10
DIN 46234
0.1 mm²
6 mm²
4.3 mm
8 mm
4 mm
DIN 46237
0.5 mm²
11/11/2018 Page 3 / 6
https://www.phoenixcontact.com/pi/products/3058127
Bolt connection terminal block - RSC 4 - 3058127
Technical data
Connection data
Max. cross section for cable lug connection
Hole diameter, min.
Cable lug width, max.
Bolt diameter
Screw thread
Tightening torque, min
Tightening torque max
2.5 mm²
4.3 mm
8 mm
4 mm
M4
1.2 Nm
1.4 Nm
Standards and Regulations
Connection in acc. with standard
Flammability rating according to UL 94
Fire protection for rail vehicles (DIN EN 45545-2) R22
Fire protection for rail vehicles (DIN EN 45545-2) R23
Fire protection for rail vehicles (DIN EN 45545-2) R24
Fire protection for rail vehicles (DIN EN 45545-2) R26
CUL
IEC 60947-7-1
V0
HL 1 - HL 3
HL 1 - HL 3
HL 1 - HL 3
HL 1 - HL 3
Environmental Product Compliance
China RoHS
Environmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values
Drawings
Circuit diagram
Approvals
Approvals
Approvals
UL Recognized / cUL Recognized / IECEE CB Scheme / VDE Gutachten mit Fertigungsüberwachung / EAC / cULus Recognized
Ex Approvals
Approval details
11/11/2018 Page 4 / 6
https://www.phoenixcontact.com/pi/products/3058127
Bolt connection terminal block - RSC 4 - 3058127
Approvals
UL Recognized
Nominal voltage UN
Nominal current IN
B
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
C
600 V
30 A
FILE E 60425
600 V
30 A
cUL Recognized
Nominal voltage UN
Nominal current IN
B
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
C
600 V
30 A
FILE E 60425
600 V
30 A
IECEE CB Scheme
Nominal voltage UN
Nominal current IN
mm²/AWG/kcmil
http://www.iecee.org/
DE1-46893-B1
800 V
32 A
0.2-4
VDE Gutachten mit
Fertigungsüberwachung
Nominal voltage UN
Nominal current IN
mm²/AWG/kcmil
http://www2.vde.com/de/Institut/Online-Service/
VDE-gepruefteProdukte/Seiten/Online-Suche.aspx
800 V
32 A
0.2-4
40030587
EAC
EAC-Zulassung
cULus Recognized
11/11/2018 Page 5 / 6
