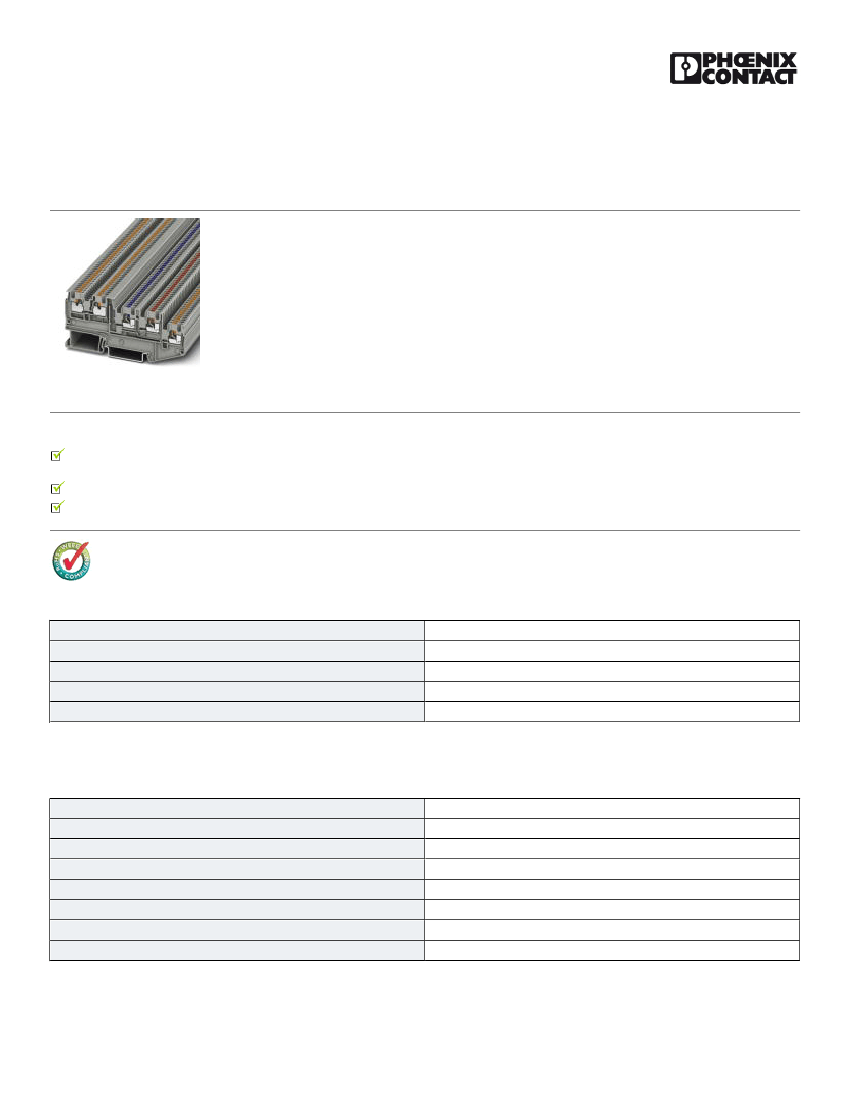

Sensor/actuator terminal block - PTIO 1,5/S/4-LED 24 GN - 3244520
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://download.phoenixcontact.com)
Sensor/actuator terminal block, Connection method: Push-in connection, Cross section: 0.14 mm² - 1.5 mm²,
AWG: 26 - 14, Width: 3.5 mm, Color: gray, Mounting type: NS 35/7,5, NS 35/15
The illustration shows the version
without LED/light indicator
Product Features
The push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free wiring
of conductors with ferrules or solid conductors
The compact design and front connection enable wiring in a confined space
In addition to the testing facility in the double function shaft, all terminal blocks provide an additional test connection
Key commercial data
Packing unit
Minimum order quantity
Weight per Piece (excluding packing)
Custom tariff number
Country of origin
1 pc
50 pc
8.8 GRM
85369010
Poland
Technical data
General
Number of levels
Number of connections
Color
Insulating material
Inflammability class according to UL 94
Maximum load current
Rated surge voltage
Pollution degree
4
5
gray
PA
V0
13.5 A
4 kV
3
1/30/14 Page 1 / 4
https://www.phoenixcontact.com/us/products/3244520
Sensor/actuator terminal block - PTIO 1,5/S/4-LED 24 GN - 3244520
Technical data
General
Surge voltage category
Insulating material group
Connection in acc. with standard
Nominal current I
N
Nominal voltage U
N
Open side panel
III
I
IEC 60947-7-1
13.5 A
250 V
ja
Dimensions
Width
Length
Height NS 35/7,5
Height NS 35/15
3.5 mm
90.8 mm
41.5 mm
49 mm
Connection data
Connection in acc. with standard
Connection method
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section AWG/kcmil min.
Conductor cross section AWG/kcmil max
Conductor cross section stranded min.
Conductor cross section stranded max.
Min. AWG conductor cross section, stranded
Max. AWG conductor cross section, stranded
Conductor cross section stranded, with ferrule without plastic sleeve min.
Conductor cross section stranded, with ferrule without plastic sleeve max.
Conductor cross section stranded, with ferrule with plastic sleeve min.
Conductor cross section stranded, with ferrule with plastic sleeve max.
Stripping length
Internal cylindrical gage
IEC 60947-7-1
Push-in connection
0.14 mm²
1.5 mm²
26
14
0.14 mm²
1.5 mm²
26
14
0.14 mm²
1.5 mm²
0.14 mm²
1 mm²
8 mm
A1 / B1
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
27141118
27141118
27141118
27141118
1/30/14 Page 2 / 4
https://www.phoenixcontact.com/us/products/3244520
Sensor/actuator terminal block - PTIO 1,5/S/4-LED 24 GN - 3244520
Classifications
eCl@ss
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
27141128
27141128
27141128
ETIM
ETIM 3.0
ETIM 4.0
ETIM 5.0
EC000897
EC000897
EC000900
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
30211811
39121410
39121410
39121410
39121410
Approvals
Approvals
Approvals
GOST
Ex Approvals
Approvals submitted
Approval details
GOST
Drawings
1/30/14 Page 3 / 4
https://www.phoenixcontact.com/us/products/3244520
Sensor/actuator terminal block - PTIO 1,5/S/4-LED 24 GN - 3244520
Circuit diagram
© Phoenix Contact 2013 - all rights reserved
http://www.phoenixcontact.com
1/30/14 Page 4 / 4
