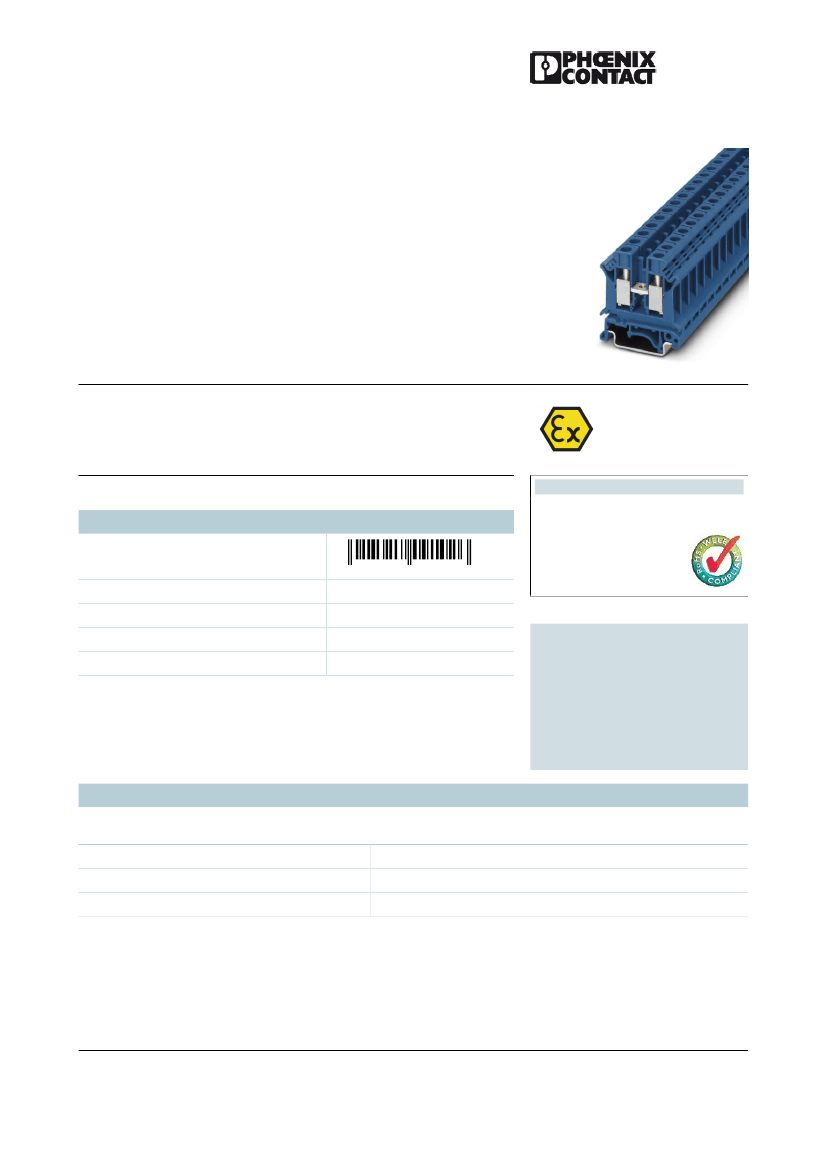

Feed-through modular terminal block, Type of connection: Screw
connection, Cross section: 0.5 mm² - 16 mm², AWG 20 - 6, Width: 10.2
mm, Color: blue, Mounting type: NS 35/7.5, NS 35/15
Product notes
Commercial data
GTIN (EAN)
4
017918
091026
WEEE/RoHS-compliant since:
01/01/2003
sales group
Pack
Customs tariff
Catalog page information
A000
50 pcs.
85369010
Page 344 (CL-2009)
http://
www.download.phoenixcontact.com
Please note that the data given
here has been taken from the
online catalog. For comprehensive
information and data, please refer
to the user documentation. The
General Terms and Conditions of
Use apply to Internet downloads.
Technical data
General
Number of levels
Number of connections
Color
1
2
blue
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 1 / 6
Feb 25, 2011
UK 10 N BU
Order No.: 3005086
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=3005086
Insulating material
Inflammability class acc. to UL 94
Dimensions
Width
Length
Height NS 35/7.5
Height NS 35/15
Height NS 32
Technical data
Maximum load current
Rated surge voltage
Pollution degree
Surge voltage category
Insulating material group
Connection in acc. with standard
Nominal current I
N
Nominal voltage U
N
Open side panel
Connection data
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section stranded min.
Conductor cross section stranded max.
Conductor cross section AWG/kcmil min.
Conductor cross section AWG/kcmil max
Conductor cross section stranded, with ferrule
without plastic sleeve min.
Conductor cross section stranded, with ferrule
without plastic sleeve max.
Conductor cross section stranded, with ferrule
with plastic sleeve min.
Conductor cross section stranded, with ferrule
with plastic sleeve max.
2 conductors with same cross section, solid min.
2 conductors with same cross section, solid max.
PA
V0
10.2 mm
42.5 mm
47 mm
54.5 mm
52 mm
76 A (with 16 mm conductor cross section)
8 kV
3
III
I
IEC 60947-7-1
57 A
800 V
ja
2
0.5 mm²
16 mm²
0.5 mm²
10 mm²
20
6
0.5 mm²
10 mm²
0.5 mm²
6 mm²
0.5 mm²
4 mm²
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 2 / 6
Feb 25, 2011
UK 10 N BU
Order No.: 3005086
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=3005086
2 conductors with same cross section, stranded
min.
2 conductors with same cross section, stranded
max.
2 conductors with same cross section, stranded,
TWIN ferrules with plastic sleeve, min.
2 conductors with same cross section, stranded,
TWIN ferrules with plastic sleeve, max.
2 conductors with same cross section, stranded,
ferrules without plastic sleeve, min.
2 conductors with same cross section, stranded,
ferrules without plastic sleeve, max.
Cross-section with insertion bridge, solid max.
Cross-section with insertion bridge, stranded max.
Type of connection
Stripping length
Internal cylindrical gage
Screw thread
Tightening torque, min
Tightening torque max
Certificates / Approvals
0.5 mm²
4 mm²
0.5 mm²
6 mm²
0.5 mm²
2.5 mm²
10 mm²
10 mm²
Screw connection
10 mm
B6
M4
1.5 Nm
1.8 Nm
Certification
Certification Ex:
CCA, CSA, CUL, DNV, GL, GOST, KEMA, UL
CUL-EX, FM, GL-EX, IECEx, KEMA-EX, UL-EX
Accessories
Item
Assembly
3003224
3022218
ATP-UK
CLIPFIX 35
Partition plate, Length: 56 mm, Width: 1.5 mm, Height: 59 mm,
Color: gray
Snap-on end bracket, for 35 mm NS 35/7.5 or NS 35/15 DIN
rail, can be fitted with Zack strip ZB 8 and ZB 8/27, terminal strip
marker KLM 2 and KLM, width: 9.5 mm, color: gray
Designation
Description
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 3 / 6
Feb 25, 2011
UK 10 N BU
Order No.: 3005086
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=3005086
3003020
3003101
1201442
1201028
1201280
1201358
1201002
1201015
0801762
0801733
0801681
1201756
1201895
1201730
1201714
1201798
0204110
1302215
Bridges
0203153
0203328
0203137
0203195
0203140
0203182
0203179
D-UK 4/10
D-UK 4/10 BU
E/UK
NS 32 AL UNPERF 2000MM
NS 32 CU/120QMM UNPERF
2000MM
NS 32 CU/35QMM UNPERF
2000MM
NS 32 PERF 2000MM
NS 32 UNPERF 2000MM
NS 35/ 7,5 CU UNPERF
2000MM
NS 35/ 7,5 PERF 2000MM
NS 35/ 7,5 UNPERF 2000MM
NS 35/15 AL UNPERF 2000MM
NS 35/15 CU UNPERF 2000MM
NS 35/15 PERF 2000MM
NS 35/15 UNPERF 2000MM
NS 35/15-2,3 UNPERF 2000MM
STL 10N/5N
TS-K
End cover, Length: 42.5 mm, Width: 1.8 mm, Height: 35.9 mm,
Color: gray
End cover, Length: 42.5 mm, Width: 1.8 mm, Height: 47 mm,
Color: blue
End clamp, for assembly on NS 32 or NS 35/7.5 DIN rail
G rail 32 mm (NS 32)
G-profile DIN rail, deep-drawn, material: Copper, unperforated,
height 15 mm, width 32 mm, length 2 m
G-profile DIN rail, material: Copper, unperforated, height 15 mm,
width 32 mm, length 2 m
G-profile DIN rail, material: Steel, perforated, height 15 mm, width
32 mm, length 2 m
G-profile DIN rail, material: Steel, unperforated, height 15 mm,
width 32 mm, length 2 m
DIN rail, material: Copper, unperforated, height 7.5 mm, width 35
mm, length: 2 m
DIN rail, material: Steel, galvanized and passivated with a thick
layer, perforated, height 7.5 mm, width 35 mm, length: 2 m
DIN rail, material: Steel, unperforated, height 7.5 mm, width 35
mm, length: 2 m
DIN rail, deep-drawn, high profile, unperforated, 1.5 mm thick,
material: Aluminum, height 15 mm, width 35 mm, length 2 m
DIN rail, material: Copper, unperforated, 1.5 mm thick, height 15
mm, width 35 mm, length: 2 m
DIN rail, material: Steel, perforated, height 15 mm, width 35 mm,
length: 2 m
DIN rail, material: Steel, unperforated, height 15 mm, width 35
mm, length: 2 m
DIN rail, material: Steel, unperforated, 2.3 mm thick, height 15
mm, width 35 mm, length: 2 m
Step bracket, Color: aluminum
Separating plate, Length: 22 mm, Height: 22 mm, Color: gray
EB 2-10
EB 3-10
EB 10-10
FB 2-10
FB 3-10
FB 4-10
FB 10-10
Insertion bridge, Number of positions: 2, Color: gray
Insertion bridge, Number of positions: 3, Color: gray
Insertion bridge, Number of positions: 10, Color: gray
Fixed bridge, Number of positions: 2, Color: aluminum
Fixed bridge, Number of positions: 3, Color: aluminum
Fixed bridge, Number of positions: 4, Color: aluminum
Fixed bridge, Number of positions: 10, Color: aluminum
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 4 / 6
Feb 25, 2011
UK 10 N BU
Order No.: 3005086
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=3005086
0203247
0203483
0203276
0203205
0200062
Marking
1007248
1004225
1004429
1050525
FB 10-10-EX
FBI 2-10
FBI 10-10
KB- 10
SB 2- 8/13 N
Fixed bridge, Number of positions: 10, Color: aluminum
Fixed bridge, Number of positions: 2, Color: aluminum
Fixed bridge, Number of positions: 10, Color: silver
Chain bridge, Number of positions: 1, Color: silver
Switching jumper, Color: silver
SBS10:UNBEDRUCKT
WS 4-10
WS 5-10
ZB10:SO/CMS
Marker cards, unprinted, for individual labeling with the M-PEN,
250-section, perforated, white plastic
Warning plate, with 2 plastic screws, across 4 terminal blocks,
pitch 10 mm
Warning plate, with 2 plastic screws, across 5 terminal blocks,
pitch 10 mm
Zack strip, 10-section, divisible, special printing, marking
according to customer requirements
Plug/Adapter
0310541
0311647
0303299
0303406
0303354
0303419
0303370
0303396
0303325
0303383
0303312
0303367
KSS 10
PS-MT
PSB 4/7/6
PSBJ 4/15/6 BK
PSBJ 4/15/6 BU
PSBJ 4/15/6 FARBLOS
PSBJ 4/15/6 GN
PSBJ 4/15/6 GY
PSBJ 4/15/6 RD
PSBJ 4/15/6 VT
PSBJ 4/15/6 WH
PSBJ 4/15/6 YE
Short-circuit connector, Number of positions: 2, Color: black
Test plugs
Female test connector, Color: silver
Female test connector, Color: black
Female test connector, Color: blue
Female test connector, Color: transparent
Female test connector, Color: green
Female test connector, Color: gray
Female test connector, Color: red
Female test connector, Color: violet
Female test connector, Color: white
Female test connector, Color: yellow
Diagrams/Drawings
Circuit diagram
