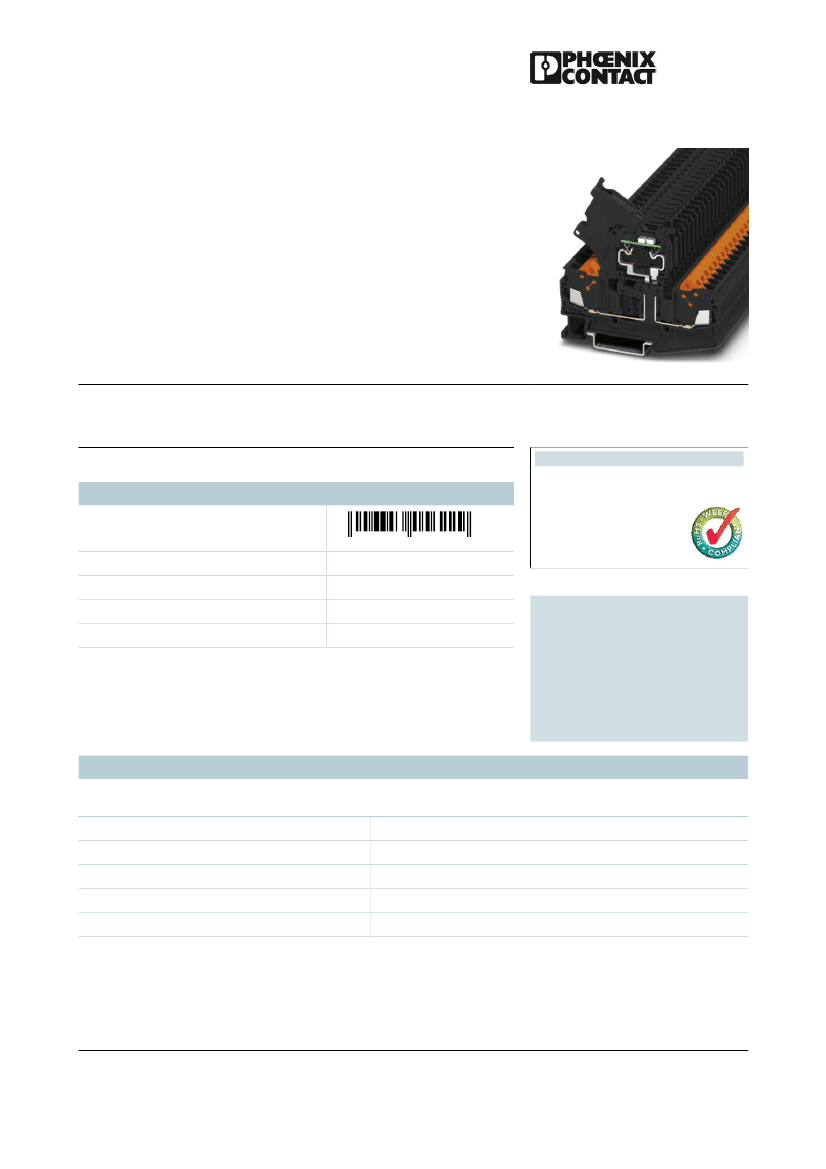

Extract from the online
catalog
QTC 2,5-HESILA 250 (5X20)
Order No.: 3050387
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=3050387
Lever-type fuse terminal block with fast connection, black, for 5x 20 G
fuse inserts, with light indicator for 250 V AC
Product notes
Commercial data
GTIN (EAN)
4
046356
056229
WEEE/RoHS-compliant since:
03/01/2005
sales group
Pack
Customs tariff
Catalog page information
A750
50 pcs.
85369085
Page 224 (CL-2009)
http://
www.download.phoenixcontact.com
Please note that the data given
here has been taken from the
online catalog. For comprehensive
information and data, please refer
to the user documentation. The
General Terms and Conditions of
Use apply to Internet downloads.
Technical data
General
Number of levels
Number of connections
Color
Insulating material
Inflammability class acc. to UL 94
1
2
black
PA
V0
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 1 / 5
Feb 1, 2011
QTC 2,5-HESILA 250 (5X20)
Order No.: 3050387
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=3050387
Dimensions
Width
Length
Height NS 35/7.5
Height NS 35/15
Technical data
Fuse
Fuse type
LED voltage range
Rated surge voltage
Pollution degree
Surge voltage category
Insulating material group
Connection in acc. with standard
Nominal current I
N
Nominal voltage U
N
Power loss
G / 5 x 20
Glass
110 V AC ... 250 V AC
4 kV
3
III
I
IEC 60947-7-3
6.3 A (if used as disconnect terminal block. With fuse, the current
is determined by the fuse used.)
500 V (if used as disconnect terminal block. With fuse, the
voltage is determined by the light indicator used.)
≥ 1.6 W (With single arrangement of the fuse terminal block in the
event of overload)
≥ 1.6 W (With interconnected arrangement of several fuse
terminal blocks in the event of overload)
≥ 4 W (With single arrangement of the fuse terminal block in the
event of a short-circuit)
≥ 2.5 W (With interconnected arrangement of several fuse
terminal blocks in the event of a short-circuit)
LED voltage range
LED current range
Connection data
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section stranded min.
Conductor cross section stranded max.
Conductor cross section AWG/kcmil min.
Conductor cross section AWG/kcmil max
Type of connection
Material wire insulation
0.5 mm²
2.5 mm²
0.5 mm²
2.5 mm²
20
14
Quick connection
PVC / PE
110 V AC ... 250 V AC
0.5 mA ... 2.5 mA
6.2 mm
82.5 mm
64.9 mm
72.4 mm
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 2 / 5
Feb 1, 2011
QTC 2,5-HESILA 250 (5X20)
Order No.: 3050387
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=3050387
Certificates / Approvals
Certification
ABS, BV, CB, CSA, CUL, DNV, GL, KEMA, NK, UL
Accessories
Item
Assembly
3022218
CLIPFIX 35
Snap-on end bracket, for 35 mm NS 35/7.5 or NS 35/15 DIN
rail, can be fitted with Zack strip ZB 8 and ZB 8/27, terminal strip
marker KLM 2 and KLM, width: 9.5 mm, color: gray
Snap-on end bracket, for NS 35/7.5 or NS 35/15 DIN rail, can be
fitted with Zack strip ZB 5 and ZBF 5, terminal strip marker KLM
2 and KLM, parking facility for FBS...5, FBS...6, KSS 5, KSS 6,
width: 5,15 mm, color: gray
End cover, Length: 82.5 mm, Width: 2.2 mm, Color: gray
Cover segment, Length: 72 mm, Height: 36.5 mm, Color: gray
DIN rail, material: Steel, unperforated, height 7.5 mm, width 35
mm, length: 2 m
Connection pin, Length: 1000 mm, Color: white
Connection pin, Length: 1000 mm, Color: white
Designation
Description
3022276
CLIPFIX 35-5
3206571
3206607
0801681
3004207
3004207
Bridges
3030336
3030336
3030242
3030242
3030255
3030255
3030349
3030349
3030271
3030271
3030365
D-QTC 2,5-TWIN
DS-QTC 2,5
NS 35/ 7,5 UNPERF 2000MM
VS
VS
FBS 2-6
FBS 2-6
FBS 3-6
FBS 3-6
FBS 4-6
FBS 4-6
FBS 5-6
FBS 5-6
FBS 10-6
FBS 10-6
FBS 20-6
Plug-in bridge, Number of positions: 2, Color: red
Plug-in bridge, Number of positions: 2, Color: red
Plug-in bridge, Number of positions: 3, Color: red
Plug-in bridge, Number of positions: 3, Color: red
Plug-in bridge, Number of positions: 4, Color: red
Plug-in bridge, Number of positions: 4, Color: red
Plug-in bridge, Number of positions: 5, Color: red
Plug-in bridge, Number of positions: 5, Color: red
Plug-in bridge, Number of positions: 10, Color: red
Plug-in bridge, Number of positions: 10, Color: red
Plug-in bridge, Number of positions: 20, Color: red
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 3 / 5
Feb 1, 2011
QTC 2,5-HESILA 250 (5X20)
Order No.: 3050387
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=3050387
3030365
3032224
Plug/Adapter
3030925
3036709
3030996
FBS 20-6
FBS 50-6
Plug-in bridge, Number of positions: 20, Color: red
Plug-in bridge, Number of positions: 50, Color: red
PAI-4
PS-4/E
PS-6
Test adapter, Color: gray
Test adapter, Color: red
Test adapter, Color: red
Diagrams/Drawings
Application drawing
Fuse terminal blocks in interconnected
arrangement,
block consisting of 5 fuse terminal blocks
Fuse terminal block in single arrangement,
block consisting of one fuse terminal block
and 4 feed-through terminal blocks
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 4 / 5
Feb 1, 2011
QTC 2,5-HESILA 250 (5X20)
Order No.: 3050387
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=3050387
Address
PHOENIX CONTACT Deutschland GmbH
Flachsmarktstr. 8
32825 Blomberg,Germany
Phone +49 5235 3 12000
Fax +49 5235 3 41200
http://www.phoenixcontact.de
© 2010 Phoenix Contact
Technical modifications reserved;
