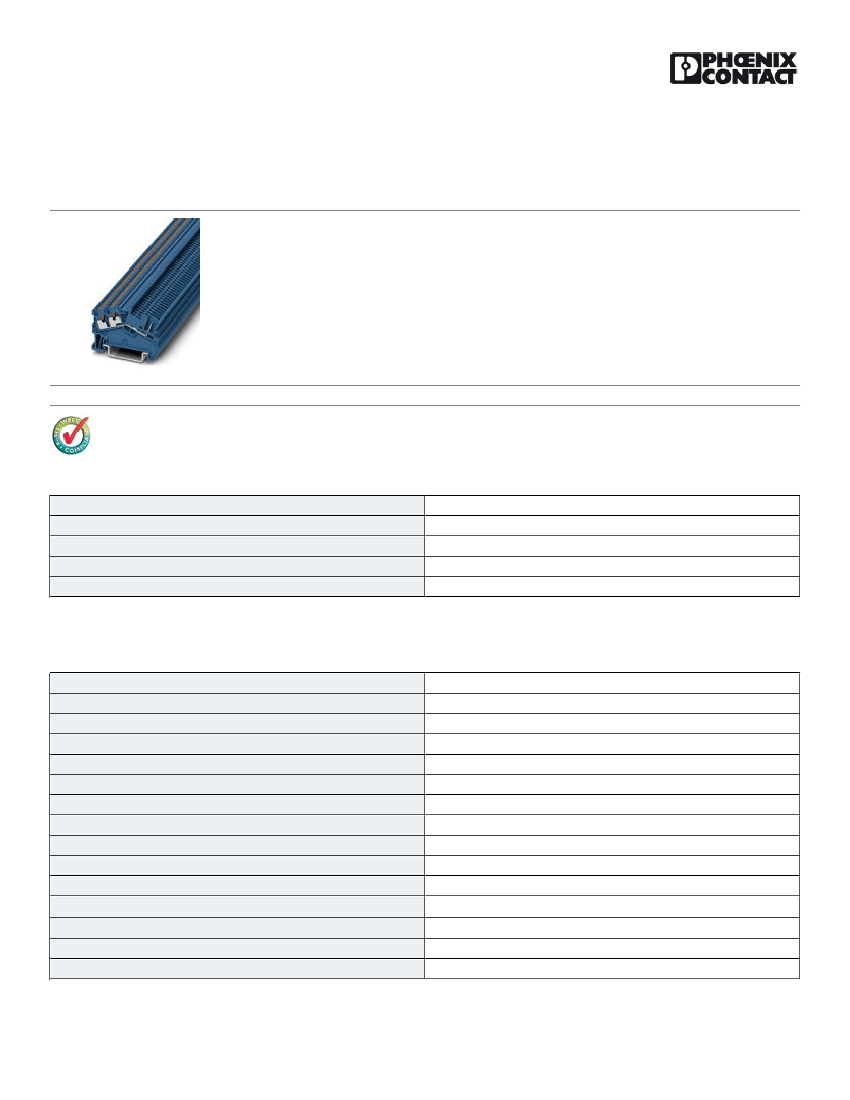

Feed-through terminal block - PTS 1,5/S-TWIN/1P BU - 3214712
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://download.phoenixcontact.com)
Feed-through terminal block, Connection method: Push-in / plug connection, Number of positions: 1, Cross
section: 0.14 mm² - 1.5 mm², AWG: 26 - 14, Width: 3.5 mm, Height: 37 mm, Color: blue, Mounting type: NS
35/7,5, NS 35/15
Key commercial data
Packing unit
Minimum order quantity
Weight per Piece (excluding packing)
Custom tariff number
Country of origin
1 PCE
50 PCE
4.0 GRM
85369010
Poland
Technical data
General
Number of levels
Number of connections
Color
Insulating material
Inflammability class according to UL 94
Maximum load current
Rated surge voltage
Pollution degree
Surge voltage category
Insulating material group
Connection in acc. with standard
Nominal current I
N
Nominal voltage U
N
Open side panel
Number of positions
1
3
blue
PA
V0
17.5 A (with 1.5 mm² conductor cross section)
6 kV
3
III
I
IEC 61984
17.5 A (observe derating)
500 V
ja
1
21.11.2013 Page 1 / 23
https://www.phoenixcontact.com/us/products/3214712
Feed-through terminal block - PTS 1,5/S-TWIN/1P BU - 3214712
Technical data
Dimensions
Width
Length
Height
Height NS 35/7,5
Height NS 35/15
3.5 mm
50.7 mm
37 mm
38.5 mm
46 mm
Connection data
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section AWG/kcmil min.
Conductor cross section AWG/kcmil max
Conductor cross section stranded min.
Conductor cross section stranded max.
Min. AWG conductor cross section, stranded
Max. AWG conductor cross section, stranded
Conductor cross section stranded, with ferrule without plastic sleeve min.
Conductor cross section stranded, with ferrule without plastic sleeve max.
Conductor cross section stranded, with ferrule with plastic sleeve min.
Conductor cross section stranded, with ferrule with plastic sleeve max.
Connection method
Stripping length
Internal cylindrical gage
0.14 mm²
1.5 mm²
26
14
0.14 mm²
1.5 mm²
26
14
0.14 mm²
1.5 mm²
0.14 mm²
1 mm²
Push-in / plug connection
8 mm
A1 / B1
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
27141131
27141131
27141134
27141134
27141134
27141134
27141134
ETIM
ETIM 4.0
ETIM 5.0
EC000897
EC000897
21.11.2013 Page 2 / 23
https://www.phoenixcontact.com/us/products/3214712
Feed-through terminal block - PTS 1,5/S-TWIN/1P BU - 3214712
Classifications
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
30211811
39121410
39121410
39121410
39121410
Approvals
Approvals
Approvals
UL Recognized / cUL Recognized / GL / LR / CSA / GOST / cULus Recognized
Ex Approvals
Approvals submitted
Approval details
UL Recognized
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
B
26-14
15 A
300 V
C
26-14
15 A
300 V
D
26-14
5A
600 V
cUL Recognized
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
B
26-14
15 A
300 V
C
26-14
15 A
300 V
D
26-14
5A
600 V
21.11.2013 Page 3 / 23
https://www.phoenixcontact.com/us/products/3214712
Feed-through terminal block - PTS 1,5/S-TWIN/1P BU - 3214712
Approvals
GL
LR
CSA
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
B
26-14
15 A
300 V
C
26-14
15 A
300 V
D
26-14
5A
600 V
GOST
cULus Recognized
Accessories
Accessories
Bridge
Jumper - FBS 3-3,5 BU - 3213099
Jumper, Number of positions: 3, Color: blue
Jumper - FBS 4-3,5 BU - 3213109
Jumper, Number of positions: 4, Color: blue
21.11.2013 Page 4 / 23
https://www.phoenixcontact.com/us/products/3214712
Feed-through terminal block - PTS 1,5/S-TWIN/1P BU - 3214712
Accessories
Jumper - FBS 5-3,5 BU - 3213112
Jumper, Number of positions: 5, Color: blue
Jumper - FBS 10-3,5 BU - 3213125
Jumper, Number of positions: 10, Color: blue
Jumper - FBS 20-3,5 BU - 3213138
Jumper, Number of positions: 20, Color: blue
Reducing bridge - RB ST (2,5/4)-1,5/S - 3214356
Reducing bridge, Number of positions: 2, Color: red
Reducing bridge - RB ST 6-1,5/S - 3213250
Reducing bridge, Number of positions: 2, Color: red
21.11.2013 Page 5 / 23
