PCB terminal block - MKDSF 3/ 2-5,08 - 1712724
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in
the user's documentation. Our General Terms of Use for Downloads are valid
(http://download.phoenixcontact.com)
PC terminal block, Nominal current: 24 A, Nom. voltage: 400 V, Pitch: 5.08 mm, Number of positions:
2, Connection method: Screw connection, Mounting: Soldering, Conductor/PCB connection direction:
90 °, Color: green, The article can be aligned to create different nos. of positions!

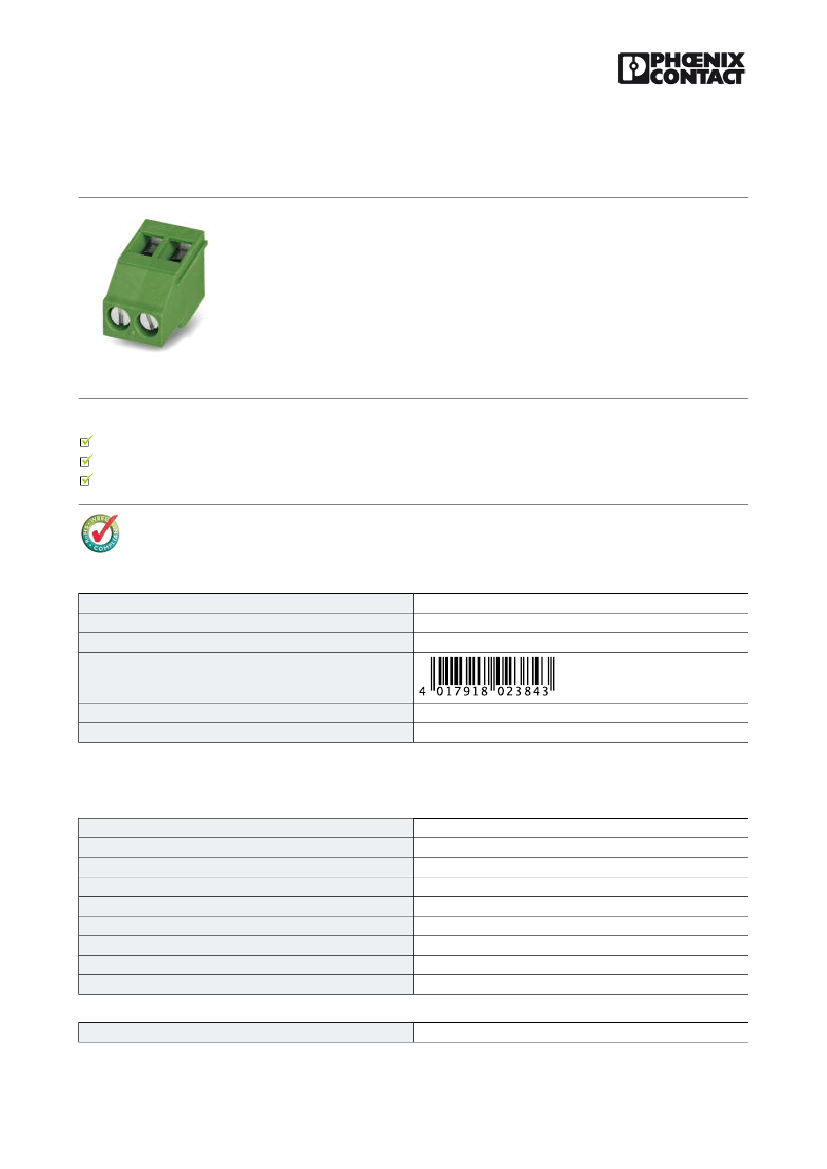

The illustration shows a 2-
position version
Why buy this product
MKDSF 3 with angled solder pin guided out the back of the housing
Horizontal series with vertical connection direction to the PCB
Generously dimensioned wiring space, solid conductors up to 4 mm²
Key commercial data
Packing unit
Minimum order quantity
Catalog page
GTIN
Custom tariff number
Country of origin
85369010
GERMANY
1
1
Page 99 (CC-2011)
Technical data
Dimensions / positions
Length
Pitch
Dimension a
Number of positions
Pin dimensions
Hole diameter
Screw thread
Tightening torque, min
Tightening torque max
18 mm
5.08 mm
5.08 mm
2
0,9 x 0,9 mm
1.3 mm
M3
0.5 Nm
0.6 Nm
Technical data
Range of articles
MKDSF 3
19.10.2012 Page 1 / 6
https://www.phoenixcontact.com/us/produkte/1712724
PCB terminal block - MKDSF 3/ 2-5,08 - 1712724
Technical data
Technical data
Insulating material group
Rated surge voltage (III/3)
Rated surge voltage (III/2)
Rated surge voltage (II/2)
Rated voltage (III/3)
Rated voltage (III/2)
Rated voltage (II/2)
Connection in acc. with standard
Nominal current IN
Nominal cross section
Maximum load current
Insulating material
Inflammability class according to UL 94
Internal cylindrical gage
Stripping length
Nominal voltage, UL/CUL Use Group B
Nominal current, UL/CUL Use Group B
Nominal voltage, UL/CUL Use Group D
Nominal current, UL/CUL Use Group D
I
4 kV
4 kV
4 kV
250 V
400 V
630 V
EN-VDE
24 A
2.5 mm²
32 A (with 4 mm² conductor cross section)
PA
V0
A3
8 mm
250 V
15 A
300 V
10 A
Connection data
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section stranded min.
Conductor cross section stranded max.
Conductor cross section stranded, with ferrule without plastic
sleeve min.
Conductor cross section stranded, with ferrule without plastic
sleeve max.
Conductor cross section stranded, with ferrule with plastic sleeve
min.
Conductor cross section stranded, with ferrule with plastic sleeve
max.
Conductor cross section AWG/kcmil min.
Conductor cross section AWG/kcmil max
2 conductors with same cross section, solid min.
2 conductors with same cross section, solid max.
2 conductors with same cross section, stranded min.
2 conductors with same cross section, stranded max.
2 conductors with same cross section, stranded, ferrules without
plastic sleeve, min.
2 conductors with same cross section, stranded, ferrules without
plastic sleeve, max.
2 conductors with same cross section, stranded, TWIN ferrules
with plastic sleeve, min.
0.2 mm²
4 mm²
0.2 mm²
2.5 mm²
0.25 mm²
2.5 mm²
0.25 mm²
2.5 mm²
24
12
0.2 mm²
1.5 mm²
0.2 mm²
1.5 mm²
0.25 mm²
0.75 mm²
0.5 mm²
19.10.2012 Page 2 / 6
https://www.phoenixcontact.com/us/produkte/1712724
PCB terminal block - MKDSF 3/ 2-5,08 - 1712724
Technical data
Connection data
2 conductors with same cross section, stranded, TWIN ferrules
with plastic sleeve, max.
Minimum AWG according to UL/CUL
Maximum AWG according to UL/CUL
1.5 mm²
30
12
Classifications
eclass
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
27141109
27141109
27141190
27141190
27261101
27440401
etim
ETIM 3.0
ETIM 4.0
ETIM 5.0
EC001121
EC002643
EC002643
unspsc
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
30211801
39121432
39121432
39121432
39121432
Approvals
Approvals
Approvals
CSA / UL Recognized / SEV / cUL Recognized / GOST / CCA / GOST / cULus Recognized
Ex Approvals
Approvals submitted
Approval details
19.10.2012 Page 3 / 6
https://www.phoenixcontact.com/us/produkte/1712724
PCB terminal block - MKDSF 3/ 2-5,08 - 1712724
Approvals
CSA
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
B
28-12
10 A
300 V
D
28-12
10 A
300 V
UL Recognized
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
SEV
mm²/AWG/kcmil
Nominal voltage UN
4
250 V
B
30-12
15 A
250 V
D
30-12
10 A
300 V
cUL Recognized
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
B
30-12
15 A
250 V
D
30-12
10 A
300 V
GOST
CCA
mm²/AWG/kcmil
Nominal voltage UN
4
250 V
GOST
19.10.2012 Page 4 / 6
https://www.phoenixcontact.com/us/produkte/1712724
PCB terminal block - MKDSF 3/ 2-5,08 - 1712724
Approvals
cULus Recognized

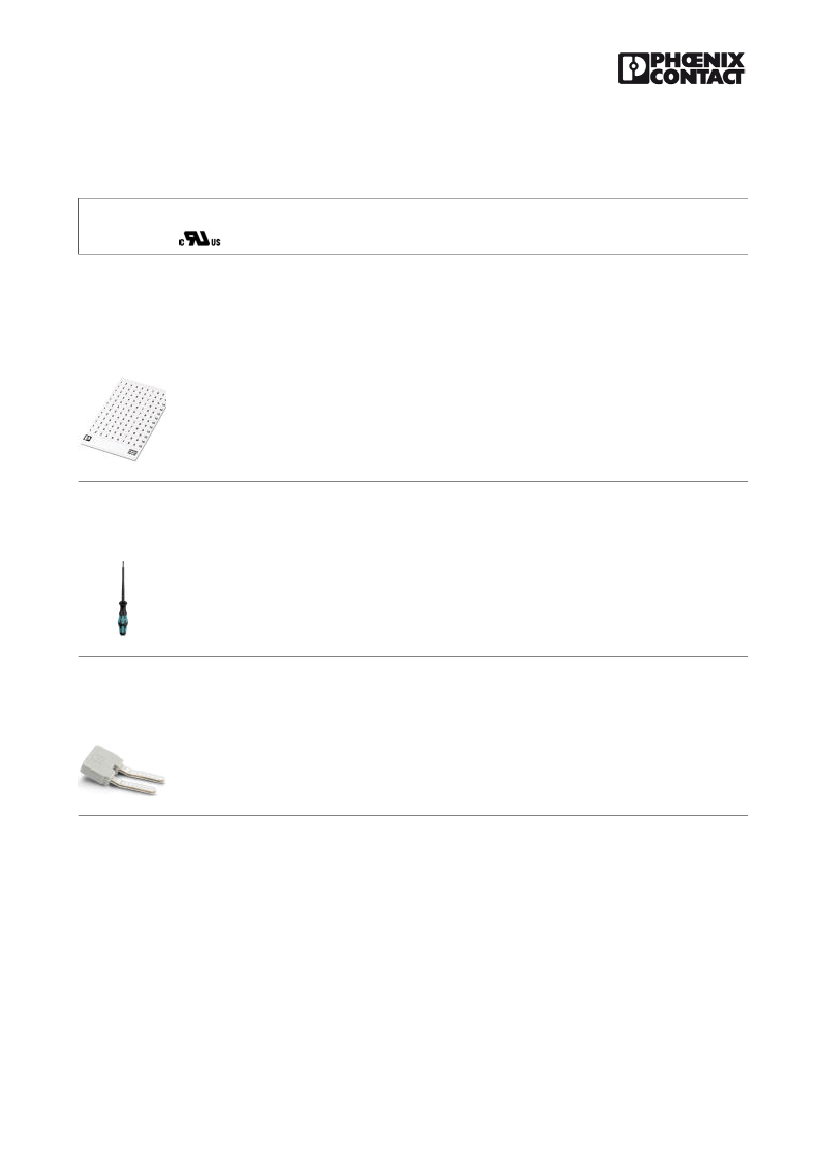

Accessories
Accessories
Marking
Marker cards - SK 5,08/3,8:FORTL.ZAHLEN - 0804293
Marker cards, Card, white, labeled, Horizontal: Consecutive numbers 1 - 10, 11 - 20, etc. up to 91 - (99)100,
Mounting type: Adhesive, For terminal block width: 5.08 mm
Tools
Screwdriver - SZS 0,6X3,5 - 1205053
Actuation tool, for ST terminal blocks, insulated, also suitable for use as a bladed screwdriver, size: 0.6 x
3.5 x 100 mm, 2-component grip, with non-slip grip
Insertion bridge - EBP 2- 5 - 1733169
Insertion bridge, fully insulated, for plug connectors with 5.0 or 5.08 mm pitch, no. of positions: 2
Drawings
19.10.2012 Page 5 / 6
