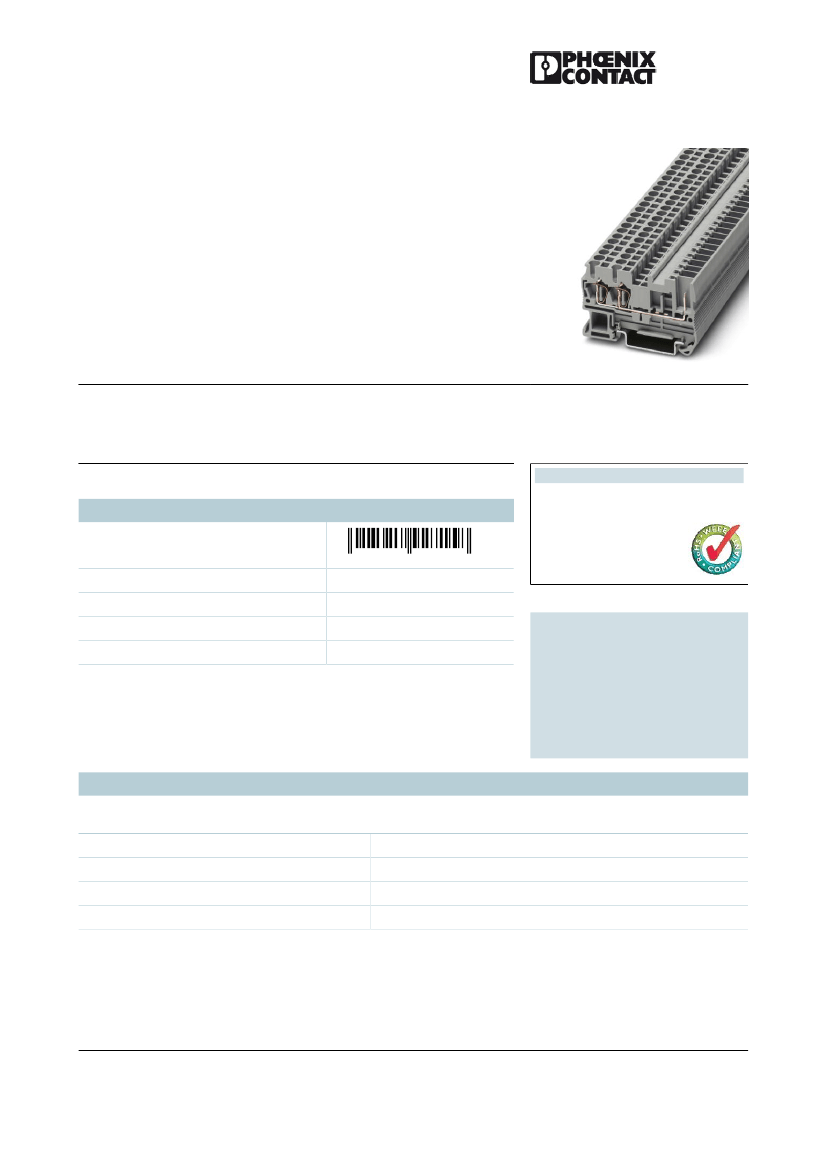

ST 2,5-TWIN/ 1P
Order No.: 3042117
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=3042117
Spring-cage modular terminal block, Type of connection: Spring-cage
connection, Cross section: 0.08 mm² - 4 mm², AWG 28 - 12, Width: 5.2
mm, Color: gray, Mounting type: NS 35/7.5, NS 35/15
Product notes
Commercial data
GTIN (EAN)
4
017918
927158
WEEE/RoHS-compliant since:
01/01/2003
sales group
Pack
Customs tariff
Catalog page information
A670
50 pcs.
85369010
Page 247 (CL-2009)
http://
www.download.phoenixcontact.com
Please note that the data given
here has been taken from the
online catalog. For comprehensive
information and data, please refer
to the user documentation. The
General Terms and Conditions of
Use apply to Internet downloads.
Technical data
General
Number of levels
Number of connections
Color
Insulating material
1
3
gray
PA
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 1 / 13
Feb 10, 2011
ST 2,5-TWIN/ 1P
Order No.: 3042117
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=3042117
Inflammability class acc. to UL 94
Dimensions
Width
Length
Height NS 35/7.5
Height NS 35/15
Technical data
Rated surge voltage
Pollution degree
Surge voltage category
Insulating material group
Connection in acc. with standard
Nominal current I
N
Nominal voltage U
N
Connection data
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section stranded min.
Conductor cross section stranded max.
Conductor cross section AWG/kcmil min.
Conductor cross section AWG/kcmil max
Conductor cross section stranded, with ferrule
without plastic sleeve min.
Conductor cross section stranded, with ferrule
without plastic sleeve max.
Conductor cross section stranded, with ferrule
with plastic sleeve min.
Conductor cross section stranded, with ferrule
with plastic sleeve max.
2 conductors with same cross section, stranded,
TWIN ferrules with plastic sleeve, max.
Type of connection
Stripping length
Internal cylindrical gage
V0
5.2 mm
60.5 mm
36.5 mm
44 mm
6 kV
3
III
I
IEC 61984
24 A
500 V
0.08 mm²
4 mm²
0.08 mm²
2.5 mm²
28
12
0.14 mm²
2.5 mm²
0.14 mm²
2.5 mm²
0.5 mm²
Spring-cage connection
10 mm
A3
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 2 / 13
Feb 10, 2011
ST 2,5-TWIN/ 1P
Order No.: 3042117
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=3042117
Certificates / Approvals
Certification
BV, CB, CSA, CUL, DNV, GL, GOST, LR, UL, VDE-PZI
Accessories
Item
Assembly
3030789
3030488
3036602
Bridges
3030161
3036877
3038969
3030174
3036880
3038972
3030187
3036893
3038985
3030190
3036903
3038998
3030213
3036916
3039007
3030226
3036929
3038671
FBS 2-5
FBS 2-5 BU
FBS 2-5 GY
FBS 3-5
FBS 3-5 BU
FBS 3-5 GY
FBS 4-5
FBS 4-5 BU
FBS 4-5 GY
FBS 5-5
FBS 5-5 BU
FBS 5-5 GY
FBS 10-5
FBS 10-5 BU
FBS 10-5 GY
FBS 20-5
FBS 20-5 BU
FBS 20-5 GY
Plug-in bridge, Number of positions: 2, Color: red
Plug-in bridge, Number of positions: 2, Color: blue
Plug-in bridge, Number of positions: 2, Color: gray
Plug-in bridge, Number of positions: 3, Color: red
Plug-in bridge, Number of positions: 3, Color: blue
Plug-in bridge, Number of positions: 3, Color: gray
Plug-in bridge, Number of positions: 4, Color: red
Plug-in bridge, Number of positions: 4, Color: blue
Plug-in bridge, Number of positions: 4, Color: gray
Plug-in bridge, Number of positions: 5, Color: red
Plug-in bridge, Number of positions: 5, Color: blue
Plug-in bridge, Number of positions: 5, Color: gray
Plug-in bridge, Number of positions: 10, Color: red
Plug-in bridge, Number of positions: 10, Color: blue
Plug-in bridge, Number of positions: 10, Color: gray
Plug-in bridge, Number of positions: 20, Color: red
Plug-in bridge, Number of positions: 20, Color: blue
Plug-in bridge, Number of positions: 20, Color: gray
ATP-ST-TWIN
D-ST 2,5-TWIN
DS-ST 2,5
Partition plate, Length: 76.6 mm, Width: 2 mm, Height: 45 mm,
Color: gray
End cover, Length: 60.5 mm, Width: 2.2 mm, Height: 29 mm,
Color: gray
Cover segment, Length: 72 mm, Height: 36.5 mm, Color: gray
Designation
Description
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 3 / 13
Feb 10, 2011
ST 2,5-TWIN/ 1P
Order No.: 3042117
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=3042117
3038930
3032114
3032127
Marking
3040588
3030941
0800190
FBS 50-5
FBS 50-5 BU
FBS 50-5 GY
Plug-in bridge, Number of positions: 50, Color: red
Plug-in bridge, Number of positions: 50, Color: blue
Plug-in bridge, Number of positions: 50, Color: gray
PC
WST 2,5
ZB 5 /VT-100:UNBEDRUCKT
Keying star, Length: 3 mm, Width: 3 mm, Height: 6 mm, Color: red
Warning cover, 5-pos., for terminal width: 5.2 mm
Zack strip, unprinted: 10-section, for individual labeling with M-
PEN, ZB-T or CMS system, large batch, sufficient for labeling
1000 terminal blocks, color: violet
Zack strip, unprinted, 10-section, for individual labeling with M-
PEN, ZB-T or CMS system, pack is sufficient for 100 terminal
blocks, for a terminal width of 5.2 mm, color: White
Zack strip, printed horizontally: 9-section, with the numbers 1 - 9,
color: white
Zack marker strip, 10-section, printed horizontally: with the
numbers 1 - 10, 11 - 20 and so on up to 491 - 500, color: white
Zack marker strip, printed horizontally: 10-section, with identical
numbers 1/1/1, 2/2/2, and so on up to 100, color: white
Zack strip, printed horizontally, strips with 10 labels, L1, L2, L3, N,
PE, L1, L2, L3, N, PE, color: white
Zack marker strip, 10-section, printed vertically: with consecutive
numbers 1 - 10, 11 - 20, and so on up to 491 - 500, color: white
Zack strip, unprinted: 10-section, for individual labeling with M-
PEN, ZB-T or CMS system, large batch, sufficient for labeling
1000 terminal blocks, color: blue
Zack strip, unprinted: 10-section, for individual labeling with M-
PEN, ZB-T or CMS system, large batch, sufficient for labeling
1000 terminal blocks, color: green
Zack strip, printed horizontally: 10-section, with the numbers
10/20/30-100, (for decade labeling), color: orange
Zack strip, unprinted: 10-section, for individual labeling with M-
PEN, ZB-T or CMS system, large batch, sufficient for labeling
1000 terminal blocks, color: red
Zack strip, unprinted: 10-section, for individual labeling with M-
PEN, ZB-T or CMS system, large batch, sufficient for labeling
1000 terminal blocks, for a terminal width of 5.2 mm, color: White
Zack strip, unprinted: 10-section, for individual labeling with M-
PEN, ZB-T or CMS system, large batch, sufficient for labeling
1000 terminal blocks, color: yellow
Zack strip, 10-section, divisible, special printing, marking
according to customer requirements
Zack marker sheet, flat, unprinted: 120-section, 10 strips à 12
markers, sufficient for 120 terminal blocks, for all terminal blocks,
pitch 5.2 mm, labeling with M-PEN or CMS system, color: orange
1050004
ZB 5 :UNBEDRUCKT
1050127
1050017
1050033
1050415
1050020
5061536
ZB 5,LGS:1-9
ZB 5,LGS:FORTL.ZAHLEN
ZB 5,LGS:GLEICHE ZAHLEN
ZB 5,LGS:L1-N,PE
ZB 5,QR:FORTL.ZAHLEN
ZB 5/BU-100:UNBEDRUCKT
5061497
ZB 5/GN-100:UNBEDRUCKT
1050211
5061471
ZB 5/OG,LGS: 10-100
ZB 5/RD-100:UNBEDRUCKT
5060906
ZB 5/WH-100:UNBEDRUCKT
5061510
ZB 5/YE-100:UNBEDRUCKT
1050295
0807180
ZB 5:SO/CMS
ZBFM 5/OG:UNBEDRUCKT
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 4 / 13
Feb 10, 2011
ST 2,5-TWIN/ 1P
Order No.: 3042117
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=3042117
0803595
ZBFM 5/WH:UNBEDRUCKT
Zack marker sheet, flat, unprinted: 120-section, 10 strips à 12
markers, sufficient for 120 terminal blocks, for all terminal blocks,
pitch 5.2 mm, labeling with M-PEN or CMS system, color: white
Special printing, Zack marker sheet, flat, 120-section, divisible,
marking according to customer requirements
0803647
ZBFM 5:SO/CMS
Plug/Adapter
3002843
3002856
3002869
0201689
0201676
0201663
0201744
3030925
3030983
Tools
1204517
SZF 1-0,6X3,5
Actuation tool, for ST terminal blocks, also suitable for use as a
bladed screwdriver, size: 0.6 x 3.5 x 100 mm, 2-component grip,
with non-slip grip
ISH 2,5/0,2
ISH 2,5/0,5
ISH 2,5/1,0
MPS-IH BU
MPS-IH RD
MPS-IH WH
MPS-MT
PAI-4
PS-5
Insulation stop sleeve, Color: white
Insulation stop sleeve, Color: gray
Insulation stop sleeve, Color: black
Insulating sleeve, Color: blue
Insulating sleeve, Color: red
Insulating sleeve, Color: white
Test plugs
Test adapter, Color: gray
Test adapter, Color: red
Additional products
Item
Plug/Adapter
3040258
SP 2,5/ 1
Connectors, Type of connection: Spring-cage connection, Number
of positions: 1, Cross section: 0.08 mm² - 4 mm², AWG 28 - 12,
Width: 5.2 mm, Height: 39 mm, Color: gray
Connectors, Type of connection: Spring-cage connection, Number
of positions: 1, Cross section: 0.08 mm² - 4 mm², AWG 28 - 12,
Width: 5.2 mm, Height: 39 mm, Color: blue
Connectors, Type of connection: Spring-cage connection, Number
of positions: 1, Cross section: 0.08 mm² - 4 mm², AWG 28 - 12,
Width: 5.2 mm, Height: 39 mm, Color: green-yellow
Connectors, Type of connection: Spring-cage connection, Number
of positions: 2, Cross section: 0.08 mm² - 4 mm², AWG 28 - 12,
Width: 10.4 mm, Height: 39 mm, Color: gray
Connectors, Type of connection: Spring-cage connection, Number
of positions: 3, Cross section: 0.08 mm² - 4 mm², AWG 28 - 12,
Width: 15.6 mm, Height: 39 mm, Color: gray
Designation
Description
3040698
SP 2,5/ 1 BU
3040708
SP 2,5/ 1 GNYE
3040261
SP 2,5/ 2
3040274
SP 2,5/ 3
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 5 / 13
Feb 10, 2011
