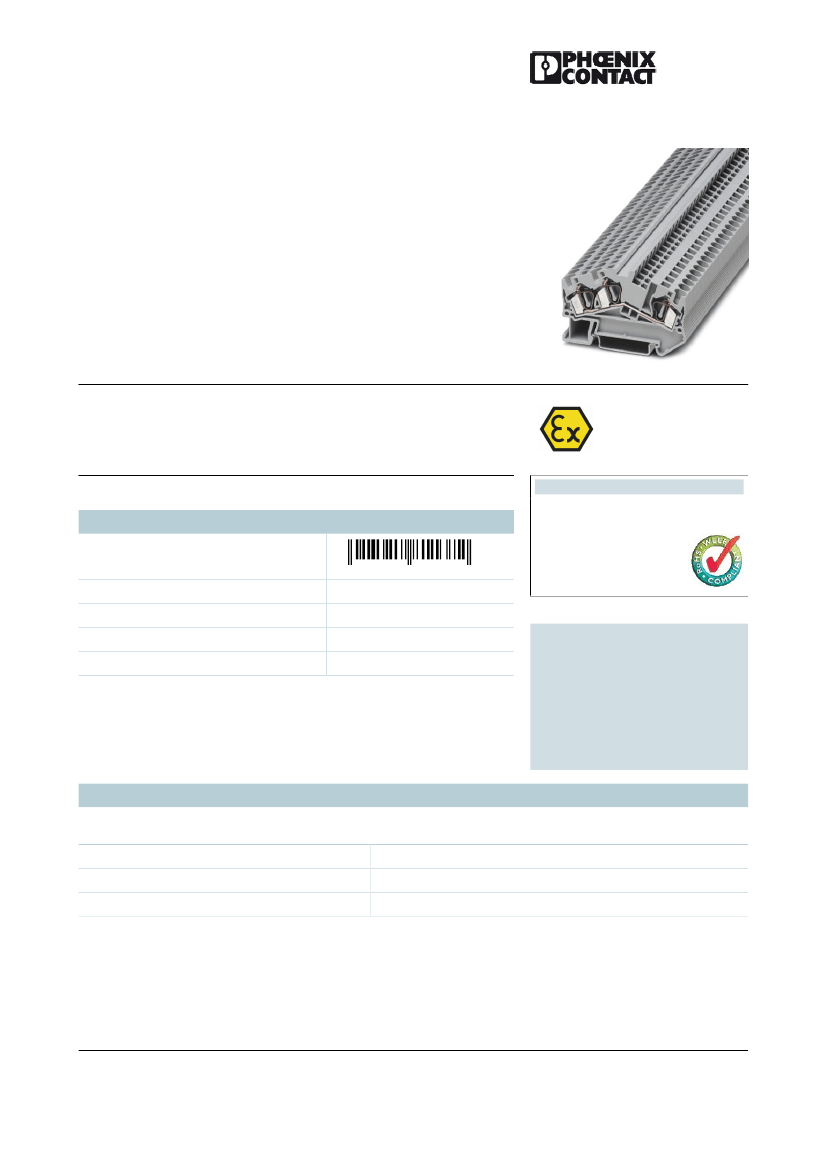

Extract from the online
catalog
STS 4-TWIN BU
Order No.: 3036291
The illustration shows the gray color version
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=3036291
Feed-through modular terminal block, Type of connection: Spring-cage
connection, Cross section: 0.08 mm² - 6 mm², AWG 28 - 10, Width: 6.2
mm, Color: blue, Mounting type: NS 35/7.5, NS 35/15
Product notes
Commercial data
GTIN (EAN)
4
017918
811372
WEEE/RoHS-compliant since:
01/01/2003
sales group
Pack
Customs tariff
Catalog page information
A630
50 pcs.
85369010
Page 141 (CL-2009)
http://
www.download.phoenixcontact.com
Please note that the data given
here has been taken from the
online catalog. For comprehensive
information and data, please refer
to the user documentation. The
General Terms and Conditions of
Use apply to Internet downloads.
Technical data
General
Number of levels
Number of connections
Color
1
3
blue
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 1 / 5
Feb 10, 2011
STS 4-TWIN BU
Order No.: 3036291
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=3036291
Insulating material
Inflammability class acc. to UL 94
Dimensions
Width
Length
Height NS 35/7.5
Height NS 35/15
Technical data
Maximum load current
Rated surge voltage
Pollution degree
Surge voltage category
Insulating material group
Connection in acc. with standard
Nominal current I
N
Nominal voltage U
N
Open side panel
Connection data
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section stranded min.
Conductor cross section stranded max.
Conductor cross section AWG/kcmil min.
Conductor cross section AWG/kcmil max
Conductor cross section stranded, with ferrule
without plastic sleeve min.
Conductor cross section stranded, with ferrule
without plastic sleeve max.
Conductor cross section stranded, with ferrule
with plastic sleeve min.
Conductor cross section stranded, with ferrule
with plastic sleeve max.
2 conductors with same cross section, stranded,
TWIN ferrules with plastic sleeve, min.
PA
V0
6.2 mm
64.5 mm
43 mm
50.5 mm
38 A (with 6 mm conductor cross section)
8 kV
3
III
I
IEC 60947-7-1
32 A (the maximum load current must not be exceeded by the
total current of all connected conductors)
800 V
ja
2
0.08 mm²
6 mm²
0.08 mm²
4 mm²
28
10
0.14 mm²
4 mm²
0.14 mm²
4 mm²
0.5 mm²
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 2 / 5
Feb 10, 2011
STS 4-TWIN BU
Order No.: 3036291
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=3036291
2 conductors with same cross section, stranded,
TWIN ferrules with plastic sleeve, max.
Type of connection
Stripping length
Internal cylindrical gage
Certificates / Approvals
1 mm²
Spring-cage connection
10 mm
A4
Certification
Certification Ex:
CCA, CSA, CUL, DNV, GOST, KR, SEV, UL
IECEx, PTB
Accessories
Item
Assembly
3031704
D-STS 4
End cover, Length: 64.5 mm, Width: 2.2 mm, Height: 43 mm,
Color: gray
Designation
Description
Bridges
3030336
3030242
3030255
3030349
3030271
3030365
Marking
3030954
Plug/Adapter
3002885
3002898
3030925
3030996
ISH 4/0,5
ISH 4/1,0
PAI-4
PS-6
Insulating sleeve, Color: gray
Insulating sleeve, Color: black
Test adapter, Color: gray
Test adapter, Color: red
WST 4
Warning cover, 5-pos., for terminal width: 6.2 mm
FBS 2-6
FBS 3-6
FBS 4-6
FBS 5-6
FBS 10-6
FBS 20-6
Plug-in bridge, Number of positions: 2, Color: red
Plug-in bridge, Number of positions: 3, Color: red
Plug-in bridge, Number of positions: 4, Color: red
Plug-in bridge, Number of positions: 5, Color: red
Plug-in bridge, Number of positions: 10, Color: red
Plug-in bridge, Number of positions: 20, Color: red
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 3 / 5
Feb 10, 2011
STS 4-TWIN BU
Order No.: 3036291
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=3036291
Tools
1204517
SZF 1-0,6X3,5
Actuation tool, for ST terminal blocks, also suitable for use as a
bladed screwdriver, size: 0.6 x 3.5 x 100 mm, 2-component grip,
with non-slip grip
Diagrams/Drawings
Circuit diagram
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 4 / 5
Feb 10, 2011
STS 4-TWIN BU
Order No.: 3036291
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=3036291
Address
PHOENIX CONTACT Deutschland GmbH
Flachsmarktstr. 8
32825 Blomberg,Germany
Phone +49 5235 3 12000
Fax +49 5235 3 41200
http://www.phoenixcontact.de
© 2011 Phoenix Contact
Technical modifications reserved;
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 5 / 5
Feb 10, 2011
