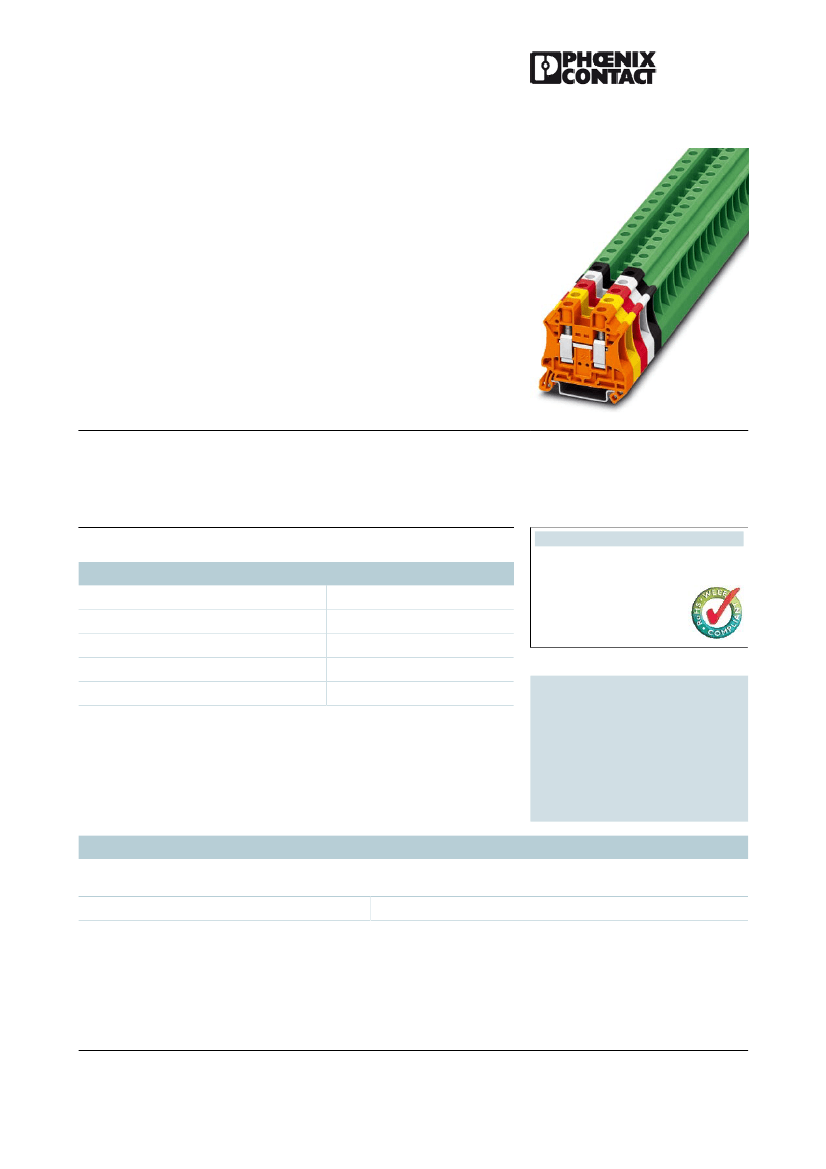

UT 10 WH
Order No.: 3046317
The illustration shows the color version
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=3046317
Feed-through modular terminal block, Type of connection: Screw
connection, Screw connection, Cross section: 0.5 mm² - 16 mm²,
AWG 20 - 6, Width: 10.2 mm, Color: white, Mounting type: NS
35/7.5, NS 35/15
Product notes
Commercial data
GTIN (EAN)
sales group
Pack
Customs tariff
Weight/Piece
4017918975654
A800
50 pcs.
85369010
0.01792 KG
http://
www.download.phoenixcontact.com
Please note that the data given
here has been taken from the
online catalog. For comprehensive
information and data, please refer
to the user documentation. The
General Terms and Conditions of
Use apply to Internet downloads.
WEEE/RoHS-compliant since:
04/01/2004
Technical data
General
Number of levels
1
PHOENIX CONTACT Inc., USA
http://www.phoenixcon.com
Page 1 / 6
Oct 27, 2010
UT 10 WH
Order No.: 3046317
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=3046317
Number of connections
Color
Insulating material
Inflammability class acc. to UL 94
Dimensions
Width
Length
Height NS 35/7.5
Height NS 35/15
Technical data
Maximum load current
Rated surge voltage
Pollution degree
Surge voltage category
Insulating material group
Connection in acc. with standard
Nominal current I
N
Nominal voltage U
N
Open side panel
Connection data
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section stranded min.
Conductor cross section stranded max.
Conductor cross section AWG/kcmil min.
Conductor cross section AWG/kcmil max
Conductor cross section stranded, with ferrule
without plastic sleeve min.
Conductor cross section stranded, with ferrule
without plastic sleeve max.
Conductor cross section stranded, with ferrule
with plastic sleeve min.
Conductor cross section stranded, with ferrule
with plastic sleeve max.
2 conductors with same cross section, solid min.
2
white
PA
V0
10.2 mm
47.7 mm
47.5 mm
55 mm
76 A (with 16 mm conductor cross section)
8 kV
3
III
I
IEC 60947-7-1
76 A
1000 V
ja
2
0.5 mm²
16 mm²
0.5 mm²
16 mm²
20
6
0.5 mm²
10 mm²
0.5 mm²
10 mm²
0.5 mm²
PHOENIX CONTACT Inc., USA
http://www.phoenixcon.com
Page 2 / 6
Oct 27, 2010
UT 10 WH
Order No.: 3046317
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=3046317
2 conductors with same cross section, solid max.
2 conductors with same cross section, stranded
min.
2 conductors with same cross section, stranded
max.
2 conductors with same cross section, stranded,
TWIN ferrules with plastic sleeve, min.
2 conductors with same cross section, stranded,
TWIN ferrules with plastic sleeve, max.
2 conductors with same cross section, stranded,
ferrules without plastic sleeve, min.
2 conductors with same cross section, stranded,
ferrules without plastic sleeve, max.
Type of connection
Stripping length
Internal cylindrical gage
Screw thread
Tightening torque, min
Tightening torque max
Certificates / Approvals
6 mm²
0.5 mm²
6 mm²
0.5 mm²
6 mm²
0.5 mm²
2.5 mm²
Screw connection
10 mm
A6
M4
1.5 Nm
1.8 Nm
Certification
Certification Ex:
CSA
Nominal voltage U
N
Nominal current I
N
AWG/kcmil
CUL
Nominal voltage U
N
Nominal current I
N
AWG/kcmil
CB, CSA, CUL, DNV, UL, VDE-PZI
IECEx, KEMA-EX
600 V
65 A
20-6
600 V
65 A
20-6
PHOENIX CONTACT Inc., USA
http://www.phoenixcon.com
Page 3 / 6
Oct 27, 2010
UT 10 WH
Order No.: 3046317
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=3046317
UL
Nominal voltage U
N
Nominal current I
N
AWG/kcmil
Accessories
Item
Assembly
3047167
3047028
0801762
1207640
1207653
1207666
0801733
0801681
1201756
1201895
1207679
1207682
1207695
1201730
1201714
1201798
ATP-UT
D-UT 2,5/10
NS 35/ 7,5 CU UNPERF
2000MM
NS 35/ 7,5 PERF 755MM
NS 35/ 7,5 PERF 955MM
NS 35/ 7,5 PERF 1155MM
NS 35/ 7,5 PERF 2000MM
NS 35/ 7,5 UNPERF 2000MM
NS 35/15 AL UNPERF 2000MM
NS 35/15 CU UNPERF 2000MM
NS 35/15 PERF 755MM
NS 35/15 PERF 955MM
NS 35/15 PERF 1155MM
NS 35/15 PERF 2000MM
NS 35/15 UNPERF 2000MM
NS 35/15-2,3 UNPERF 2000MM
Partition plate, Length: 50 mm, Width: 2 mm, Height: 48 mm,
Color: gray
End cover, Length: 47.7 mm, Width: 2.2 mm, Height: 48.4 mm,
Color: gray
DIN rail, material: Copper, unperforated, height 7.5 mm, width 35
mm, length: 2 m
NS 35 DIN rail, height 7.5 mm, length 755 mm
NS35 DIN rail, height 7.5 mm, length 955 mm
NS 35 DIN rail, height 7.5 mm, length 1155 mm
DIN rail, material: Steel, galvanized and passivated with a thick
layer, perforated, height 7.5 mm, width 35 mm, length: 2 m
DIN rail, material: Steel, unperforated, height 7.5 mm, width 35
mm, length: 2 m
DIN rail, deep-drawn, high profile, unperforated, 1.5 mm thick,
material: Aluminum, height 15 mm, width 35 mm, length 2 m
DIN rail, material: Copper, unperforated, 1.5 mm thick, height 15
mm, width 35 mm, length: 2 m
NS 35 DIN rail, perforated, height 15 mm, length 755 mm
NS 35 DIN rail, perforated, height 15 mm, length 955 mm
NS 35 DIN rail, perforated, height 15 mm, length 1155 mm
DIN rail, material: Steel, perforated, height 15 mm, width 35 mm,
length: 2 m
DIN rail, material: Steel, unperforated, height 15 mm, width 35
mm, length: 2 m
DIN rail, material: Steel, unperforated, 2.3 mm thick, height 15
mm, width 35 mm, length: 2 m
Designation
Description
600 V
65 A
20-6
Bridges
3005947
3047060
3047086
FBS 2-10
RB UT 10-(2,5/4)
RB UT 10-ST(2,5/4)
Plug-in bridge, Number of positions: 2, Color: red
Reducing bridge, Number of positions: 2, Color: red
Reducing bridge, Number of positions: 2, Color: red
PHOENIX CONTACT Inc., USA
http://www.phoenixcon.com
Page 4 / 6
Oct 27, 2010
UT 10 WH
Order No.: 3046317
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=3046317
Marking
0811228
1053014
5060883
X-PEN 0,35
ZB10,LGS:FORTL.ZAHLEN
ZB10/WH-100:UNBEDRUCKT
Marker pen without ink cartridge, for manual labeling of markers,
labeling extremely wipe-proof, line thickness 0.35 mm
Zack strip, 10-section, printed horizontally: with the numbers,
1-10, 11-20 etc. up to 991-1000, color: white
Zack strip, unprinted: 10-section, for individual labeling with M-
PEN, ZB-T or CMS system, large batch, sufficient for labeling
1000 terminal blocks, for a terminal width of 10.2 mm, color: White
Zack strip, 10-section, divisible, special printing, marking
according to customer requirements
1050525
ZB10:SO/CMS
Plug/Adapter
3047112
AGK 4-UT 10
Pick-off terminal block, Type of connection: Special and hybrid
connection, Width: 10.2 mm, Height: 34.7 mm, Color: gray
Tools
1205066
SZS 1,0X4,0 VDE
Screwdriver, bladed, VDE insulated, size: 1.0 x 4.0 x 100 mm, 2-
component grip, with non-slip grip
PHOENIX CONTACT Inc., USA
http://www.phoenixcon.com
Page 5 / 6
Oct 27, 2010
