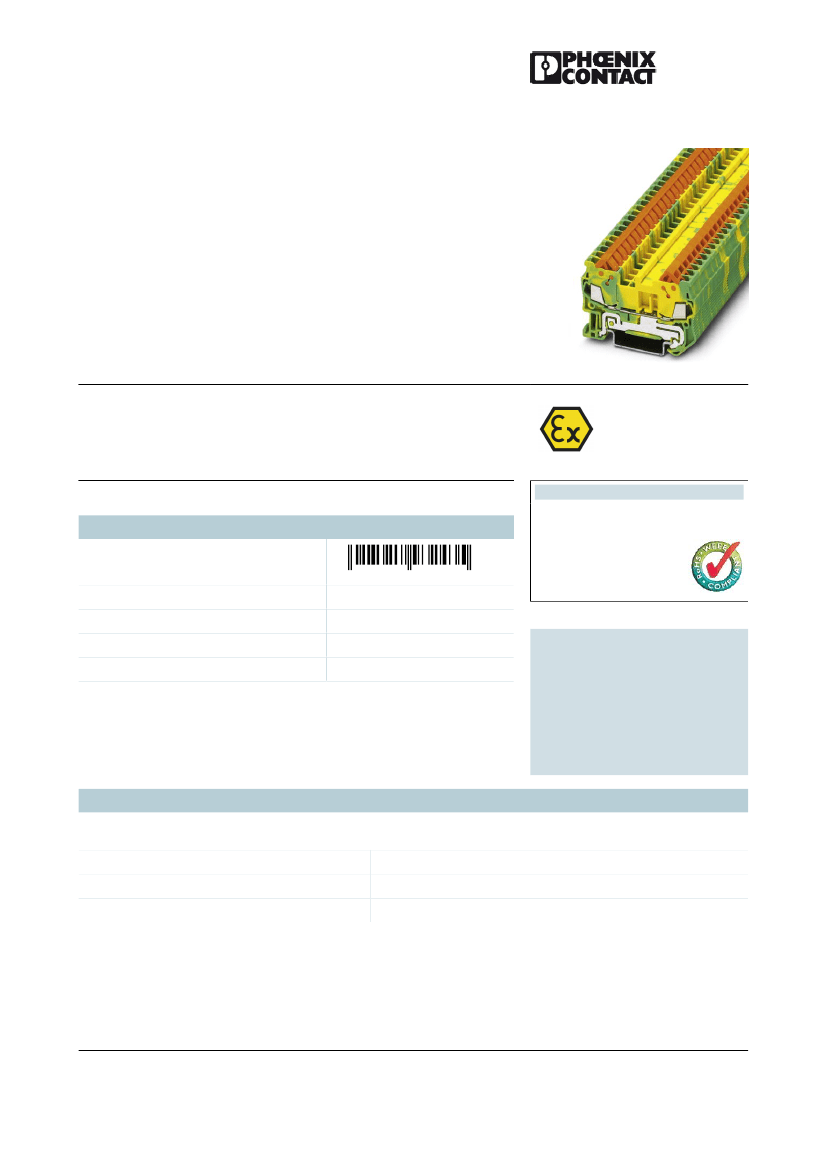

Extract from the online
catalog
QTC 1,5-PE
Order No.: 3205035
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=3205035
Ground modular terminal block, Type of connection: Quick connection,
Quick connection, Cross section: 0.25 mm² - 1.5 mm², AWG 24 - 16,
Width: 5.2 mm, Color: green-yellow, Mounting type: NS 35/7.5, NS
35/15
Product notes
Commercial data
GTIN (EAN)
4
017918
932435
WEEE/RoHS-compliant since:
01/01/2003
sales group
Pack
Customs tariff
Catalog page information
A703
50 pcs.
85369010
Page 220 (CL-2009)
http://
www.download.phoenixcontact.com
Please note that the data given
here has been taken from the
online catalog. For comprehensive
information and data, please refer
to the user documentation. The
General Terms and Conditions of
Use apply to Internet downloads.
Technical data
General
Number of levels
Number of connections
Color
1
2
green-yellow
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 1 / 5
Feb 1, 2011
QTC 1,5-PE
Order No.: 3205035
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=3205035
Insulating material
Inflammability class acc. to UL 94
Dimensions
Width
Length
Height NS 35/7.5
Height NS 35/15
Technical data
Rated surge voltage
Pollution degree
Surge voltage category
Insulating material group
Connection in acc. with standard
Open side panel
Connection data
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section stranded min.
Conductor cross section stranded max.
Conductor cross section AWG/kcmil min.
Conductor cross section AWG/kcmil max
Type of connection
Material wire insulation
Structure of individual litz in acc. with VDE 0295 /
smallest wire diameter
Certificates / Approvals
PA
V0
5.2 mm
58.8 mm
39.3 mm
46.8 mm
8 kV
3
III
I
IEC 60947-7-2
ja
0.25 mm²
1.5 mm²
0.25 mm²
1.5 mm²
24
16
Quick connection
PVC / PE
VDE 0295 Cl.1-5
Certification
Certification Ex:
ABS, BV, CSA, CUL, DNV, GL, KR, LR, NK, UL
IECEx, KEMA-EX
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 2 / 5
Feb 1, 2011
QTC 1,5-PE
Order No.: 3205035
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=3205035
Accessories
Item
Assembly
3022218
CLIPFIX 35
Snap-on end bracket, for 35 mm NS 35/7.5 or NS 35/15 DIN
rail, can be fitted with Zack strip ZB 8 and ZB 8/27, terminal strip
marker KLM 2 and KLM, width: 9.5 mm, color: gray
Snap-on end bracket, for NS 35/7.5 or NS 35/15 DIN rail, can be
fitted with Zack strip ZB 5 and ZBF 5, terminal strip marker KLM
2 and KLM, parking facility for FBS...5, FBS...6, KSS 5, KSS 6,
width: 5,15 mm, color: gray
End cover, Length: 58.8 mm, Width: 2.2 mm, Height: 39.3 mm,
Color: gray
DIN rail, material: Copper, unperforated, height 7.5 mm, width 35
mm, length: 2 m
DIN rail, material: Steel, galvanized and passivated with a thick
layer, perforated, height 7.5 mm, width 35 mm, length: 2 m
DIN rail, deep-drawn, high profile, unperforated, 1.5 mm thick,
material: Aluminum, height 15 mm, width 35 mm, length 2 m
DIN rail, material: Copper, unperforated, 1.5 mm thick, height 15
mm, width 35 mm, length: 2 m
DIN rail, material: Steel, perforated, height 15 mm, width 35 mm,
length: 2 m
DIN rail, material: Steel, unperforated, height 15 mm, width 35
mm, length: 2 m
DIN rail, material: Steel, unperforated, 2.3 mm thick, height 15
mm, width 35 mm, length: 2 m
Designation
Description
3022276
CLIPFIX 35-5
3205161
0801762
0801733
1201756
1201895
1201730
1201714
1201798
D-QTC 1,5
NS 35/ 7,5 CU UNPERF
2000MM
NS 35/ 7,5 PERF 2000MM
NS 35/15 AL UNPERF 2000MM
NS 35/15 CU UNPERF 2000MM
NS 35/15 PERF 2000MM
NS 35/15 UNPERF 2000MM
NS 35/15-2,3 UNPERF 2000MM
Bridges
3030161
3030174
3030187
3030190
3030213
3030226
3038930
Plug/Adapter
3030925
3036709
3030983
PAI-4
PS-4/E
PS-5
Test adapter, Color: gray
Test adapter, Color: red
Test adapter, Color: red
FBS 2-5
FBS 3-5
FBS 4-5
FBS 5-5
FBS 10-5
FBS 20-5
FBS 50-5
Plug-in bridge, Number of positions: 2, Color: red
Plug-in bridge, Number of positions: 3, Color: red
Plug-in bridge, Number of positions: 4, Color: red
Plug-in bridge, Number of positions: 5, Color: red
Plug-in bridge, Number of positions: 10, Color: red
Plug-in bridge, Number of positions: 20, Color: red
Plug-in bridge, Number of positions: 50, Color: red
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 3 / 5
Feb 1, 2011
