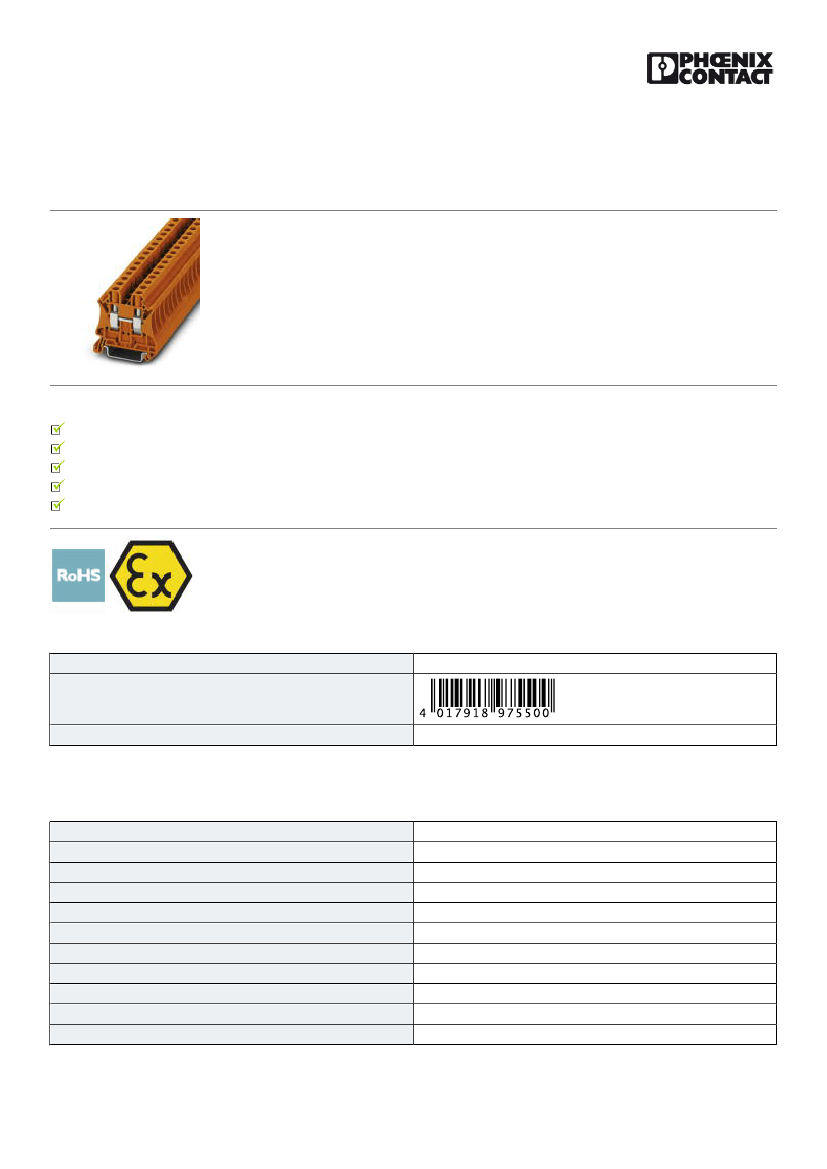

Feed-through terminal block - UT 6 OG - 3045169
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Feed-through terminal block, nom. voltage: 1000 V, nominal current: 41 A, connection method: Screw
connection, number of connections: 2, cross section:0.2 mm² - 10 mm², AWG: 24 - 8, width: 8.2 mm, color:
orange, mounting type: NS 35/7,5, NS 35/15
Your advantages
The large wiring space enables the connection of solid and stranded conductors without ferrules, even above the nominal cross section
As well as saving space, the compact design enables user-friendly wiring in a small amount of space
Optimum screwdriver guidance through closed screw shafts
Tested for railway applications
The cable entry funnel enables the use of conductors with ferrules and plastic collars within the nominal cross section
Key Commercial Data
Packing unit
GTIN
GTIN
4017918975500
50 pc
Technical data
General
Number of levels
Number of connections
Potentials
Nominal cross section
Color
Insulating material
Flammability rating according to UL 94
Area of application
1
2
1
6 mm²
orange
PA
V0
Railway industry
Machine building
Plant engineering
Process industry
11/12/2018 Page 1 / 5
https://www.phoenixcontact.com/pi/products/3045169
Feed-through terminal block - UT 6 OG - 3045169
Technical data
General
Rated surge voltage
Degree of pollution
Overvoltage category
Insulating material group
Maximum power dissipation for nominal condition
Maximum load current
Nominal current I
N
Nominal voltage U
N
Open side panel
8 kV
3
III
I
1.31 W
57 A (with 10 mm² conductor cross section)
41 A
1000 V
Yes
Dimensions
Width
End cover width
Length
Height NS 35/7,5
Height NS 35/15
8.2 mm
2.2 mm
47.7 mm
47.5 mm
55 mm
Connection data
Connection method
Connection in acc. with standard
Note
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section AWG min.
Conductor cross section AWG max.
Conductor cross section flexible min.
Conductor cross section flexible max.
Min. AWG conductor cross section, flexible
Max. AWG conductor cross section, flexible
Conductor cross section flexible, with ferrule without plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve max.
2 conductors with same cross section, solid min.
2 conductors with same cross section, solid max.
2 conductors with same cross section, stranded min.
2 conductors with same cross section, stranded max.
2 conductors with same cross section, stranded, TWIN ferrules with
plastic sleeve, min.
2 conductors with same cross section, stranded, TWIN ferrules with
plastic sleeve, max.
Screw connection
IEC 60947-7-1
Note: Product releases, connection cross sections and notes on
connecting aluminum cables can be found in the download area.
0.2 mm²
10 mm²
24
8
0.2 mm²
10 mm²
24
8
0.25 mm²
0.25 mm²
6 mm²
0.2 mm²
2.5 mm²
0.2 mm²
2.5 mm²
0.5 mm²
4 mm²
Conductor cross section flexible, with ferrule without plastic sleeve max. 6 mm²
11/12/2018 Page 2 / 5
https://www.phoenixcontact.com/pi/products/3045169
Feed-through terminal block - UT 6 OG - 3045169
Technical data
Connection data
2 conductors with same cross section, stranded, ferrules without plastic
sleeve, min.
2 conductors with same cross section, stranded, ferrules without plastic
sleeve, max.
Connection in acc. with standard
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section AWG min.
Conductor cross section AWG max.
Conductor cross section flexible min.
Conductor cross section flexible max.
Stripping length
Internal cylindrical gage
Screw thread
Tightening torque, min
Tightening torque max
0.25 mm²
1.5 mm²
IEC/EN 60079-7
0.2 mm²
10 mm²
24
8
0.2 mm²
6 mm²
10 mm
A5
M4
1.5 Nm
1.8 Nm
Standards and Regulations
Connection in acc. with standard
Flammability rating according to UL 94
CSA
IEC 60947-7-1
V0
Environmental Product Compliance
REACh SVHC
China RoHS
Lead 7439-92-1
Environmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”,
Category “Manufacturer's declaration”
Drawings
Circuit diagram
Approvals
Approvals
Approvals
DNV GL / CSA / PRS / UL Recognized / cUL Recognized / IECEE CB Scheme / VDE Gutachten mit Fertigungsüberwachung / EAC / cULus
Recognized
11/12/2018 Page 3 / 5
https://www.phoenixcontact.com/pi/products/3045169
Feed-through terminal block - UT 6 OG - 3045169
Approvals
Ex Approvals
IECEx / ATEX / UL Recognized / cUL Recognized / EAC Ex / cULus Recognized
Approval details
DNV GL
http://exchange.dnv.com/tari/
TAE00001S9
CSA
Nominal voltage UN
Nominal current IN
mm²/AWG/kcmil
B
600 V
50 A
24-8
http://www.csagroup.org/services-industries/product-listing/
C
600 V
50 A
24-8
13631
PRS
B
600 V
50 A
24-8
http://www.prs.pl/
TE/2156/880590/17
UL Recognized
Nominal voltage UN
Nominal current IN
mm²/AWG/kcmil
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
C
600 V
50 A
24-8
FILE E 60425
cUL Recognized
Nominal voltage UN
Nominal current IN
mm²/AWG/kcmil
B
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
C
600 V
50 A
24-8
FILE E 60425
600 V
50 A
24-8
IECEE CB Scheme
Nominal voltage UN
mm²/AWG/kcmil
http://www.iecee.org/
DE1-60928
800 V
0.2-6
11/12/2018 Page 4 / 5
https://www.phoenixcontact.com/pi/products/3045169
Feed-through terminal block - UT 6 OG - 3045169
Approvals
VDE Gutachten mit
Fertigungsüberwachung
Nominal voltage UN
mm²/AWG/kcmil
http://www2.vde.com/de/Institut/Online-Service/
VDE-gepruefteProdukte/Seiten/Online-Suche.aspx
800 V
0.2-6
40013658
EAC
EAC-Zulassung
cULus Recognized
Phoenix Contact 2018 © - all rights reserved
http://www.phoenixcontact.com
PHOENIX CONTACT GmbH & Co. KG
Flachsmarktstr. 8
32825 Blomberg
Germany
Tel. +49 5235 300
Fax +49 5235 3 41200
http://www.phoenixcontact.com
11/12/2018 Page 5 / 5
