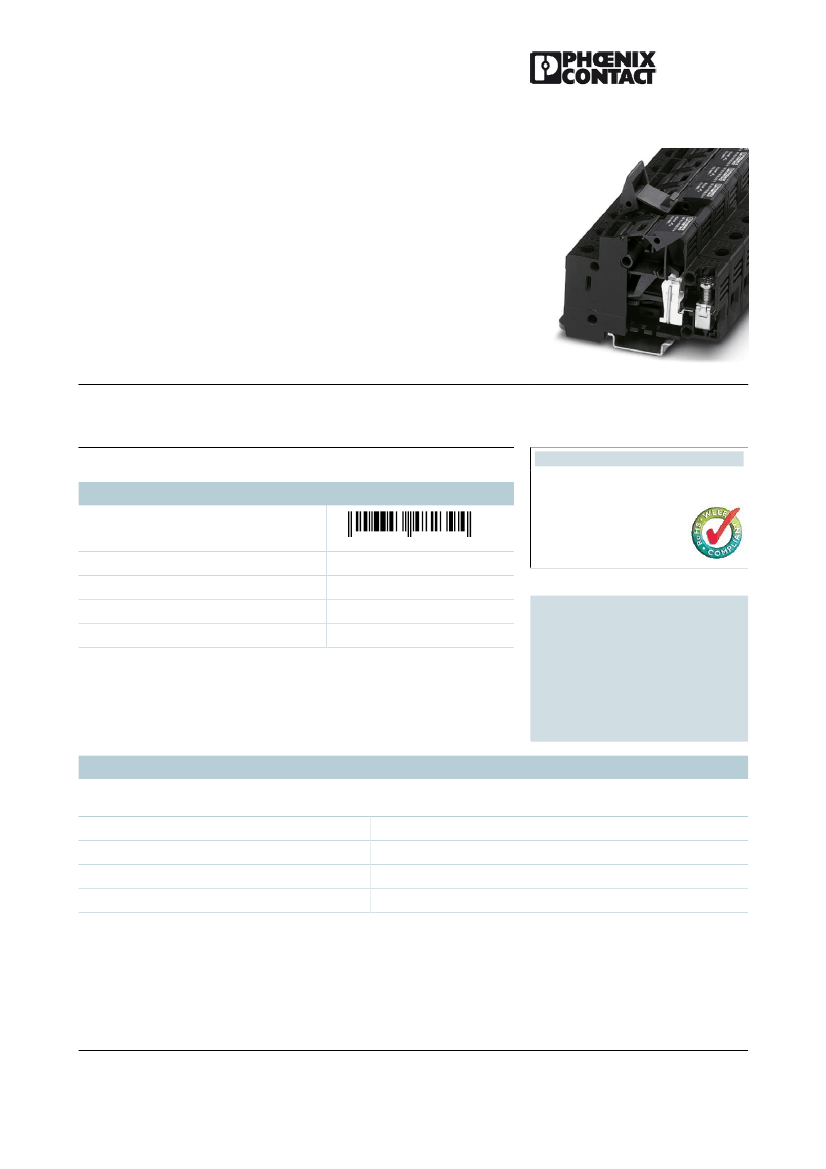

UK 10,3-HESI 1000V
Order No.: 3211236
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=3211236
Fuse terminal block, for cartridge fuse insert 10.3 x 38 mm, cross-
section: 1.5 - 25 mm², AWG: 16 - 4, width: 18 mm, color: Black
Product notes
Commercial data
GTIN (EAN)
4
046356
482394
WEEE/RoHS-compliant since:
05/13/2009
sales group
Pack
Customs tariff
Catalog page information
A040
10 pcs.
85369010
Page 32 (NTK-2010)
http://
www.download.phoenixcontact.com
Please note that the data given
here has been taken from the
online catalog. For comprehensive
information and data, please refer
to the user documentation. The
General Terms and Conditions of
Use apply to Internet downloads.
Technical data
General
Number of connections
Color
Insulating material
Inflammability class acc. to UL 94
2
black
PA
V0
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 1 / 5
Feb 25, 2011
UK 10,3-HESI 1000V
Order No.: 3211236
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=3211236
Dimensions
Width
Length
Height NS 35/7.5
Height NS 35/15
Technical data
Fuse
Fuse type
Rated surge voltage
Pollution degree
Surge voltage category
Insulating material group
Nominal current I
N
Nominal voltage U
N
Connection data
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section stranded min.
Conductor cross section stranded max.
Conductor cross section AWG/kcmil min.
Conductor cross section AWG/kcmil max
Conductor cross section stranded, with ferrule
without plastic sleeve min.
Conductor cross section stranded, with ferrule
without plastic sleeve max.
Conductor cross section stranded, with ferrule
with plastic sleeve min.
Conductor cross section stranded, with ferrule
with plastic sleeve max.
2 conductors with same cross section, solid min.
2 conductors with same cross section, solid max.
2 conductors with same cross section, stranded
min.
2 conductors with same cross section, stranded
max.
2 conductors with same cross section, stranded,
ferrules without plastic sleeve, min.
1.5 mm²
25 mm²
1.5 mm²
16 mm²
16
4
1.5 mm²
16 mm²
1.5 mm²
16 mm²
1.5 mm²
4 mm²
1.5 mm²
4 mm²
1.5 mm²
Midget / 10.3 x 38
Glass
6 kV
3
III
IIIb
32 A (the current and voltage are determined by the fuse)
1000 V (the current and voltage are determined by the fuse)
18 mm
81 mm
65.5 mm
73 mm
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 2 / 5
Feb 25, 2011
UK 10,3-HESI 1000V
Order No.: 3211236
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=3211236
2 conductors with same cross section, stranded,
ferrules without plastic sleeve, max.
2 conductors with same cross section, stranded,
TWIN ferrules with plastic sleeve, min.
2 conductors with same cross section, stranded,
TWIN ferrules with plastic sleeve, max.
Cross-section with insertion bridge, solid max.
Cross-section with insertion bridge, stranded max.
Type of connection
Stripping length
Internal cylindrical gage
Screw thread
Tightening torque, min
Tightening torque max
Accessories
Item
Assembly
3022218
CLIPFIX 35
Designation
4 mm²
1.5 mm²
10 mm²
10 mm²
10 mm²
Screw connection
12 mm
A7
M5
2.5 Nm
3 Nm
Description
Snap-on end bracket, for 35 mm NS 35/7.5 or NS 35/15 DIN
rail, can be fitted with Zack strip ZB 8 and ZB 8/27, terminal strip
marker KLM 2 and KLM, width: 9.5 mm, color: gray
DIN rail, material: Copper, unperforated, height 7.5 mm, width 35
mm, length: 2 m
DIN rail, material: Steel, galvanized and passivated with a thick
layer, perforated, height 7.5 mm, width 35 mm, length: 2 m
DIN rail, material: Steel, unperforated, height 7.5 mm, width 35
mm, length: 2 m
DIN rail, deep-drawn, high profile, unperforated, 1.5 mm thick,
material: Aluminum, height 15 mm, width 35 mm, length 2 m
DIN rail, material: Copper, unperforated, 1.5 mm thick, height 15
mm, width 35 mm, length: 2 m
DIN rail, material: Steel, perforated, height 15 mm, width 35 mm,
length: 2 m
DIN rail, material: Steel, unperforated, height 15 mm, width 35
mm, length: 2 m
DIN rail, material: Steel, unperforated, 2.3 mm thick, height 15
mm, width 35 mm, length: 2 m
0801762
0801733
0801681
1201756
1201895
1201730
1201714
1201798
NS 35/ 7,5 CU UNPERF
2000MM
NS 35/ 7,5 PERF 2000MM
NS 35/ 7,5 UNPERF 2000MM
NS 35/15 AL UNPERF 2000MM
NS 35/15 CU UNPERF 2000MM
NS 35/15 PERF 2000MM
NS 35/15 UNPERF 2000MM
NS 35/15-2,3 UNPERF 2000MM
Bridges
3009299
3009367
EB 56-18
EB 56-18/L1-L2-L3
Insertion bridge, Number of positions: 56, Color: gray
Insertion bridge, Number of positions: 56, Color: gray
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 3 / 5
Feb 25, 2011
UK 10,3-HESI 1000V
Order No.: 3211236
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=3211236
Fuse
3061334
3061347
3061350
3061363
3061295
3061305
3061318
3061321
General
3048409
Marking
0809984
0809997
ZBF10:SO/CMS
ZBF10:UNBEDRUCKT
Zack marker strip, flat, in 10 mm pitch, labeled according to
customer specifications, 10-section, divisible, color: White
Zack marker strip, flat, in 10 mm pitch, unprinted, 10-section, for
individual labeling with M-PEN 0,8, X-PEN, or CMS-P1-PLOTTER
VS-UK 10,3-HESI N 3POL
Fuse modular terminal block, Color: black
FUSE 10,3X38 10A PV
FUSE 10,3X38 12A PV
FUSE 10,3X38 16A PV
FUSE 10,3X38 20A PV
FUSE 10,3X38 2A PV
FUSE 10,3X38 4A PV
FUSE 10,3X38 6A PV
FUSE 10,3X38 8A PV
Fuse, 10.3x38 mm, up to 1000 V DC, gPV characteristics
Fuse, 10.3x38 mm, up to 1000 V DC, gPV characteristics
Fuse, 10.3x38 mm, up to 1000 V DC, gPV characteristics
Fuse, 10.3x38 mm, up to 1000 V DC, gPV characteristics
Fuse, 10.3x38 mm, up to 1000 V DC, gPV characteristics
Fuse, 10.3x38 mm, up to 1000 V DC, gPV characteristics
Fuse, 10.3x38 mm, up to 1000 V DC, gPV characteristics
Fuse, 10.3x38 mm, up to 1000 V DC, gPV characteristics
Tools
1205066
SZS 1,0X4,0 VDE
Screwdriver, bladed, VDE insulated, size: 1.0 x 4.0 x 100 mm, 2-
component grip, with non-slip grip
Diagrams/Drawings
Circuit diagram
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 4 / 5
Feb 25, 2011
UK 10,3-HESI 1000V
Order No.: 3211236
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=3211236
Address
PHOENIX CONTACT Deutschland GmbH
Flachsmarktstr. 8
32825 Blomberg,Germany
Phone +49 5235 3 12000
Fax +49 5235 3 41200
http://www.phoenixcontact.de
© 2011 Phoenix Contact
Technical modifications reserved;
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 5 / 5
Feb 25, 2011
