553609-1

Description
CONNECTOR, 24 CONTACT(S), FEMALE, STRAIGHT TELECOM AND DATACOM CONNECTOR, SOLDER, RECEPTACLE
CategoryThe connector    The connector
File Size122KB,1 Pages
ManufacturerTE Connectivity
Websitehttp://www.te.com
Download Datasheet Parametric View All

553609-1 Overview

CONNECTOR, 24 CONTACT(S), FEMALE, STRAIGHT TELECOM AND DATACOM CONNECTOR, SOLDER, RECEPTACLE

553609-1 Parametric

Parameter NameAttribute value
MakerTE Connectivity
Reach Compliance Codeunknown
Body/casing typeRECEPTACLE
Connector typeTELECOM AND DATACOM CONNECTOR
Contact to complete cooperationGOLD
Contact point genderFEMALE
DIN complianceNO
empty shellNO
Filter functionNO
IEC complianceNO
MIL complianceNO
Manufacturer's serial number553609
Mixed contactsNO
Installation methodSTRAIGHT
Installation typeBOARD AND PANEL
OptionsGENERAL PURPOSE
Shell materialGLASS FILLED POLYETHYLENE
Termination typeSOLDER
Total number of contacts24
UL Flammability Code94V-0
Base Number Matches1
My Account
Tyco Electronics
(C hange)
Se a rch by Ke yword or Pa rt #
Products
Documentation
Resources
My Account
Customer Support
Home
>
Products
>
By Type
>
C HAMP C onnectors
>
Product Feature Selector
> Product Details

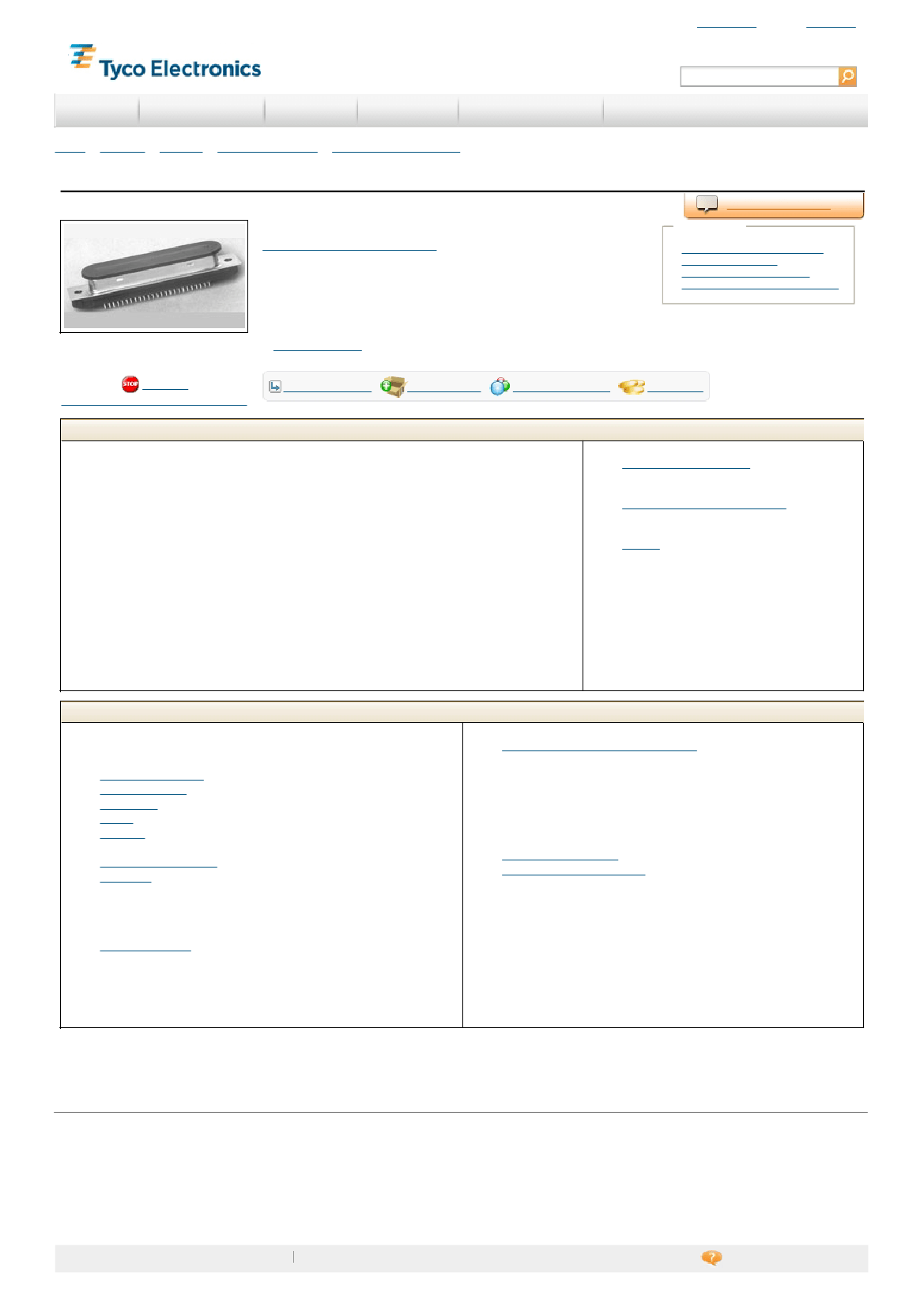

553609-1 Product Details
Live Product Chat
2.16 [.085] Printed Circuit Board Connectors
Not re vie we d for R oHS C om plia nce
Quick Links
C heck Pricing & Availability
Search for Tooling
Product Feature Selector
C ontact Us About This Product
553609-1
T E I nternal N umber: 5 5 3 6 0 9 - 1
Product Highlights:
l
C onnector Type = Receptacle
l
2.16 mm C enterline
l
C HAMP Product Line
l
24 Positions
l
PC B Mount Style = Vertical
View all Features
Obsolete
C ontact Product Information C enter
A dd to M y P art L is t
Reques t Sample
Find Similar P roduc ts
Buy P roduc t
Documentation & Additional Information
Product Drawings:
l
None Available
Catalog Pages/Data Sheets:
l
None Available
Product Specifications:
l
None Available
Application Specifications:
l
None Available
Instruction Sheets:
l
None Available
CAD Files:
l
None Available
Additional Information:
l
Product Line Information
Additional Product Images:
l
Panel Mount C utout Dimensions
Related Products:
l
Tooling
Product Features
(Please use the Product Drawing for all design activity)
Product Type Features:
l
C onnector Type = Receptacle
l
Product Line = C HAMP
l
Number of Positions
= 24
l
PC B Mount Style
= Vertical
l
Orientation
= Standard
l
Profile
= Standard
l
Shielded
= No
l
Mating C onnector Lock = Without
l
PC B Retention Feature
= No
l
Grounded
= No
l
Panel Thickness (mm [in]) = 1.57 [0.062], 2.36 [0.093]
l
C olor = Natural
Mechanical Attachment:
l
Panel Attachment
= With
l
Panel Attachment Style = Rear Mount
Body Related Features:
l
C enterline (mm [in]) = 2.16 [0.085]
Contact Related Features:
l
C ontact Plating, Mating Area, Material
= Gold
l
C ontact Base Material = C opper Alloy
Housing Related Features:
l
Housing Material = Thermoplastic - GF
l
Housing Flammability Rating = UL 94V-0
Industry Standards:
l
RoHS/ELV C ompliance
= Not reviewed for ELV/RoHS compliance
l
Lead Free Solder Processes
= Not reviewed for lead free solder
process
Operation/Application:
l
Application = Interface Bus Application per IEEE-488
Other:
l
Brand = AMP
