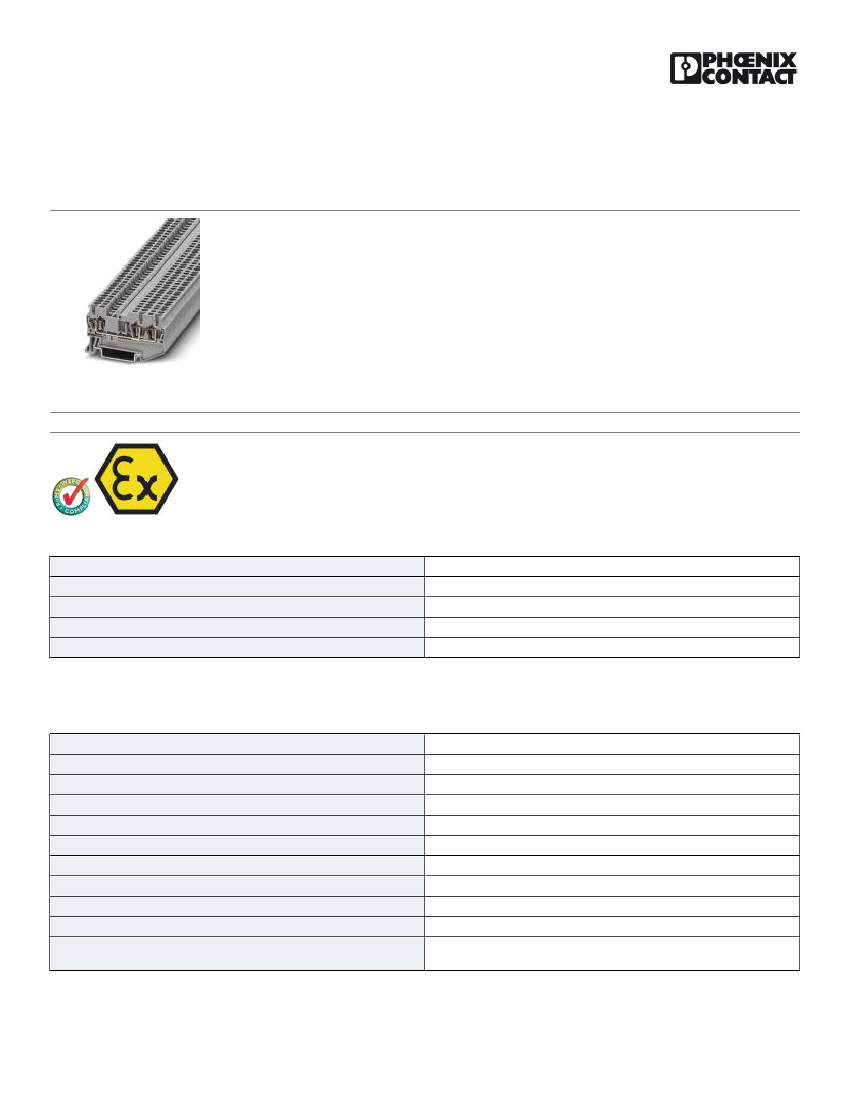

Feed-through terminal block - ST 1,5-TWIN GN - 3037287
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://download.phoenixcontact.com)
Feed-through terminal block, Connection method: Spring-cage connection, Cross section: 0.08 mm² - 1.5 mm²,
AWG: 28 - 16, Width: 4.2 mm, Color: green, Mounting type: NS 35/7,5, NS 35/15
The illustration shows version ST
1,5-TWIN in gray
Key commercial data
Packing unit
Minimum order quantity
Weight per Piece (excluding packing)
Custom tariff number
Country of origin
11
50 1
6.57 GRM
85369010
Germany
Technical data
General
Number of levels
Number of connections
Color
Insulating material
Inflammability class according to UL 94
Maximum load current
Rated surge voltage
Surge voltage category
Insulating material group
Connection in acc. with standard
Nominal current I
N
1
2
green
PA
V0
17.5 A (with 1.5 mm² conductor cross section)
6 kV
III
I
IEC 60947-7-1
17.5 A (the maximum load current must not be exceeded by the total
current of all connected conductors)
19.11.2013 Page 1 / 17
https://www.phoenixcontact.com/us/products/3037287
Feed-through terminal block - ST 1,5-TWIN GN - 3037287
Technical data
General
Nominal voltage U
N
Open side panel
500 V
ja
Dimensions
Width
Length
Height NS 35/7,5
4.2 mm
60.5 mm
36.5 mm
Connection data
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section AWG/kcmil min.
Conductor cross section AWG/kcmil max
Conductor cross section stranded min.
Conductor cross section stranded max.
Min. AWG conductor cross section, stranded
Max. AWG conductor cross section, stranded
Conductor cross section stranded, with ferrule without plastic sleeve min.
Conductor cross section stranded, with ferrule without plastic sleeve max.
Conductor cross section stranded, with ferrule with plastic sleeve min.
Conductor cross section stranded, with ferrule with plastic sleeve max.
0.08 mm²
1.5 mm²
28
16
0.08 mm²
1.5 mm²
28
16
0.14 mm²
1.5 mm²
0.14 mm²
1.5 mm²
2 conductors with same cross section, stranded, TWIN ferrules with plastic
0.5 mm²
sleeve, max.
Connection method
Stripping length
Internal cylindrical gage
Spring-cage connection
10 mm
A1
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
27141121
27141121
27141120
27141120
27141120
27141120
27141120
19.11.2013 Page 2 / 17
https://www.phoenixcontact.com/us/products/3037287
Feed-through terminal block - ST 1,5-TWIN GN - 3037287
Classifications
ETIM
ETIM 2.0
ETIM 3.0
ETIM 4.0
ETIM 5.0
EC000897
EC000897
EC000897
EC000897
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
30211811
39121410
39121410
39121410
39121410
Approvals
Approvals
Approvals
CSA / UL Recognized / VDE Gutachten mit Fertigungsüberwachung / cUL Recognized / GOST / LR / GL / BV / DNV / NK / IECEE CB Scheme / GOST /
cULus Recognized
Ex Approvals
IECEx / ATEX
Approvals submitted
Approval details
CSA
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
B
26-14
15 A
300 V
C
26-14
15 A
300 V
19.11.2013 Page 3 / 17
https://www.phoenixcontact.com/us/products/3037287
Feed-through terminal block - ST 1,5-TWIN GN - 3037287
Approvals
UL Recognized
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
B
26-14
15 A
300 V
C
26-14
15 A
300 V
VDE Gutachten mit Fertigungsüberwachung
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
1.5
17.5 A
500 V
cUL Recognized
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
B
26-14
15 A
300 V
C
26-14
15 A
300 V
GOST
LR
GL
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
1.5
17.5 A
500 V
BV
19.11.2013 Page 4 / 17
https://www.phoenixcontact.com/us/products/3037287
Feed-through terminal block - ST 1,5-TWIN GN - 3037287

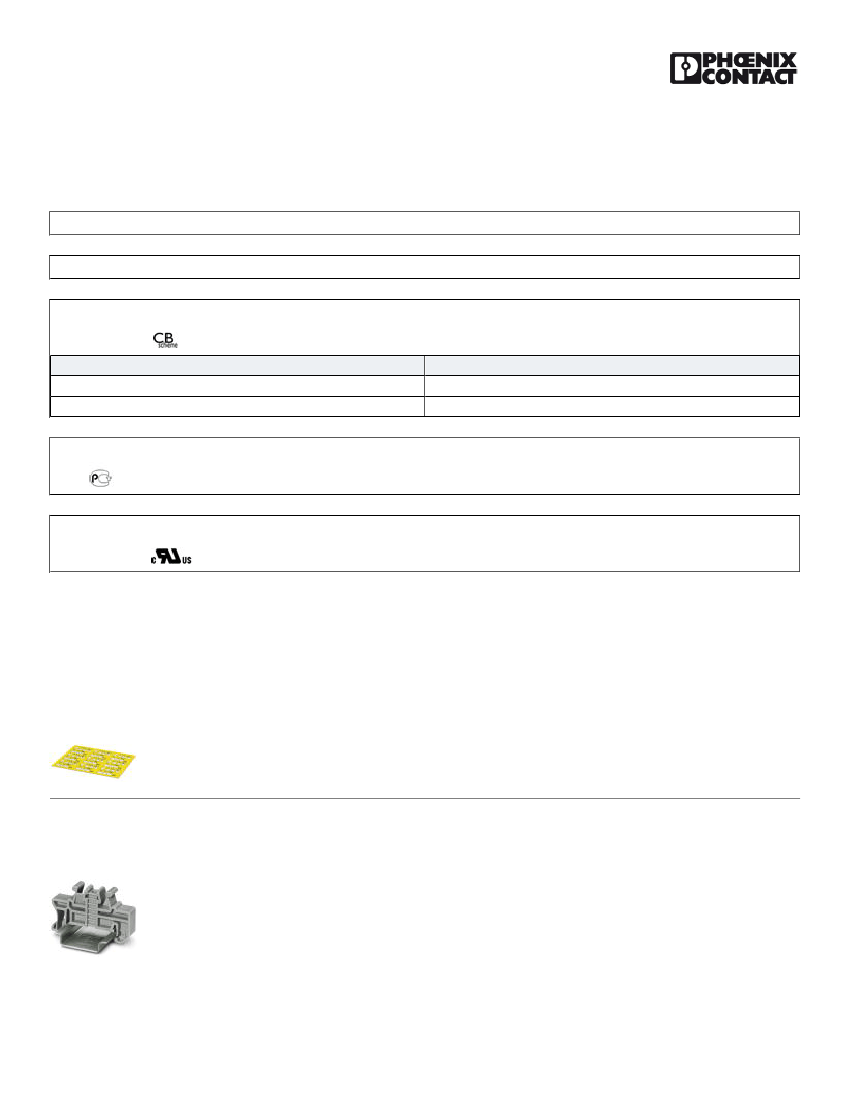

Approvals
DNV
NK
IECEE CB Scheme
mm²/AWG/kcmil
Nominal voltage UN
1.5
500 V
GOST
cULus Recognized
Accessories
Accessories
Documentation
Mounting material - ST-IL - 3039900
Operating decal for the ST terminal block
End block
End clamp - CLIPFIX 35 - 3022218
Quick mounting end clamp for NS 35/7,5 DIN rail or NS 35/15 DIN rail, with marking option, width: 9.5 mm, color: gray
