Fast connection terminal block - QTC 1,5 L BU - 3205020
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://download.phoenixcontact.com)

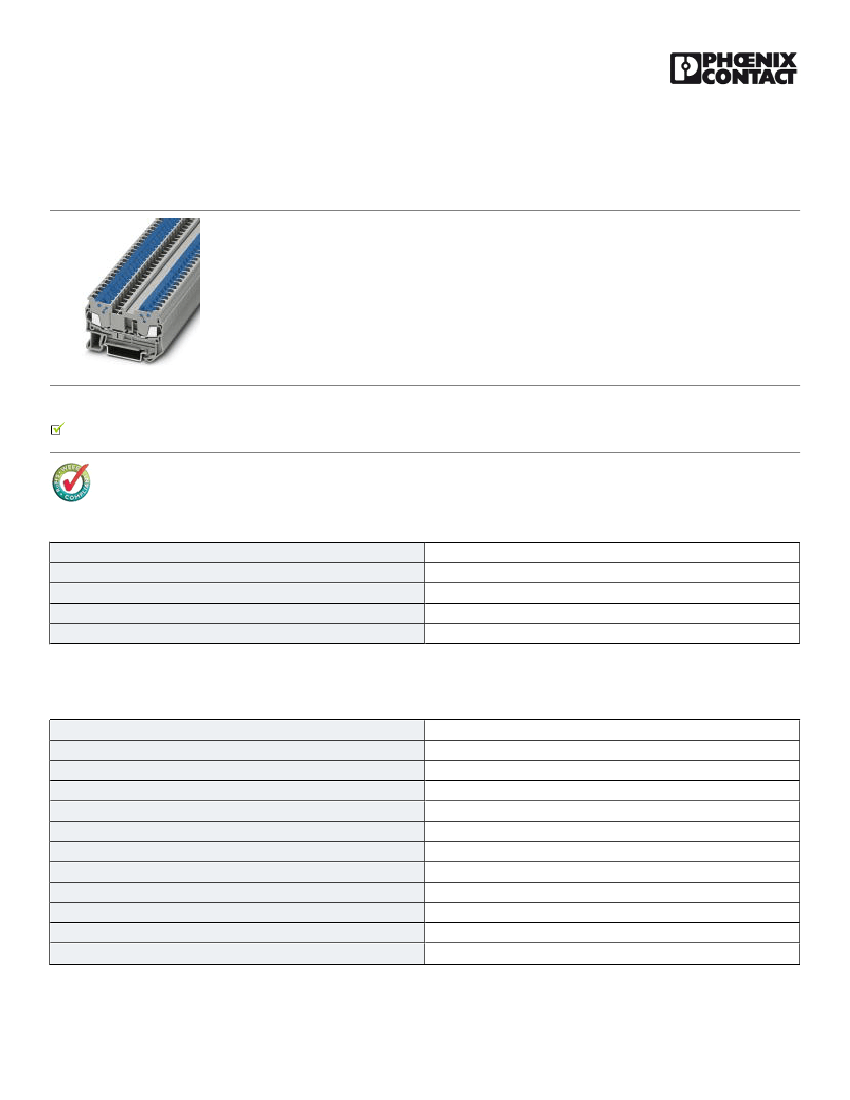

Fast connection terminal block, Connection method: Quick connection, Cross section: 0.25 mm² - 1.5 mm²,
AWG: 24 - 16, Width: 5.2 mm, Color: gray, Mounting type: NS 35/7,5, NS 35/15
Product Features
Compact design
Key commercial data
Packing unit
Minimum order quantity
Weight per Piece (excluding packing)
Custom tariff number
Country of origin
11
50 1
7.4 GRM
85369010
China
Technical data
General
Number of levels
Number of connections
Color
Insulating material
Inflammability class according to UL 94
Maximum load current
Rated surge voltage
Pollution degree
Surge voltage category
Insulating material group
Connection in acc. with standard
Nominal current I
N
1
2
gray
PA
V0
17.5 A (with 1.5 mm² conductor cross section)
8 kV
3
III
I
IEC 60947-7-1
17.5 A
31.10.2013 Page 1 / 16
https://www.phoenixcontact.com/us/products/3205020
Fast connection terminal block - QTC 1,5 L BU - 3205020
Technical data
General
Nominal voltage U
N
Open side panel
800 V
ja
Dimensions
Width
Length
Height NS 35/7,5
Height NS 35/15
5.2 mm
58.8 mm
39.3 mm
46.8 mm
Connection data
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section AWG/kcmil min.
Conductor cross section AWG/kcmil max
Conductor cross section stranded min.
Conductor cross section stranded max.
Min. AWG conductor cross section, stranded
Max. AWG conductor cross section, stranded
Connection method
Material wire insulation
Structure of individual litz in acc. with VDE 0295 / smallest wire diameter
0.25 mm²
1.5 mm²
24
16
0.25 mm²
1.5 mm²
24
16
Quick connection
PVC / PE
VDE 0295 Cl.1-5
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
27141130
27141130
27141130
27141130
27141120
27141120
27141120
ETIM
ETIM 3.0
ETIM 4.0
ETIM 5.0
EC000897
EC000897
EC000897
31.10.2013 Page 2 / 16
https://www.phoenixcontact.com/us/products/3205020
Fast connection terminal block - QTC 1,5 L BU - 3205020
Classifications
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
30211811
39121410
39121410
39121410
39121410
Approvals
Approvals
Approvals
GOST
Ex Approvals
Approvals submitted
Approval details
GOST
Accessories
Accessories

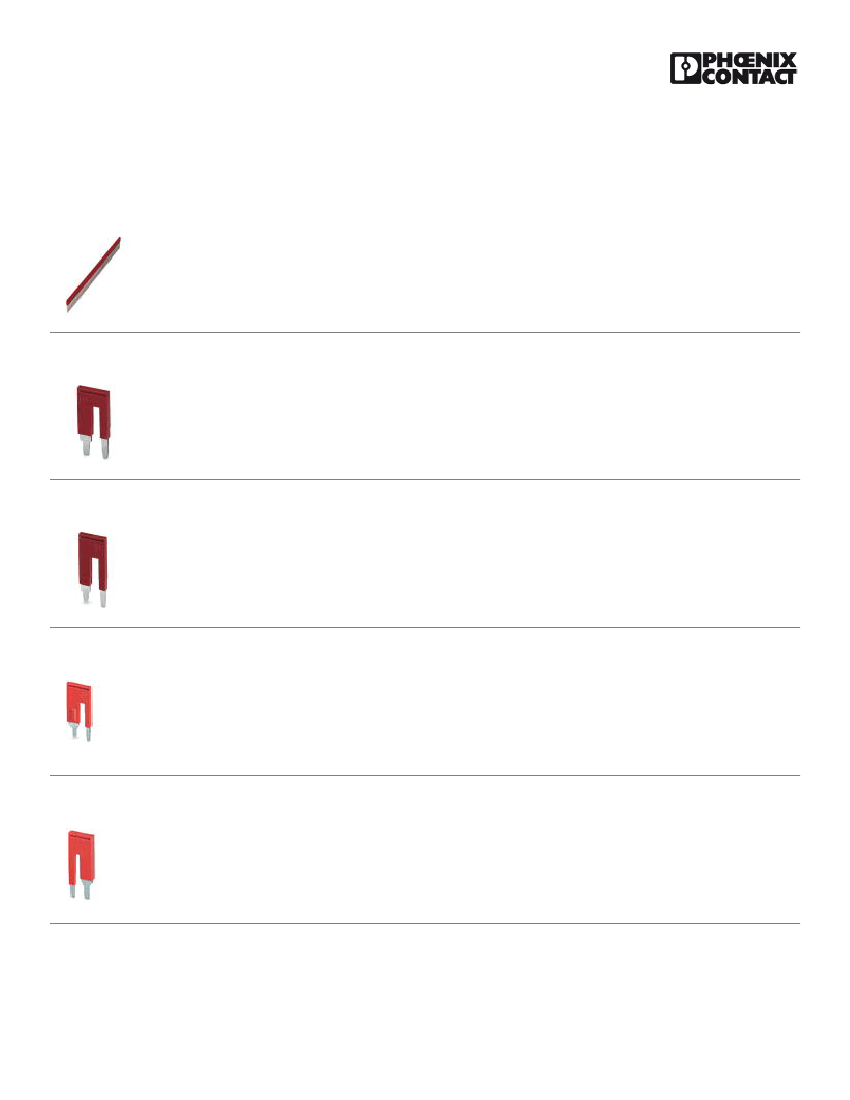

Bridge
Plug-in bridge - FBS 2-5 - 3030161
Plug-in bridge, Number of positions: 2, Color: red
31.10.2013 Page 3 / 16
https://www.phoenixcontact.com/us/products/3205020
Fast connection terminal block - QTC 1,5 L BU - 3205020
Accessories
Plug-in bridge - FBS 3-5 - 3030174
Plug-in bridge, Number of positions: 3, Color: red
Plug-in bridge - FBS 4-5 - 3030187
Plug-in bridge, Number of positions: 4, Color: red
Plug-in bridge - FBS 5-5 - 3030190
Plug-in bridge, Number of positions: 5, Color: red
Plug-in bridge - FBS 10-5 - 3030213
Plug-in bridge, Number of positions: 10, Color: red
Plug-in bridge - FBS 20-5 - 3030226
Plug-in bridge, Number of positions: 20, Color: red
31.10.2013 Page 4 / 16
https://www.phoenixcontact.com/us/products/3205020
Fast connection terminal block - QTC 1,5 L BU - 3205020
Accessories
Plug-in bridge - FBS 50-5 - 3038930
Plug-in bridge, Number of positions: 50, Color: red
Reducing bridge - RB ST 6-(2,5/4) - 3030860
Reducing bridge, Number of positions: 2, Color: red
Reducing bridge - RB ST 10-(2,5/4) - 3030873
Reducing bridge, Number of positions: 2, Color: red
Reducing bridge - RB ST 16-(2,5/4) - 3030886
Reducing bridge, Number of positions: 2, Color: red
Reducing bridge - RB ST 35-(2,5/4) - 3030899
Reducing bridge, Number of positions: 2, Color: red
Documentation
31.10.2013 Page 5 / 16
