Disconnect terminal block - UKK 5-TG BU - 3216079
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://download.phoenixcontact.com)
Disconnect terminal block, Connection type: Screw connection, Cross section: 0.2 mm² - 4 mm², AWG: 24 - 12,
Nominal current: 26 A, Nominal voltage: 400 V, Length: 80 mm, Width: 6.2 mm, Color: blue, Assembly: NS
35/7,5, NS 35/15, NS 32
The illustration shows the version in
gray
Key commercial data
Packing unit
Weight per Piece (excluding packing)
Custom tariff number
Country of origin
1 PCE
23.2 GRM
85369010
Poland
Technical data
General
Number of levels
Number of connections
Color
Insulating material
Inflammability class according to UL 94
Maximum load current
2
4
blue
PA
V2
26 A (with 4 mm² conductor cross section)
16 A (with 4 mm conductor cross section. in conjunction with ST-T plug)
Rated surge voltage
Pollution degree
Surge voltage category
Insulating material group
Connection in acc. with standard
Nominal current I
N
Nominal voltage U
N
6 kV
3
III
I
IEC 60947-7-1
26 A
400 V
21.11.2013 Page 1 / 15
2
https://www.phoenixcontact.com/us/products/3216079
Disconnect terminal block - UKK 5-TG BU - 3216079
Technical data
General
Open side panel
nein
Dimensions
Width
Length
Height NS 35/7,5
Height NS 35/15
Height NS 32
6.2 mm
80 mm
68.5 mm
76 mm
73 mm
Connection data
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section stranded min.
Conductor cross section stranded max.
Conductor cross section AWG/kcmil min.
Conductor cross section AWG/kcmil max
Conductor cross section stranded, with ferrule without plastic sleeve min.
Conductor cross section stranded, with ferrule without plastic sleeve max.
Conductor cross section stranded, with ferrule with plastic sleeve min.
Conductor cross section stranded, with ferrule with plastic sleeve max.
2 conductors with same cross section, solid min.
2 conductors with same cross section, solid max.
2 conductors with same cross section, stranded min.
2 conductors with same cross section, stranded max.
2 conductors with same cross section, stranded, ferrules without plastic
sleeve, min.
2 conductors with same cross section, stranded, ferrules without plastic
sleeve, max.
0.2 mm²
4 mm²
0.2 mm²
4 mm²
24
12
0.25 mm²
4 mm²
0.25 mm²
2.5 mm²
0.2 mm²
1.5 mm²
0.2 mm²
1.5 mm²
0.25 mm²
1.5 mm²
2 conductors with same cross section, stranded, TWIN ferrules with plastic
0.5 mm²
sleeve, min.
2 conductors with same cross section, stranded, TWIN ferrules with plastic
2.5 mm²
sleeve, max.
Cross section with insertion bridge, solid max.
Cross section with insertion bridge, stranded max.
Connection method
Stripping length
Internal cylindrical gage
Screw thread
Tightening torque, min
4 mm²
4 mm²
Screw connection
8 mm
A4
M3
0.6 Nm
21.11.2013 Page 2 / 15
https://www.phoenixcontact.com/us/products/3216079
Disconnect terminal block - UKK 5-TG BU - 3216079
Technical data
Connection data
Tightening torque max
0.8 Nm
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
27141120
27141120
27141120
27141120
27141120
27141120
27141120
ETIM
ETIM 3.0
ETIM 4.0
ETIM 5.0
EC000897
EC000897
EC000897
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
30211811
39121410
39121410
39121410
39121410
Approvals
Approvals
Approvals
CSA / UL Recognized / cUL Recognized / PRS / cULus Recognized
Ex Approvals
Approvals submitted
21.11.2013 Page 3 / 15
https://www.phoenixcontact.com/us/products/3216079
Disconnect terminal block - UKK 5-TG BU - 3216079
Approvals
Approval details
CSA
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
28-12
15 A
300 V
UL Recognized
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
26-12
25 A
300 V
cUL Recognized
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
26-12
25 A
300 V
PRS
cULus Recognized
Accessories
Accessories
Bridge
21.11.2013 Page 4 / 15
https://www.phoenixcontact.com/us/products/3216079
Disconnect terminal block - UKK 5-TG BU - 3216079
Accessories

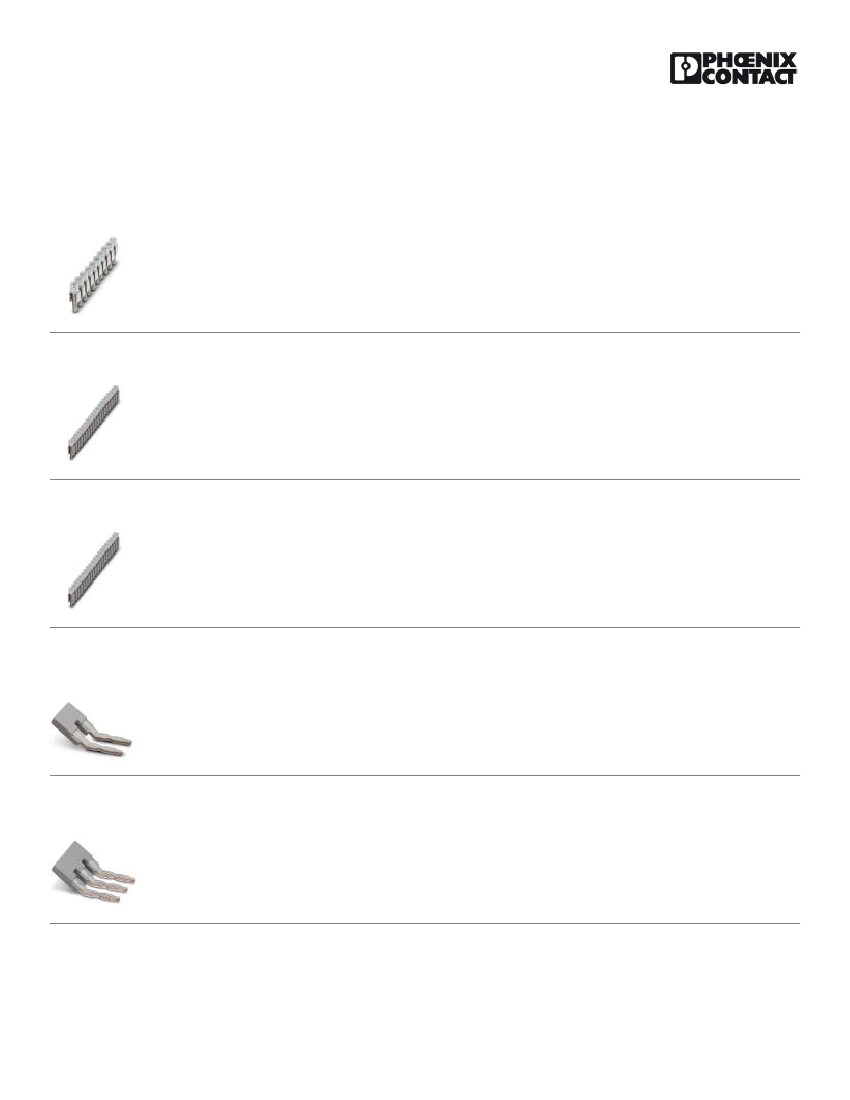

Fixed bridge - FBI 10- 6 - 0203250
Fixed bridge, Number of positions: 10, Color: silver
Fixed bridge - FBI 100- 6 - 0201650
Fixed bridge, Number of positions: 100, Color: silver
Fixed bridge - FBI 20- 6 - 0201867
Fixed bridge, Number of positions: 20, Color: silver
Insertion bridge - EB 2- 6 - 0201155
Insertion bridge, Number of positions: 2, Color: gray
Insertion bridge - EB 3- 6 - 0201142
Insertion bridge, Number of positions: 3, Color: gray
21.11.2013 Page 5 / 15
