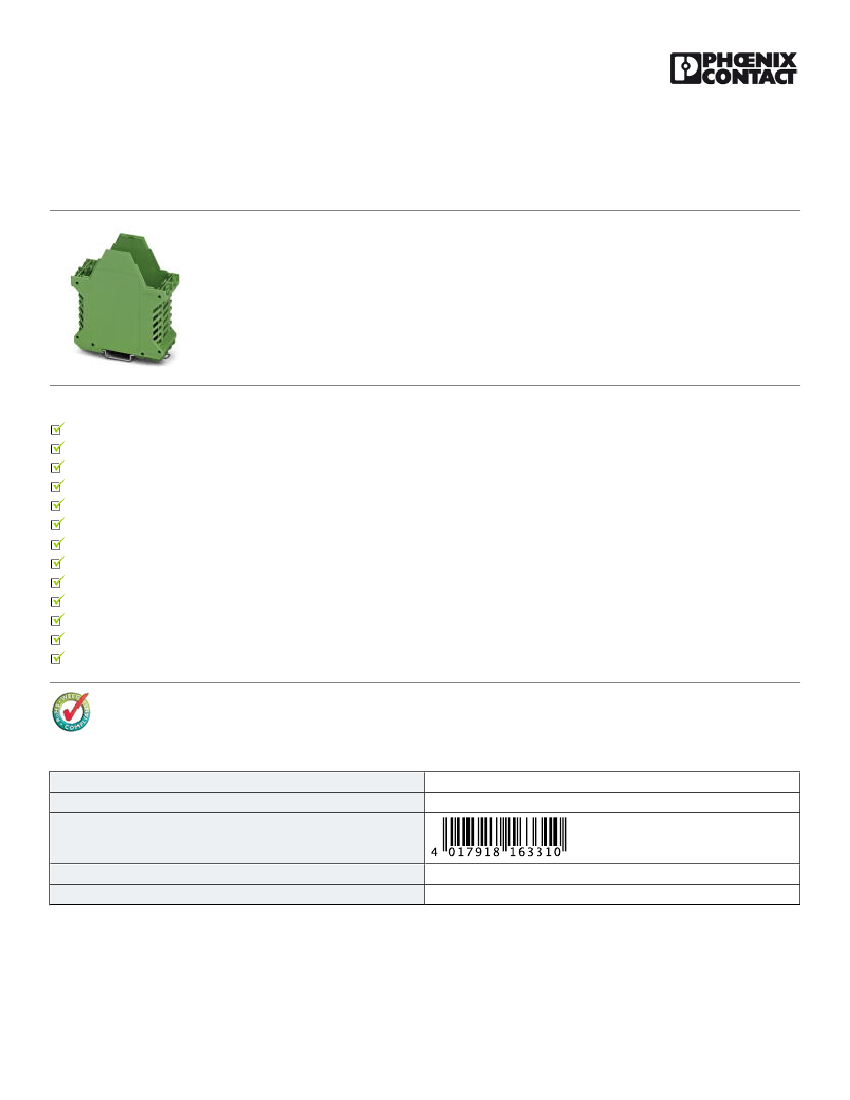

Electronic housing - ME 45 UT/FE GN - 2909358
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://download.phoenixcontact.com)
Lower part of housing, fully assembled, with integrated functional earth ground contact, and metal foot catch.
Product Features
Tool-free mounting
Large assembly area
Low design width with a high number of positions
Recessed labeling areas
Same PCB geometry for all design widths
Inflammability class V0 according to UL 94
Fast mounting on DIN rails according to EN 60715
Cost savings thanks to easy device production
Material and part identification embossed on the housing (recyclability)
Functional earth ground contact (EMC) integrated in the housing base
Metal foot catch
Optional BUS connection integrated in the housing, for either parallel or serial contacting
Electronic components can be partially removed
Key commercial data
Packing unit
Minimum order quantity
GTIN
Custom tariff number
Country of origin
85369010
GERMANY
1 PCE
10 PCE
Technical data
General
23.04.2013 Page 1 / 10
https://www.phoenixcontact.com/us/produkte/2909358
Electronic housing - ME 45 UT/FE GN - 2909358
Technical data
General
Housing type
Housing material
Color
Component housing
Polyamide
green
Dimensions / positions
Length
Constructional height
Width
Number of positions
Number of positions
99 mm
114.5 mm
45 mm
32
8
Technical data
Ambient temperature (operation)
Inflammability class according to UL 94
Power dissipation at 20°C in the horizontal mounting position
-40 °C ... 105 °C
V0
8.2 W 16.5 W
Classifications
ETIM
ETIM 2.0
ETIM 3.0
ETIM 4.0
ETIM 5.0
EC001031
EC001031
EC001031
EC001031
UNSPSC
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
UNSPSC 6.01
UNSPSC 7.0901
31261501
31261501
31261501
31261501
31261501
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
27180401
27180401
27180506
27180506
27180802
27182702
23.04.2013 Page 2 / 10
https://www.phoenixcontact.com/us/produkte/2909358
Electronic housing - ME 45 UT/FE GN - 2909358

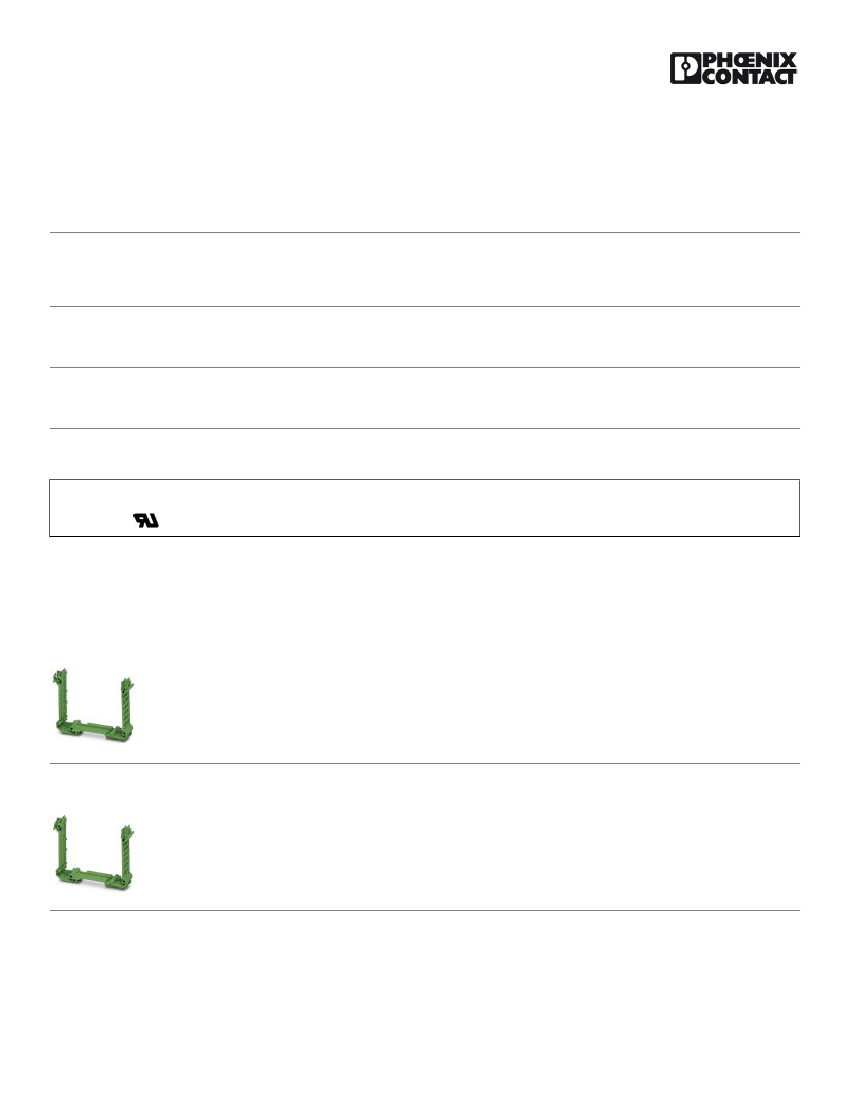

Approvals
Approvals
Approvals
UL Recognized
Ex Approvals
Approvals submitted
Approval details
UL Recognized
Accessories
Accessories
Assembly
Electronic housing - ME 45 UTM GN - 2853404
Intermediate element for modular extension of the volume of the housing in the pitch. The open intermediate element is
22.5 mm wide.
Electronic housing - ME 45 UTMG GN - 2853417
Intermediate element for modular extension of the volume of the housing in the pitch. The closed intermediate element is
22.5 mm wide.
23.04.2013 Page 3 / 10
https://www.phoenixcontact.com/us/produkte/2909358
Electronic housing - ME 45 UT/FE GN - 2909358
Accessories
Components of electronic housing - ME-SAS - 2853899
Shield connection clamp for printed circuit terminal block
Electronic housing - ME LPZS - 2906911
PCB stop, for soldering onto PCB
Electronic housing - ME B-22,5 MKDSO GN - 2907143
Filler plugs, for unoccupied terminal points
Electronic housing - ME B-22,5 MSTBO GN - 2907156
Filler plugs, for unoccupied terminal points
Electronic housing - ME MF 17,5 - 2908281
Metal foot catch, for intermediate elements.
23.04.2013 Page 4 / 10
https://www.phoenixcontact.com/us/produkte/2909358
Electronic housing - ME 45 UT/FE GN - 2909358

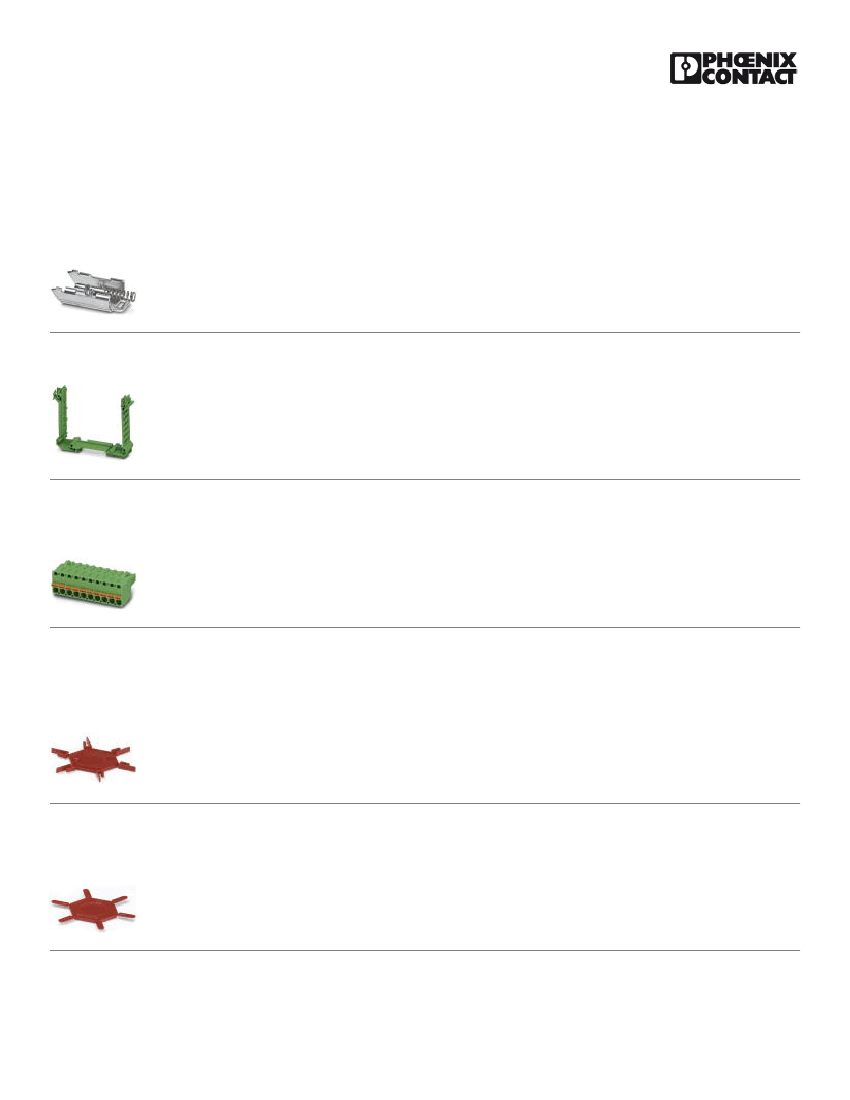

Accessories
Electronic housing - ME MF 17,5 - 2908281
Metal foot catch, for intermediate elements.
Electronic housing - ME 45 UTM GN - 2853404
Intermediate element for modular extension of the volume of the housing in the pitch. The open intermediate element is
22.5 mm wide.
Printed-circuit board connector - FKCT 2,5/ 4-ST - 1909236
Plug component, Nominal current: 12 A, Rated voltage (III/2): 320 V, Number of positions: 4, Pitch: 5 mm, Connection
method: Spring-cage conn., Color: green, Contact surface: Tin
Plug/Adapter
Coding star - CR-MSTB - 1734401
Coding section, inserted into the recess in the header or the inverted plug, red insulating material
Coding profile - CP-MSTB - 1734634
Coding profile, is inserted into the slot on the plug or inverted header, red insulating material
23.04.2013 Page 5 / 10
