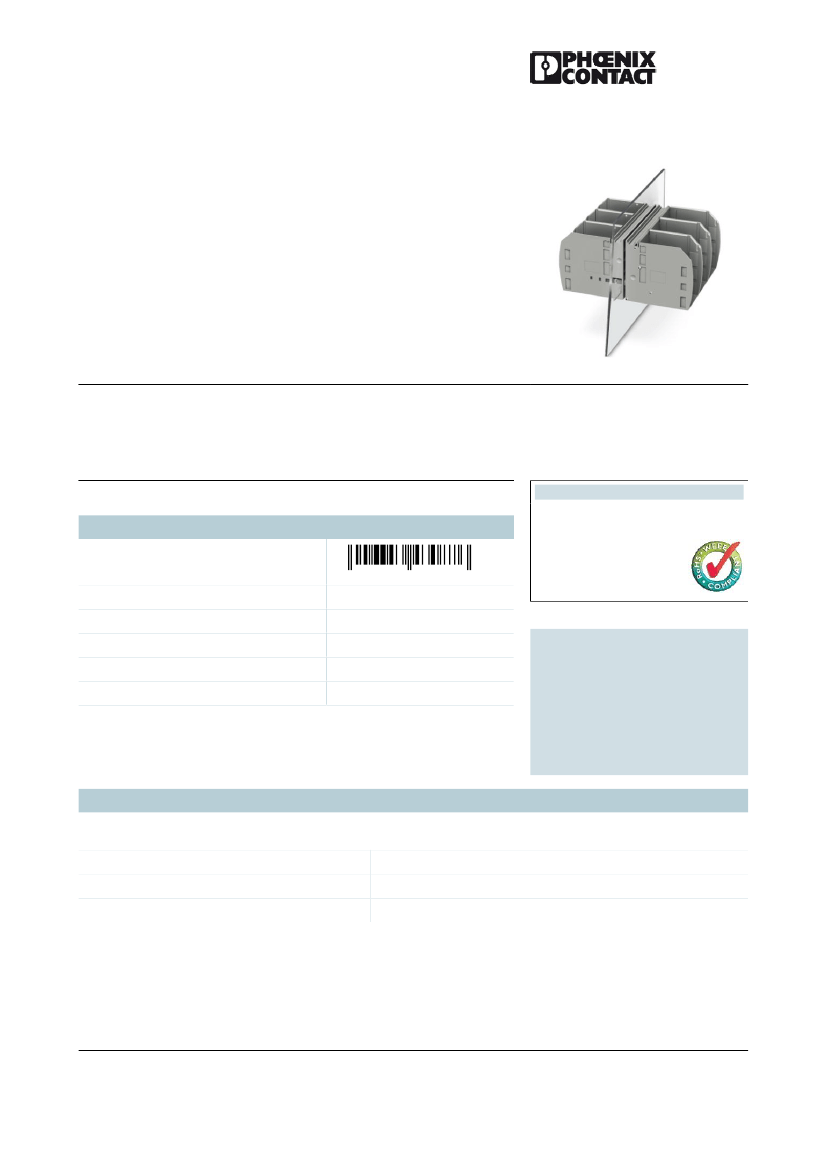

Extract from the online
catalog
RWO 10/S
Order No.: 3056161
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=3056161
Feed-through terminal block, Connection method: Bolt connection,
Load current : 309 A, Cross-section: 6 mm² - 150 mm², Connection
direction of the conductor to plug-in direction: 0 °, Width: 42.2 mm,
Color: gray
Product notes
Commercial data
GTIN (EAN)
4
046356
430876
WEEE/RoHS-compliant since:
06/24/2008
Note
sales group
Pack
Customs tariff
Catalog page information
Made-to-order
A420
5 pcs.
85369010
Page 66 (NTK-2010)
http://
www.download.phoenixcontact.com
Please note that the data given
here has been taken from the
online catalog. For comprehensive
information and data, please refer
to the user documentation. The
General Terms and Conditions of
Use apply to Internet downloads.
Technical data
General
Number of levels
Number of connections
Color
1
2
gray
PHOENIX CONTACT Inc., USA
http://www.phoenixcon.com
Page 1 / 4
May 9, 2011
RWO 10/S
Order No.: 3056161
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=3056161
Insulating material
Inflammability class acc. to UL 94
Dimensions
Width
Technical data
Rated surge voltage
Pollution degree
Surge voltage category
Insulating material group
Connection in acc. with standard
Nominal current I
N
Nominal voltage U
N
Connection data
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section AWG/kcmil min.
Conductor cross section AWG/kcmil max
Connection method
Screw thread
Tightening torque, min
Tightening torque max
Accessories
Item
General
3075197
0820222
Marking
0828295
TMT (EX9,5)R
RW 10-F
ZB 16,3:UNPRINTED
Designation
PA
V0
42.2 mm
6 kV
3
III
I
IEC 60947-7-1
309 A
1000 V
6 mm²
150 mm²
10
250 kcmil
Bolt connection
M10
10 Nm
20 Nm
Description
Flange cover
Terminal marking
Terminal marking with 9.5 mm strip height, continuous, without
color print, for all terminals with ZB or ZBF groove, can be labeled
using a thermal transfer printer, 1 roll = 50 m
PHOENIX CONTACT Inc., USA
http://www.phoenixcon.com
Page 2 / 4
May 9, 2011
RWO 10/S
Order No.: 3056161
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=3056161
Diagrams/Drawings
Dimensioned drawing
PHOENIX CONTACT Inc., USA
http://www.phoenixcon.com
Page 3 / 4
May 9, 2011
RWO 10/S
Order No.: 3056161
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=3056161
Address
PHOENIX CONTACT Inc., USA
586 Fulling Mill Road
Middletown, PA 17057,USA
Phone (800) 888-7388
Fax (717) 944-1625
http://www.phoenixcon.com
© 2011 Phoenix Contact
Technical modifications reserved;
