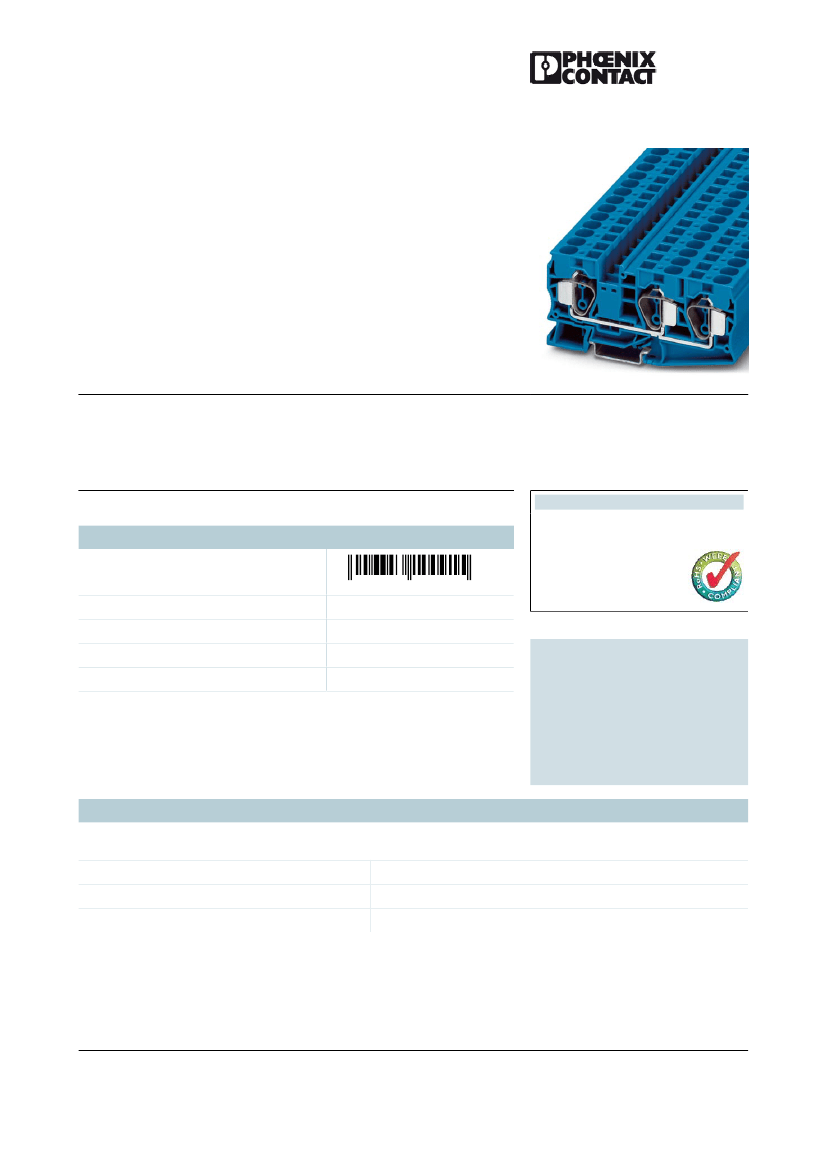

ST 16-TWIN BU
Order No.: 3035331
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=3035331
Feed-through modular terminal block, Type of connection: Spring-
cage connection, Spring-cage connection, Cross section: 0.2 mm² - 25
mm², AWG 24 - 4, Width: 12.2 mm, Color: blue, Mounting type: NS
35/15, NS 35/7.5
Product notes
Commercial data
GTIN (EAN)
4
046356
100915
WEEE/RoHS-compliant since:
07/03/2006
sales group
Pack
Customs tariff
Catalog page information
A630
25 pcs.
85369010
Page 85 (CL-2009)
http://
www.download.phoenixcontact.com
Please note that the data given
here has been taken from the
online catalog. For comprehensive
information and data, please refer
to the user documentation. The
General Terms and Conditions of
Use apply to Internet downloads.
Technical data
General
Number of levels
Number of connections
Color
1
3
blue
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 1 / 5
Feb 9, 2011
ST 16-TWIN BU
Order No.: 3035331
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=3035331
Insulating material
Inflammability class acc. to UL 94
Dimensions
Width
Length
Height NS 35/7.5
Height NS 35/15
Technical data
Maximum load current
Rated surge voltage
Pollution degree
Surge voltage category
Insulating material group
Connection in acc. with standard
Nominal current I
N
Nominal voltage U
N
Open side panel
Connection data
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section stranded min.
Conductor cross section stranded max.
Conductor cross section AWG/kcmil min.
Conductor cross section AWG/kcmil max
Conductor cross section stranded, with ferrule
without plastic sleeve min.
Conductor cross section stranded, with ferrule
without plastic sleeve max.
Conductor cross section stranded, with ferrule
with plastic sleeve min.
Conductor cross section stranded, with ferrule
with plastic sleeve max.
2 conductors with same cross section, stranded,
TWIN ferrules with plastic sleeve, min.
2 conductors with same cross section, stranded,
TWIN ferrules with plastic sleeve, max.
PA
V0
12.2 mm
107.8 mm
51.5 mm
59 mm
90 A (with 25 mm conductor cross section)
8 kV
3
III
I
IEC 60947-7-1
76 A
800 V
ja
2
0.2 mm²
25 mm²
0.2 mm²
16 mm²
24
4
0.25 mm²
16 mm²
0.25 mm²
16 mm²
1.5 mm²
4 mm²
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 2 / 5
Feb 9, 2011
ST 16-TWIN BU
Order No.: 3035331
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=3035331
Type of connection
Stripping length
Internal cylindrical gage
Certificates / Approvals
Spring-cage connection
16 mm
A7
Certification
UL, VDE-PZI
Accessories
Item
Assembly
3035357
Bridges
3005950
3030886
General
0812146
ZB 12,LGS:L1-N,PE
Zack marker strip, printed horizontally: 5-section, L1, L2, L3, N,
PE, color: White
FBS 2-12
RB ST 16-(2,5/4)
Plug-in bridge, Number of positions: 2, Color: red
Reducing bridge, Number of positions: 2, Color: red
D-ST 16-TWIN
End cover, Length: 107.8 mm, Width: 2.2 mm, Color: gray
Designation
Description
Marking
0812133
0812120
ZB 12:SO/CMS
ZB 12:UNPRINTED
Zack marker strip, 5-section, divisible, special printing, marking
according to customer requirements
Zack marker strip without color print: 5-section, for individual
labeling with B-STIFT, ZB-T or CMS system, sufficient for labeling
50 terminal blocks per pack
Zack strip, flat, unprinted, 5-section, divisible, for labeling by the
customer
0809735
ZBF 12:UNBEDRUCKT
Plug/Adapter
0201731
0201689
0201702
0201728
MPS-IH BK
MPS-IH BU
MPS-IH GN
MPS-IH GY
Insulating sleeve, Color: black
Insulating sleeve, Color: blue
Insulating sleeve, Color: green
Insulating sleeve, Color: gray
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 3 / 5
Feb 9, 2011
ST 16-TWIN BU
Order No.: 3035331
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=3035331
0201676
0201715
0201663
0201692
0201744
Tools
1206612
MPS-IH RD
MPS-IH VT
MPS-IH WH
MPS-IH YE
MPS-MT
Insulating sleeve, Color: red
Insulating sleeve, Color: violet
Insulating sleeve, Color: white
Insulating sleeve, Color: yellow
Test plugs
SZF 3-1,0X5,5
Actuation tool, for ST terminal blocks, also suitable for use as a
bladed screwdriver, size: 1.0 x 5.5 x 150 mm, 2-component grip,
with non-slip grip
Diagrams/Drawings
Circuit diagram
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 4 / 5
Feb 9, 2011
ST 16-TWIN BU
Order No.: 3035331
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=3035331
