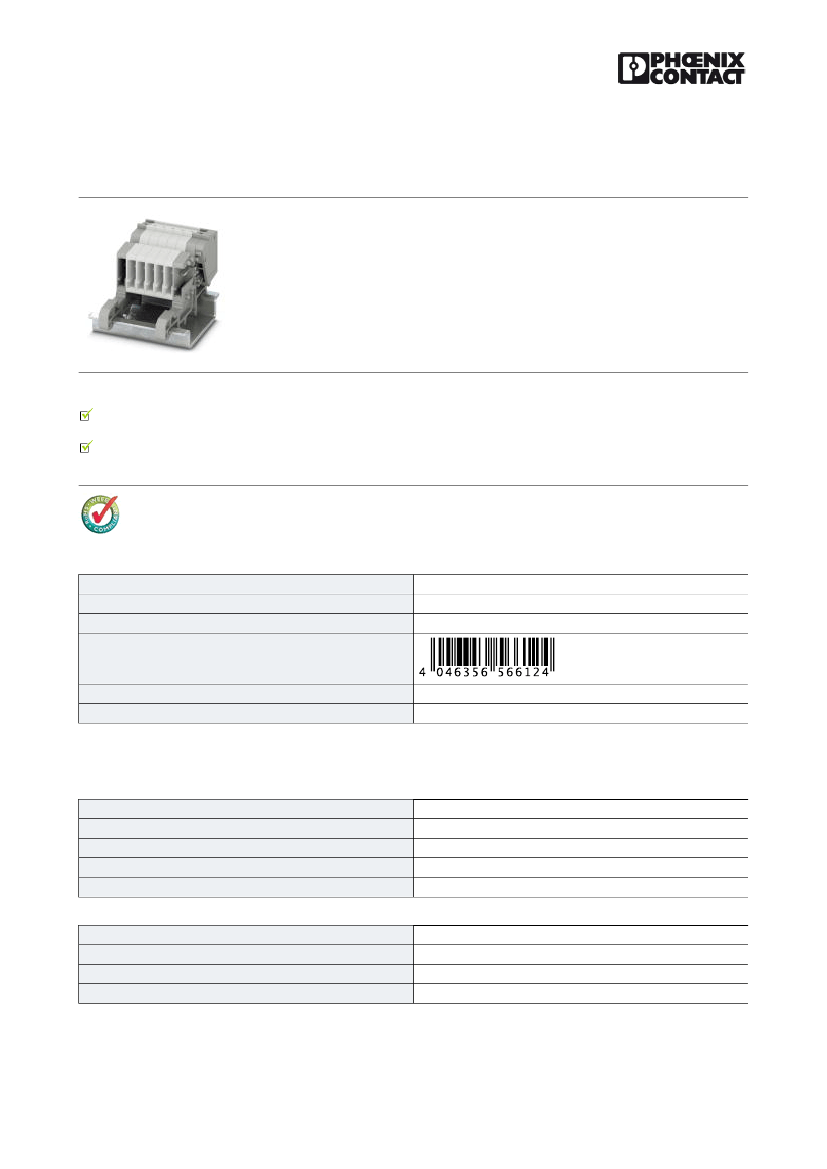

Coupling - PPC 1,5/S-NS/1-L - 3213700
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in
the user's documentation. Our General Terms of Use for Downloads are valid
(http://download.phoenixcontact.com)
Coupling, Connection method: Push-in connection, Number of positions: 1, Cross section: 0.14
mm² - 1.5 mm², AWG 26 - 16, Width: 3.5 mm, Height: 27 mm, Color: gray, Mounting type: NS
35/15, NS 35/7.5
Why buy this product
The coupling with Push-in connection offers the ideal solution for applications with DIN rail mounting where only a low design height
is available
The terminal blocks are snapped onto the PPC... free-hanging couplings as modules and can be used on both NS 15 and NS 35
DIN rails
Key commercial data
Packing unit
Minimum order quantity
Catalog page
GTIN
Custom tariff number
Country of origin
85369010
POLAND
0
1
Page 319 (CL1-2011)
Technical data
General
Number of levels
Number of connections
Color
Insulating material
Inflammability class according to UL 94
1
1
gray
PA
V0
Dimensions
Width
Length
Height
Height NS 35/7.5
3.5 mm
17.8 mm
27 mm
28.3 mm
Technical data
10.09.2012 Page 1 / 13
https://www.phoenixcontact.com/us/produkte/3213700
Coupling - PPC 1,5/S-NS/1-L - 3213700
Technical data
Technical data
Maximum load current
Rated surge voltage
Pollution degree
Surge voltage category
Insulating material group
Connection in acc. with standard
Nominal current IN
Nominal voltage UN
Open side panel
Number of positions
Insertion/withdrawal cycles mechanical
Surge voltage test setpoint
Result
Tight fit on carrier
Setpoint
Result
Conductor cross section short circuit testing
Short-time current
Short circuit stability result
Proof of thermal characteristics (needle flame) effective duration
Result
13.5 A (with 1.5 mm2 conductor cross section)
6 kV
3
III
I
IEC 61984
17.5 A
500 V
ja
1
100
7.3 kV
Test passed
NS 35
1N
Test passed
1.5 mm²
0.18 kA
Test passed
30 s
Test passed

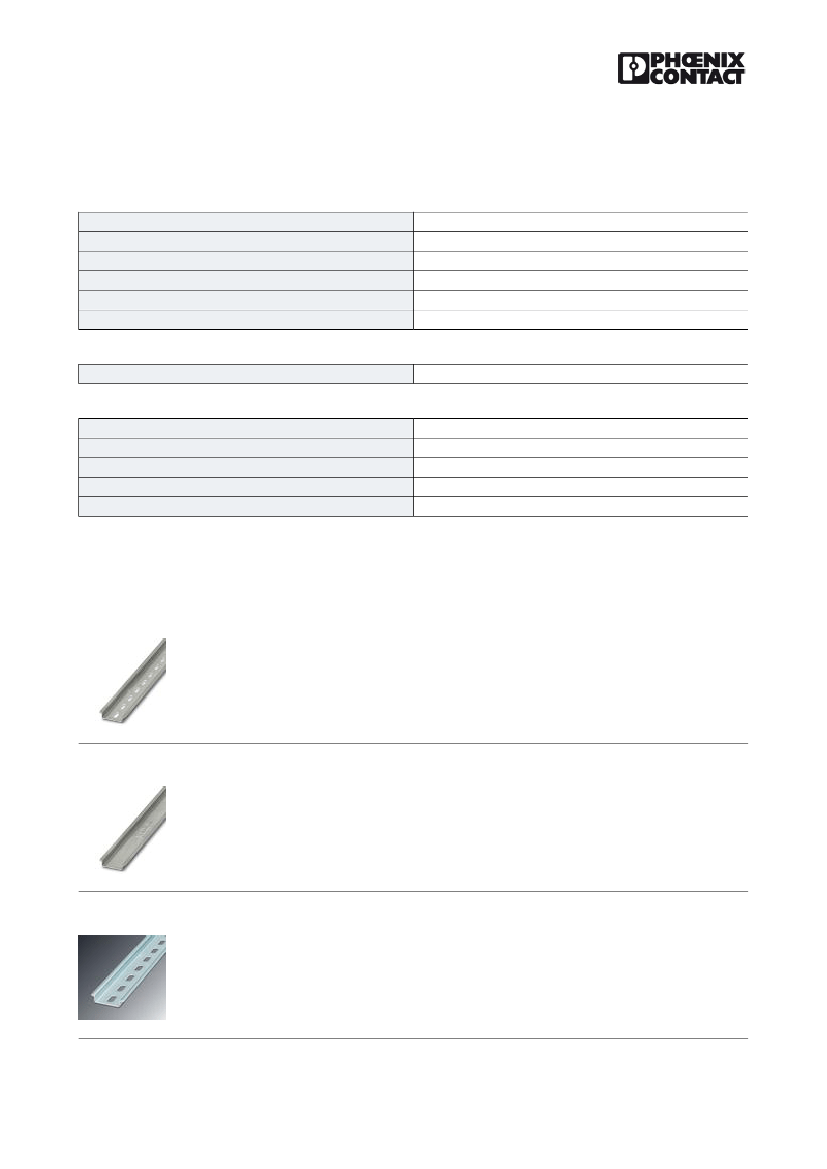

Connection data
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section stranded min.
Conductor cross section stranded max.
Conductor cross section AWG/kcmil min.
Conductor cross section AWG/kcmil max
Conductor cross section stranded, with ferrule without plastic
sleeve min.
Conductor cross section stranded, with ferrule without plastic
sleeve max.
Conductor cross section stranded, with ferrule with plastic sleeve
min.
Conductor cross section stranded, with ferrule with plastic sleeve
max.
Connection method
Stripping length
Internal cylindrical gage
0.14 mm²
1.5 mm²
0.14 mm²
1.5 mm²
26
16
0.14 mm²
1.5 mm²
0.14 mm²
1 mm²
Push-in connection
8 mm
A1 / B1
10.09.2012 Page 2 / 13
https://www.phoenixcontact.com/us/produkte/3213700
Coupling - PPC 1,5/S-NS/1-L - 3213700
Classifications
eclass
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
27141131
27141131
27141134
27141134
27141134
27141134
etim
ETIM 4.0
EC002498
unspsc
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
30211811
39121410
39121410
39121409
39121410
Accessories
Accessories

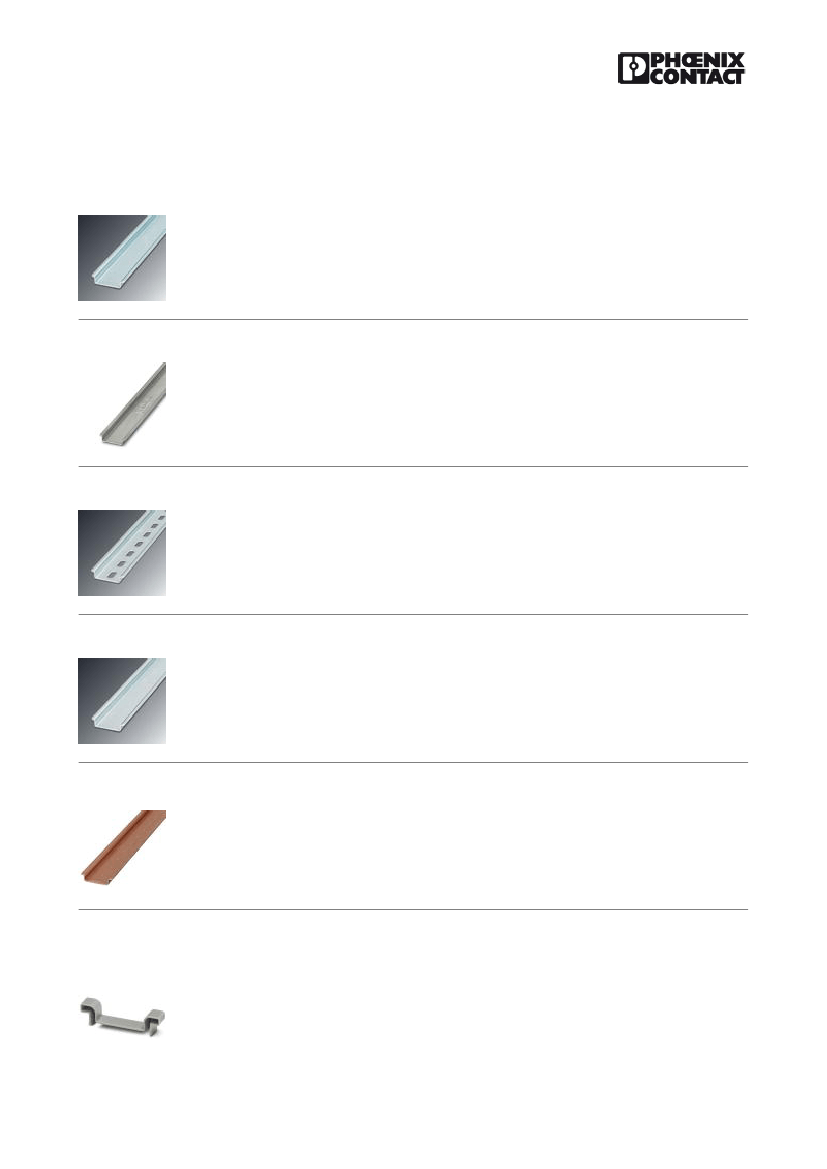

Assembly
DIN rail perforated - NS 35/ 7,5 PERF 2000MM - 0801733
DIN rail, material: steel galvanized and passivated with a thick layer, perforated, height 7.5 mm, width 35
mm, length: 2000 mm
DIN rail - NS 35/ 7,5 UNPERF 2000MM - 0801681
DIN rail, material: Steel, unperforated, height 7.5 mm, width 35 mm, length: 2 m
DIN rail - NS 35/ 7,5 WH PERF 2000MM - 1204119
DIN rail 35 mm (NS 35)
10.09.2012 Page 3 / 13
https://www.phoenixcontact.com/us/produkte/3213700
Coupling - PPC 1,5/S-NS/1-L - 3213700
Accessories
DIN rail - NS 35/ 7,5 WH UNPERF 2000MM - 1204122
DIN rail 35 mm (NS 35)
DIN rail - NS 35/ 7,5 AL UNPERF 2000MM - 0801704
DIN rail, material: Aluminum, unperforated, height 7.5 mm, width 35 mm, length: 2 m
DIN rail - NS 35/ 7,5 ZN PERF 2000MM - 1206421
DIN rail, material: Galvanized, perforated, height 7.5 mm, width 35 mm, length: 2 m
DIN rail - NS 35/ 7,5 ZN UNPERF 2000MM - 1206434
DIN rail, material: Galvanized, unperforated, height 7.5 mm, width 35 mm, length: 2 m
DIN rail - NS 35/ 7,5 CU UNPERF 2000MM - 0801762
DIN rail, material: Copper, unperforated, height 7.5 mm, width 35 mm, length: 2 m
End cap - NS 35/ 7,5 CAP - 1206560
DIN rail end piece, for DIN rail NS 35/7.5
10.09.2012 Page 4 / 13
https://www.phoenixcontact.com/us/produkte/3213700
Coupling - PPC 1,5/S-NS/1-L - 3213700
Accessories

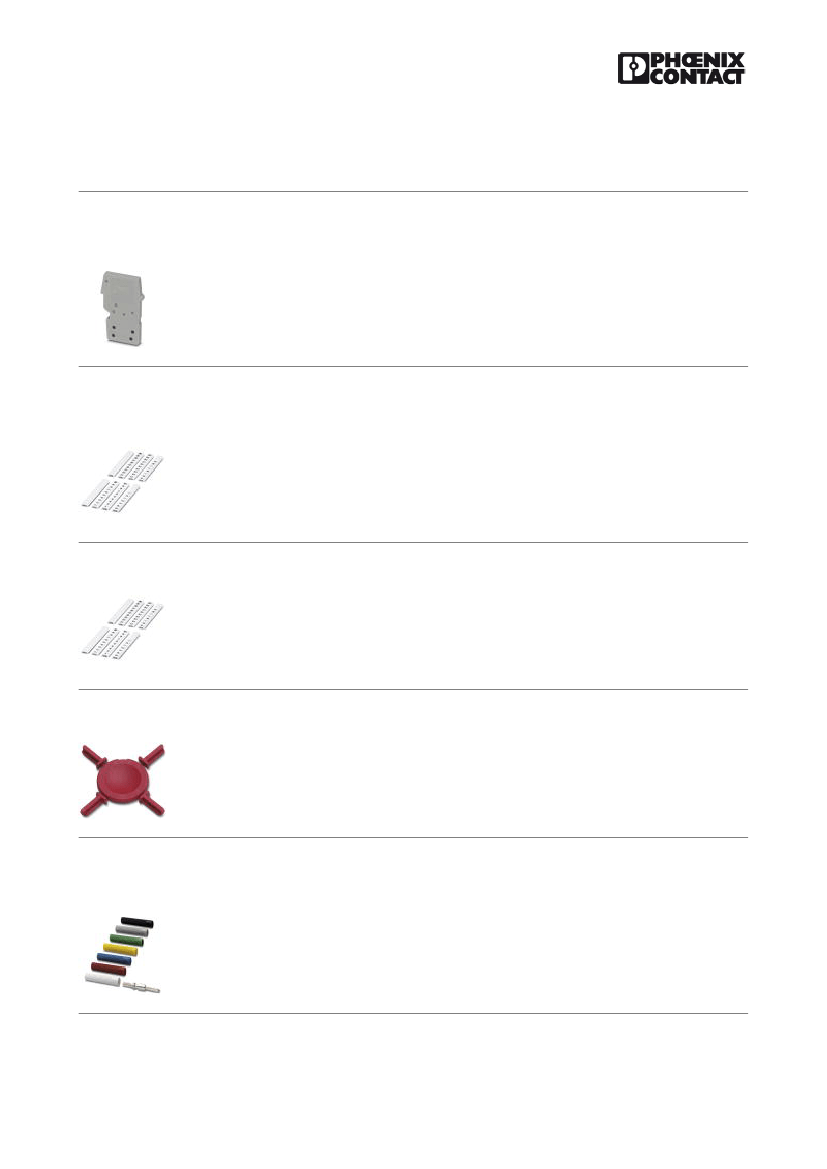

Covers
End cover - D-PPC 1,5/S - 3213690
End cover, Length: 17.8 mm, Width: 2.2 mm, Color: gray
Marking
Zack Marker strip, flat - ZBF 3,5:UNBEDRUCKT - 0829392
Zack Marker strip, flat, Strip, white, Unlabeled, Can be labeled with: Plotter, Mounting type: Snap into flat
marker groove, For terminal block width: 3.5 mm, Lettering field: 3.5 x 5.2 mm
Zack Marker strip, flat - ZBF 3,5 CUS - 0829394
Zack Marker strip, flat, Can be ordered: Strip, white, Labeled according to customer specifications, Mounting
type: Snap into flat marker groove, For terminal block width: 3.5 mm, Lettering field: 3.5 x 5.2 mm
Keying star - PC - 3040588
Keying star, Length: 3 mm, Width: 3 mm, Height: 6 mm, Color: red
Plug/Adapter
Test plugs - MPS-MT - 0201744
Test plugs
10.09.2012 Page 5 / 13
