Printed-circuit board connector - FKICS 2,5/ 3-STD-5,08-
RN - 1808734
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in
the user's documentation. Our General Terms of Use for Downloads are valid
(http://download.phoenixcontact.com)

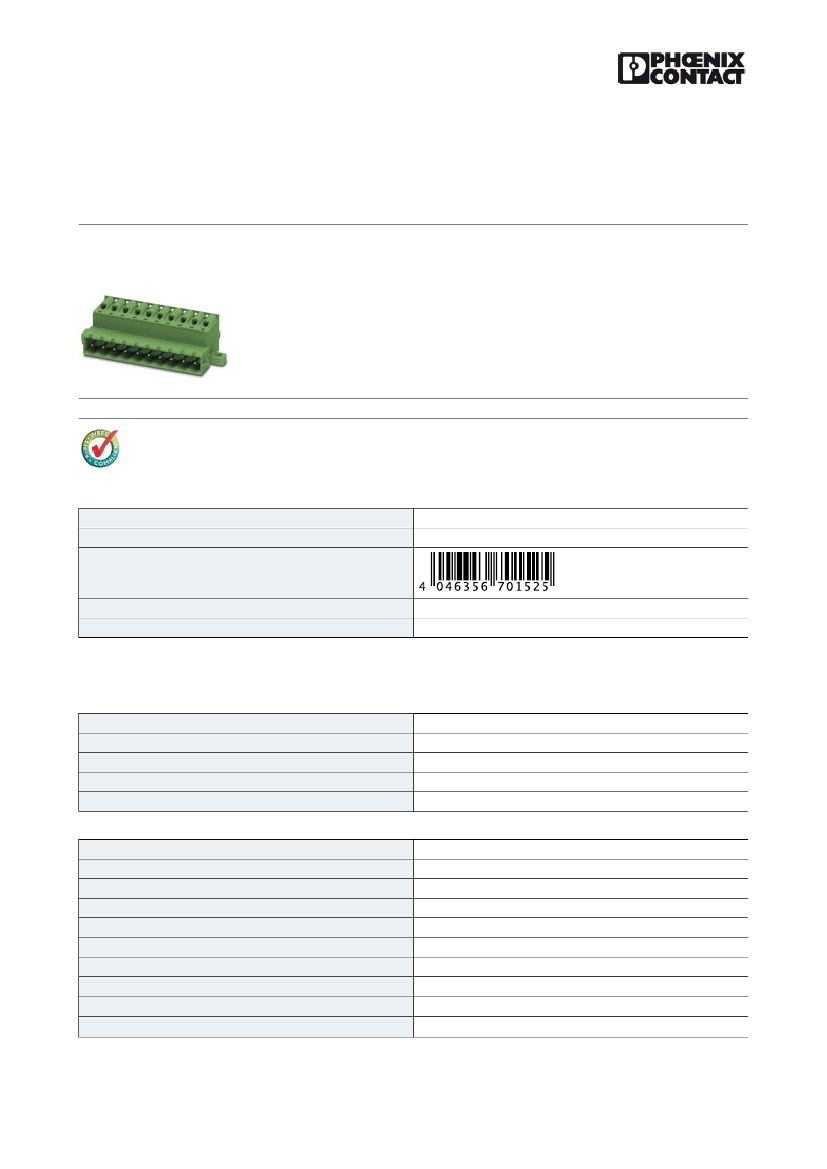

Plug component, Nominal current: 12 A, Rated voltage (III/2): 320 V, Number of positions: 3, Pitch:
5.08 mm, Connection method: Spring-cage conn., Color: green, Contact surface: Tin
Key commercial data
Packing unit
Minimum order quantity
GTIN
Custom tariff number
Country of origin
85366990
GERMANY
0
1
Technical data
Dimensions / positions
Length
Height
Pitch
Dimension a
Number of positions
26.5 mm
15 mm
5.08 mm
10.16 mm
3
Technical data
Range of articles
Insulating material group
Rated surge voltage (III/3)
Rated surge voltage (III/2)
Rated surge voltage (II/2)
Rated voltage (III/2)
Rated voltage (II/2)
Connection in acc. with standard
Nominal current I
N
Nominal voltage U
N
FKICS 2,5/..-STD-RN
I
4 kV
4 kV
4 kV
320 V
630 V
EN-VDE
12 A
320 V
17.01.2013 Page 1 / 7
https://www.phoenixcontact.com/us/produkte/1808734
Printed-circuit board connector - FKICS 2,5/ 3-STD-5,08-
RN - 1808734
Technical data
Technical data
Nominal cross section
Maximum load current
Insulating material
Inflammability class according to UL 94
Internal cylindrical gage
Stripping length
Nominal voltage, UL/CUL Use Group B
Nominal current, UL/CUL Use Group B
Nominal voltage, UL/CUL Use Group D
Nominal current, UL/CUL Use Group D
2.5 mm²
12 A
PA
V0
A2
10 mm
300 V
10 A
300 V
10 A
Connection data
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section stranded min.
Conductor cross section stranded max.
Conductor cross section stranded, with ferrule without plastic
sleeve min.
Conductor cross section stranded, with ferrule without plastic
sleeve max.
Conductor cross section stranded, with ferrule with plastic sleeve
min.
Conductor cross section stranded, with ferrule with plastic sleeve
max.
Conductor cross section AWG/kcmil min.
Conductor cross section AWG/kcmil max
2 conductors with same cross section, stranded, TWIN ferrules
with plastic sleeve, min.
2 conductors with same cross section, stranded, TWIN ferrules
with plastic sleeve, max.
Minimum AWG according to UL/CUL
Maximum AWG according to UL/CUL
0.2 mm²
2.5 mm²
0.2 mm²
2.5 mm²
0.25 mm²
2.5 mm²
0.25 mm²
2.5 mm²
24
12
0.5 mm²
1 mm²
26
12
Classifications
ETIM
ETIM 3.0
ETIM 4.0
ETIM 5.0
EC001121
EC002638
EC002638
UNSPSC
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
39121409
39121409
39121409
17.01.2013 Page 2 / 7
https://www.phoenixcontact.com/us/produkte/1808734
Printed-circuit board connector - FKICS 2,5/ 3-STD-5,08-
RN - 1808734
Classifications
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
30211810
39121409
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
272607xx
27260701
27260701
27141190
27260704
27440402
Approvals
Approvals
Approvals
UL Recognized / cUL Recognized / cULus Recognized
Ex Approvals
Approvals submitted
Approval details
UL Recognized
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
B
26-12
10 A
300 V
D
26-12
10 A
300 V
cUL Recognized
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
B
26-12
10 A
300 V
D
26-12
10 A
300 V
17.01.2013 Page 3 / 7
https://www.phoenixcontact.com/us/produkte/1808734
Printed-circuit board connector - FKICS 2,5/ 3-STD-5,08-
RN - 1808734
Approvals
cULus Recognized

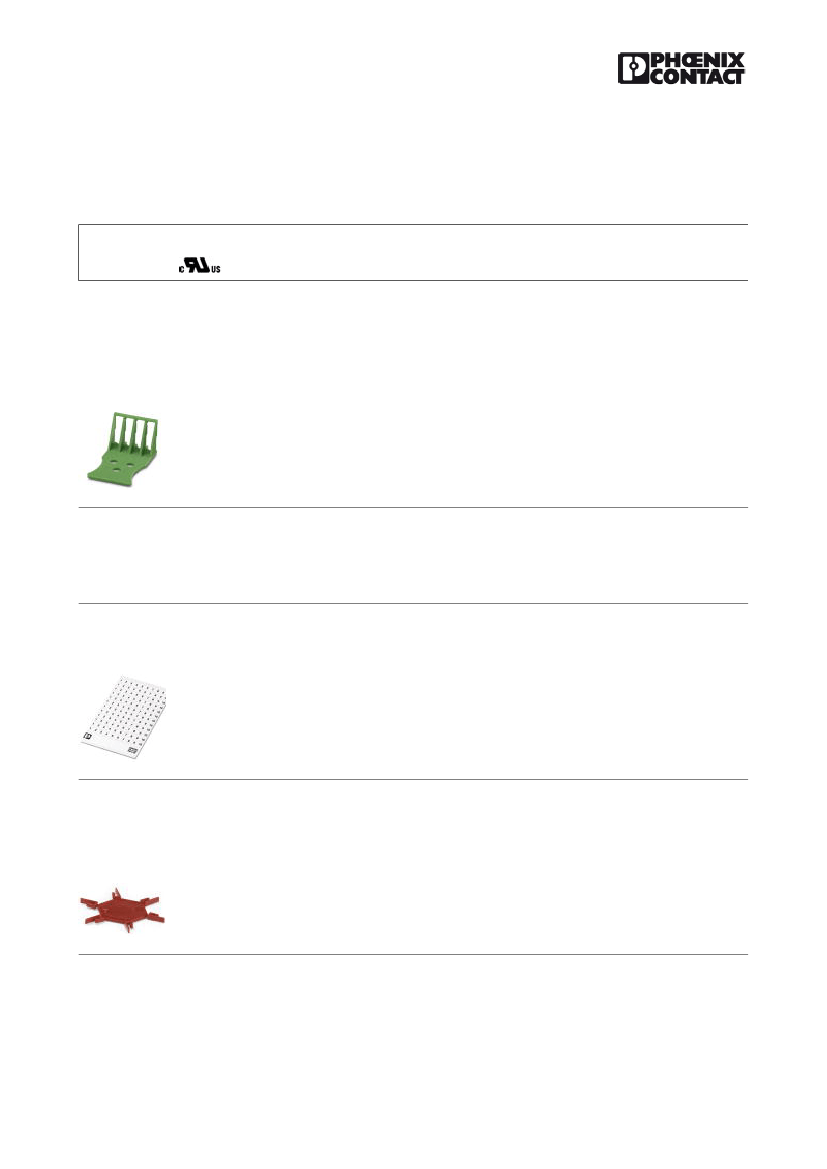

Accessories
Accessories
Assembly
Strain relief - STZ 4-FKC-5,08 - 1876877
Strain relief for snapping into the latching chambers of the plugs, 4-pos.
Strain relief - STZ 8-FKC-5,08 - 1876880
Strain relief for snapping into the latching chambers of the plug components, 8-pos.
Marking
Marker cards - SK 5,08/3,8:FORTL.ZAHLEN - 0804293
Marker cards, Card, white, labeled, Horizontal: Consecutive numbers 1 - 10, 11 - 20, etc. up to 91 - (99)100,
Mounting type: Adhesive, For terminal block width: 5.08 mm
Plug/Adapter
Keying star - CR-MSTB - 1734401
Coding section, inserted into the recess in the header or the inverted plug, red insulating material
17.01.2013 Page 4 / 7
https://www.phoenixcontact.com/us/produkte/1808734
Printed-circuit board connector - FKICS 2,5/ 3-STD-5,08-
RN - 1808734
Accessories

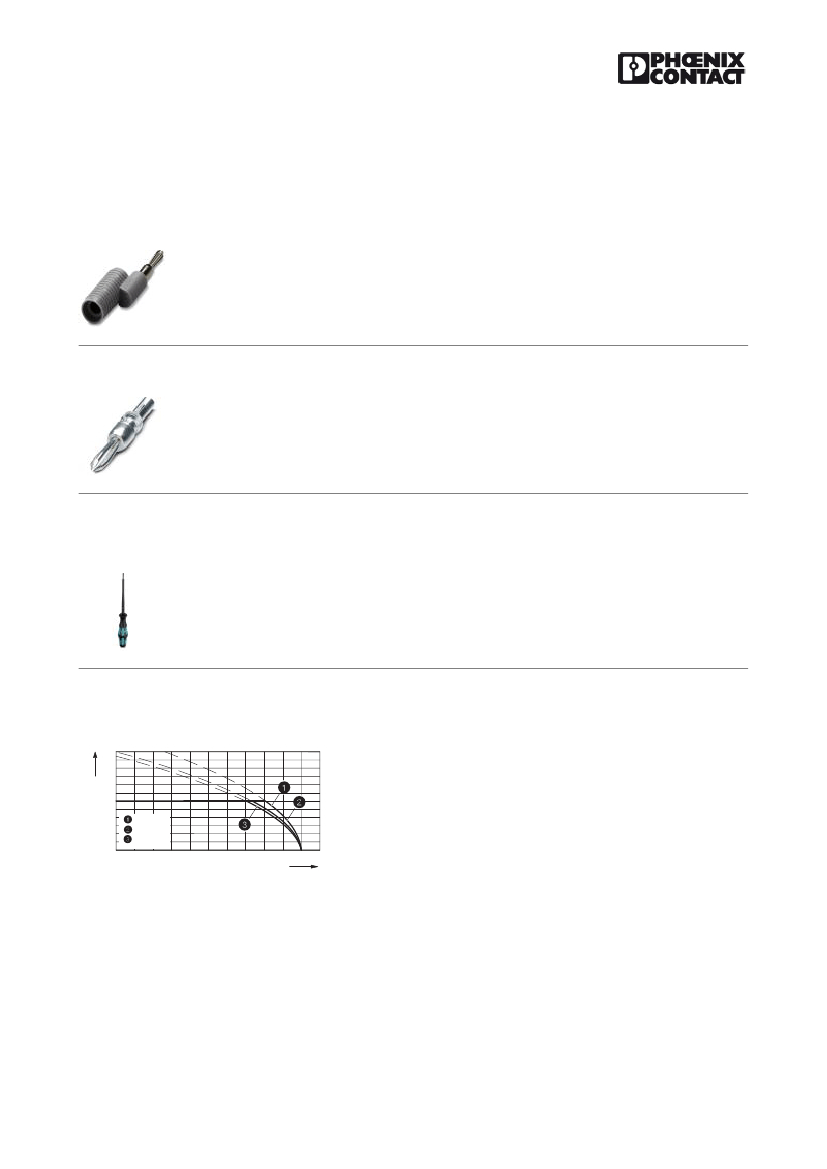

Reducing plug - RPS - 0201647
Reducing plug, Color: gray
Test plugs - MPS-MT - 0201744
Test plugs
Tools
Screwdriver - SZS 0,6X3,5 - 1205053
Actuation tool, for ST terminal blocks, insulated, also suitable for use as a bladed screwdriver, size: 0.6 x
3.5 x 100 mm, 2-component grip, with non-slip grip
Drawings
Diagram
24
22
20
18
16
14
12
10
8
6
4
2
0
0
Stromstärke [A]
= 2-pos.
= 5-pos.
= 16-pos.
20
40
60
80
100
Umgebungstemperatur [°C]
Type: FKC 2,5/...-ST-5,08-RF with FKICS 2,5/...-STD-5,08-RN
