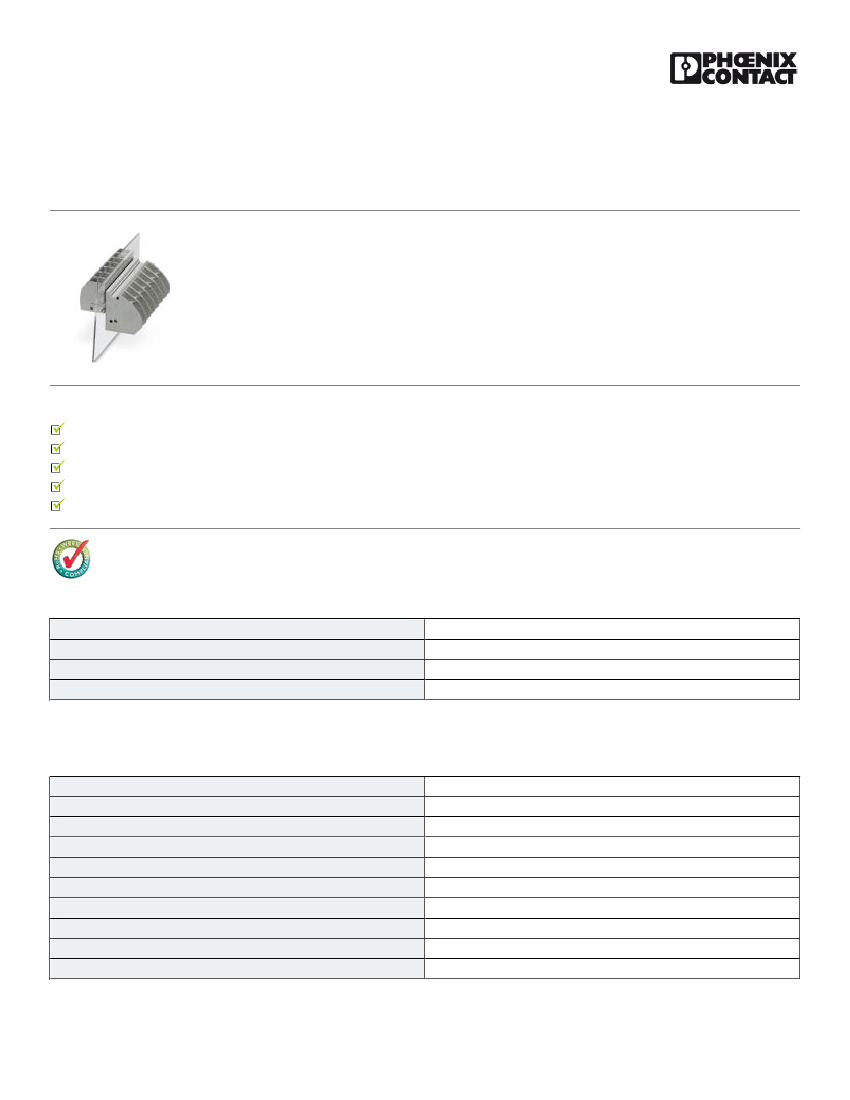

Bolt connection terminal block - RWOV 5-POT - 3056310
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://download.phoenixcontact.com)
Bolt connection terminal block, Connection method: Bolt connection, Load current : 76 A, Cross section: 0.1
mm² - 16 mm², AWG 26 - 6, Connection direction of the conductor to plug-in direction: 90 °, Width: 16.3 mm,
Color: gray
Product Features
Easy grouping with engagement pin versions
Both terminal halves can be easily assembled by simply snapping them together
Spring-loaded spacers protect the bolt connection against loosening
Molded versions ensure maximum tightness of seal
Automatic compensation of the panel thickness via the snap principle integrated in the insulation housing
Key commercial data
Packing unit
Weight per Piece (excluding packing)
Custom tariff number
Country of origin
11
30.0 GRM
85369010
China
Technical data
General
Number of levels
Number of connections
Color
Insulating material
Inflammability class according to UL 94
Rated surge voltage
Pollution degree
Surge voltage category
Insulating material group
Connection in acc. with standard
1
2
gray
PA
V0
8 kV
3
III
I
IEC 60947-7-1
20.11.2013 Page 1 / 5
https://www.phoenixcontact.com/us/products/3056310
Bolt connection terminal block - RWOV 5-POT - 3056310
Technical data
General
Nominal current I
N
Nominal voltage U
N
Open side panel
Number of positions
76 A
1000 V
ja
1
Dimensions
Width
16.3 mm
Connection data
Note
Connection side
Connection method
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section stranded min.
Conductor cross section stranded max.
Conductor cross section AWG/kcmil min.
Conductor cross section AWG/kcmil max
Screw thread
Tightening torque, min
Tightening torque max
Connection bolts
Level 1 above 1 below 1
Bolt connection
0.1 mm²
16 mm²
0.1 mm²
16 mm²
26
6
M5
2.5 Nm
3 Nm
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
27141111
27141111
27141134
27141134
27141134
27141134
27141134
ETIM
ETIM 3.0
ETIM 4.0
ETIM 5.0
EC001283
EC001283
EC001283
20.11.2013 Page 2 / 5
https://www.phoenixcontact.com/us/products/3056310
Bolt connection terminal block - RWOV 5-POT - 3056310
Classifications
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
30211811
39121410
39121410
39121410
39121410

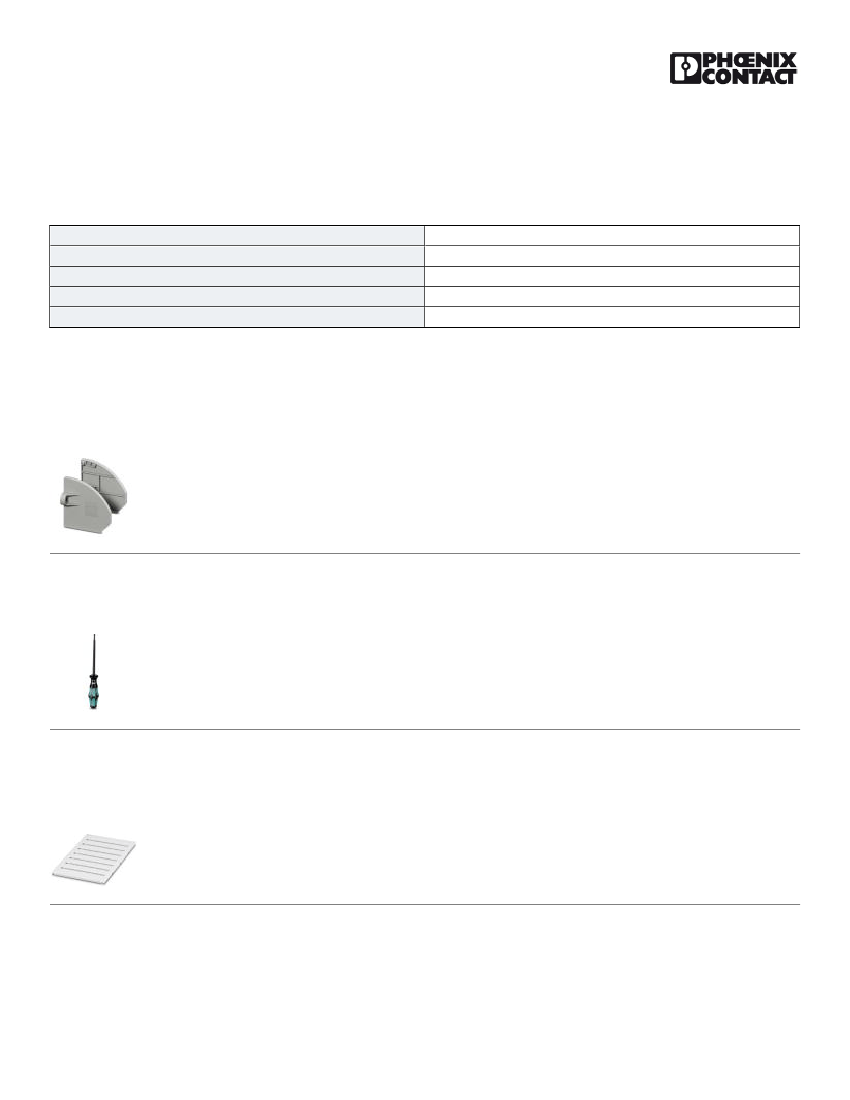

Accessories
Accessories
Flange
Flange cover - RWV 5-F - 3075317
Flange cover, Color: gray
Screwdriver tools
Screwdriver - SZS 1,0X6,5 VDE - 1205079
Screwdriver, slot-headed, VDE insulated, size: 1.0 x 6.5 x 150 mm, 2-component grip, with non-slip grip
Terminal marking
Marker for terminal blocks - UC-TM 12 - 0819194
Marker for terminal blocks, Sheet, white, Unlabeled, Can be labeled with: BLUEMARK CLED, BLUEMARK LED, Plotter,
Mounting type: Snap into tall marker groove, For terminal block width: 12 mm, Lettering field: 11.45 x 10.5 mm
20.11.2013 Page 3 / 5
https://www.phoenixcontact.com/us/products/3056310
Bolt connection terminal block - RWOV 5-POT - 3056310

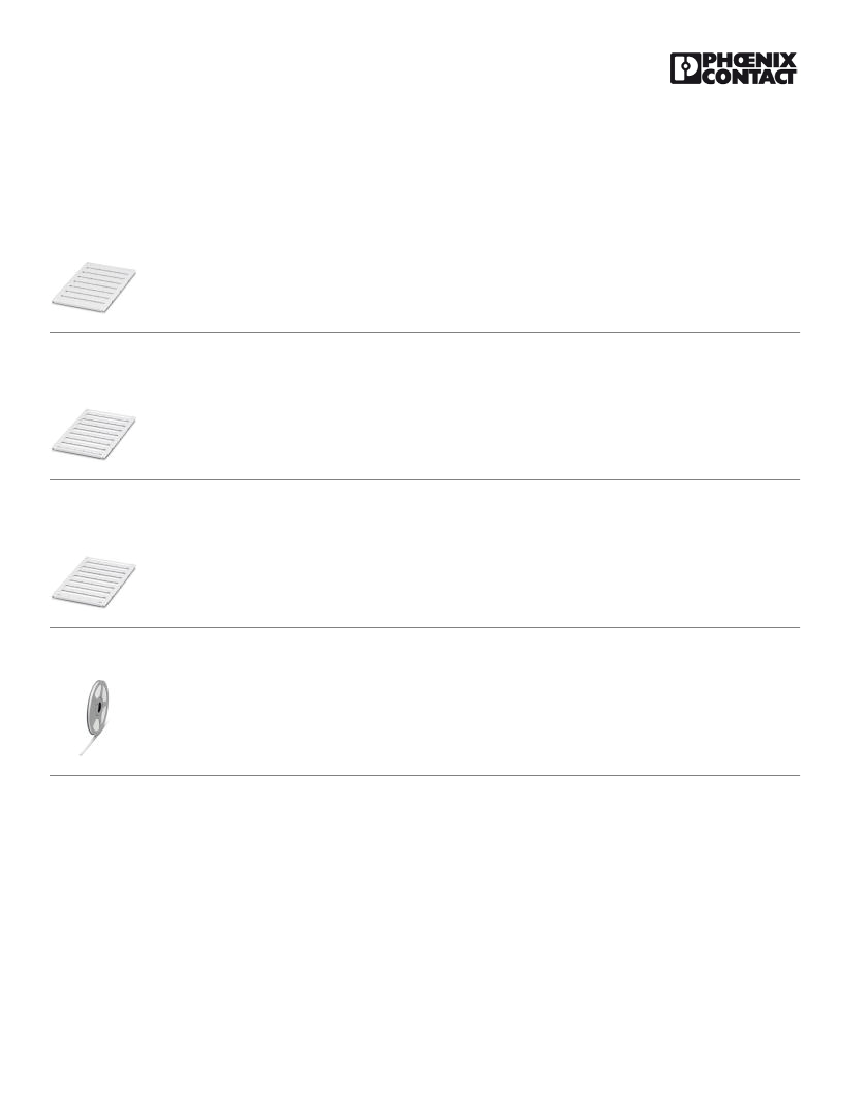

Accessories
Marker for terminal blocks - UC-TM 16 - 0819217
Marker for terminal blocks, Sheet, white, Unlabeled, Can be labeled with: BLUEMARK CLED, BLUEMARK LED, Plotter,
Mounting type: Snap into tall marker groove, For terminal block width: 16 mm, Lettering field: 15.45 x 10.5 mm
Marker for terminal blocks - UC-TMF 12 - 0819233
Marker for terminal blocks, Sheet, white, Unlabeled, Can be labeled with: BLUEMARK CLED, BLUEMARK LED, Plotter,
Mounting type: Snap into flat marker groove, For terminal block width: 12 mm, Lettering field: 11.45 x 5.1 mm
Marker for terminal blocks - UC-TMF 16 - 0819262
Marker for terminal blocks, Sheet, white, Unlabeled, Can be labeled with: BLUEMARK CLED, BLUEMARK LED, Plotter,
Mounting type: Snap into flat marker groove, For terminal block width: 16 mm, Lettering field: 15.45 x 5.1 mm
Marker for terminal blocks - TMT (EX9,5)R - 0828295
Marker for terminal blocks, Roll, white, Unlabeled, Can be labeled with: THERMOMARK ROLL, THERMOMARK X,
THERMOMARK S1.1, Mounting type: Snap into universal marker groove, Snap into flat marker groove, Lettering field:
9.5 x 50000 mm
Drawings
20.11.2013 Page 4 / 5
https://www.phoenixcontact.com/us/products/3056310
Bolt connection terminal block - RWOV 5-POT - 3056310
Dimensioned drawing
28,7
45,7
16,3
10 17,8
Dimensioned drawing
14,4
Ø4,3
37,1
18,2
46,2
7,8
16,3
16,45*
1-6
© Phoenix Contact 2013 - all rights reserved
http://www.phoenixcontact.com
20.11.2013 Page 5 / 5
