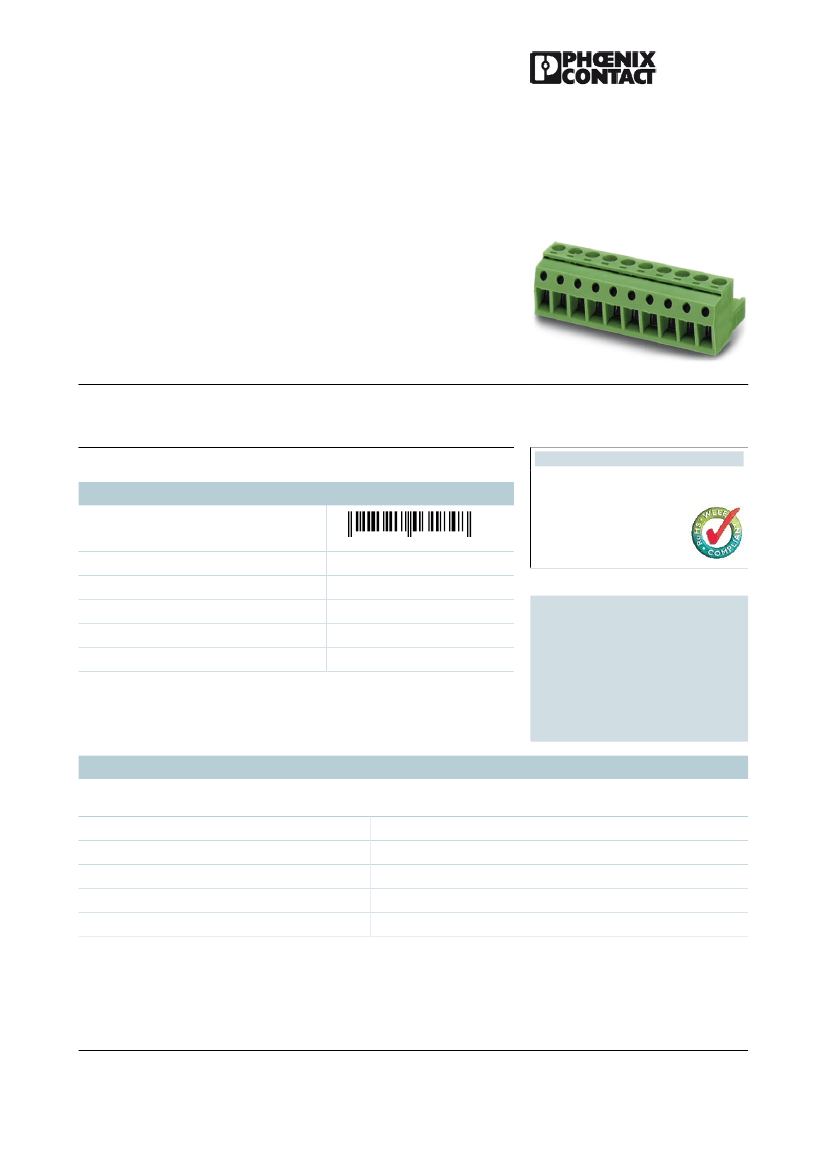

MSTBP 2,5/ 6-ST
Order No.: 1765810
The figure shows a 10-position version of the product
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1765810
Plug component, Nominal current: 12 A, Rated voltage (III/2): 320 V,
Number of positions: 6, Pitch: 5 mm, Color: green, Metal surface: Sn
Product notes
Commercial data
GTIN (EAN)
4
017918
031848
WEEE/RoHS-compliant since:
01/01/2003
Note
sales group
Pack
Customs tariff
Catalog page information
Made-to-order
E111
50 pcs.
85366990
Page 199 (CC-2009)
http://
www.download.phoenixcontact.com
Please note that the data given
here has been taken from the
online catalog. For comprehensive
information and data, please refer
to the user documentation. The
General Terms and Conditions of
Use apply to Internet downloads.
Technical data
Dimensions / positions
Pitch
Dimension a
Number of positions
Screw thread
Tightening torque, min
5 mm
25 mm
6
M3
0.5 Nm
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 1 / 6
Jan 28, 2011
MSTBP 2,5/ 6-ST
Order No.: 1765810
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1765810
Tightening torque max
Technical data
Range of articles
Insulating material group
Rated surge voltage (III/3)
Rated surge voltage (III/2)
Rated surge voltage (II/2)
Rated voltage (III/2)
Rated voltage (II/2)
Connection in acc. with standard
Nominal current I
N
Nominal voltage U
N
Nominal cross section
Maximum load current
Insulating material
Inflammability class acc. to UL 94
Internal cylindrical gage
Stripping length
Nominal voltage, UL/CUL Use Group B
Nominal current, UL/CUL Use Group B
Nominal voltage, UL/CUL Use Group D
Nominal current, UL/CUL Use Group D
Connection data
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section stranded min.
Conductor cross section stranded max.
Conductor cross section stranded, with ferrule
without plastic sleeve min.
Conductor cross section stranded, with ferrule
without plastic sleeve max.
Conductor cross section stranded, with ferrule
with plastic sleeve min.
Conductor cross section stranded, with ferrule
with plastic sleeve max.
Conductor cross section AWG/kcmil min.
0.6 Nm
MSTBP 2,5/..-ST
I
4 kV
4 kV
4 kV
320 V
630 V
EN-VDE
12 A
250 V
2.5 mm²
12 A (with 2.5 mm conductor cross section)
PA
V0
A3
7 mm
250 V
12 A
300 V
10 A
2
0.2 mm²
2.5 mm²
0.2 mm²
2.5 mm²
0.25 mm²
2.5 mm²
0.25 mm²
2.5 mm²
24
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 2 / 6
Jan 28, 2011
MSTBP 2,5/ 6-ST
Order No.: 1765810
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1765810
Conductor cross section AWG/kcmil max
2 conductors with same cross section, solid min.
2 conductors with same cross section, solid max.
2 conductors with same cross section, stranded
min.
2 conductors with same cross section, stranded
max.
2 conductors with same cross section, stranded,
ferrules without plastic sleeve, min.
2 conductors with same cross section, stranded,
ferrules without plastic sleeve, max.
2 conductors with same cross section, stranded,
TWIN ferrules with plastic sleeve, min.
2 conductors with same cross section, stranded,
TWIN ferrules with plastic sleeve, max.
Minimum AWG according to UL/CUL
Maximum AWG according to UL/CUL
Certificates / Approvals
12
0.2 mm²
1 mm²
0.2 mm²
1.5 mm²
0.25 mm²
1 mm²
0.5 mm²
1.5 mm²
30
12
Certification
CB, CSA, CUL, GOST, UL, VDE-PZI
Accessories
Item
Plug/Adapter
0201702
0201676
0201715
0201744
0201647
MPS-IH GN
MPS-IH RD
MPS-IH VT
MPS-MT
RPS
Insulating sleeve, Color: green
Insulating sleeve, Color: red
Insulating sleeve, Color: violet
Test plugs
Reducing plug, Color: gray
Designation
Description
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 3 / 6
Jan 28, 2011
MSTBP 2,5/ 6-ST
Order No.: 1765810
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1765810
Additional products
Item
General
0707141
DFK-MSTB 2,5/ 6-G
Plug component, Nominal current: 12 A, Rated voltage (III/2):
320 V, Number of positions: 6, Pitch: 5 mm, Color: green, Metal
surface: Sn, Assembly: Direct mounting, Accessory order no.
5030172 can only be used in conjunction with MSTB 2,5/...ST and
MSTBT 2,5/...ST.
Header, Nominal current: 12 A, Rated voltage (III/2): 320 V,
Number of positions: 6, Pitch: 5 mm, Color: green, Metal surface:
Sn, Assembly: Press-in
Header, Nominal current: 12 A, Rated voltage (III/2): 320 V,
Number of positions: 6, Pitch: 5 mm, Color: green, Metal surface:
Sn, Assembly: Press-in
Header, Nominal current: 10 A, Rated voltage (III/2): 320 V,
Number of positions: 6, Pitch: 5 mm, Color: green, Metal surface:
Sn, Assembly: Soldering, In combination with MVSTB or FKCV
plug components, both an MVSTBW (or FKCVW) and an
MVSTBR plug (or FKCVR) must be used. Combination with
TMSTBP plug components is not possible!
Header, Nominal current: 10 A, Rated voltage (III/2): 320 V,
Number of positions: 6, Pitch: 5 mm, Color: green, Metal surface:
Sn, Assembly: Soldering, The article can be aligned to create
different nos. of positions! In combination with MVSTB or FKCV
plug components, both an MVSTBW (or FKCVW) and an
MVSTBR plug (or FKCVR) must be used. Combination with
TMSTBP plug components is not possible!
Header, Nominal current: 10 A, Rated voltage (III/2): 320 V,
Number of positions: 6, Pitch: 5 mm, Color: green, Metal surface:
Sn, Assembly: Soldering, In combination with MVSTB or FKCV
plug components, both an MVSTBW (or FKCVW) and an
MVSTBR plug (or FKCVR) must be used. Combination with
TMSTBP plug components is not possible!
Header, Nominal current: 10 A, Rated voltage (III/2): 320 V,
Number of positions: 6, Pitch: 5 mm, Color: green, Metal surface:
Sn, Assembly: Soldering, The article can be aligned to create
different nos. of positions! In combination with MVSTB or FKCV
plug components, both an MVSTBW (or FKCVW) and an
MVSTBR plug (or FKCVR) must be used. Combination with
TMSTBP plug components is not possible!
Header, Nominal current: 12 A, Rated voltage (III/2): 320 V,
Number of positions: 6, Pitch: 5 mm, Color: green, Metal surface:
Sn, Assembly: Soldering
Header, Nominal current: 12 A, Rated voltage (III/2): 320 V,
Number of positions: 6, Pitch: 5 mm, Color: green, Metal surface:
Sn, Assembly: Soldering
Designation
Description
1899883
EMSTBA 2,5/ 6-G
1914894
EMSTBVA 2,5/ 6-G
1762732
MDSTB 2,5/ 6-G1
1846551
MDSTBA 2,5/ 6-G
1762884
MDSTBV 2,5/ 6-G1
1845824
MDSTBVA 2,5/ 6-G
1754517
MSTB 2,5/ 6-G
1768228
MSTB 2,5/ 6-G-LA
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 4 / 6
Jan 28, 2011
MSTBP 2,5/ 6-ST
Order No.: 1765810
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1765810
1757514
MSTBA 2,5/ 6-G
Header, Nominal current: 12 A, Rated voltage (III/2): 320 V,
Number of positions: 6, Pitch: 5 mm, Color: green, Metal surface:
Sn, Assembly: Soldering
Header, Nominal current: 12 A, Rated voltage (III/2): 320 V,
Number of positions: 6, Pitch: 5 mm, Color: green, Metal surface:
Sn, Assembly: Soldering
Header, Nominal current: 12 A, Rated voltage (III/2): 320 V,
Number of positions: 6, Pitch: 5 mm, Color: green, Metal surface:
Sn, Assembly: Soldering
Header, Nominal current: 12 A, Rated voltage (III/2): 320 V,
Number of positions: 6, Pitch: 5 mm, Color: green, Metal surface:
Sn, Assembly: Soldering
Header, Nominal current: 12 A, Rated voltage (III/2): 320 V,
Number of positions: 6, Pitch: 5 mm, Color: green, Metal surface:
Sn, Assembly: Soldering
Header, Nominal current: 12 A, Rated voltage (III/2): 320 V,
Number of positions: 6, Pitch: 5 mm, Color: green, Metal surface:
Sn, Assembly: Soldering
Header, Nominal current: 12 A, Rated voltage (III/2): 320 V,
Number of positions: 6, Pitch: 5 mm, Color: green, Metal surface:
Sn, Assembly: Soldering
1770520
MSTBA 2,5/ 6-G-LA
1753518
MSTBV 2,5/ 6-G
1755558
MSTBVA 2,5/ 6-G
1736072
MSTBW 2,5/ 6-G
1769272
SMSTB 2,5/ 6-G
1769845
SMSTBA 2,5/ 6-G
Diagrams/Drawings

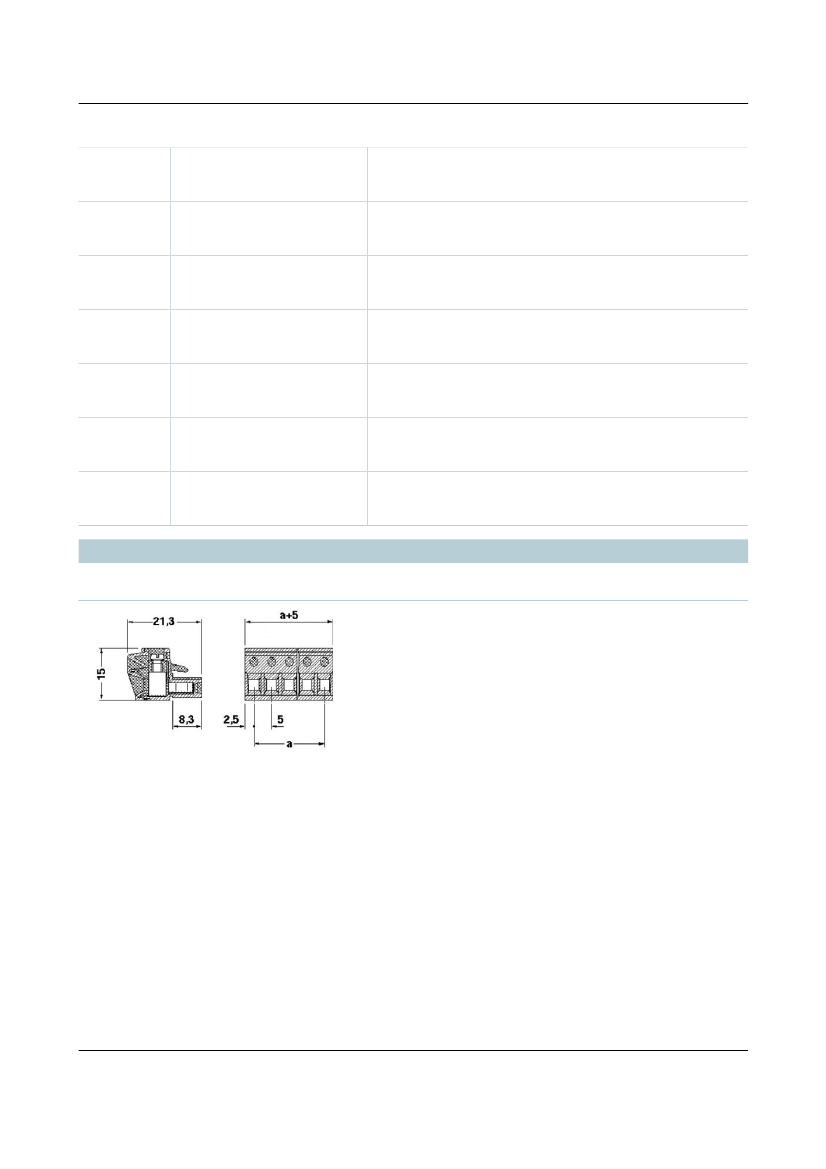

Dimensioned drawing
