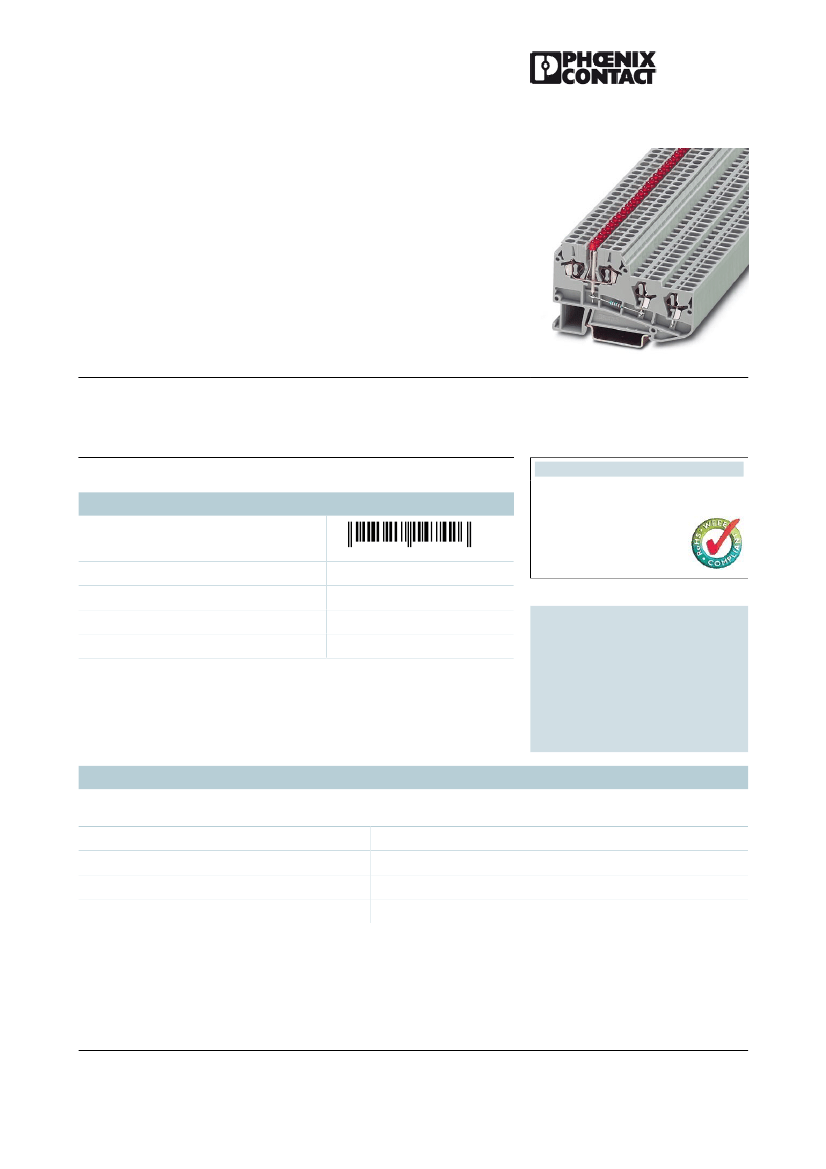

ZDIK 1,5-LA 24RD/O-M
Order No.: 3006496
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=3006496
Feed-through modular terminal block, Cross section: 0.14 mm² - 2.5
mm², AWG: 26 - 14, Connection type: Spring-cage connection,
Width: 5.2 mm, Color: gray, Mounting type: NS 35/7.5, NS 35/15
Product notes
Commercial data
GTIN (EAN)
4
017918
147426
WEEE/RoHS-compliant since:
09/01/2006
sales group
Pack
Customs tariff
Catalog page information
A634
50 pcs.
85369010
Page 151 (CL-2005)
http://
www.download.phoenixcontact.com
Please note that the data given
here has been taken from the
online catalog. For comprehensive
information and data, please refer
to the user documentation. The
General Terms and Conditions of
Use apply to Internet downloads.
Technical data
General
Number of levels
Number of connections
Color
Insulating material
3
4
gray
PA
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 1 / 5
Feb 25, 2011
ZDIK 1,5-LA 24RD/O-M
Order No.: 3006496
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=3006496
Inflammability class acc. to UL 94
Dimensions
Width
Length
Height NS 35/7.5
Height NS 35/15
Technical data
Rated surge voltage
Pollution degree
Surge voltage category
Insulating material group
Connection in acc. with standard
Nominal current I
N
Nominal voltage U
N
Connection data
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section stranded min.
Conductor cross section stranded max.
Conductor cross section AWG/kcmil min.
Conductor cross section AWG/kcmil max
Conductor cross section stranded, with ferrule
without plastic sleeve min.
Conductor cross section stranded, with ferrule
without plastic sleeve max.
Conductor cross section stranded, with ferrule
with plastic sleeve min.
Conductor cross section stranded, with ferrule
with plastic sleeve max.
Type of connection
Stripping length
Certificates / Approvals
V0
5.2 mm
73.5 mm
48.5 mm
56.5 mm
4 kV
3
III
I
IEC / EN
17.5 A
250 V
0.14 mm²
2.5 mm²
0.14 mm²
1.5 mm²
26
14
0.25 mm²
1.5 mm²
0.25 mm²
1.5 mm²
Spring-cage connection
10 mm
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 2 / 5
Feb 25, 2011
ZDIK 1,5-LA 24RD/O-M
Order No.: 3006496
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=3006496
Certification
CUL, UL
Accessories
Item
Assembly
3022218
CLIPFIX 35
Snap-on end bracket, for 35 mm NS 35/7.5 or NS 35/15 DIN
rail, can be fitted with Zack strip ZB 8 and ZB 8/27, terminal strip
marker KLM 2 and KLM, width: 9.5 mm, color: gray
End cover, Length: 73.5 mm, Width: 2 mm, Color: gray
End clamps, for supporting the ends of double-level and three-
level terminal blocks, width: 10 mm, color: gray
DIN rail, material: Copper, unperforated, height 7.5 mm, width 35
mm, length: 2 m
DIN rail, material: Steel, galvanized and passivated with a thick
layer, perforated, height 7.5 mm, width 35 mm, length: 2 m
DIN rail, material: Steel, unperforated, height 7.5 mm, width 35
mm, length: 2 m
DIN rail, deep-drawn, high profile, unperforated, 1.5 mm thick,
material: Aluminum, height 15 mm, width 35 mm, length 2 m
DIN rail, material: Copper, unperforated, 1.5 mm thick, height 15
mm, width 35 mm, length: 2 m
DIN rail, material: Steel, perforated, height 15 mm, width 35 mm,
length: 2 m
DIN rail, material: Steel, unperforated, height 15 mm, width 35
mm, length: 2 m
DIN rail, material: Steel, unperforated, 2.3 mm thick, height 15
mm, width 35 mm, length: 2 m
Separating plate, Length: 14 mm, Height: 16 mm, Color: gray
Designation
Description
3006593
1201413
0801762
0801733
0801681
1201756
1201895
1201730
1201714
1201798
2770215
Bridges
3006548
3006771
3006535
3006551
3006577
3006768
3006564
3006580
D-ZDIK 1,5
E/UK 1
NS 35/ 7,5 CU UNPERF
2000MM
NS 35/ 7,5 PERF 2000MM
NS 35/ 7,5 UNPERF 2000MM
NS 35/15 AL UNPERF 2000MM
NS 35/15 CU UNPERF 2000MM
NS 35/15 PERF 2000MM
NS 35/15 UNPERF 2000MM
NS 35/15-2,3 UNPERF 2000MM
TS-KK 3
FBSTB 10-ZDIK BU
FBSTB 10-ZDIK GNYE
FBSTB 10-ZDIK GY
FBSTB 10-ZDIK RD
FBSTB 80-ZDIK BU
FBSTB 80-ZDIK GNYE
FBSTB 80-ZDIK GY
FBSTB 80-ZDIK RD
Plug-in bridge, Number of positions: 10, Color: blue
Plug-in bridge, Number of positions: 10, Color: green-yellow
Plug-in bridge, Number of positions: 10, Color: gray
Plug-in bridge, Number of positions: 10, Color: red
Plug-in bridge, Number of positions: 80, Color: blue
Plug-in bridge, Number of positions: 80, Color: green-yellow
Plug-in bridge, Number of positions: 80, Color: green
Plug-in bridge, Number of positions: 80, Color: red
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 3 / 5
Feb 25, 2011
ZDIK 1,5-LA 24RD/O-M
Order No.: 3006496
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=3006496
Marking
0803647
ZBFM 5:SO/CMS
Special printing, Zack marker sheet, flat, 120-section, divisible,
marking according to customer requirements
Plug/Adapter
3031021
3031013
Tools
1204517
SZF 1-0,6X3,5
Actuation tool, for ST terminal blocks, also suitable for use as a
bladed screwdriver, size: 0.6 x 3.5 x 100 mm, 2-component grip,
with non-slip grip
ISH ZDIK 1,5/0,2
ISH ZDIK 1,5/0,5
Insulation stop sleeve
Insulation stop sleeve
Diagrams/Drawings

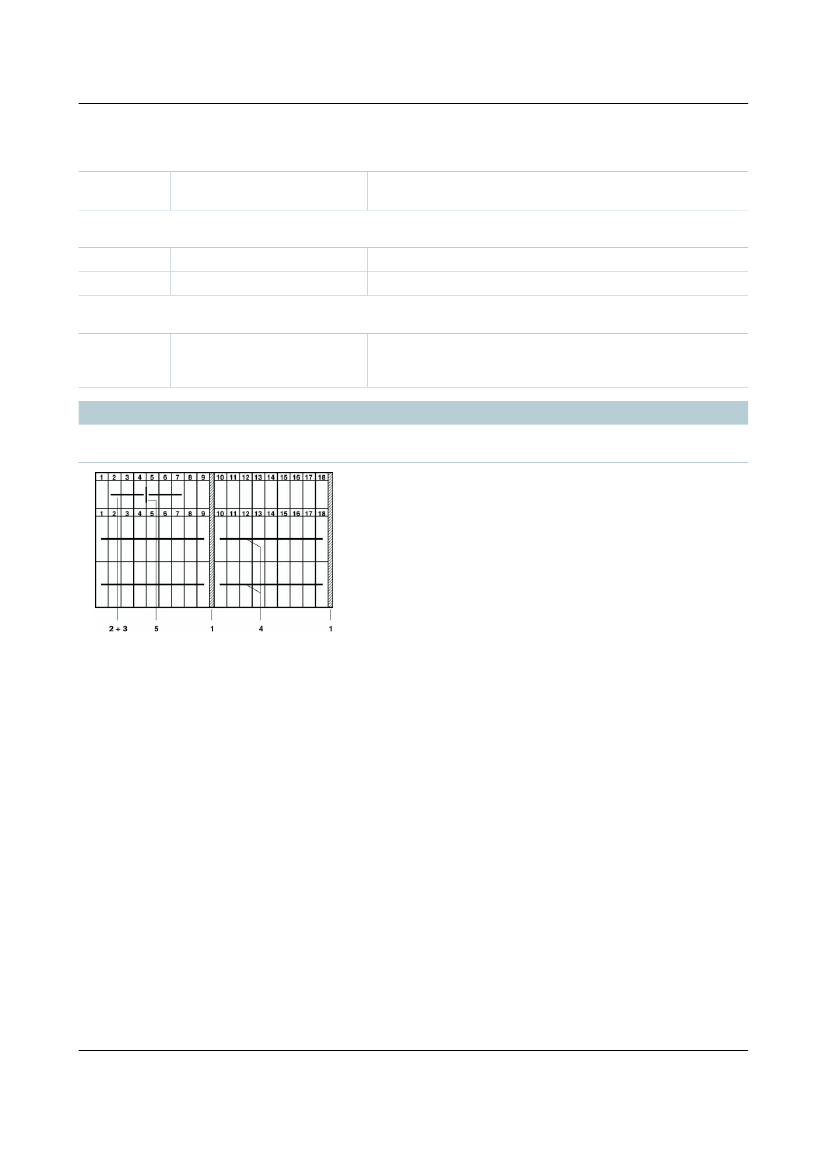

Circuit diagram
1 = cover
2 = fixed bridge
3 = plug-in bridge, for cross-connections in the terminal center
4 = plug-in bridge
5 = separating plate
