3296P-LTC-202

Description
Trimmer, Cermet, 0.5W, 2000ohm, 10% +/-Tol, -20,20ppm/Cel, 25 Turn(s), 3819, 3/8 INCH, SQUARE, 3 PINS
CategoryPassive components    The resistor
File Size154KB,1 Pages
ManufacturerBourns
Websitehttp://www.bourns.com
Download Datasheet Parametric View All

3296P-LTC-202 Overview

Trimmer, Cermet, 0.5W, 2000ohm, 10% +/-Tol, -20,20ppm/Cel, 25 Turn(s), 3819, 3/8 INCH, SQUARE, 3 PINS

3296P-LTC-202 Parametric

Parameter NameAttribute value
Package shapeRECTANGULAR PACKAGE
method of packingTUBE
Terminal surfaceTin/Lead (Sn/Pb)
Terminal shapeWIRE
Actuator directionHORIZONTAL
structureMulti-Turn
Number of terminals3
number of turns25
Actuator typeSCREW
Manufacturer's serial number3296-LTC
Rated temperature70 °C
series3296(LTC)
surface mountNO
JESD-609 codee0
Package length9.53 mm
Package width4.83 mm
Lead diameter0.51 mm
Lead length6.4 mm
Package height10.03 mm
Temperature Coefficient20 ppm/°C
Installation featuresTHROUGH HOLE MOUNT
Package formPCB Mount
Rated power dissipation(P)0.5 W
technologyCERMET
Tolerance10%
resistance2000 Ω
resistance lawLINEAR
Resistor typeTRIMMER
size code3819
Minimum operating temperature-55 °C
Maximum operating temperature150 °C
Is it Rohs certified?No
package instruction3/8 INCH, SQUARE, 3 PINS
Reach Compliance CodeNot Compliant
ECCN codeEAR99
Is SamacsysN
YTEOL0
Objectid1660383662
*R
oH
VE S CO
AV R M
AI SIO PL
LA N IA
BL S NT
E

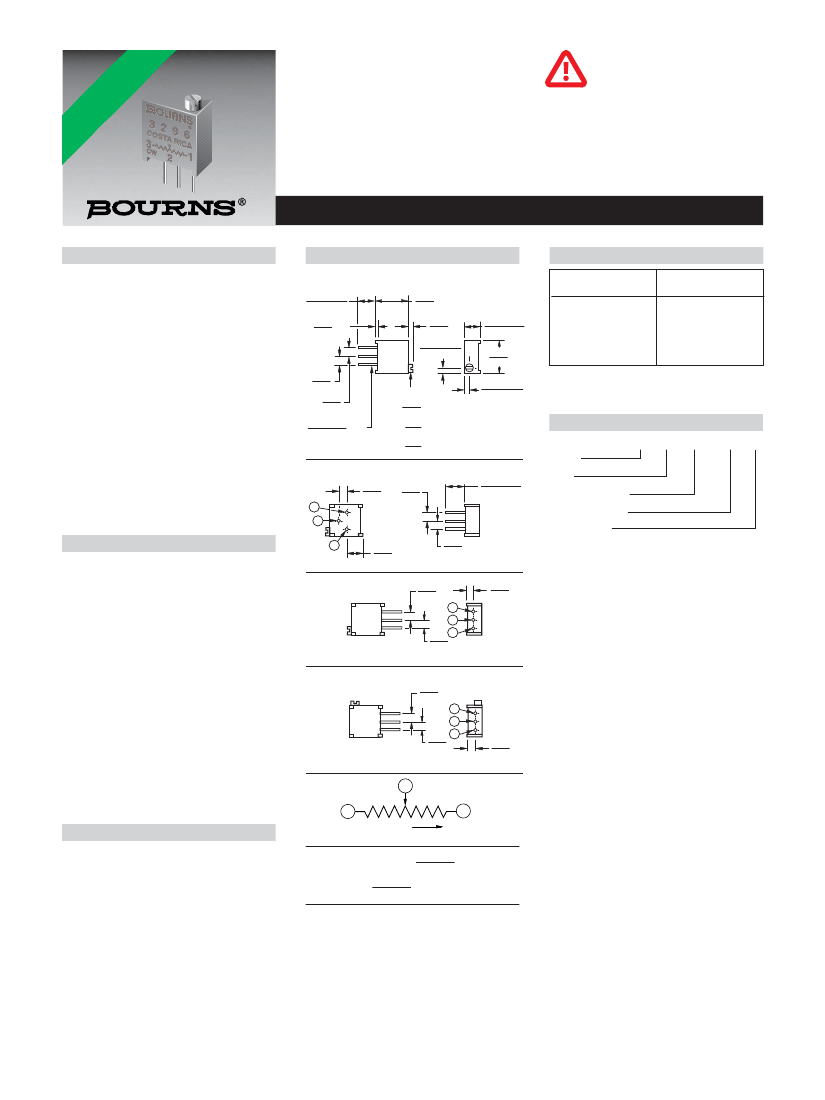

Features
Low TCR
Multiturn / Cermet / Industrial / Sealed
3 terminal styles
Chevron seal design
Mounting hardware available (H-117P)
RoHS compliant* version available
Model 3296-LTC is obsolete and not
recommended for new designs.
Model 3296
is preferred.
Applications
Rheostat applications with wiper currents
less than 25 microamps
Process control instrumentation
Power supplies
3296-LTC - 3/8 ” Square Trimpot
®
Trimming Potentiometer
Electrical Characteristics
Standard Resistance Range
.................................. 2K to 25K ohms
(see standard resistance table)
Resistance Tolerance ........... ±10 % std.
(tighter tolerance available)
Absolute Minimum Resistance
........................... 1 % or 2 ohms max.
(whichever is greater)
Contact Resistance Variation
........................ 1.0 % or 3 ohms max.
(whichever is greater)
Adjustability
Voltage .................................. ±0.01 %
Resistance ............................ ±0.05 %
Resolution ................................... Infinite
Insulation Resistance ............... 500 vdc.
1,000 megohms min.
Dielectric Strength
Sea Level................................ 900 vac
70,000 Feet ............................ 350 vac
Effective Travel .................25 turns nom.
Environmental Characteristics
Power Rating (300 volts max.)
70 °C ...................................... 0.5 watt
125 °C ....................................... 0 watt
Temperature Range
............................... -55 °C to +150 °C
Temperature Coefficient
End to End ...................... ±20 ppm/°C
Through the Wiper .......... ±50 ppm/°C
Seal Test ......................85 °C Fluorinert†
Humidity .......MIL-STD-202 Method 103
96 hours
(2 %
ΔTR,
10 Megohms IR)
Vibration ....... 20 G (1 %
ΔTR;
1 %
ΔVR)
Shock ......... 100 G (1 %
ΔTR;
1 %
ΔVR)
Load Life
............. 1,000 hours 0.5 watt @ 70 °C
(3 %
ΔTR;
3 % or 3 ohms,
whichever is greater, CRV)
Rotational Life .......................200 cycles
(4 %
ΔTR;
3 % or 3 ohms,
whichever is greater, CRV)
Physical Characteristics
Torque............................. 3.0 oz-in. max.
Mechanical Stops ................. Wiper idles
Terminals .......................Solderable pins
Weight ....................................... 0.03 oz.
Marking........................... Manufacturer’s
trademark, resistance code,
wiring diagram, date code,
manufacturer’s model
number and style
Wiper .................................50 % ±10 %
Flammability ..........................U.L. 94V-0
Standard Packaging .....50 pcs. per tube
Adjustment Tool..............................H-90
Product Dimensions
Common Dimensions
Standard Resistance Table
Resistance
(Ohms)
1,000
2,000
5,000
10,000
20,000
25,000
Resistance
Code
102
202
502
103
203
253
6.40 ± 1.32
(.252 ± .052)
.38
MIN.
(.015)
10.03
(.395)
1.52
(.060)
1.27 ± 0.1
(.050 ± .004)
4.83
± .13
(.190
± .005)
9.53
(.375)
1.27 ± 0.1
(.050 ± .004)
2.54
(.100)
2.54
(.100)
E
T
E
L
O
S
B
O
3296P
.51
± .03
DIA.
(.020 ± .001)
ADJ. SLOT
2.19 DIA.
(.086)
.56
WIDE
X
(.022)
.76
DEEP
X
(.030)
Popular values listed in boldface. Special
resistances available.
How To Order
3296 W - LTC - 103 LF
Model
Style
2.54
(.100)
2.54
(.100)
8.26
± .64
(.325
± .025)
Product Indicator
Resistance Code
Terminations
LF =
100 % Tin-plated (RoHS compliant)
Blank = 90 % Tin / 10 % Lead-plated
(Standard)
Consult factory for other available options.
3
2
1
5.23
(.206)
2.54
(.100)
3296W
2.54
(.100)
2.41
(.095)
3
2
2.54
1
(.100)
3296X
2.54
(.100)
3
2
2.54
1
(.100)
2.41
(.095)
2
CCW
WIPER
1
CLOCKWISE
3
CW
DIMENSIONS:
TOLERANCES: ±
0.25
(.010)
MM
(INCHES)
EXCEPT WHERE NOTED
NOTE: TCR through the wiper applies when
40 % or more of the resistance element is in the
circuit.
*RoHS Directive 2002/95/EC Jan 27 2003 including Annex.
“Trimpot” is a registered trademark of Bourns, Inc.
†“Fluorinert” is a registered trademark of 3M Co.
Specifications are subject to change without notice.
Customers should verify actual device performance in their specific applications.
REV. 11/09
