B165-0311-108-Z: DescriptionBoard Connector, 12 Contact(s), 4 Row(s), Female, Straight, 0.079 inch Pitch, Solder Terminal, Plug; CategoryThe connector The connector; File Size374KB，1 Pages; ManufacturerSMP Technology Inc.

Download Datasheet Parametric View All

B165-0311-108-Z Overview

Board Connector, 12 Contact(s), 4 Row(s), Female, Straight, 0.079 inch Pitch, Solder Terminal, Plug

B165-0311-108-Z Parametric

Parameter Name	Attribute value
Guideline	UL
Objectid	304394601
Reach Compliance Code	Unknown
ECCN code	EAR99
Is Samacsys	N
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact resistance	30 mΩ
Installation method	STRAIGHT
Contact point gender	FEMALE
Installation type	BOARD
PCB row number	4
Rated current (signal)	1 A
insulator material	GLASS FILLED POLYAMIDE
Total number of contacts	12
Other features	ROHS COMPLIANT
Contact to complete cooperation	AU
Number of rows loaded	4
Terminal pitch	2.0066 mm
body width	0.315 inch
subject depth	0.25 inch
body length	0.241 inch
Terminal length	0.09 inch
Mixed contacts	NO
Number of connectors	ONE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.0066 mm
Contact completed and terminated	TIN
Contact material	PHOSPHOR BRONZE
Plug contact pitch	0.079 inch
Plating thickness	15u inch
Termination type	SOLDER
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Match contact row spacing	0.079 inch
Dielectric withstand voltage	500VAC V
Filter function	NO
Insulation resistance	1000000000 Ω
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C

Preview

Download Datasheet

View All

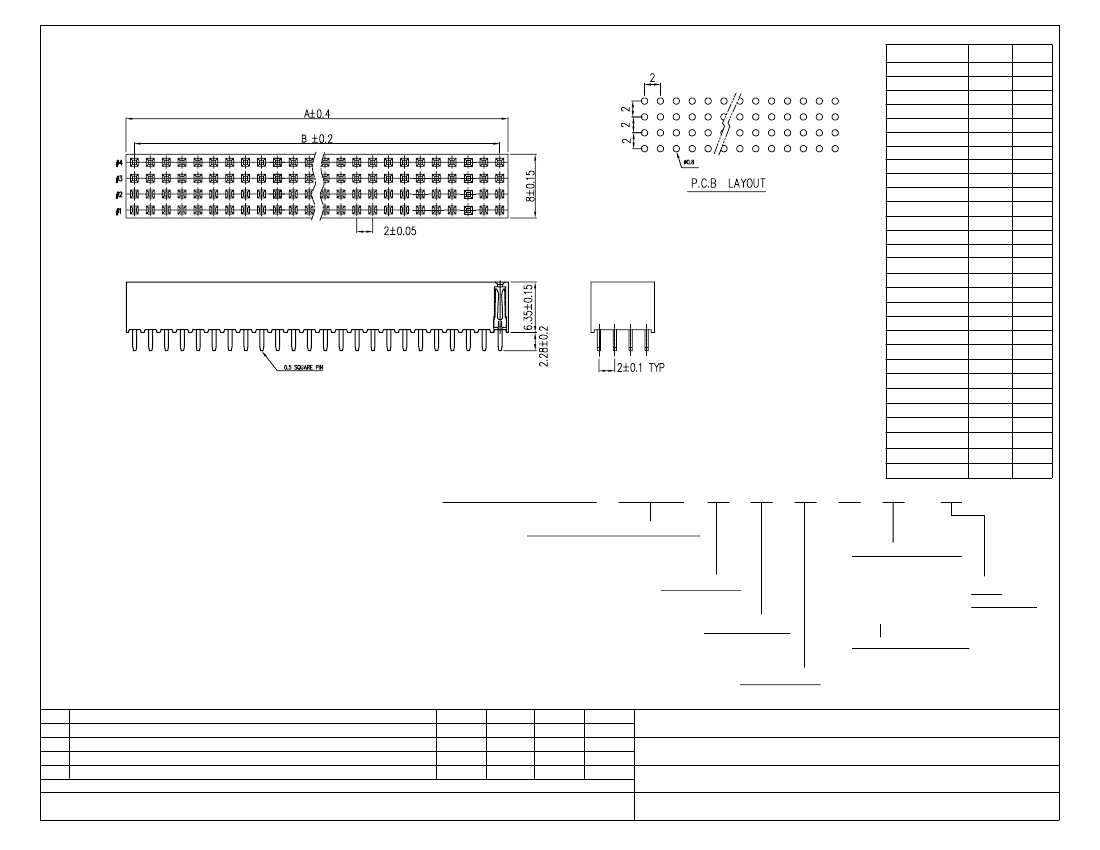

DIMENSION(mm)

No. PINS/Row

4#02

4#03

4#04

4#05

4#06

4#07

4#08

4#09

4#10

4#11

4#12

4#13

4#14

4#15

4#16

4#17

4#18

4#19

4#20

4#21

4#22

4#23

4#24

4#25

4#26

4#27

4#28

4#29

4#30

4.11

6.11

8.11

10.11

12.11

14.11

16.11

18.11

20.11

22.11

24.11

26.11

28.11

30.11

32.11

34.11

36.11

38.11

40.11

42.11

44.11

46.11

48.11

50.11

52.11

54.11

56.11

58.11

60.11

HOW TO ORDER:

ELECTRICAL:

CURRENT RATING: 1A

CONTACT RESISTANCE: < 30m

Ω

INSULATOR RESISTANCE: > 1000M

Ω

DIELECTRIC WITHSTANDING VOLTAGE: 500V AC FOR 1 MIN.

OPERATING TEMPERATURE: -55° C TO +105° C

NUMBER OF CONTACTS / ROW:

3 CONTACTS (Min.)

30 CONTACTS (Max.)

ORIENTATION:

1 - STRAIGHT

TAIL LENGTHS:

1 - SOLDER TAIL

BODY HEIGHT:

1 - 6.35mm

MATERIAL:

PLATING OVERALL:

0 - FULL TIN

1 - FULL Au

RoHS

3 - 10u" Au

COMPLIANT

4 - 15u" Au

5 - 30u" Au

SELECTIVE PLATING:

6 - Au CONTACT AREA/TIN TAIL

7 - 10u" Au CONTACT AREA/TIN TAIL

8 - 15u" Au CONTACT AREA/TIN TAIL

9 - 30u" Au CONTACT AREA/TIN TAIL

INSULATOR: NYLON 6T & 30% G.F.

CONTACT: PHOSPHOR BRONZE

MECHANICAL:

Rev

0 Issued

RETENTION FORCE: 450g MIN.

Drawn Checked Approved

Date

WHS

S.M.

9/07/06

SMP TECHNOLOGY, INC.

4 Row 2mm Receptacle, Straight Orientation, Solder Tail

SCALE: N/A

TOL. DEC.

.X +/- 0.25

.XX +/- 0.13

.XXX +/- 0.08

ANGLE +/- 3°

UNIT: mm

SERIES:

B165-XX11-10X-Z

Pg: 1
